Indoor Glass Elevator (250kg capacity)

Installing an elevator in a narrow townhouse often raises concerns for homeowners regarding space requirements and structural integrity. This is especially true for families with elderly members suffering from joint pain or active young children, where an elevator is not only convenient but also a crucial safety solution. A 250kg glass elevator is currently an optimal choice due to its ability to utilize natural light, keeping the house airy and luxurious.

However, is a 250KG glass-walled elevator really suitable for every home?

Why is there such a significant price difference between different suppliers?

This article will help you understand more before deciding to spend money on this expensive piece of furniture.

What is a 250kg Glass Elevator and Who Is It Suitable For?

The 250kg glass elevator is a compact, lightweight home elevator that uses tempered glass walls instead of traditional concrete. The transparent design allows natural light to penetrate through the floors, creating a feeling of a larger space than it actually is.

What does 250KG mean? Why do elevators have kilograms (KG)?

In elevator specifications, "kg" (kilogram) is the unit used to indicate the load capacity – that is, the maximum load capacity of the elevator . Simply put, a 250kg elevator means that each trip, the elevator can carry a total weight of approximately 250kg , equivalent to 2–3 adults .

Classifying by kilogram makes it easier for users to choose the type of ladder that suits their needs, similar to how we distinguish between 1-ton and 2-ton trucks.

This product line is suitable for townhouses with an area under 50m², for families of 3-5 people. With a load capacity of 250kg, enough for 2-3 people per trip, this elevator can meet daily transportation needs without taking up much construction space. More than just a means of transportation, a glass-enclosed elevator enhances the aesthetic value and feng shui of the house. At THANGMAYNIDEC , the 250kg glass elevator line utilizes technology transferred from Nidec Japan , ensuring smooth and durable operation.

What's so great about glass elevators that so many townhouses are "obsessed" with them these days?

Many people often think that all elevators are the same, their main purpose being to make getting around easier. However, in reality, there's a huge difference in the living experience between a traditional stainless steel elevator and a glass elevator. If you're considering installing one, the reasons below will help you understand why glass elevators are becoming increasingly popular among Vietnamese families.

Brighter spaces make a house look bigger and airier.

A 250kg glass elevator allows natural light to spread evenly between floors, so when installed in your home, you will notice a significantly brighter and more spacious feel. This is especially beneficial for townhouses with skylights or open designs, where light can penetrate the glass and distribute to many areas of the house.

The area where the elevator is installed is no longer as dark as when using a traditional elevator, reducing the need to constantly turn on the lights. The space is brighter and feels more spacious, helping you save energy and providing a pleasant, energizing feeling for the whole family every day.

Provides a comfortable feeling and reduces the worry of enclosed spaces.

When using traditional elevators with enclosed cabins, many people, especially the elderly or children, easily feel cramped and even apprehensive about using them. The small space and lack of light also make the experience less pleasant when used daily.

With a 250kg capacity glass elevator, thanks to its transparent design and expansive view, you can observe the surrounding space throughout the journey. This significantly reduces the feeling of being "caught in a box," providing greater comfort, ease, and peace of mind for all family members.

Serving as both an elevator and an interior design highlight for the house.

Beyond its functional purpose of transportation, a glass elevator also serves as a decorative element, enhancing the living space. With its luxurious and modern design, the product easily creates an impressive focal point within the home.

Furthermore, glass elevators offer flexible customization options in terms of color, materials, and design to suit your personal aesthetic preferences. Whether you prefer a modern, minimalist, or neoclassical style, the product can harmonize with the overall design, enhancing the beauty of each area in your home.

A small note: "If the installation location receives a lot of direct sunlight, please prioritize choosing glass with low reflectivity or tinted glass. This choice will not only make the elevator look more elegant but also ensure that it doesn't cause glare or excessive heat for those inside on hot afternoons."

Classification of 250kg Glass Elevators

Classification of Glass Elevators According to Drive Technology

Drive technology is a core factor determining smoothness, lifespan, and long-term operating costs. Currently, there are three common technologies on the market for 250kg capacity glass home elevators.

Cable Pulling Technology

Cable-driven elevators operate on the principle of a motor pulling a system of cables and counterweights, allowing the cabin to move up and down along guide rails. Thanks to the VVVF (variable frequency drive) controller, the speed is precisely controlled at each stop, ensuring a smooth ride and minimizing vibration and jerking during operation.

Currently, cable-driven elevators are divided into two common types: traditional round cables and modern flat (belt) cables .

Round cables are highly durable, have good load-bearing capacity, and are suitable for many common residential construction projects.

Flat cables are an improved version offering smoother operation, better pulley grip, and especially optimizing motor size, making them ideal for specialized products like glass elevators that require high levels of smoothness and aesthetics.

In addition, most modern cable-driven home elevators utilize machine-roomless (MRL) technology. The motor is neatly housed within the elevator shaft, saving construction space, reducing construction costs, and making it suitable for townhouses with limited space.

This technology is recommended by many engineers for family homes due to its practical advantages, such as:

• Smooth operation, low noise level, does not affect daily life.
• Energy savings thanks to the load-balancing counterweight system.
• Compact motor, no machine room required, optimizes installation space for homes with limited area.
• Long lifespan, few malfunctions, simple routine maintenance.
• Suitable for houses with 3-6 floors, meeting the transportation needs of families.
• Standard speed is approximately 60m/min, using stable 3-phase electricity.

Furthermore, for buildings without specific structural limitations, cable-driven elevators – especially those using flat cables combined with machine-roomless technology – are always the optimal choice when installing 250KG glass elevators, thanks to the balance between performance, durability, and aesthetics.

Hydraulic Technology

Hydraulic elevators operate on the principle of pumping oil to create pressure that pushes pistons to raise and lower the cabin. Unlike cable-driven elevators, this system does not use cables or counterweights above the elevator shaft, but moves entirely vertically.

A clear advantage of hydraulic elevators is that they don't require a machine room on the roof, making them ideal for renovation projects or buildings with height restrictions on the upper floors (OH). The machine room can be flexibly located on the ground floor or in the basement, simplifying construction in many practical situations.

However, you should also note a few points when considering this type of elevator. Because there is no counterweight, hydraulic elevators consume more electricity than cable-driven elevators. Additionally, the hydraulic oil system needs regular inspection and maintenance to prevent leaks or performance degradation over time.

Therefore, for elevators with a load capacity of 250KG, hydraulic elevators are suitable for low-rise buildings (maximum 4 floors), short travel distances, and infrequent use. For these types of buildings, this option remains a worthwhile consideration if flexibility in installation is a priority.

Screw Technology

Screw-driven elevators operate using a helical screw mechanism that propels the cabin vertically. This is a specialized technology, not as common as cable-driven or hydraulic systems, but it offers unique advantages in specific situations.

Screw elevators do not require a deep pit, an overhead machine room, and the shaft can be very compact – making them suitable for renovations with strict structural constraints. Operating speeds are typically lower than cable elevators, making them suitable for 2-3 story homes with moderate usage frequency.

Comparison Table of the 3 Most Popular Drive Systems Today

Classification of Elevators by Number of Floors

The number of floors directly affects installation costs and technology selection. A 250kg glass elevator typically serves 2 to 6 stops, specifically:

• 2-4 stories (2-4 stops): Most common for townhouses. Cost-effective and quick to construct.

• 5-6 floors (5-6 stops): Suitable for large townhouses and small villas. Accurate calculation of the elevator shaft height (OH) is required.

Each additional floor entails additional costs for the frame, cables, and elevator shaft height. Therefore, you should survey and clearly determine the number of floors before making any decisions.

Classification by Lens Color

The color of glass is not simply an aesthetic factor. According to feng shui, the color of glass walls affects the flow of energy in the house and the homeowner's fortune. Below are some suggestions to help you choose glass colors according to your elemental sign.

Ultra-Clear Glass - The Most Popular Color

Ultra-clear glass has had iron impurities removed during the manufacturing process, resulting in near-perfect transparency. It does not have the greenish tint of regular tempered glass (this color is pure white and bright).

In terms of feng shui, transparent colors belong to the Water element – ​​compatible with those born under the Water and Wood elements. However, in my personal opinion, this color suits most modern interiors, regardless of element. The main reason is that the light is not colored, making the house look more spacious and naturally bright.

This color is always the first choice. It's suitable for any space and any type of building without looking tacky or visually overwhelming.

Blue or Green Glass - Vitality and Life Force

The color green belongs to the Wood element. It is compatible with the Wood and Fire elements. Homes with children often prefer this color because it evokes a feeling of dynamism, freshness, and youthfulness.

Practical note: blue tones absorb light during the day, but when illuminated at night, they create a beautiful reflective effect. If your stairwell is well-lit, this color will create the most impressive space at night.

Gold or Brown Glass - Prosperity, Stability

Belonging to the Earth element, this color is compatible with Earth and Metal elements. It is often chosen by middle-aged homeowners, families who value tradition, and those who want a space that evokes a sense of abundance and prosperity.

A major advantage of this tone is its warm and luxurious, classic look. It pairs very well with natural wood furniture or cream-colored marble. If your home is going in that direction, then bronze is the most suitable glass color.

Black or Smoke Glasses - Elegant and Sophisticated

The black and smoky tones create a naturally sophisticated, minimalist, and modern look. This is undeniable; a quick glance at the samples in the showroom makes it easy to see.

However, there's something you need to keep in mind: dark glass absorbs light. If the house is already narrow and the elevator shaft is small, using dark glass will make the space feel darker and more cramped, especially during the day. This needs to be compensated for by a good lighting system inside the cabin and along the shaft. If you've already considered this, there's no problem. If not, you need to discuss it beforehand.

In terms of feng shui, black belongs to the Water element - compatible with Water and Wood elements. Incompatible with Earth and Fire elements.

Milky White or Silver Glass - Elegant, Modern

Silver and milky white tones belong to the Metal element – ​​compatible with the Metal and Water elements. These colors are often chosen by homeowners who prefer a minimalist, elegant style, highlighting the sophistication of their aesthetic taste.

Practical advantages: The light, bright tone doesn't darken the space like black glass. It combines well with anodized silver aluminum frames – if you choose a consistent tone from frame to glass, the overall effect will be very harmonious, transforming an ordinary elevator into a work of art.

Summary Table of Glass Colors According to Feng Shui Element

Note: The color of the glass is just one of many feng shui factors to consider. Homeowners should consult a feng shui expert for a comprehensive view that is suitable for the house's orientation and their age.

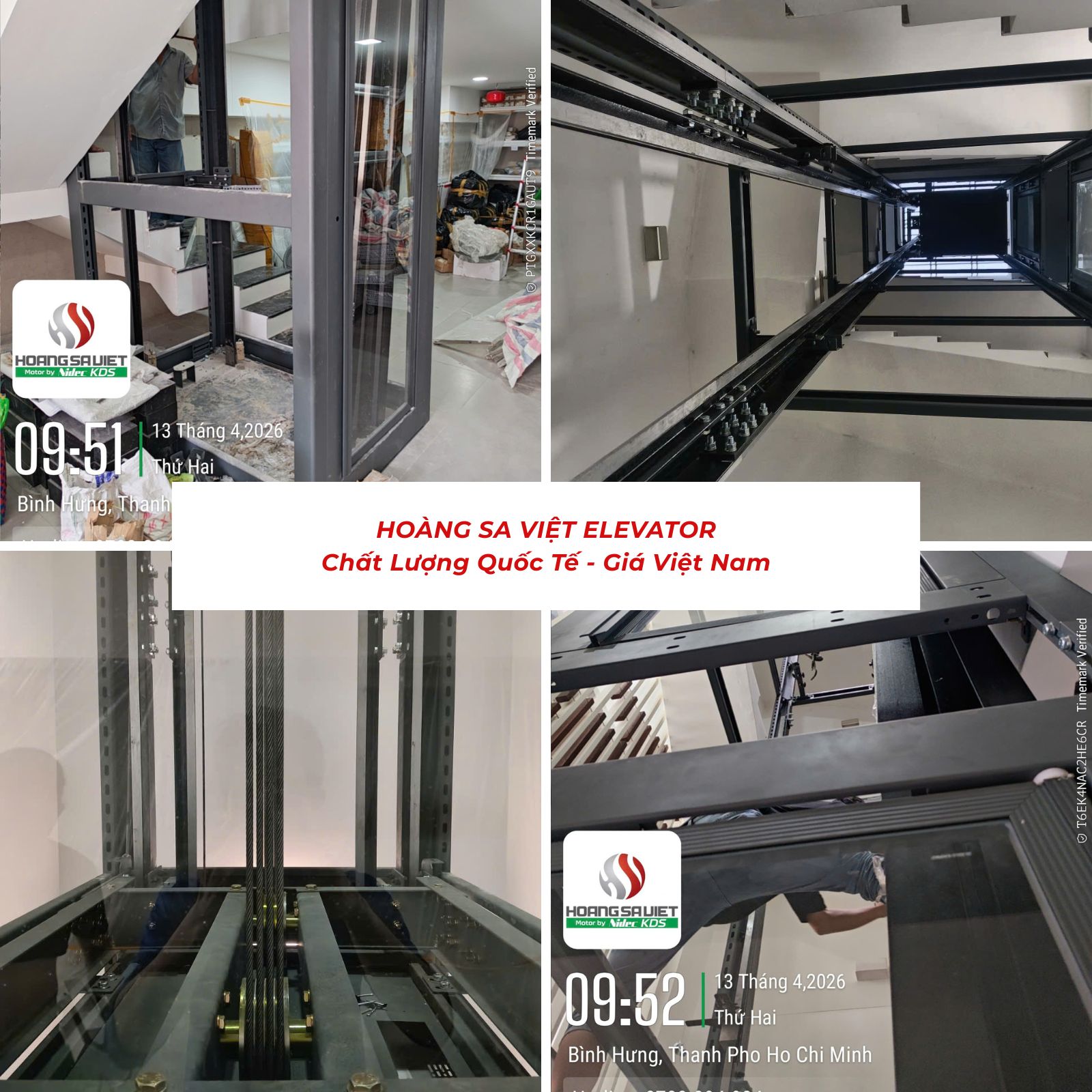

Classification by Frame

When installing a 250KG glass elevator , one of the items that directly affects durability, aesthetics, and cost is the elevator frame system. Currently, the two most common materials are aluminum alloy columns and load-bearing steel columns. Each type has its own characteristics, suitable for different project needs.

Aluminum Frame vs. Steel Frame Glass Elevator Walls: What's the Difference?

When installing a 250KG glass elevator, the frame system directly determines the durability, aesthetics, and lifespan of the structure. The two most common materials currently used are T6061 aluminum alloy columns for the front and SS400 high-strength steel columns for the rear. Each type has its own characteristics and is strategically placed to optimize both structure and cost.

T6061 Aluminum Alloy Frame – High Aesthetics, Excellent Rust Resistance

T6061 aluminum posts are made of a super-hard aluminum alloy and are used as front posts for ladders. Standard dimensions are C90×90×37mm, making them lighter than steel but still providing sufficient rigidity for front-facing applications. The high-quality JOTUN powder coating finish ensures:

Dust-resistant and will not rust over time.

Long-lasting color, less prone to peeling.

Enhance the aesthetics of the cabin front.

The advantages of T6061 aluminum frames are:

The staircase features a sharp, elegant design on its facade.

Lightweight, reducing the load on the overall structure.

It will not rust even in a humid environment.

T6061 aluminum is suitable for the front panel as this is where users see most often. It costs more than steel, but provides a more polished and professional look for the elevator cabin.

SS400 Steel Frame – Durable, Affordable

The rear frame and main load-bearing areas typically utilize SS400 steel – a Japanese standard structural steel with high load-bearing capacity and good stability. The steel columns are larger, in the shape of C120×120×40mm, weighing approximately 10kg/m, ensuring they can withstand the entire weight of the cabin, counterweight, and operating forces over a long period. The steel surface is coated with high-quality JOTUN electrostatic powder coating, which helps to:

Antioxidant properties help prevent rust over time.

Increased durability when operating in humid environments.

Maintains color stability and resists peeling.

The advantages of SS400 steel frames are:

Excellent load-bearing capacity, stable long-term operation.

Reasonable cost, suitable for most townhouses.

Easy to fabricate to the actual dimensions of the project.

Steel frames offer superior strength and are more economical than aluminum in the rear sections . This is a preferred choice for many families due to its long-term stability and reasonable investment.

Comparison of T6061 Aluminum Frame and SS400 Steel Frame

These two materials are not interchangeable but are often combined in the same elevator. The T6061 aluminum column forms the front for aesthetic appeal, while the SS400 steel column forms the rear for structural support. This combination optimizes costs without sacrificing quality or appearance.

The building should have an attractive facade thanks to T6061 aluminum, while also ensuring structural durability thanks to steel.

Reference dimensions for a 250KG glass-walled elevator at THANGMAYNIDEC

This glass home elevator has two operating speed options: 60m/min or 90m/min, depending on the number of stops. The glass home elevator has a maximum load capacity of 250kg and can carry up to 3 people. Below are the approximate dimensions:

250KG GLASS HOME ELEVATOR MODEL AT THANGMAYNIDEC ELEVATOR

To help you easily visualize and plan your finances, THANGMAYNIDEC presents the price list for the most popular home elevator models:

The glass home elevators supplied by NIDEC Elevator Company are a sophisticated blend of superior performance and modern, luxurious design. With extensive experience in the elevator industry, we always prioritize safety and quality, committed to providing the most optimal transportation solutions for all projects.

Beyond simply meeting transportation needs, glass home elevators from THANGMAYNIDEC also create an aesthetic focal point, enhancing the value of your living space. We continuously improve our technology and services to ensure maximum customer satisfaction, while guaranteeing that each product meets the highest safety and quality standards.
