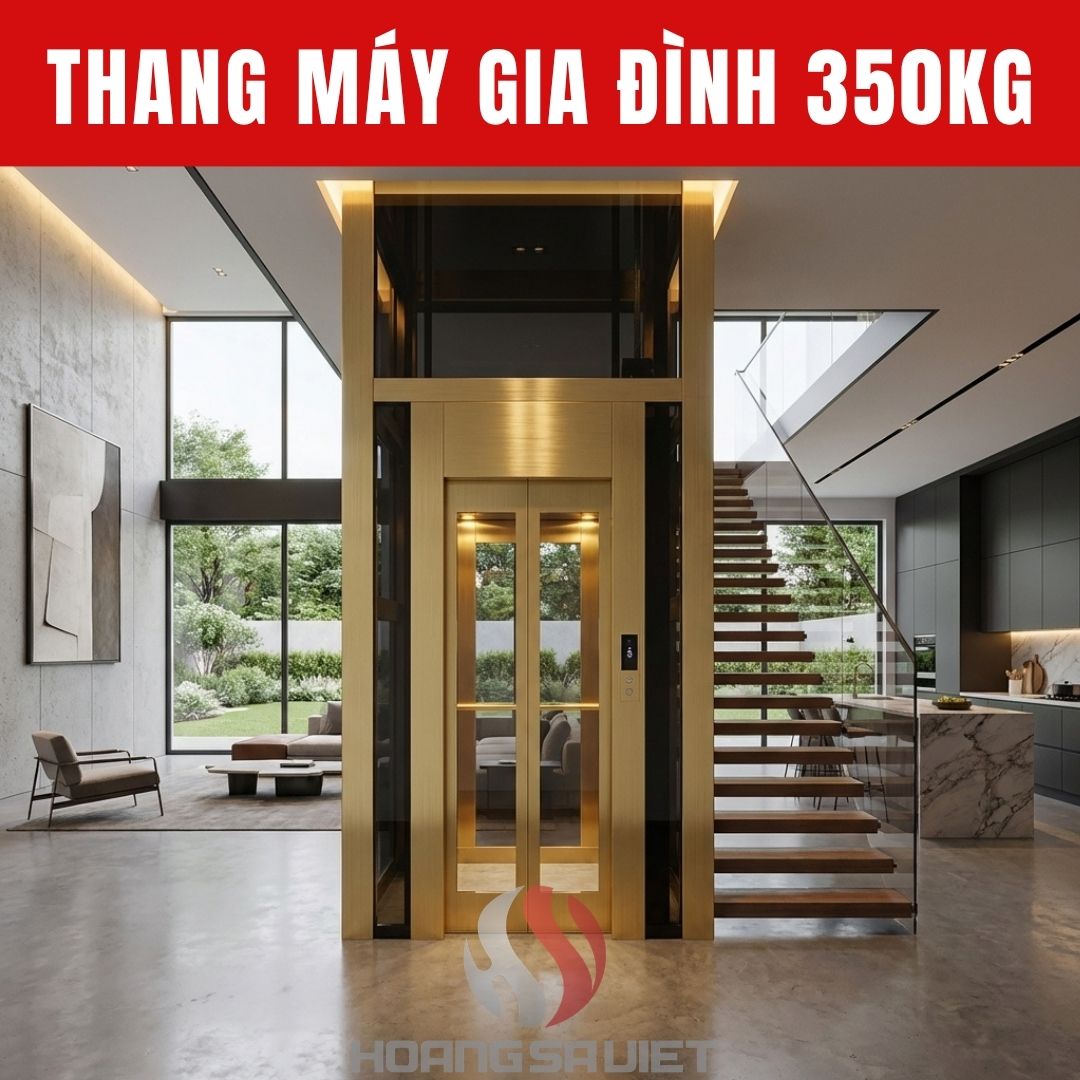

350kg Home Elevator

Currently, 350kg capacity home elevators are the most popular elevator product on the market. The elevator's load capacity is spacious enough for a multi-generational family and suitable for many modern townhouse styles. To ensure stable, safe, and space-saving operation, the elevator dimensions need to be designed according to standards. Let's explore the dimensions, load capacity, and price of home elevators in this article from THANGMAYNIDEC.

What type of shaft frame is used for a 350kg capacity home elevator?

Choosing the right elevator shaft frame for a home elevator not only determines its durability but also directly impacts aesthetics and usable space. For our 350kg home elevator range, we offer three optimal shaft frame solutions:

1. Steel Frame Combined with Aluminum and Glass Wall

This is the most advanced shaft frame system currently available, commonly used for high-end glass elevators .

• Features: This frame will use 70% steel and 30% aluminum. This allows your elevator to retain the elegant look of aluminum while optimizing costs by using extruded steel for the back panel.
• Advantages: Enhances the aesthetic appeal of the frame thanks to the glossy aluminum front panel. This type of frame helps the 350kg capacity glass home elevator become an architectural masterpiece within the home.
• Suitable for: Villas and penthouses that require meticulous attention to detail.

2. Steel Frame Glass Wall

Steel frames are the optimal solution for home renovations or homeowners who love modern design but want to save costs. While steel frames may not be the most optimized in terms of design, they offer a sturdy structure and allow for the use of natural light, making them a very reasonable choice. Steel elevator frames also optimize the size of a 350kg elevator, resulting in a more spacious cabin with a steel frame wall thickness that is only 1/4 the thickness of a concrete shaft.

• Advantages: Extremely fast construction, maximum space saving. The steel frame at THANGMAYNIDEC is powder-coated to standard specifications, ensuring reliability and superior quality compared to ordinary steel box sections. Low cost and increased structural strength for the elevator.

3. Concrete Stair Pit

This is a traditional method often applied to completely new construction projects. Concrete elevator shafts are usually cheaper than the two types above, but the cabin will be dark and unsuitable for people who are afraid of confined spaces.

• Advantages: Permanent durability, high stability, and the lowest construction cost. Good sound insulation, minimizing vibrations during elevator operation.
• Disadvantages: The wall thickness takes up a considerable amount of space, and the construction time is extended according to the rough construction progress of the house.

Home Elevator Size (350kg)

With the same elevator load capacity of 350kg, THANGMAYNIDEC will adjust the dimensions to fit various sizes and house layouts. To own a smoothly operating elevator that maximizes space utilization, you need to understand the dimensions of a home elevator . Depending on the shape of the installation area (square or rectangular), we offer three of the most common clear opening dimensions:

Option 1: Standard square pit (1500mm x 1500mm)

This is the most common elevator size (350kg), and the easiest to design and install for newly built villas or townhouses.

• Cabin dimensions: 1100mm x 1000mm x 2100mm.

• Elevator door width: 700mm - 750mm (Central CO automatic door opening).

• Features: Well-proportioned cabin, creating a spacious feel in both width and depth. Suitable for a family of 5 or a family with a member who uses a standard-sized wheelchair.

Option 2: Narrow trench - deep trench (1300mm x 1700mm)

This 350kg capacity elevator is the perfect solution for narrow townhouses with limited width but ample depth.

• Cabin dimensions: 900mm x 1200mm x 2100mm.

• Elevator door width: 600mm - 650mm (Automatic central CO or single-sided SO opening doors).

• Features: The cabin is a deep rectangular shape. Although the elevator door is slightly narrower than option 1, it completely solves the problem of narrow townhouses.

Option 3: Wide trench - shallow (1400mm x 1600mm)

This option is suitable for buildings that utilize space next to staircases or have wide floor plans. Using a side counterweight layout to optimize cabin space, this is a less common but effective elevator size option for 350kg homes facing limited depth.

• Cabin dimensions: 1000mm x 1100mm x 2100mm.

• Elevator door width: 700mm - 800mm (Advantage: Wide door, extremely comfortable entry and exit).

• Features: This model strikes a good balance between seating capacity and door width. The wide cabin prevents passengers from feeling like they're in a narrow vehicle.

Technical Specifications of a 350kg Home Elevator

A 350kg capacity home elevator is a suitable choice for families of 4-5 people, ideal for homes with an area of ​​approximately 60m², and for houses requiring an elevator to be installed in a 5-story building . Below is a summary table of important specifications:

1. Operational Capability

• Load capacity: 350kg (Suitable for 4-5 people).
• Speed: 30m/min - 60m/min (A speed of 0.5m/s - 1m/s ensures smooth movement without jerking).
• Maximum travel distance: 30m (Equivalent to a 7-8 story building).
• Motor power: 3.0kW to 4.2kW ​​(Relatively energy efficient)

2. Mandatory safety features

A standard elevator today must have the following features:

• Automatic Rescue (ARD): Automatically brings the elevator to the nearest floor and opens the doors in the event of a sudden power outage.
• Door sensor (Photocell): Prevents hand entrapment and automatically opens the door when it encounters an obstacle.
• Emergency braking system & Overload warning: Ensures the elevator does not operate when overloaded or in case of a technical malfunction.

Technologies Used in 350kg Capacity Home Elevators

1. Cable Traction Technology (Nidec Motor)

This is our best-selling product line thanks to the ideal balance between performance and investment cost. For home elevators with a load capacity of 350kg, we use Nidec (Japan) gearless motors with a 10-year warranty.

• Principle: Operates using a pulley and counterweight system, allowing the cabin to move smoothly and stably.

• Advantages: Fast speed (0.6m/s - 1.0m/s), extremely durable (over 20 years), and super energy-efficient. This is the optimal choice for townhouses with 4-7 floors.

• Cost: Very reasonable, parts are readily available, and routine maintenance is easy.

2. Hydraulic Technology

Hydraulic elevators are suitable for homes with limited overhead space and pit depth; however, this type of technology has many limitations, so homeowners need to consider carefully.

• Principle: The elevator cabin is raised and lowered using hydraulic piston pressure. When descending, the elevator utilizes natural gravity, making it extremely safe.

• Advantages: Silent operation, no machine room required (low OH), pit depth only needs to be very shallow.

• Note: The travel speed is slower than a cable-driven system, and the oiling system needs to be checked every 10 years to ensure proper operation.

3. Screw Technology

Despite being a relatively new elevator technology, screw-driven technology has made a strong impression with its unique design.

• Principle: The cabin moves along a giant screw shaft using a helical gear mechanism.

• Advantages: No pit required (only 5cm recessed into the floor), creating a luxurious open space.

• Disadvantages: Slow speed and higher investment costs, approximately 1.5 to 2 times higher than traditional cable pulling methods.

Differences Between 250kg and 350kg Elevators

Many customers are unsure whether to choose a 250kg elevator or a 350kg elevator. In reality, the difference lies in their functionality:

Price Quote for a 350kg Home Elevator

Currently, the estimated price for a 350kg capacity home elevator ranges from 280 million to 420 million VND (excluding 8% VAT and shaft construction costs), depending on the configuration, number of floors, and additional features.

To receive a quote, please contact our Hotline at 0707 025 789 or select the " Quick Quote " button in the bottom right corner of the screen to generate your own quote. With just one simple step of entering elevator dimensions and number of floors, you can receive an email quote for a 350kg home elevator that is most accurate for your home's needs. THANGMAYNIDEC guarantees 100% confidentiality of customer information.

Watch the tutorial video below:

QUICK QUOTE

Automated Quotation Program

Vui lòng chọn sản phẩmHome ElevatorThang máy thủy lựcCargo ElevatorThang hỗ trợ người già, xe lănElevator ServicePassenger ElevatorHồ sơ nghiệm thu

Số lượng

Số lượng

THÔNG TIN KHÁCH HÀNG

Place of installation *

 Obligatory

Please choose locationHà NộiHồ Chí MinhPhú QuốcCần ThơĐà NẵngHải PhòngAn GiangBà Rịa - Vũng TàuBắc GiangBắc KạnBạc LiêuBắc NinhBến TreBình ĐịnhBình DươngBình PhướcBình ThuậnCà MauCao BằngĐắk LắkĐắk NôngĐiện BiênĐồng NaiĐồng ThápGia LaiHà GiangHà NamHà TĩnhHải DươngHậu GiangHòa BìnhHưng YênKhánh HòaKiên GiangKon TumLai ChâuLâm ĐồngLạng SơnLào CaiLong AnNam ĐịnhNghệ AnNinh BìnhNinh ThuậnPhú ThọPhú YênQuảng BìnhQuảng NamQuảng NgãiQuảng NinhQuảng TrịSóc TrăngSơn LaTây NinhThái BìnhThái NguyênThanh HóaThừa Thiên HuếTiền GiangTrà VinhTuyên QuangVĩnh LongVĩnh PhúcYên BáiCambodia

THÔNG TIN KHÁCH HÀNG

Customer name *

 Obligatory

Phone number *

 Obligatory

Email *

 Obligatory

Security code *

 Obligatory

(Click the image above to get the new code!)

(*) Required information

nhập lại Phát hành báo giá

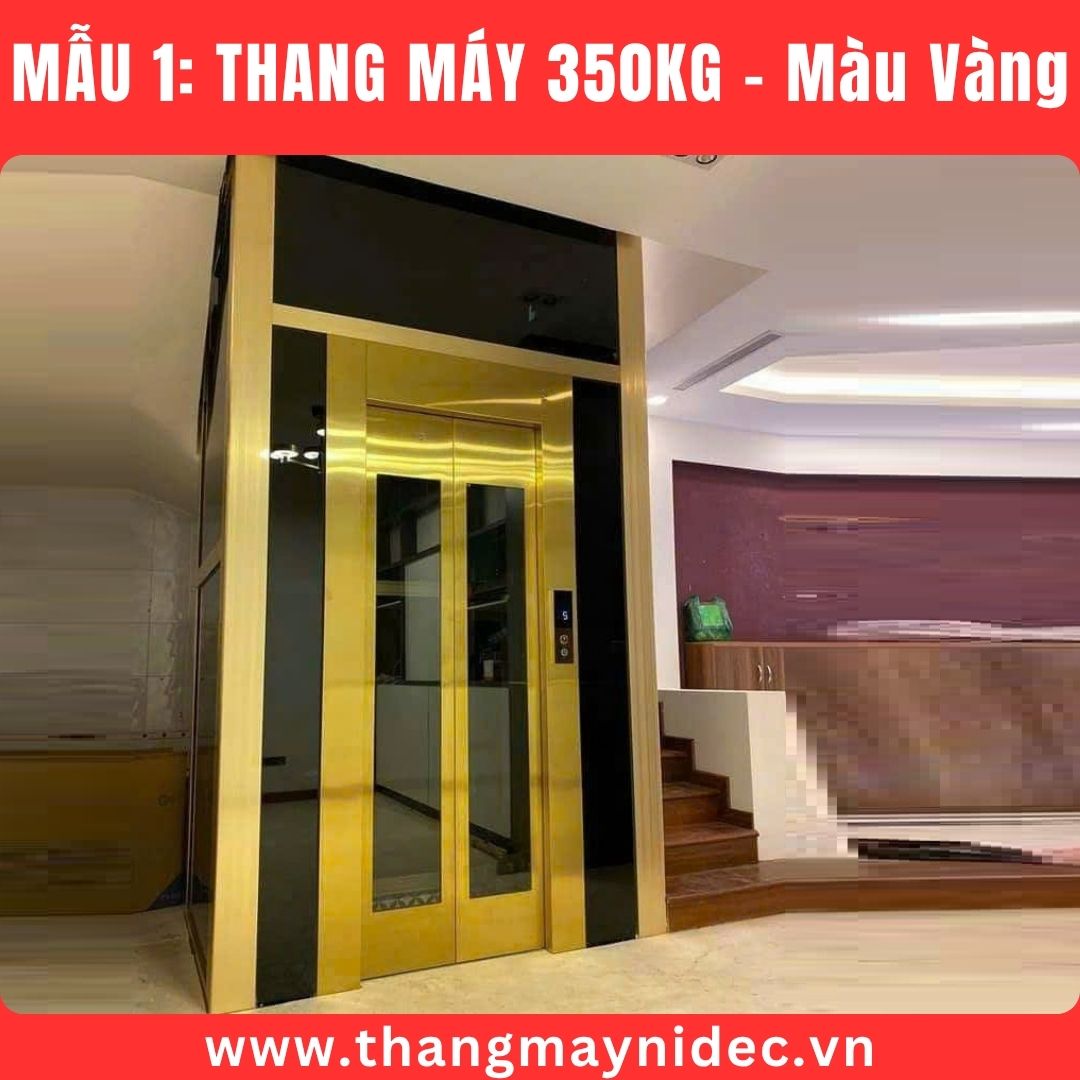

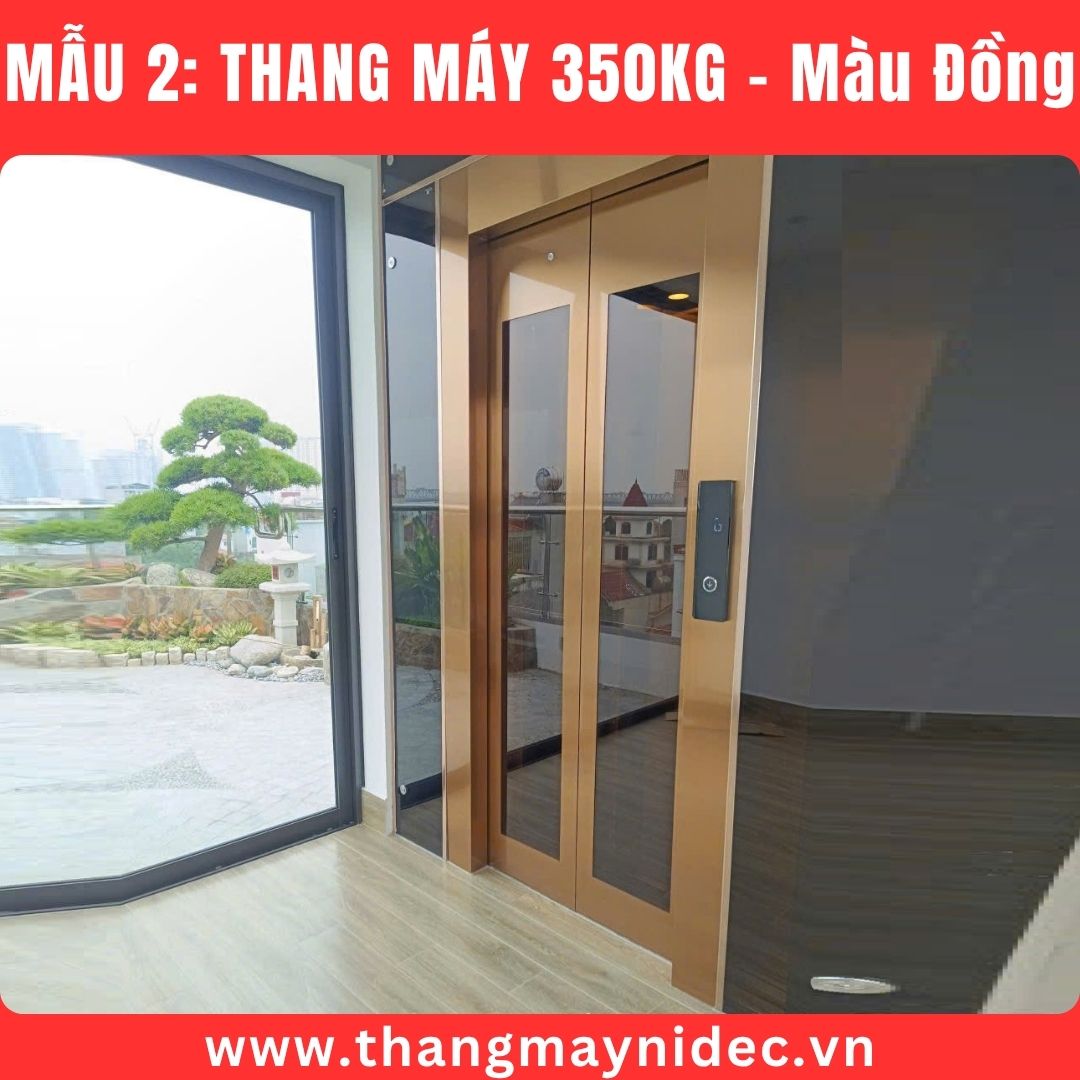

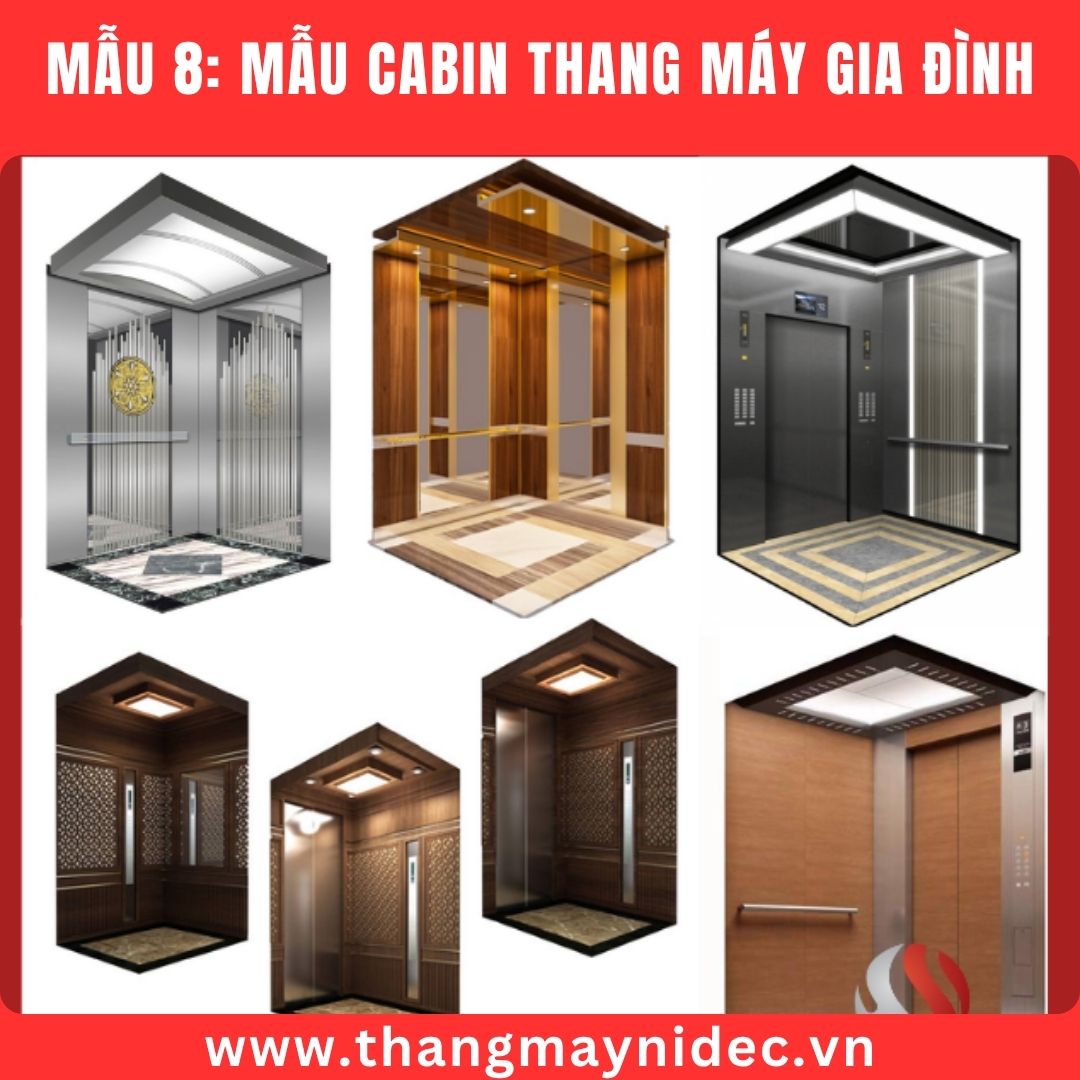

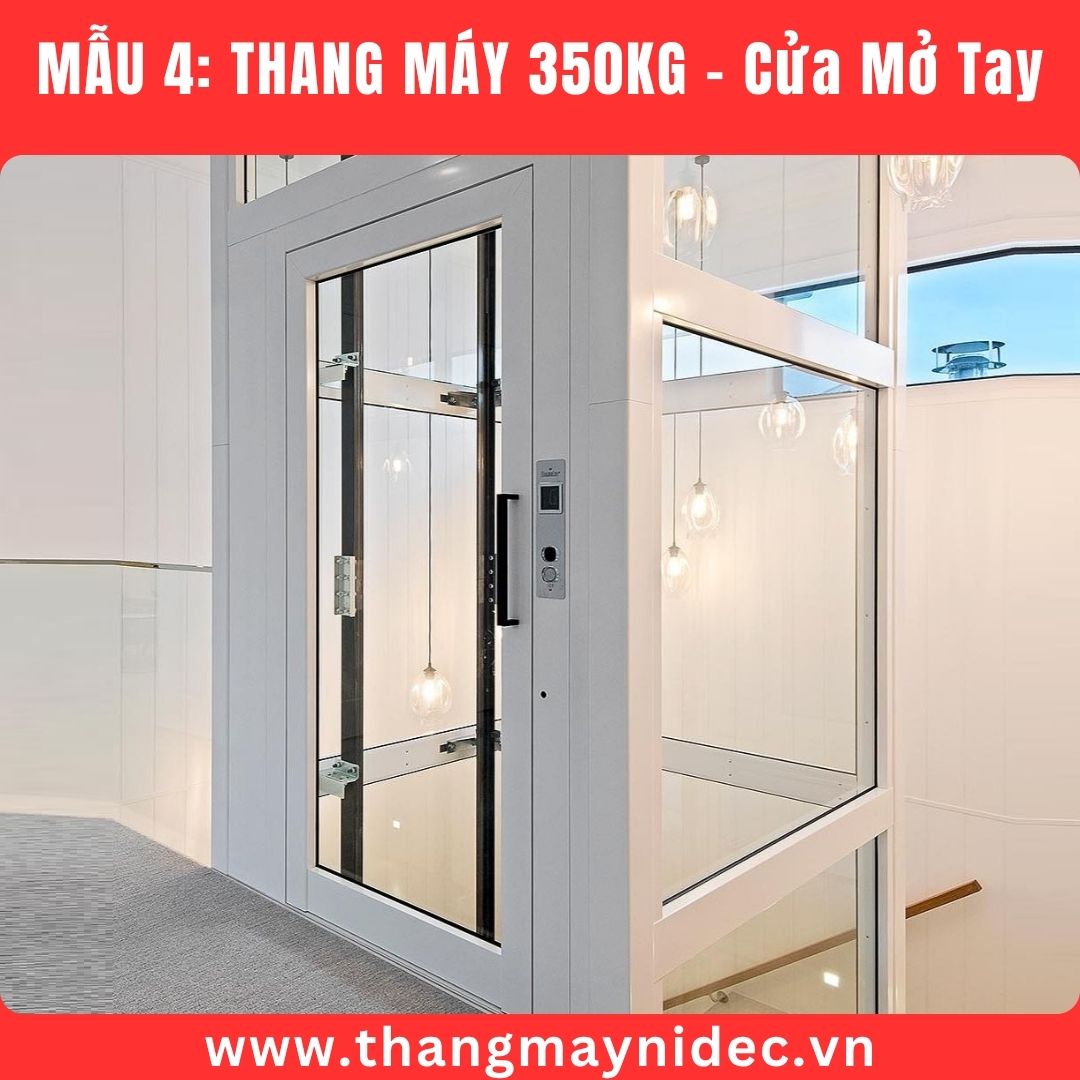

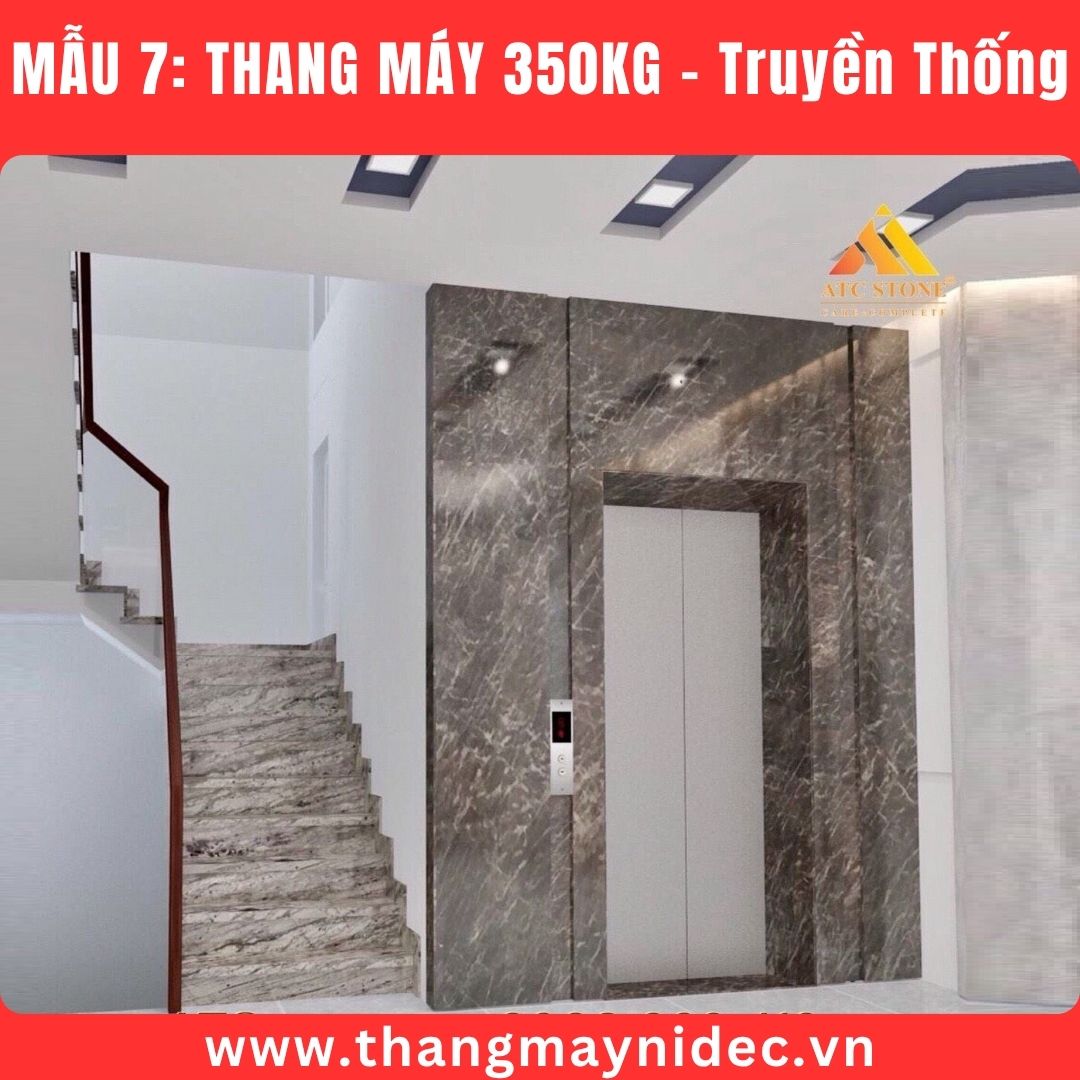

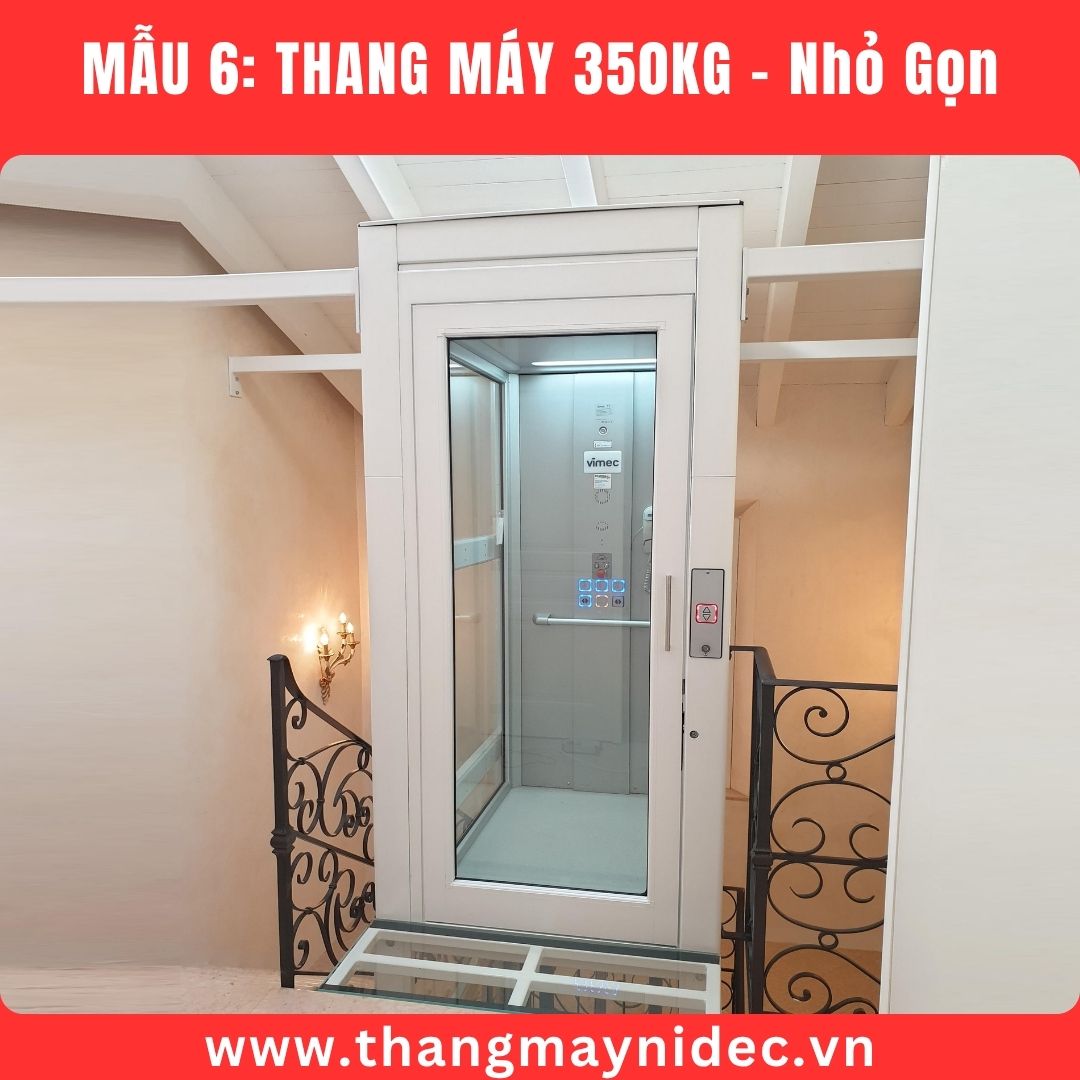

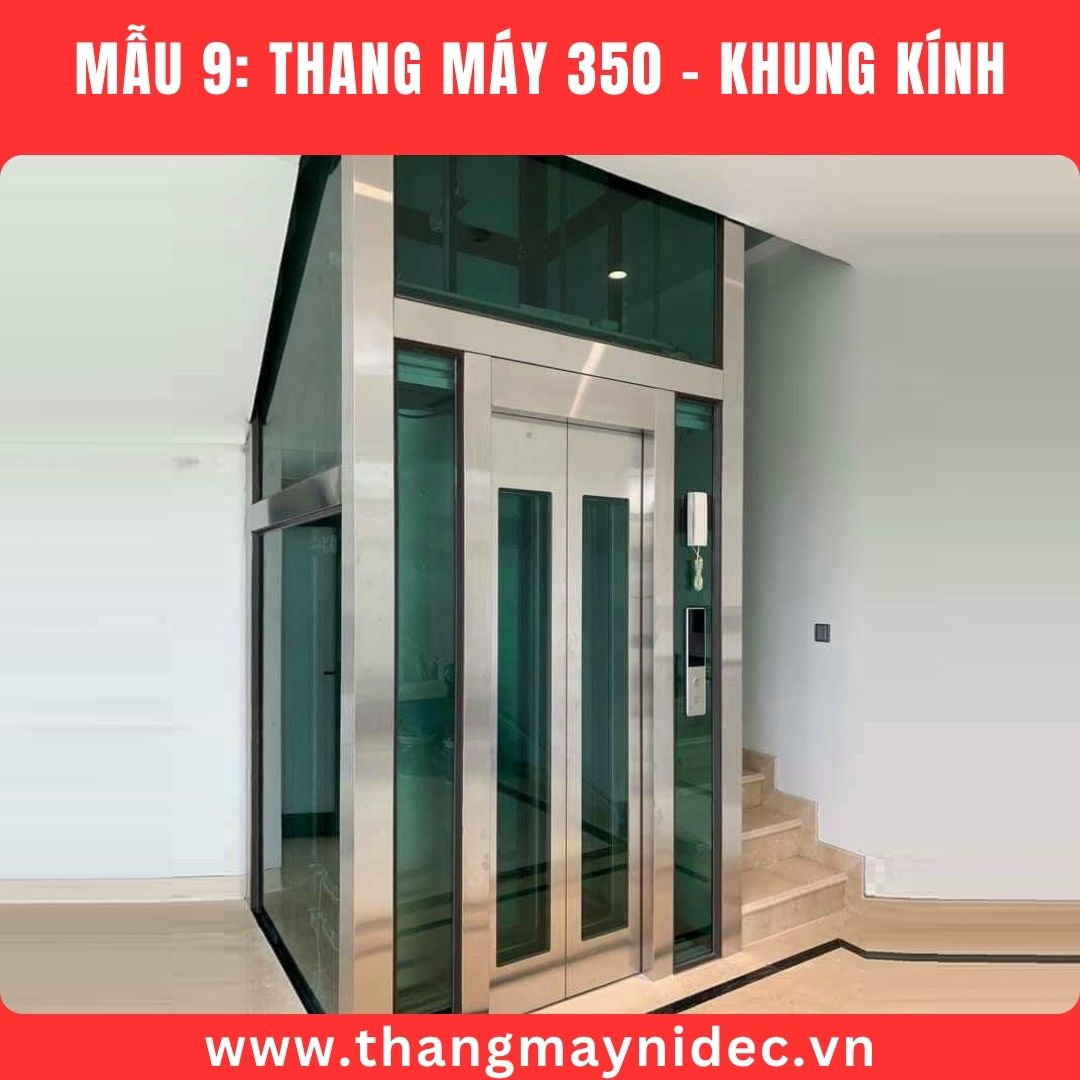

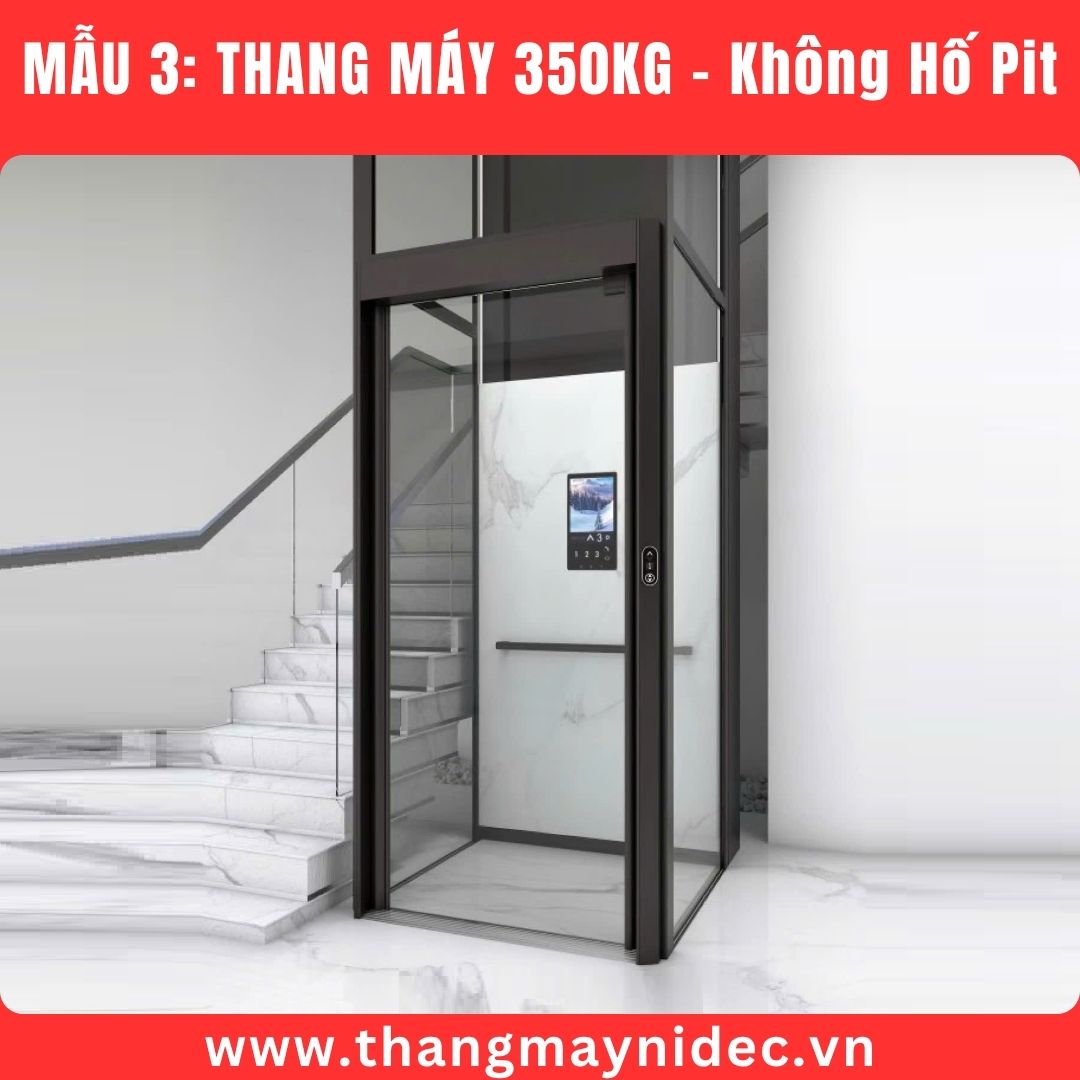

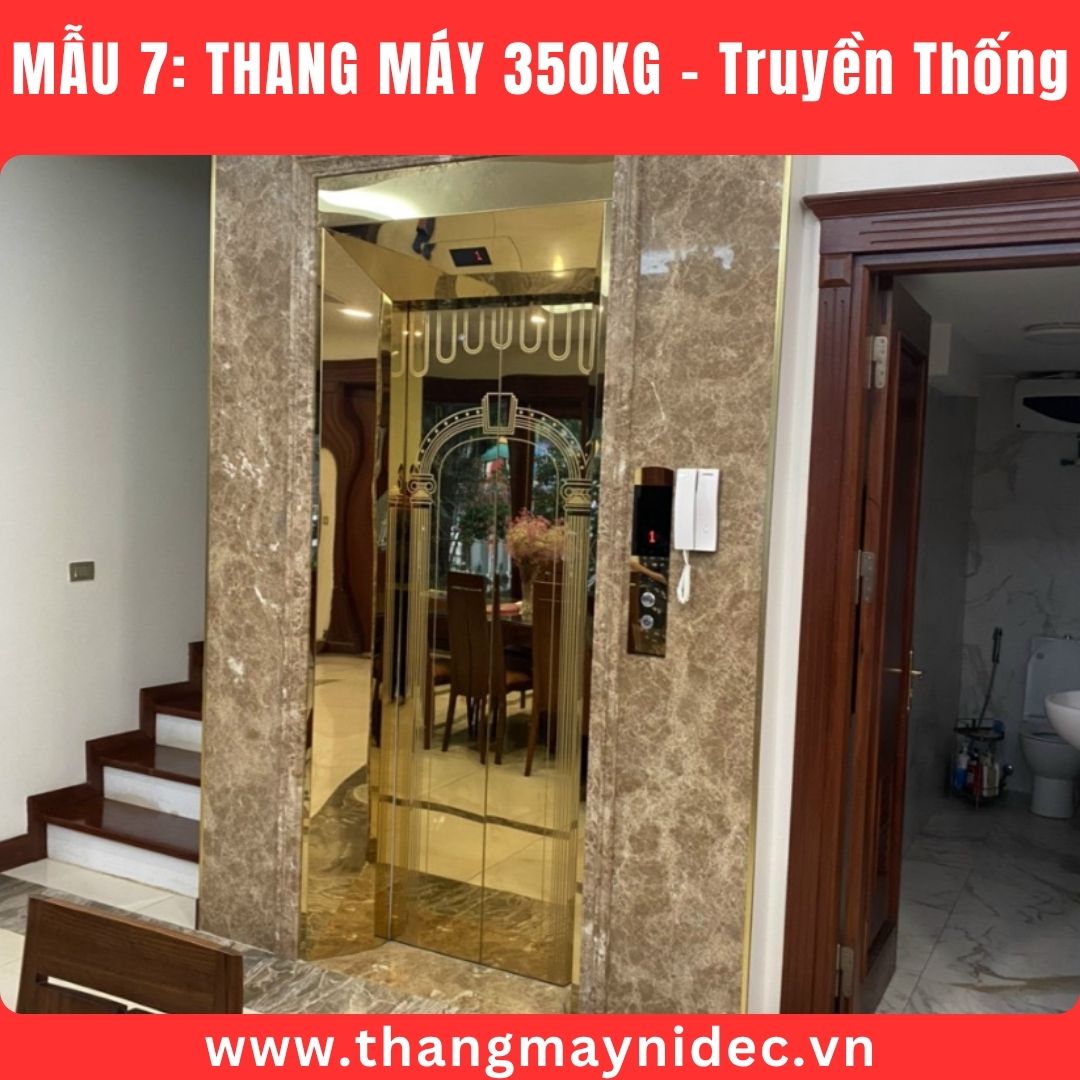

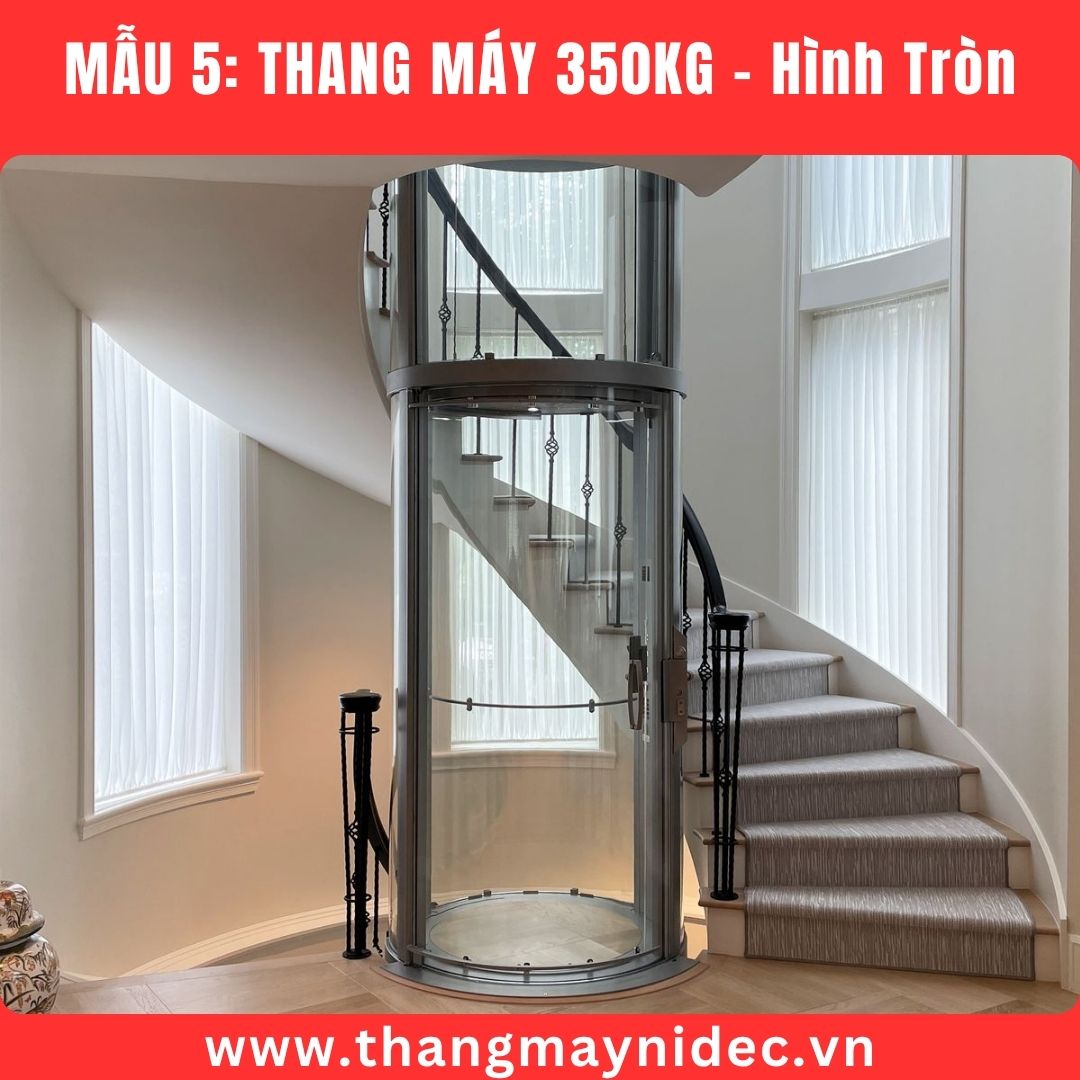

10 Models of 350kg Capacity Home Elevators

Slideshow of 10 popular home elevator designs

Click left < or right > to see more

❮ ❯

❮

❯

Please swipe right or left to view images and descriptive titles for each 350kg capacity home elevator model . This will help you visualize which product is most suitable for your needs.
