You are looking for a solution to move up the floors in a small house. Or serve the elderly to move in a house that has not been designed with an elevator. Mini elevators are the right product line for your needs. At Hoang Sa Viet Elevator, we have a full range of solutions from installing elevators between the gaps in the stairwells . To cutting out a space to install compact elevators. You have found the right address to trust to carry out your important project.

For infrastructure renovation projects with low floors or requiring few stops, choosing pitless elevators or mini elevators is becoming one of the most optimal and popular solutions today. These elevators bring many outstanding benefits, not only helping to save initial investment costs but also being easy to install, suitable for renovation projects that cannot dig deep pits or have limited space.

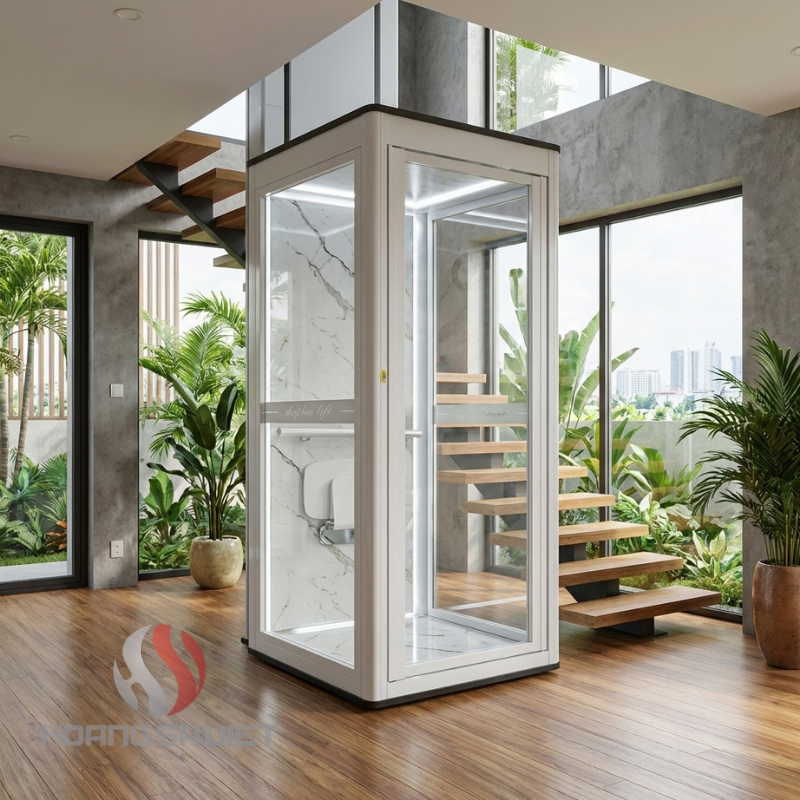

Structure of Super Small Mini Elevator

The Mini Elevator model is currently one of the best-selling mini elevator lines at Hoang Sa Viet Elevator. With a compact, modern design and outstanding features. This elevator line has quickly won the trust of many customers, especially families or renovation projects with limited space. The structure of the mini elevator is one of the important factors affecting performance and user experience, especially the factor of saving space.

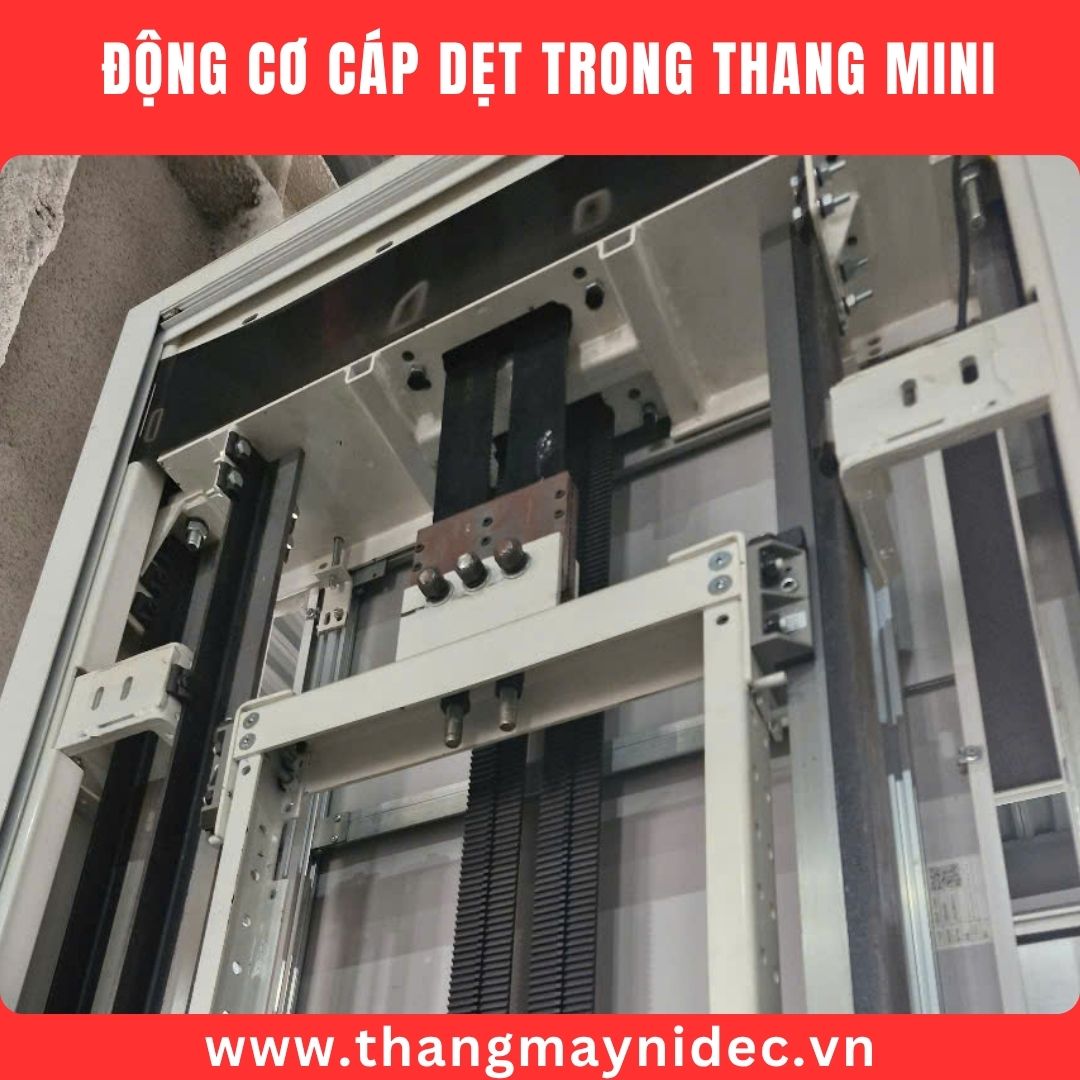

• Transmission system: Mini elevators often use pig motors or flat cable motors. Load capacity from 300kg to 450kg. The structure of the transmission system is made of flat cable belts, safe and space-saving. New technology flat cable motors are designed to increase space efficiency, save energy, help reduce operating costs, but still ensure stable performance.

• Power : The motor has a capacity ranging from 2.2kW to 3.7kW, suitable for operation in small projects such as family homes or renovation projects with limited space.

• Control system : The elevator is equipped with a Homelift MT70+ Controller control cabinet with a modern microprocessor. Options include Nidec or MT70 control system . Ensuring high accuracy and security during operation.

• Mini elevator cabin model : The cabin is compactly designed, suitable for 2-3 people to use. Hoang Sa Viet offers many options for patterns, motifs, and materials, with a team of staff ready to advise customers to choose the cabin model that best suits the aesthetics and space of the house.

• Speed : The operating speed of the mini elevator is about 20m to 30m/minute, ensuring comfort and safety for users.

• Power source : Mini elevators can use 1-phase or 3-phase power source, depending on actual requirements and customer choice, providing flexibility and convenience during installation.

Advantages and Disadvantages of Mini Elevators

If you want to optimize the area for a townhouse, a renovated house, or create an architectural highlight for a luxury villa, a mini elevator is the perfect choice . The following are the outstanding advantages of the mini elevator line that does not require a pit, for families and company offices.

Advantages of mini elevators

• Only 0.85m2 area is needed to install the elevator (850x1000mm)
• Just dig a shallow pit of 10cm. Or no digging required (the ladder floor will be raised 10cm above the floor)
• Compact size for easy design and layout
• Create a bright, airy and luxurious space
• Mini elevators also have all 5 safety features like traditional elevators.

Disadvantages of mini elevators

• Mini elevators without Pit will not meet inspection standards ( the safety features will be checked by the investor and the manufacturer themselves).
• Mini elevators will have slow moving speed (about 0.3-0.4m/s)
• Height and number of floors limited (maximum 5 floors)

Price & Classification of Compact Mini Elevators

This quotation program will be very useful . Because it provides quotation and calculates cabin size accurately. Please click to watch video tutorial...

1. Classification of Pitless Elevators

Compact elevators, mini elevators without pit , are a branch of the pitless elevator. They are popular for installation in townhouses, villas, apartments in apartment buildings... Because they are constructed and installed quickly.

Especially no need to dig a pit and very convenient when installing for renovated houses. There are many types of mini elevators. However, for easy visualization, we will classify mini elevator lines based on the following characteristics :

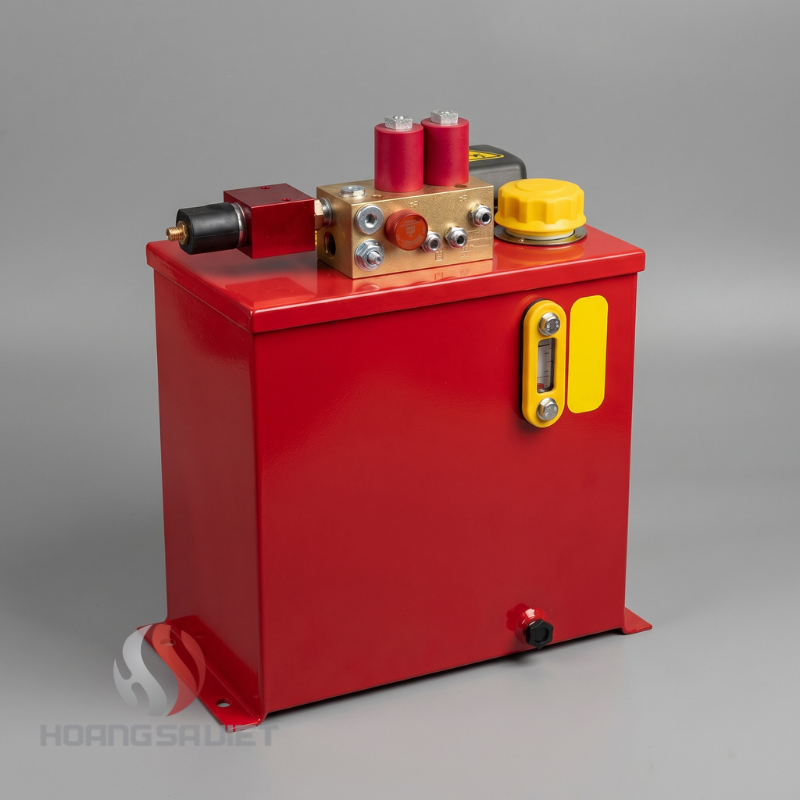

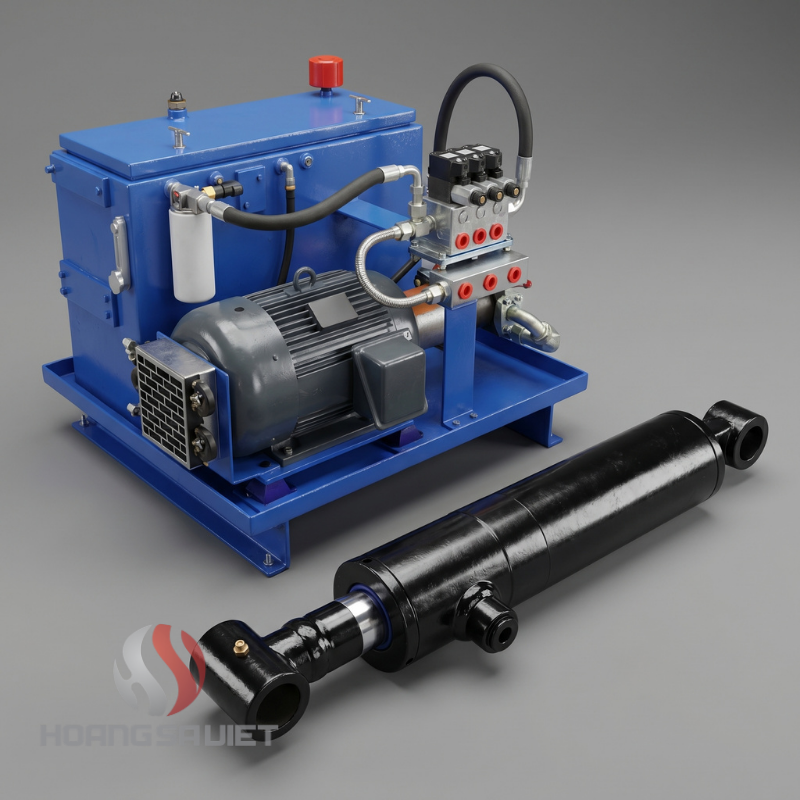

• Manufacturing technology ( cable pulling, hydraulic, screw )

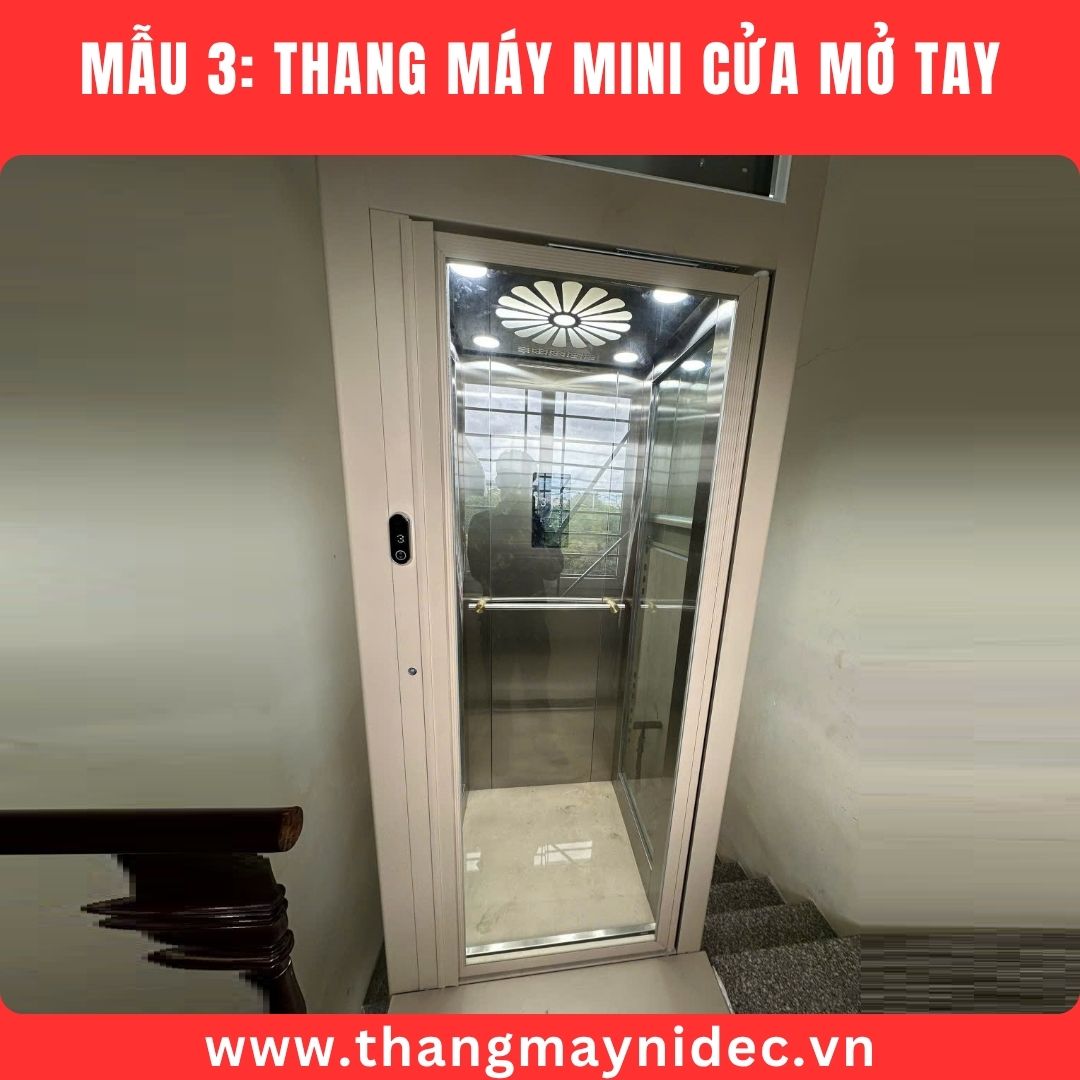

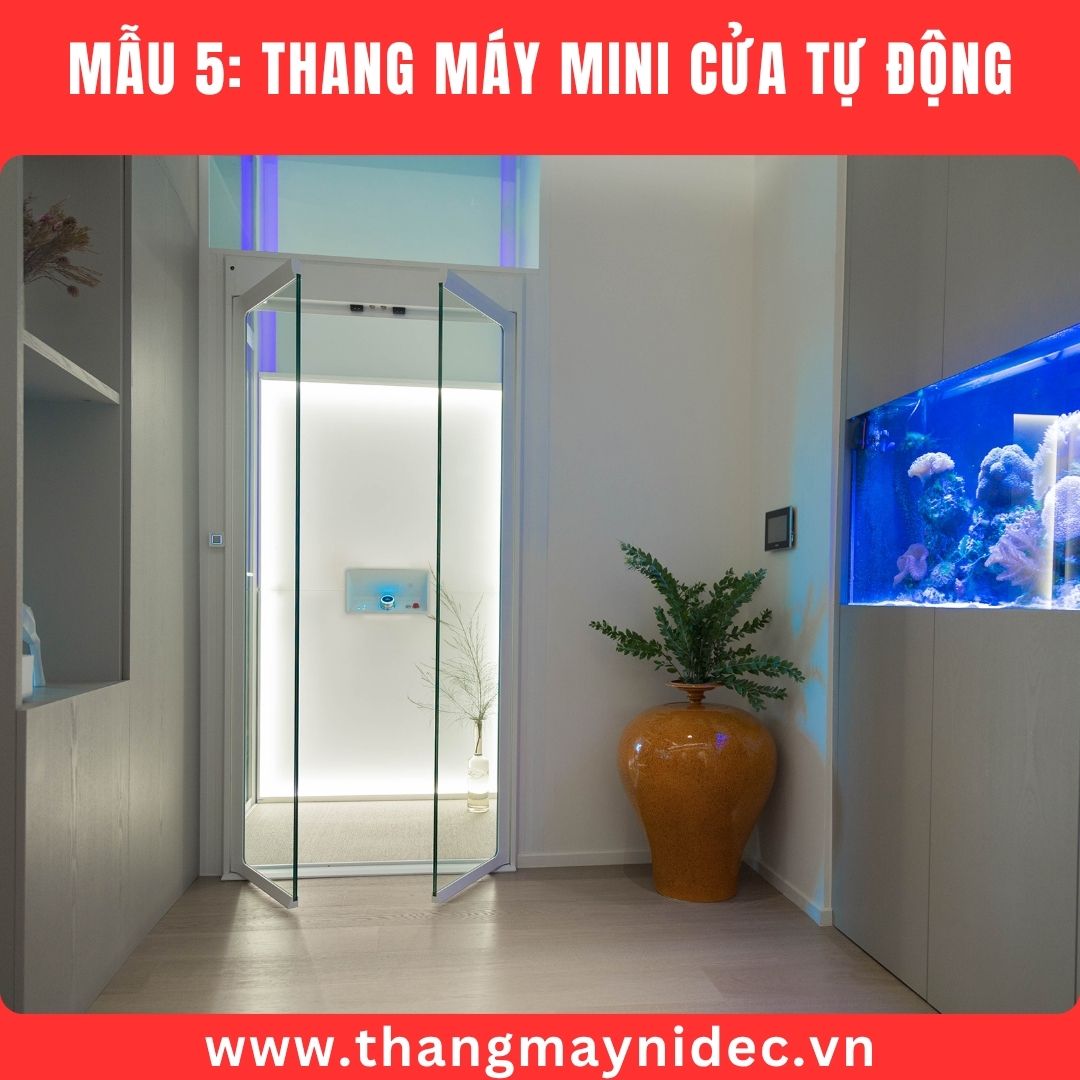

• Cabin type & Door opening type ( automatic door, manual door, hinged door )
• Frame material ( aluminum alloy , steel )

These features will greatly determine the quality, price, durability, and aesthetics of a product. Elevator buyers need to clearly understand these features before signing an elevator purchase contract to avoid confusion between product lines.

• If you are using a mobile phone , please swipe across the description to see the full content.
• You can choose the " read article " format to listen to the audio content, or watch the video below to understand more.

2. Table describing pitless elevator lines

The table describes the glass elevator models, helping you visualize the elevator configuration, which will determine their price . For example

• Elevator technology types include (cable, screw, hydraulic).
• Elevator frame includes (steel frame, aluminum alloy frame).
• Elevator walls include (tempered glass walls, Alu walls, or built walls... covered with marble.)

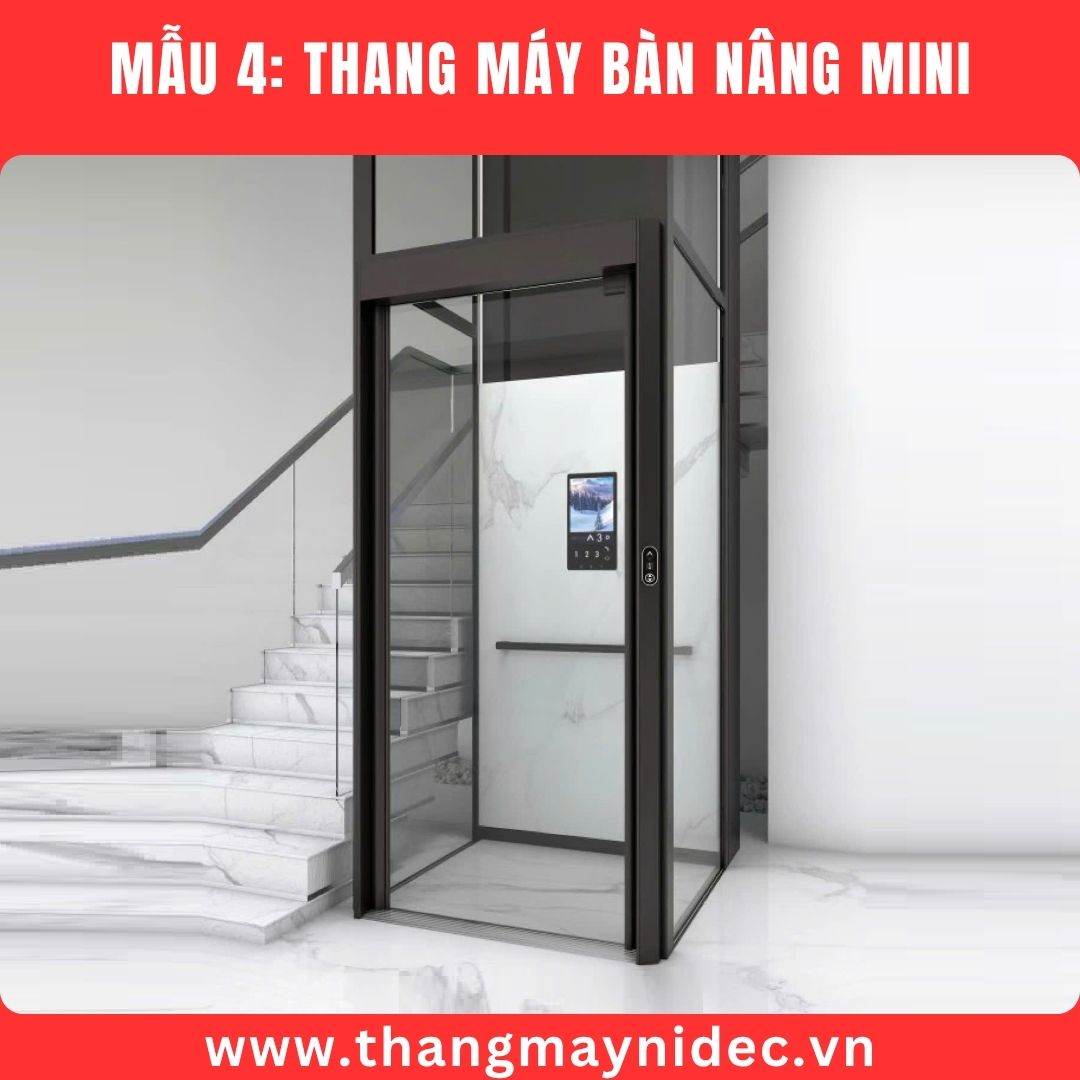

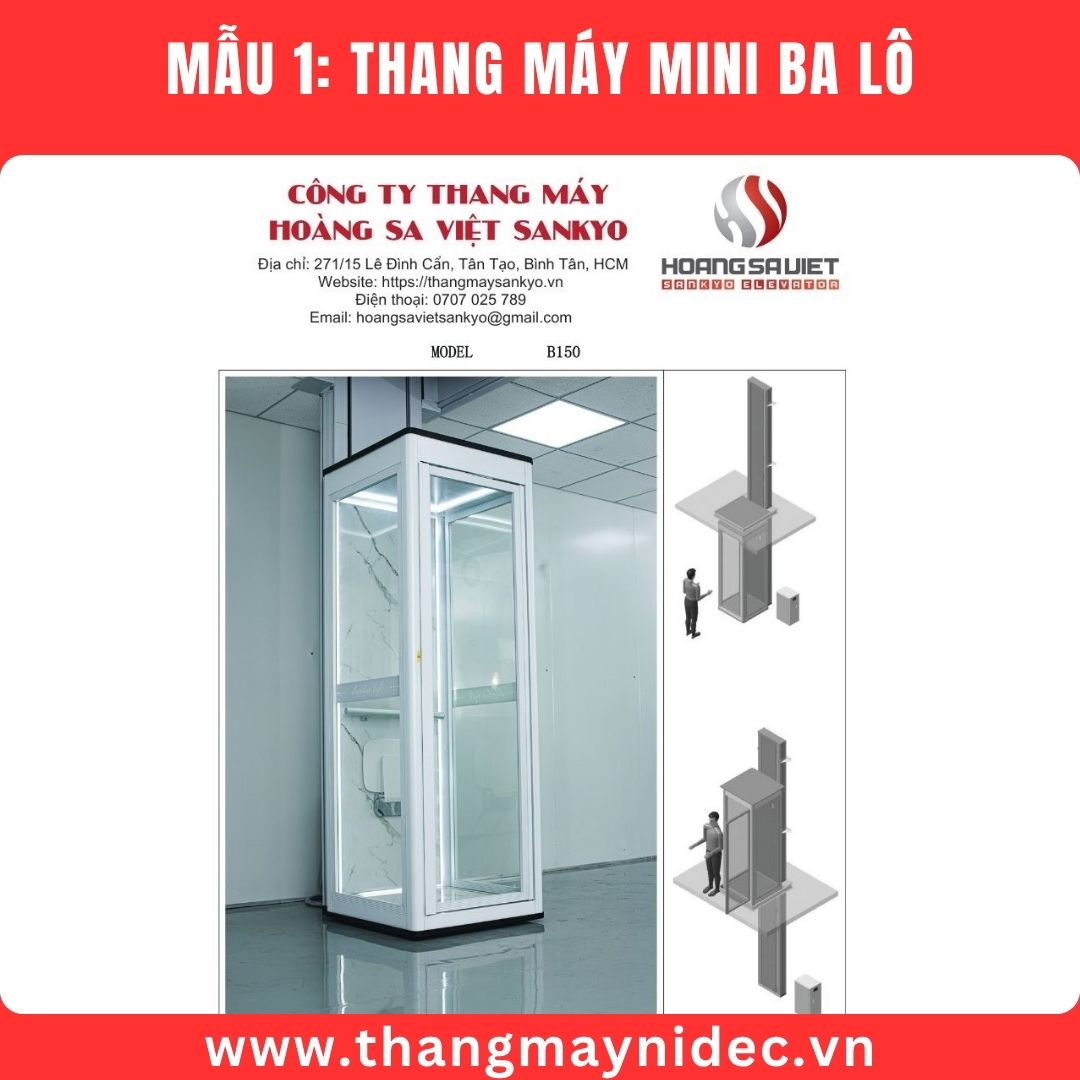

3. Slideshow of images of various types of mini elevators

Click left < or right > to see more

Click right or left to see the image and description title of each ladder line. From there, you can visualize which product line is the best and cheapest to install...

4. Price list of mini elevators (including frame and glass wall)

This price list includes the frame and glass wall (elevator shaft) . If you want to buy the frame and glass wall separately, please refer to section 5.

This price list applies to small elevators. Larger elevators will cost a little more. Depending on the size of the elevator, you should choose the appropriate elevator type and door opening style to save costs...

The above price list is for reference only, because there are many factors that affect the price of a glass elevator for the family. Therefore, to explain this issue. Nidec Sankyo Elevator has made a video dedicated to this topic. Please watch the video for more information.

5. Compare the advantages and disadvantages of mini elevators

Comparison table of advantages and disadvantages of mini elevator product lines.

Advice from Nidec Sankyo Elevator : In case the OH height is large enough, the installation area is large enough from 900x1000mm, you should install the mini cable ladder (homelift) for the most stable.

Mini Elevator Size & Load Capacity

The characteristics of mini elevators are usually installed for houses with compact areas, or renovated houses. Therefore, the factor of saving space is extremely important. Therefore, when designing glass elevators, designers often pay attention to the factor of saving space. Increase space and increase light for the house. Therefore, priority is given to using steel or aluminum frames and glass walls for the elevator shaft. The size and load capacity of mini elevators that do not require digging a pit are shown in the table below.

1. Standard size table of mini elevators

Common size chart for your reference. Depending on actual conditions, you can choose any size. For each size suitable for the house architecture. Hoang Sa Viet Sankyo will offer the most reasonable solutions.

This size chart is for indoor mini elevators . For outdoor pitless elevators , the choice depends on actual conditions.

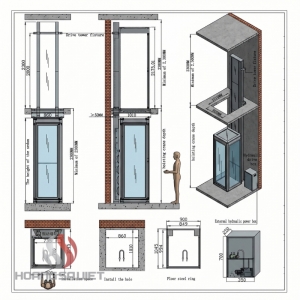

2. Floor plan of glass elevator & cabin dimensions

Click left < or right > to see the image

Cabin size is for reference only. For each actual project, we will optimize the best cabin size for you, with many available solutions at Hoang Sa Viet Elevator.

5 Safety Features of Mini Elevators for Homes

Although it is a Mini elevator, this product line still fully meets the 5 safety features like traditional elevators. However, when not digging a Pit , according to Vietnamese standards (TCVN), these mini elevators will not meet the inspection standards. Therefore, the inspection will be replaced by inspection, load testing and testing of the 5 safety features listed below.

Just like other home elevator products. Mini elevators need to meet all safety criteria. However, regarding inspection, some backpack elevator models have not been approved for inspection by the inspection department.

Therefore, Hoang Sa Viet Sankyo once again advises you if the installation area meets the standard of 1100x1100 or more . Please choose the product lines that meet the inspection standards (according to the table above). Some mini elevators without cabin doors must be equipped with infrared safety curtains (photocell) . Below are the necessary safety features of glass-cage family elevators.

1. Mini elevator door automatic rescue system (ARD)

The automatic rescue system (ARD - Auto Rescue Device) in mini elevators is one of the most important safety features of mini home elevators , helping to protect users in case of sudden power outages. When the main power source fails, ARD will automatically activate the backup power source, bring the cabin to the nearest floor and open the door for people inside to escape safely. This feature is especially useful for families with young children or the elderly, ensuring that no one is trapped in the cabin for a long time when an incident occurs.

In addition, the ARD system also helps protect components and electronic devices in the elevator from the risk of damage due to sudden power outages. Thanks to that, the home elevator is not only safer but also increases its lifespan, reducing maintenance and repair costs during long-term use.

2. Overspeed control device, Mini elevator door governor

Overspeed control device in mini elevators, Gornover is a mandatory element in all pitless elevators. When the elevator runs beyond the allowed speed or in the rare case of cable breakage, this device will automatically activate, hold the cabin and prevent the cabin from falling freely. Thanks to that, the user's life is maximally protected against all unexpected risks.

Gornover overspeed control system not only works effectively in emergency situations, but also helps control elevator operations in a state of maximum safety, especially for families with small children or the elderly who frequently travel by elevator.

3. Anti-jamming door with photocell sensor in mini elevator

Photocell sensors in mini elevators, also known as infrared safety curtains, are one of the highly appreciated safety features of mini elevators . This sensor system is installed on both sides of the elevator door, capable of detecting obstacles during the door opening/closing process. When encountering an obstacle, the sensor will automatically open the door or stop the closing process, preventing the door from getting stuck, protecting the safety of users, especially children and pets.

Thanks to the photocell sensor, every member of the family can safely use the elevator without worrying about getting their hands, feet stuck or other unexpected incidents. This is one of the necessary and almost mandatory features for modern home elevators.

4. Overload alarm device for cabin in mini elevator

The overload alarm device in the mini elevator is a safety feature that helps detect when the total weight of people and objects in the cabin exceeds the allowable level. As soon as overload is detected, the system will emit an audible warning signal, and the elevator will not operate until the load returns to a safe level. This helps protect important components such as the engine and cable, limiting the risk of damage and accidents.

Equipping an overload warning device helps users raise their safety awareness, avoiding unintentional actions that endanger themselves and the equipment. This is a simple but effective solution, contributing to prolonging the life of glass elevators.

5. Mini elevator door open control feature

The door-opening control feature is a solution to prevent incidents related to pitless elevator doors. If the cabin door or landing door is not completely closed, the elevator will not operate to ensure user safety. This system is often combined with magnetic sensors, which help to accurately control the door status.

Thanks to this feature, the risk of accidents due to doors being opened or not fully closed is completely eliminated. Users will also receive timely warnings, helping to raise awareness of protecting themselves and their family members when using the elevator.

8 Frequently Asked Questions When Installing a Mini Home Elevator

1. Should the renovator install a mini ladder without a pit ?

Renovated houses often have little space to accommodate traditional elevators. Usually, the area of ​​renovated houses only allows for repairs of about 1-1.5m2. In addition, it is not convenient to construct a pit. Therefore, mini glass elevators are very suitable for renovated houses.

2. How much space is needed to install an elevator in the middle of the stairs?

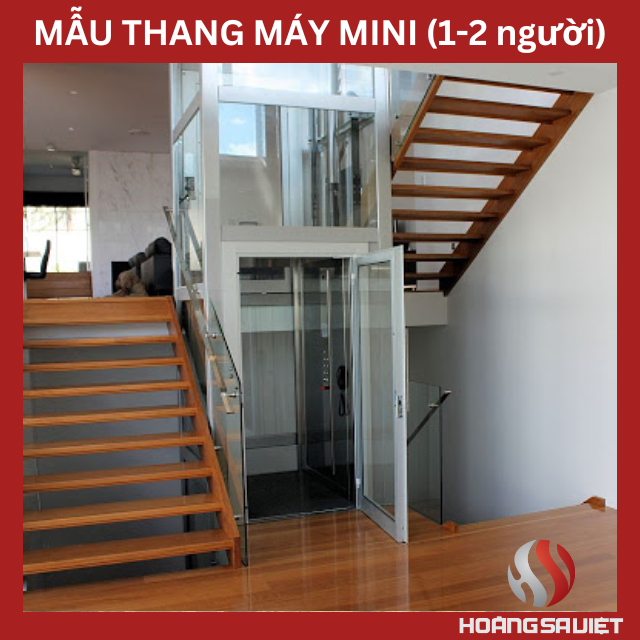

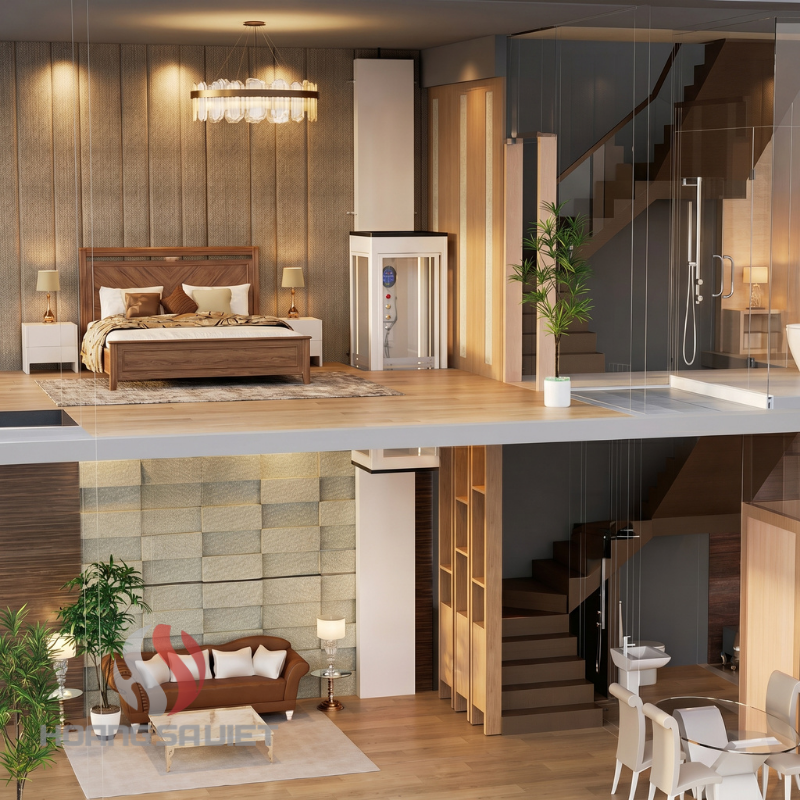

Many Vietnamese families choose to install Compact Mini Elevators in the stairwell to maximize space, ensure aesthetics and convenience for movement.

Installing an elevator in the middle of a stairwell often requires careful survey of the structure, distance between the stairs and the open space. Compact Mini Elevator models are often preferred thanks to their ability to maximize natural light, creating a spacious and luxurious feeling for the lobby area.

In addition, the foundation reinforcement and safety system installation plans are also carefully calculated to ensure stable, smooth and long-lasting operation. To install an elevator in the middle of a staircase, the following requirements are required:

• Clear width between stairs, minimum 85cm (850mm) required
• The minimum required clear depth between the stairs is 100cm (1000mm).
• Minimum required top floor height 2600mm

3. Can an elevator be installed in a skylight ?

Skylights are a common architectural highlight in modern townhouses, providing natural light and air circulation. Many families wonder if it is possible to take advantage of this space to install a Compact Elevator ? The answer is absolutely possible, if you choose an elevator solution that is suitable for the space and structure of the skylight.

With skylights ranging in size from 0.9m2 to 1.5m2 , Compact Glass Elevator models are the ideal solution, both saving space and increasing the aesthetic value of the house.

When installing an elevator at O ​​Thoang - Gieng Troi, it is necessary to survey, come up with a specific plan, and also need to make preliminary renovations to convert the skylight into a standard elevator shaft.

Contact Hoang Sa Viet now for the best solution in terms of cost and quality...!

4. Can the front balcony have an elevator?

This is the ideal location to install a Compact Glass Elevator for houses with limited interior space. Utilizing the balcony space helps to expand the utility, increasing the usability of the house in an optimal way.

Installing an elevator on the front balcony of the house not only creates an architectural highlight but also saves floor space inside. Pitless Glass Elevator models or outdoor elevators are specially designed with the ability to be waterproof, withstand sun and rain and ensure absolute safety.

In particular, this solution is suitable for townhouses and villas aiming for a luxurious, modern living space, convenient for all family members to move around without affecting the structure of the house.

To install an elevator on the balcony (outdoor elevator). There needs to be a detailed solution for balcony design, renovation, roof design, waterproofing, and water resistance very carefully to be able to use it for a long time. The waterproofing measure is the most difficult. However, with a team of experienced experts from Nidec Sankyo Elevator, we will survey and propose the best solution with you to achieve efficiency and optimize costs...

5. Should a mini circular elevator be installed in the middle of the staircase ?

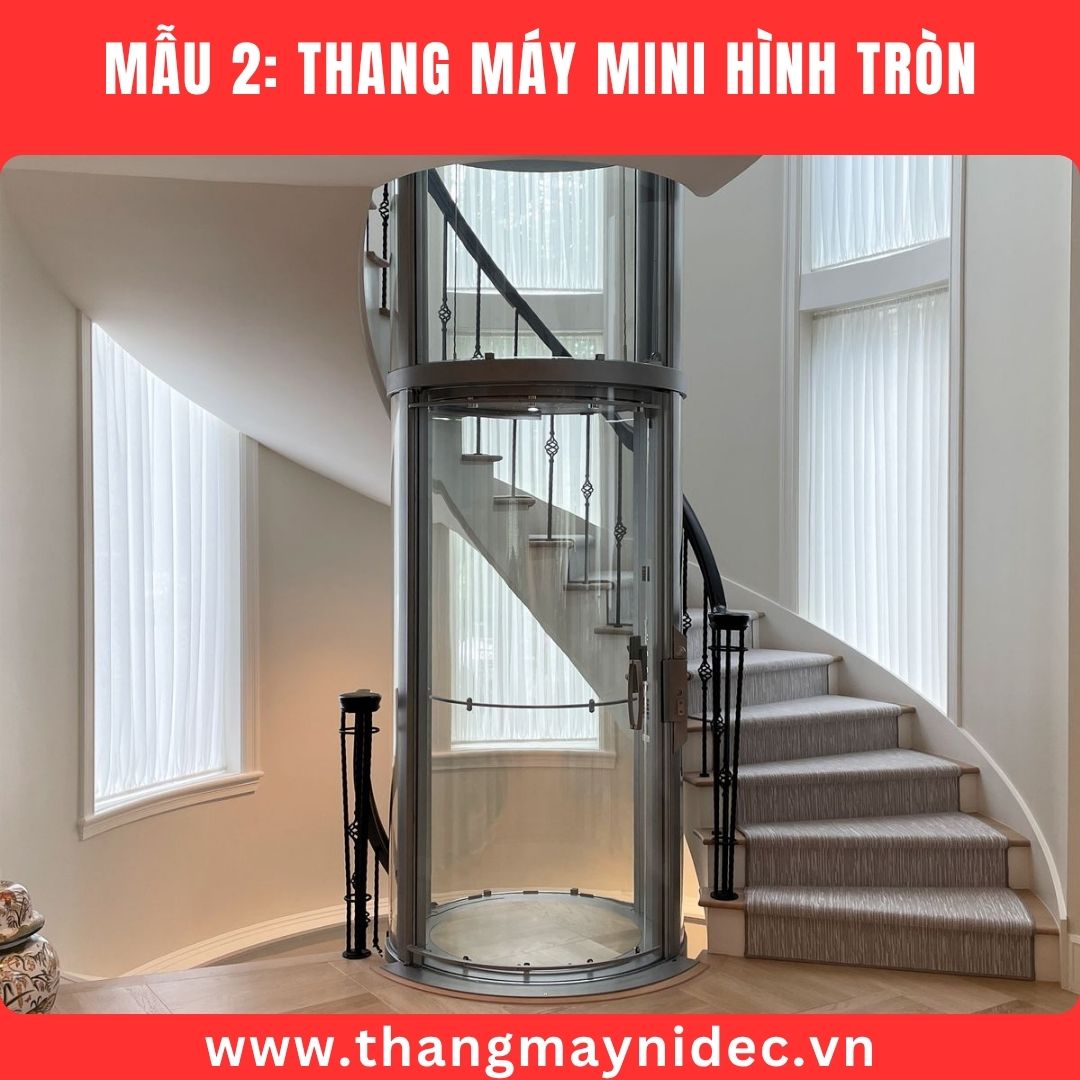

Mini circular elevators , or semicircular elevators, are an ideal choice for installation in the middle of a circular staircase. This is to enhance aesthetics and optimize space. However, currently, circular elevator models are often twice as expensive as rectangular elevators.

The installation of circular elevators is also implemented by few units. At Nidec Sankyo Elevator, we are developing circular elevator models with cheaper prices from 600-800 million VND . Please contact us for more details.

6. Do I need permission to renovate my house and install a mini elevator?

Basically, according to the construction law, when renovating a house, you need to go to the ward to write an application for house renovation and repair according to regulations. However, mini elevators are a product located in the house, they are designed to be very small, and when installed, it does not affect the structure of the house.

For renovated houses, it is often installed in the middle of the staircase. Therefore, it will not affect the usable area and will not affect the neighboring house. However, if installing an outdoor elevator, it is necessary to consider issues related to landscape, urban, traffic and neighboring houses...

Therefore, most families when installing elevators often skip the construction permit step. This also depends on each locality as well as the construction order management in that locality.

7. How much does it cost to use the mini elevator for electricity each month?

For mini elevators for families, depending on the technology, load capacity and frequency of use of the elevator, the electricity cost can be calculated. Hoang Sa Viet Elevator would like to give some examples of electricity costs for family elevators as follows:

• For small families: 200,000 VND - 300,000 VND/month
• For large families: 300,000 VND - 500,000 VND/Month

8. How much does it cost to maintain and service the elevator each month?

For home elevators and building elevators installed by Hoang Sa Viet. You will receive free maintenance and warranty within the first 2 years. After 2 years, Hoang Sa Viet applies monthly elevator maintenance and repair costs as follows:

• For office elevators: 800,000 VND/month (1-2 months maintenance)
• For home elevators: 600,000 VND / Month (maintenance every 2 months)

Introducing Nidec Sankyo - Specializing in Super Small Elevators

Choosing a reputable supplier to install a pitless elevator is a decisive factor in product quality and after-sales service. Hoang Sa Viet Elevator is proud to be a trusted partner of thousands of customers nationwide, providing high-quality glass elevator solutions, reasonable prices and dedicated, professional service.

1. Many years of experience in elevator manufacturing, reputable in the market

Hoang Sa Viet has more than 10 years of experience in the field of supplying and installing Super Small Mini Elevators for Families . A team of skilled and highly specialized technicians helps ensure that every project meets the highest standards of quality, safety and aesthetics.

The brand's reputation has been affirmed through thousands of large and small projects across the country. With the cooperation with big brands such as Nidec Elevator , Hoang Sa Viet always updates new technology, bringing optimal, cost-saving and sustainable solutions to customers.

2. Team of professional and dedicated consultants

One of the outstanding strengths of Hoang Sa Viet is the team of enthusiastic and experienced consultants. Each customer will be consulted in detail, from choosing the elevator model, designing suitable space to cost-optimized solutions. Dedicated customer care process, 24/7 support and answering all questions. Helping customers feel completely secure throughout the process of choosing and using the product.

3. Branch and showroom system nationwide

Hoang Sa Viet has built a system of branches and showrooms in many major cities such as Ho Chi Minh City, Hanoi, Da Nang, Dong Nai, Hung Yen, Phu Quoc, Long An ... to help customers conveniently experience, choose models directly and receive on-site consultation. Being present everywhere not only affirms prestige but also ensures the ability to provide quick and timely technical support in all situations, bringing maximum satisfaction to customers.

4. Specializing in pit-less elevator products for families

At Hoang Sa Viet, customers can choose from a variety of Pitless Home Elevator models from glass elevators, colored glass elevators, mini elevators, compact elevators to high-end models imported from Nidec Elevator . Each product is strictly quality tested, committed to safety and long life.

Competitive prices, many attractive incentive packages help customers save costs while still owning superior quality products. Clear and transparent warranty and maintenance policies are also a big plus point of Hoang Sa Viet.

5. Outstanding warranty and maintenance policy, 24/7 support

Hoang Sa Viet commits to providing professional warranty and maintenance services, 24/7 support for all customers nationwide. The team of technicians is always ready to handle problems, conduct periodic inspections, and ensure the elevator operates stably and absolutely safely.

Flexible warranty policy, genuine spare parts replacement, free consulting support, help customers feel secure in using the product for a long time, without having to worry about technical problems arising.

Nidec Sankyo Elevator Products

Comparison of Mini Elevators and Regular Elevators

Compare mini elevator with traditional elevator

While conventional elevators use concrete, wall or composite materials. Creating a sense of privacy and somewhat limiting visibility, the Mini Elevator brings a completely different experience. Tempered glass walls not only help the space become more open but also allow natural light to spread, reducing the feeling of claustrophobia, in line with modern architectural trends. In addition to the aesthetic factor, the Mini Elevator also has the advantage of optimizing the area, flexible installation in many different locations without affecting the structure of the building. In particular, with Mini Elevator models or round glass elevators, homeowners can easily choose a style that suits the interior and overall architecture. Meanwhile, traditional elevators often require a larger construction area and less creativity in design.
