GENUINE HYDRAULIC ELEVATORS - FAST INSTALLATION AT GOOD PRICES

Complete hydraulic elevator installation packages at THANGMAYNIDEC are priced from only 310,000,000 VND to 461,000,000 VND , with diverse load capacities for families of 1-6 members (2-5 floors), suitable for renovated houses, narrow houses, villas, resorts, and newly built townhouses. We guarantee genuine, safe components and a long warranty. See our hydraulic home elevator price list in the article below.

What is a Hydraulic Elevator?

Unlike other types of elevators , hydraulic elevators move based on the pressure of hydraulic fluid, thereby lifting the cabin thanks to the thrust of a piston located at the bottom or side of the elevator shaft.

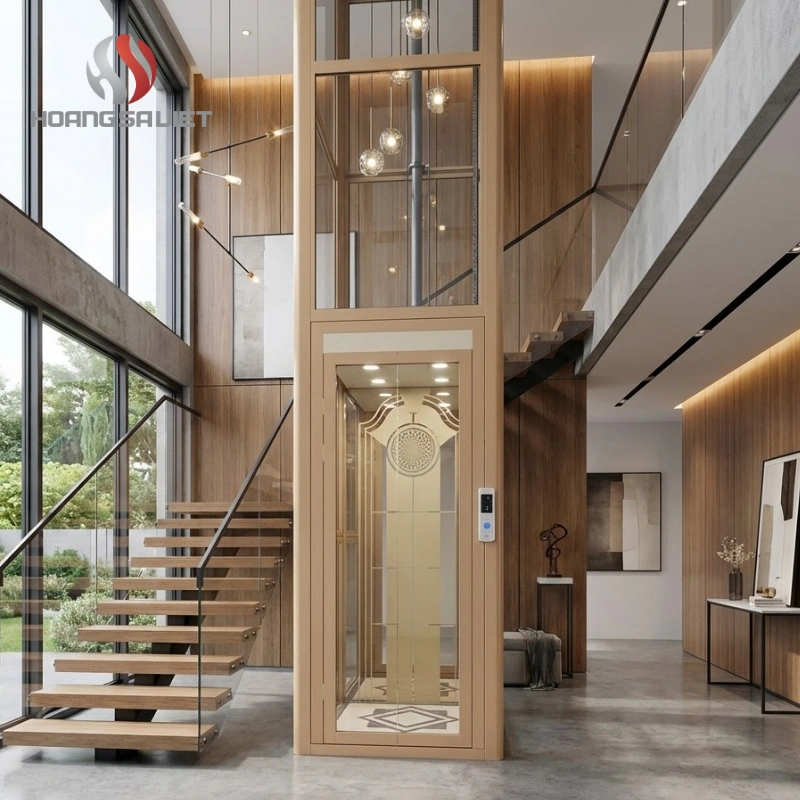

Hydraulic elevators are gradually becoming prevalent in many modern construction models. Although not ideal for high-rise buildings due to their high energy consumption during cabin lifting and lowering, hydraulic elevators are still considered the optimal choice for projects with a maximum of 5 floors (such as shophouses, villas, and resorts) thanks to their unique and luxurious design.

Structure of a Hydraulic Elevator

Hydraulic elevators are composed of many parts that work together in a synchronized manner to create a stable, safe, and smooth lifting and lowering process. Below are four key components that enable a hydraulic elevator to operate smoothly:

1-Central control cabinet

This is a crucial component that determines the functionality of the entire system, usually located on the lowest floor and a maximum of about 7 meters from the elevator shaft. Its structure includes:

• Hydraulic pump motor: Creates pressure to push oil into the cylinders to lift the cabin.

• Hydraulic oil reservoir: Stores hydraulic oil and also helps lubricate the system.

• Hydraulic valve: Regulates oil flow, helping the cabin stop precisely at the correct floor and operate smoothly.

• Control system: Controls all operations, ensuring the elevator operates according to the programmed schedule.

2. Mechanical Systems

This includes guide rails, the cabin frame, guide shoes, etc. These components are responsible for keeping the cabin moving vertically, reducing friction, and increasing stability throughout the journey.

3. Elevator shaft frame and cabin system

As the part that comes into direct contact with users, landing doors and cabin doors are usually made of tempered glass or gold-plated stainless steel, combined with safety sensors to provide maximum protection for children and the elderly.

4-Piston Hydraulic System

The piston is the component directly responsible for raising and lowering the elevator cabin through hydraulic pressure. With its ability to withstand high pressure and its high precision, the piston ensures stable elevator operation, minimizes vibration, and guarantees long-term durability.

Operating Principles of Hydraulic Elevators

Home hydraulic elevators operate based on a hydraulic pump system, primarily relying on the thrust from hydraulic fluid. Below are two stages in the operation of a hydraulic elevator:

• As the elevator moves upwards: The pump pushes oil into the cylinder, increasing the oil pressure inside the cylinder and creating thrust to move the cabin to higher floors.

• When the elevator is moving downwards: Upon receiving the downward signal, the control valve opens, allowing hydraulic oil to flow back to the reservoir. The piston then slowly lowers, pulling the cabin downwards.

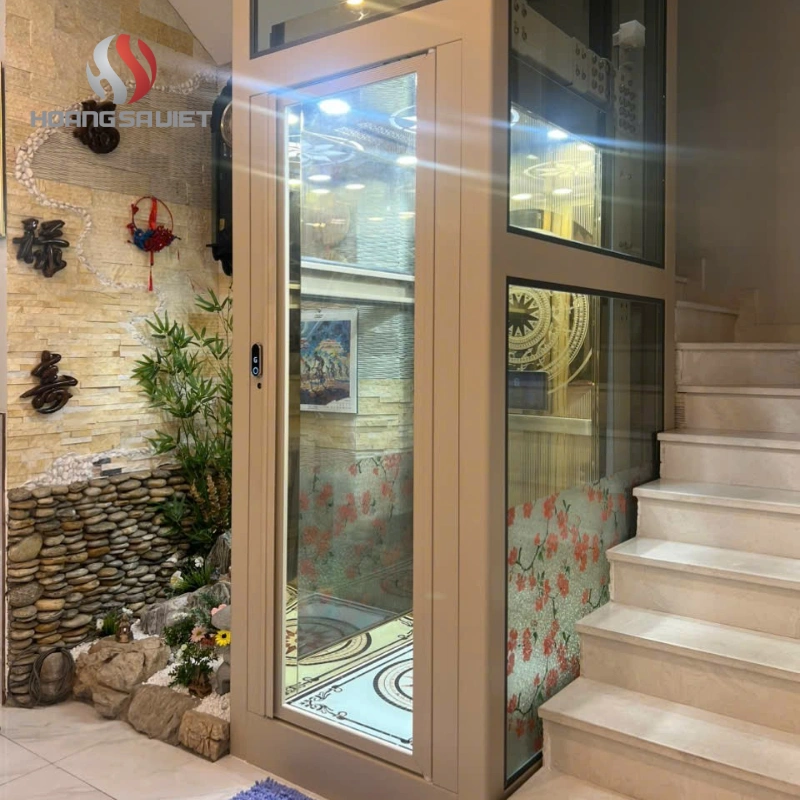

Thanks to this operating mechanism, hydraulic elevators operate smoothly, with minimal vibration, and are extremely energy-efficient when moving downwards.

Load Capacity and Dimensions of a Home Hydraulic Elevator

The hydraulic lifts available at THANGMAYNIDEC currently have common load capacities such as 200kg, 250kg, 320kg, and 400kg, suitable for everything from small renovated homes to newly built houses. Below is a detailed size chart for your reference:

Common dimensions chart for home hydraulic elevators

Hydraulic Elevator Review

To give you the most objective and honest perspective before making a decision to invest in hydraulic elevators, let's analyze the advantages and disadvantages of hydraulic elevators in detail below:

Advantages of Hydraulic Elevators

Thanks to the following advantages, hydraulic home elevators are always the preferred choice for many families:

• Reasonable investment cost: The streamlined structure and fewer components minimize initial installation and operating costs.

• Safe and stable operation: The simple piston drive system minimizes mechanical failures, ensuring durability and absolute peace of mind.

• Optimized installation space: The counterweight-free design maximizes cabin space, making it particularly suitable for narrow townhouses.

• Challenging all shallow pits: With a depth of only 10-15cm, it's extremely versatile for renovation projects without worrying about touching the house foundation.

Disadvantages of Hydraulic Elevators

Besides its advantages, home hydraulic elevators also have some limitations, as follows:

• Slow operating speed: With a speed of only about 15 meters/minute, hydraulic lifts move significantly slower than cable-driven lifts. This is only a really suitable option for low-rise buildings (2-5 floors), for customers who are not too strict about waiting time.

• Height limitation: Due to the specific piston stroke, the system only operates optimally within a range of 5 floors (under 18m).

• Requires significant space for pump installation: The oil tank and hydraulic pump system are quite bulky and usually need to be located on the ground floor.

• Risk of hydraulic oil leaks: If maintenance is neglected, the system is very susceptible to oil leaks, causing strong odors and directly affecting the family's living environment.

• High maintenance and repair costs: Due to the complex technical nature and limited number of specialized units, finding replacement parts or highly skilled technicians is often difficult, so maintenance and repair costs will be higher compared to other types of home elevators.

• Noise from the pump: When the elevator is in operation, the pump will emit noise as it pushes oil into the cylinders, affecting the shared living space of the family.

• If you feel this drawback affects quality, you can refer to our home elevator designs to minimize risks for your home elevator.

Comparison of Hydraulic Technology and Cable Traction Technology

If you are undecided between a hydraulic home elevator and a cable-driven elevator, please refer to the detailed comparison table below. Both types of elevators have their own strengths:

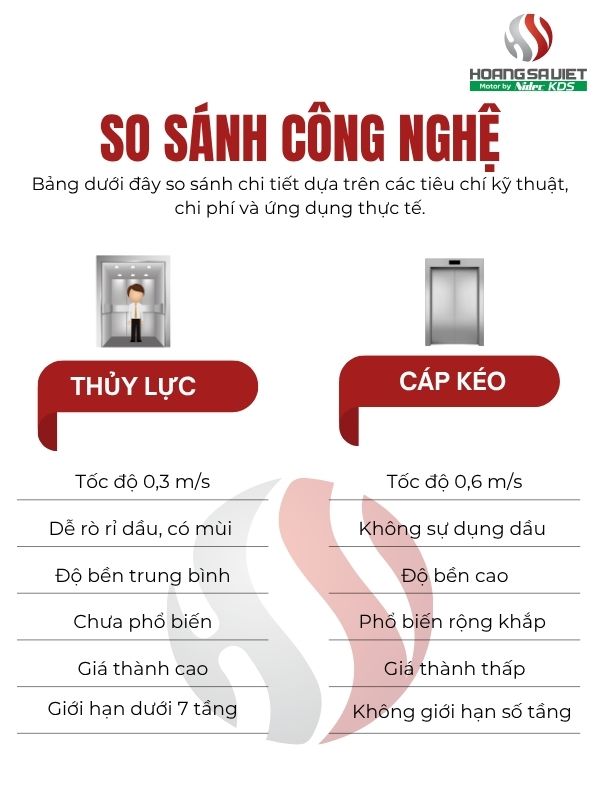

Comparison table of hydraulic and cable-driven elevators.

Hydraulic elevators require a larger installation area and a hydraulic pump located next to the elevator shaft, which may affect the aesthetics of your home to some extent. In contrast, cable-driven elevators boast a luxurious design and can be installed in any space, even the smallest, making them suitable for both renovated and newly built homes.

If you are interested in cable-driven elevator technology, please contact THANGMAYNIDEC immediately for consultation and installation of all modern elevator products.

Latest Price List for Hydraulic Elevators 2026

Below is a detailed price list and advantages and disadvantages of each type of hydraulic elevator to help you easily compare and choose the elevator solution that best suits your needs and actual conditions:

200kg Hydraulic Elevator

The 200kg hydraulic elevator is a suitable option for micro-houses or renovated homes where a conventional elevator cannot be installed. Requiring only a minimum area of ​​0.9m² (900mm x 1000mm), no counterweight needed, a reasonable price, and quick installation, the 200kg hydraulic elevator is a popular choice for many families.

Here are the prices and features of this mini hydraulic elevator :

• Price: 310,000,000 VND

• Elevator shaft dimensions: 900 x 1000mm

• Load Capacity: 200kg (1 - 2 people)

• Pit: No pit required (or a shallow pit of 10cm)

• Technology: Hydraulics

• Number of stops: Maximum 2 floors

• Pit frame: Aluminum frame with glass walls

• Cabin Door: Manually hinged

• Speed: 12m/minute

250kg Hydraulic Elevator

The 250kg hydraulic elevator is suitable for small or renovated homes, as it doesn't require a counterweight, thus optimizing space for the family.

Below are the prices and specifications for a 250kg hydraulic home elevator:

• Price: 360,000,000 VND

• Elevator shaft dimensions: 1000 x 1100mm

• Load Capacity: 250kg (2 - 3 people)

• Pit: No pit required (or a shallow pit of 10cm)

• Technology: Hydraulics

• Number of stops: Maximum 5 floors

• Pit frame: Aluminum frame with glass walls

• Cabin Door: Manually hinged door

• Speed: 18m/minute

320kg Hydraulic Elevator

Similar to the above type of elevator, the 320kg hydraulic elevator is suitable for small or renovated houses, as it doesn't require a counterweight, thus optimizing space for the family. However, the special feature is that this type of elevator has a higher load capacity, allowing it to accommodate up to 4 passengers simultaneously.

Below are the prices and specifications for a 320kg hydraulic home elevator:

• Price: 370,000,000 VND

• Elevator shaft dimensions: 1400 x 1600mm

• Load Capacity: 320kg (3 - 4 people)

• Pit: No pit required (or a shallow pit of 10cm)

• Technology: Hydraulics

• Number of stops: Maximum 5 floors

• Pit frame: Aluminum frame with glass walls

• Cabin Door: Manually hinged door

• Speed: 18m/minute

400kg Hydraulic Elevator

The 400kg hydraulic elevator is a higher-capacity elevator than the above models, capable of carrying up to 6 passengers simultaneously. A special feature of this type of elevator is that it doesn't require a counterweight, thus optimizing space in the home.

Below are the prices and specifications for a 400kg hydraulic home elevator:

• Price: 420,000,000 VND

• Elevator shaft dimensions: 1500 x 1600mm

• Load Capacity: 400kg (5 - 6 people)

• Pit: No pit required (or a shallow pit of 10cm)

• Technology: Hydraulics

• Number of stops: Maximum 5 floors

• Pit frame: Aluminum frame with glass walls

• Cabin Door: Manually hinged door

• Speed: 18m/minute

If you require further information or expert advice, please do not hesitate to contact us at Hotline: 0707.025.789 . Our team of specialists is always ready to assist and answer all your questions promptly and attentively.

Hydraulic Elevator Installation Process at THANGMAYNIDEC

At THANGMAYNIDEC, you can experience the installation process for a home hydraulic elevator in just 5 quick steps:

• Step 1: THANGMAYNIDEC's technical team will visit your site to survey and determine the appropriate elevator size to meet your needs.

• Step 2: After assessing the actual situation, THANGMAYNIDEC will select products and materials according to the budget and measured dimensions.

• Step 3: THANGMAYNIDEC designs the elevator according to the dimensions and materials agreed upon with the customer, then proceeds with production. This process usually takes 5-20 days to complete.

• Step 4: The technical team will install the elevator and complete the handover within 30 days.

• Step 5: THANGMAYNIDEC provides detailed instructions on how to operate the hydraulic elevator and emergency rescue procedures for the family. THANGMAYNIDEC is committed to maintaining a regular maintenance schedule to ensure the equipment always operates smoothly.

Why Choose THANGMAYNIDEC for Hydraulic Elevator Installation?

Among hundreds of companies in the market, THANGMAYNIDEC asserts its position by providing elevator solutions tailored to each living space, especially its range of renovation elevators.

• Nidec KDS's strategic partner: We utilize motor and control panel systems from the world-leading Nidec corporation. This ensures your elevator operates smoothly and lasts twice as long as conventional traction systems.

• No deep pit required: THANGMAYNIDEC prides itself on its pitless or shallow pit installation technique for hydraulic elevators, requiring only 10cm of pit depth. Customers don't need to worry about digging deep pits that could damage existing building foundations or interfere with underground utilities.

• Maximizing space efficiency: With its intelligent design, THANGMAYNIDEC can install elevators in homes with shaft areas as small as 0.9m², transforming dead spaces into sophisticated movement areas.

• Complete and fast installation: From surveying and widening the staircase to final installation, we are committed to a professional process, minimizing dust and noise, and ensuring no disruption to your family's daily life.

• Dedicated 24/7 warranty and maintenance service: With a nationwide maintenance network, THANGMAYNIDEC's technical team is always ready to be on-site within 60-120 minutes to handle any issues, ensuring your journey runs smoothly.
