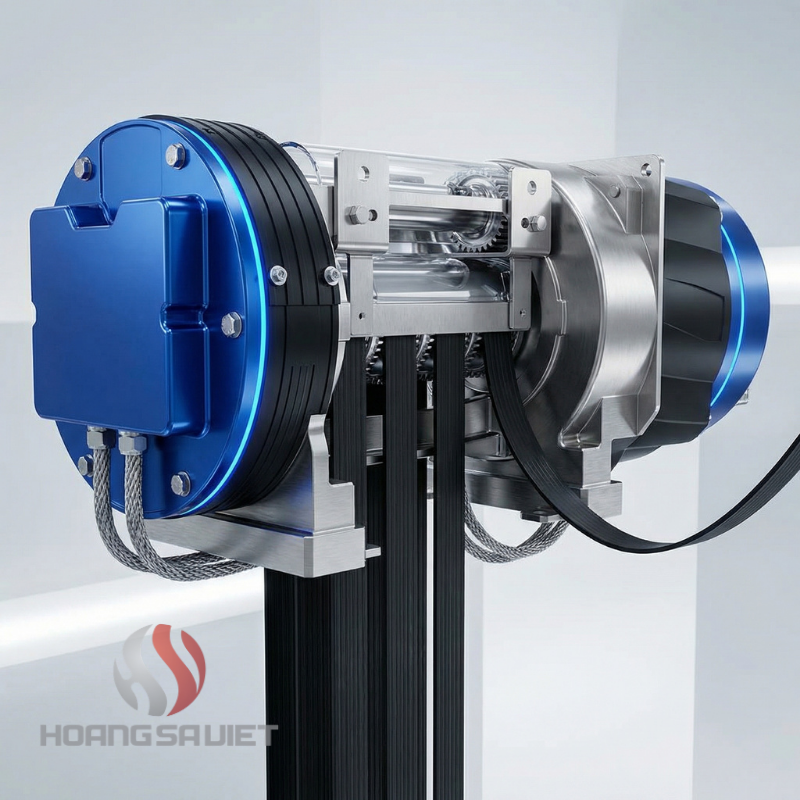

Elevators using flat cable motors operate on the principle of efficient power transmission, helping to optimize cabin lifting and lowering, through specially designed cables with high load capacity. Flat cables also have a longer life than traditional round cables, significantly reducing maintenance and replacement costs throughout their life cycle. In addition, thanks to their light weight and high flexibility, flat cable motors also contribute to reducing the overall load of the elevator system, thereby helping to save energy and protect the environment.

Construction principle of Flat Cable Elevator

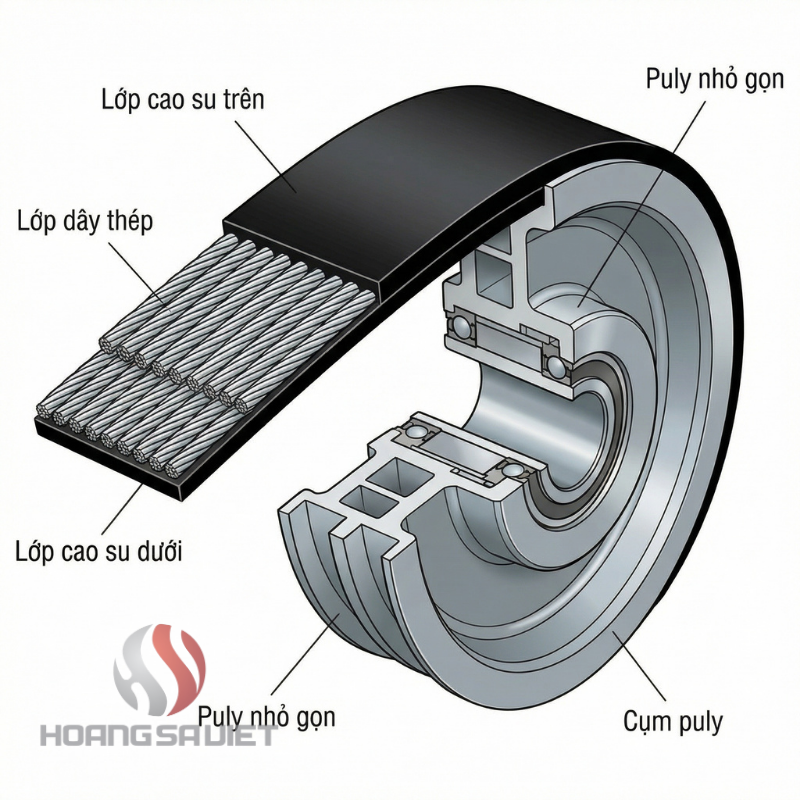

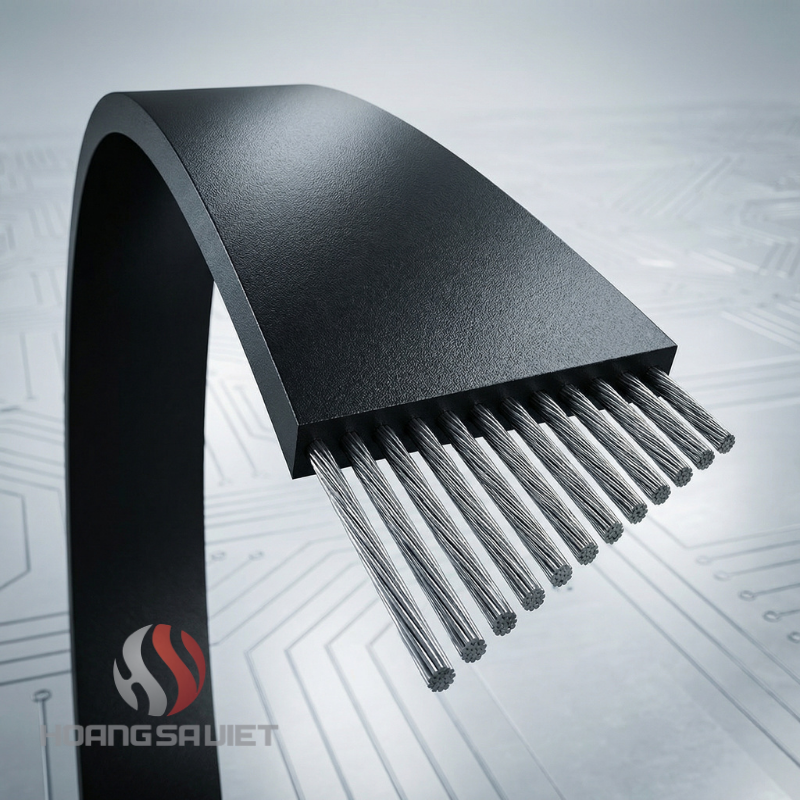

Flat cables are made of small steel wires or composite fibers. They are tightly braided together in a special structure, which increases the load-bearing capacity and reduces the risk of damage. On the outside, the cable is covered with a layer of high-quality synthetic materials such as polyurethane (PU). The PU jacket is not only durable but also provides abrasion resistance and is resistant to environmental factors such as temperature, humidity, or chemicals, which significantly increases the life and reliability of the cable.

More specifically, the flat cable has a larger contact area with the pulley than the round cable . This increases the friction force up to 4 times. Thanks to that, the size of the Pulley can be reduced to 100mm. Thus, with a small Pulley, the Flat Cable Elevator will help engineers conveniently arrange components. It is easy to design transmission types and transmission methods that are almost vertical. It will optimize the cabin area. Space utilization efficiency is up to 85%.

The outstanding feature of flat cables is their flat design, which helps to minimize the space required for installation and operation. This is especially useful in modern constructions where space is often limited and requires smart solutions.

Flat cables also have the ability to operate smoothly, minimizing noise thanks to the PU coating that reduces friction and vibration during use. In addition, this design also helps to limit the cable from twisting or misalignment, a common problem with traditional round cables. Thanks to that, the operating performance of flat cable elevators is improved, bringing higher safety and stability.

Not only stopping at operational efficiency, flat cables also stand out with aesthetics. The flat and neat design of this type of cable brings harmony and modernity to flat cable elevator systems ,. Especially in high-end projects such as villas, hotels, or luxury office buildings. With outstanding advantages in design, load capacity, and longevity, flat cables are becoming the top choice in the elevator technology industry. This type of cable not only meets strict technical requirements, but also opens up new trends for optimizing efficiency, operation and user experience in the future.

Advantages and Disadvantages of Flat Cable Elevators

You want to optimize the area for townhouses, renovated houses, or create architectural highlights for luxury villas. Flat cable elevators are the perfect choice. The following are the outstanding advantages of the flat cable elevator line without pit, for families & company offices.

Advantages of flat cable elevators

• Only 0.85m2 area is needed to install the elevator (850x1000mm)
• Just dig a shallow pit about 10cm. Or no need to dig (the ladder floor will be raised 10cm above the floor)
• Compact size, easy to design and arrange the floor plan
• Create a bright, airy and luxurious space.
• Flat cable elevators also have all 6 safety features. Just like traditional elevators

Disadvantages of flat cable elevators

• Flat cable elevator is a new product line, high technology so the price is higher than round cable line.
• Flat cable elevator has a maximum speed of 60m/Minute
• Height and number of floors limited (maximum 7 floors)
• Maximum load limit is 630kg (suitable for family)

Price List & Specifications, Size: Flat Cable Elevator

Instructions for Making a Flat Cable Elevator Quotation (Automatic)

The flat cable elevator quotation program is built and operated by us completely automatically, to ensure accuracy and consistency. Based on this quotation, we proceed to create a contract appendix and transfer it directly to the production department, creating a closed process, minimizing unnecessary arising. Thanks to that, working efficiency is significantly improved, while helping to optimize costs, bringing more competitive prices to customers.

Please watch the entire video to understand the structure of flat cable elevators.

Compare Advantages & Disadvantages of Mini Flat Cable Elevators

We respectfully send you the price list of flat cable mini elevators . We also analyze in detail the advantages and disadvantages of each type. This information is presented clearly to help you easily compare and choose the elevator solution that best suits your needs and actual conditions.

If you need more information or in-depth advice, please do not hesitate to contact us at Hotline: 0707.025.789 Our team of experts is always ready to support and answer all your questions enthusiastically and quickly.

Price List of Mini Elevators - Flat Cable

1. Classification of flat cable elevator lines

Flat cable elevators are a branch of the pitless elevator line . They are popularly installed in townhouses, villas, apartments in apartment buildings... Because they are constructed and installed quickly.

Especially no need to dig a pit and very convenient when installing for renovated houses. There are many types of flat cable elevators. However, for easy visualization, we will classify the flat cable elevator lines based on the following characteristics :

• Cabin type & Door opening type ( automatic door, manual door, hinged door )
• Frame materials ( aluminum alloy , steel, concrete wall frame )

These features will greatly determine the quality, price, durability, and aesthetics of the product. Elevator buyers need to clearly understand these features before signing an elevator purchase contract to avoid confusion between product lines.

• If you are using a mobile phone , please swipe across the description to see the full content.
• You can choose the " read article " format to listen to the audio content, or watch the video below to understand more.

2. Table describing flat cable elevator lines

The table describes the flat cable elevator lines, helping you visualize the elevator configuration, which will determine their price . For example

• Elevator frame includes (steel frame, concrete frame, aluminum alloy frame).
• Elevator walls include (tempered glass walls, Alu walls, or built walls... covered with marble.)

3. Slideshow of images of flat cable elevators

Click left < or right > to see more

Click right or left to see the image and description title of each ladder line. From there, you can visualize which product line is the best and cheapest to install...

4. Flat cable elevator price list (including frame and glass wall)

This price list includes the frame and glass wall (elevator shaft) . If you want to buy the frame and glass wall separately, please refer to section 5.

This price list applies to small elevators. Larger elevators will cost a little more. Depending on the size of the elevator, you should choose the appropriate elevator type and door opening style to save costs...

The above price list is for reference only, because there are many factors that affect the price of a flat cable elevator for the family. Therefore, to explain this issue. Nidec Sankyo Elevator has made a video dedicated to this topic. Please watch the video for more information.

5. Compare the advantages and disadvantages of flat cable elevators

Comparison table of advantages and disadvantages of flat cable elevator product lines.

Advice from Nidec Sankyo Elevator : In case the OH height is large enough, the installation area is large enough from 1300x1400mm , you should install the flat cable ladder with central sliding door, which is the most effective and high quality.

Size & Load Capacity of Flat Cable Elevator

The characteristic of mini elevators is that they are usually installed for houses with compact areas, or renovated houses. Therefore, the factor of saving space is extremely important. When designing flat cable elevators. Designers often pay attention to the factor of saving space. Increasing space and increasing light for the house. Therefore, priority is given to using steel or aluminum frames and glass walls for the elevator shaft. The size and load capacity of flat cable elevators that do not require digging a pit are shown in the table below.

1. Standard size table of flat cable elevator

Common size chart for your reference. Depending on actual conditions, you can choose any size. For each size suitable for the house architecture. Hoang Sa Viet Sankyo will offer the most reasonable solutions.

2. Flat cable elevator floor plan & cabin dimensions

Click left < or right > to see the image

Cabin size is for reference only. For each actual project, we will optimize the best cabin size for you, with many available solutions at Hoang Sa Viet Elevator.

6 Safety Features of Flat Cable Elevators

Flat Cable Elevators still fully meet the 6 safety features like traditional elevators. However, when not digging a Pit , according to Vietnamese standards (TCVN), these mini elevators will not meet inspection standards. Therefore, the inspection will be replaced by inspection, load testing and testing of the 6 safety features listed below.

Just like other home elevator products. Flat cable elevators need to meet all safety criteria. However, regarding inspection, some backpack elevator models have not been approved for inspection by the inspection department.

Therefore, Hoang Sa Viet Sankyo once again advises you if the installation area meets the standard of 1100x1100 or more . Please choose the product lines that meet the inspection standards (according to the table above). Some flat cable elevators without cabin doors must be equipped with infrared safety curtains (photocell) . Below are the necessary safety features of glass-cage family elevators.
