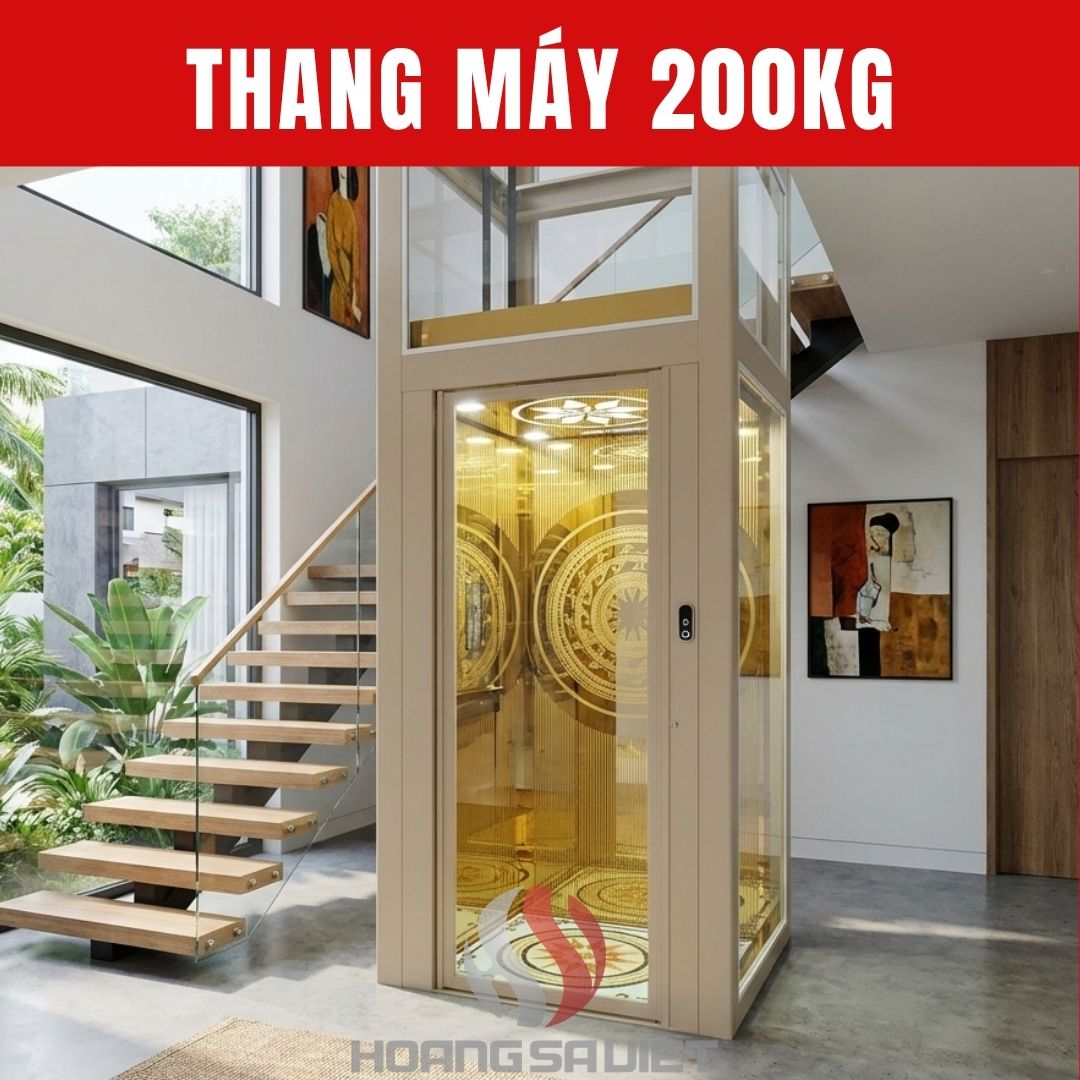

200kg Home Elevator

Elevators are becoming increasingly popular in Vietnam. Among them, the 200kg capacity home elevator stands out for renovated houses thanks to its pitless technology, compact size, and good price. Let's explore the details of the price, size, and advantages and disadvantages of the 200kg elevator in this article from THANGMAYNIDEC.

Overview of 200kg Capacity Home Elevators

1. Definition of a 200kg Home Elevator

A 200kg capacity elevator is a budget-friendly, compact home elevator designed for families needing a maximum of 1-2 people per trip. With a 200kg load capacity, this type of home elevator typically has a small cabin, saving space while still ensuring comfort and safety. Older houses often lack pre-designed elevator shafts, so utilizing available space is a top priority.

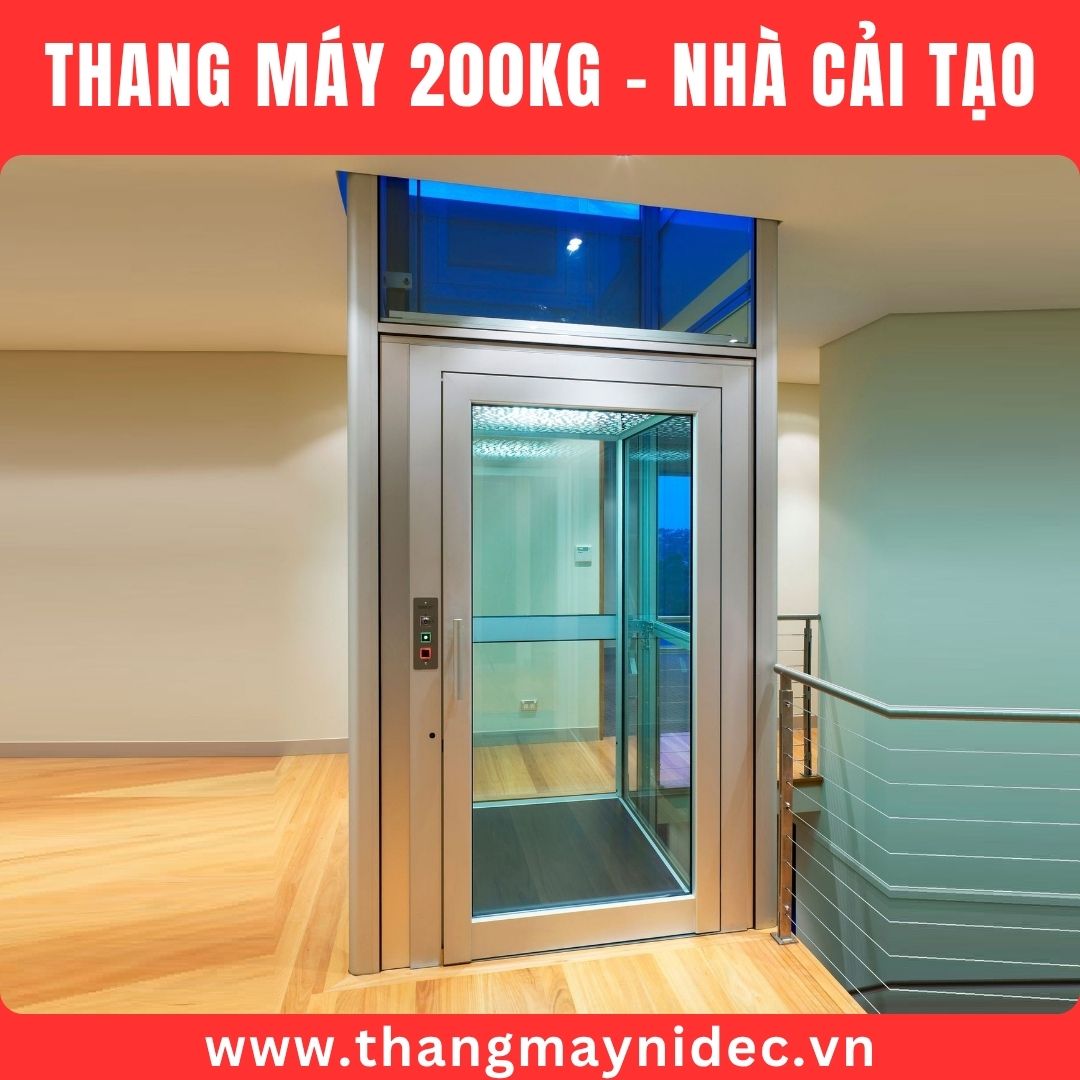

2. Advantages of a 200kg Home Elevator for Renovated Houses

This elevator line possesses features suitable for home renovations:

• Maximizing space: With an elevator shaft size of just 1m², you can easily utilize the space under the stairs for installation.
• Minimizing excavation: These elevator models require a very shallow pit, helping to avoid contact with the house's septic tank system, groundwater, or old foundation beams.
• Energy saving: Using single-phase electricity (220V), the power consumption is equivalent to that of a refrigerator, making it extremely suitable for the household power grid.

Popular 200kg Capacity Home Elevator Models Currently Available

There are three types of technology used in 200kg capacity home elevators: cable-driven, hydraulic, and screw-driven. Below, we will explain these three types in detail:

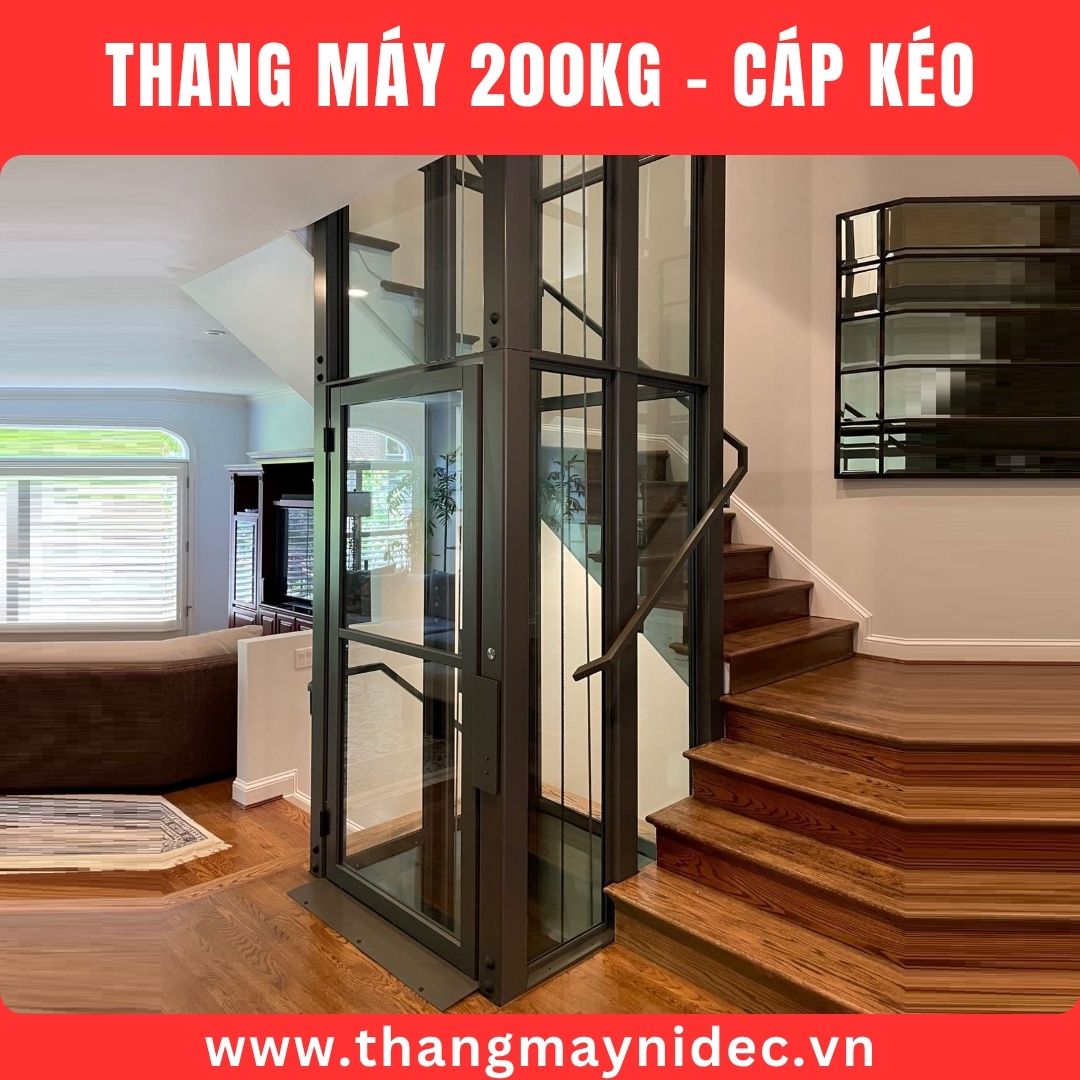

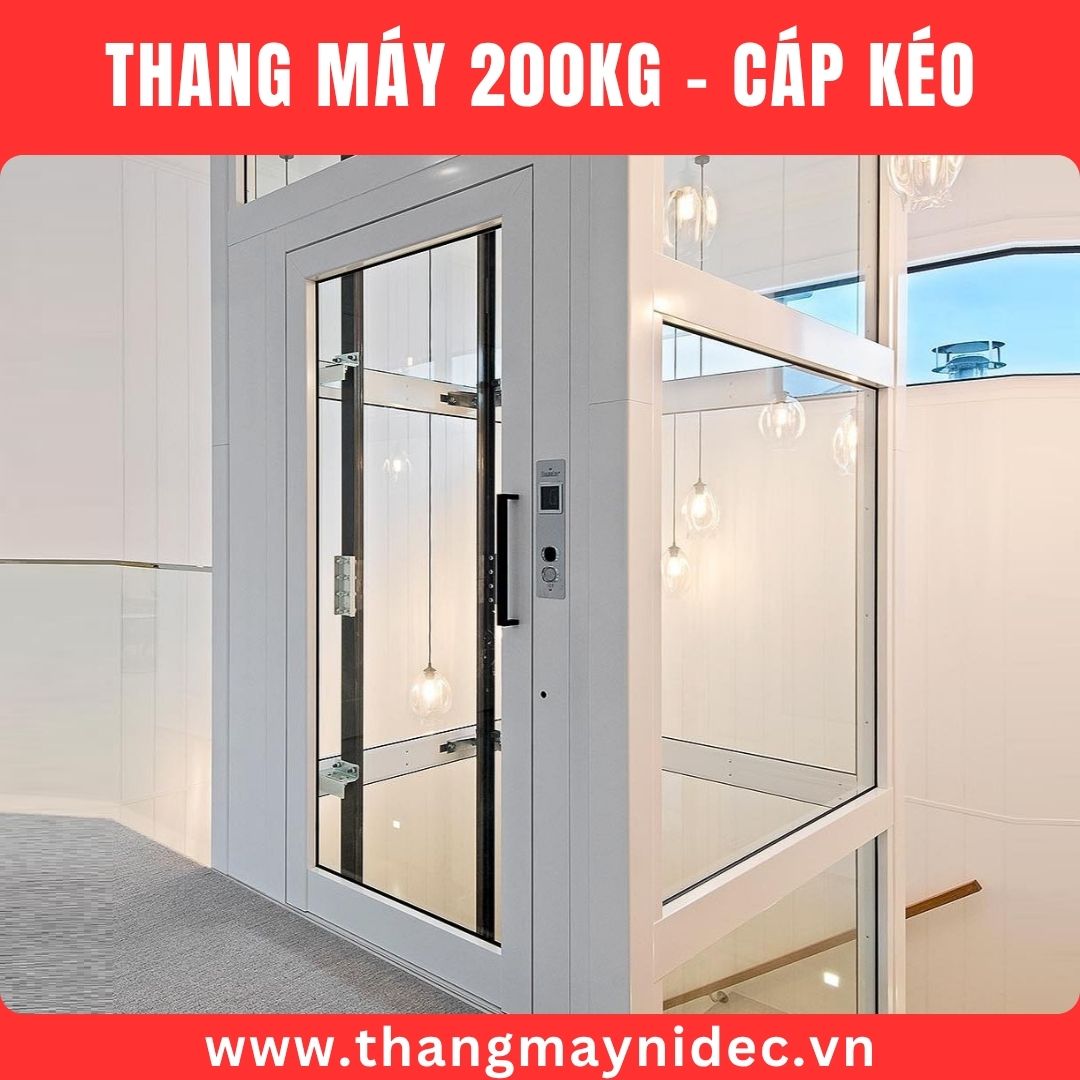

1. Cable pulling technology - The most common on the market, inexpensive.

This is the most common technology in the world, operating on the principle of pulleys with a cable and counterweight. For elevators with a 200kg load capacity, we use gearless motors from the Nidec/Kinetec brand (Japan). Nidec Elevators is proud to be a reputable importer of cable traction motors from the Nidec KDS corporation. (See also: 350kg elevators using Nidec KDS motors)

Operating principle: The cabin is raised and lowered using a system of ultra-durable steel cables via a drive pulley. Counterweights help balance the load, minimizing energy consumption.

Outstanding advantages:

• Speed: Fast and flexible (from 0.4m/s to 1.0m/s), suitable for houses with 4-6 floors.
• Durability: Nidec tractors are renowned for their lifespan of over 20 years, operating reliably in Vietnam's hot and humid climate.
• Cost: The installation cost and subsequent maintenance and replacement of components are the cheapest among the three technologies.

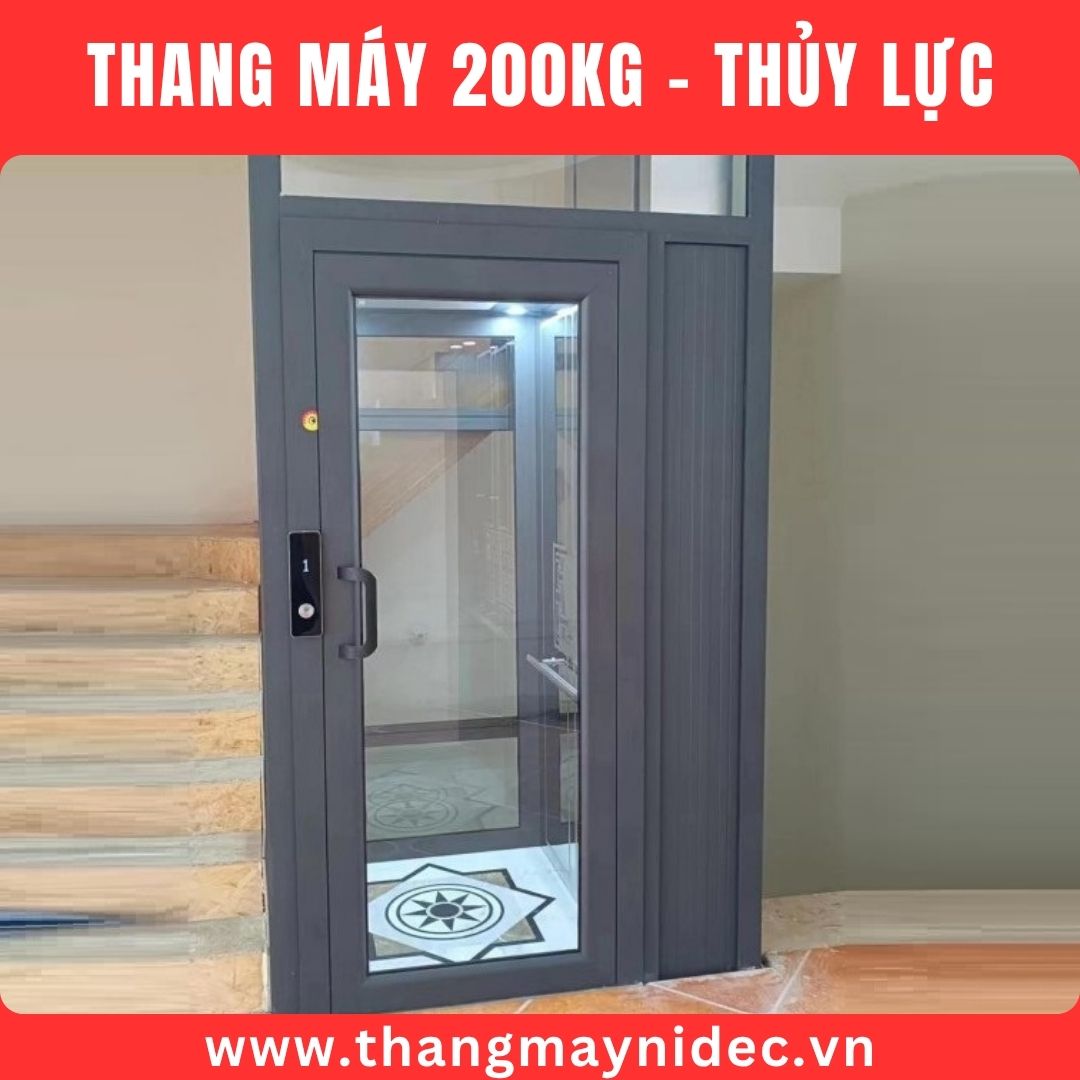

2. Hydraulic technology

Hydraulic elevators are notable for their operation using pistons that push oil to move the cabin up and down. This technology is still relatively new to the Vietnamese market, so customers should research thoroughly before making a decision.

Operating principle: The elevator moves thanks to the thrust of a hydraulic piston. Oil is pumped into the cylinder to push the piston up and is released to lower the cabin under the influence of gravity.

Outstanding advantages:

• Space-saving OH: No need for an overhead machine room, the top floor height can be designed to be low.
• No pit required: With oil-pumping technology, homeowners don't need to dig a pit underneath, avoiding damage to the house structure.

Disadvantages: Slow speed, high cost. After a long period of use (10-15 years), the system needs to be inspected to avoid oil leaks. The noise from the ground floor pump is quite annoying.

3. Screw technology

Screw technology is a relatively new technology that has emerged in recent years and has not yet been widely applied in practical construction projects.

Operating principle: The cabin is attached to a system of helical gears that run along a giant fixed screw shaft. Imagine the cabin as a giant nut rotating around a bolt.

Outstanding advantages:

• No pit required: You only need to recess the structure by about 5cm into the floor or build a small ramp for installation, completely avoiding contact with the house foundation.
• Aesthetics: Often designed as tempered glass staircases for homes , creating a modern, luxurious look and making the house feel more spacious.

Disadvantages: High investment cost (usually 1.5 - 2 times higher than cable-stayed elevators) and slow travel speed.

Comparison of 200kg and 250kg Elevators

When choosing an elevator for their home, many homeowners often hesitate between a 200kg elevator and a 250kg elevator . Both models are popular in the affordable, small-sized home elevator segment, but they are suitable for different needs and space sizes.

Below is a detailed comparison table to help you easily choose the most suitable home elevator:

Technical Specifications of a 200kg Home Elevator

To prepare for elevator installation, you need to understand the following basic technical specifications:

• Load capacity: 200kg
• Maximum number of users: 1-2 people.
• Minimum size: 850 x 1000 (mm)

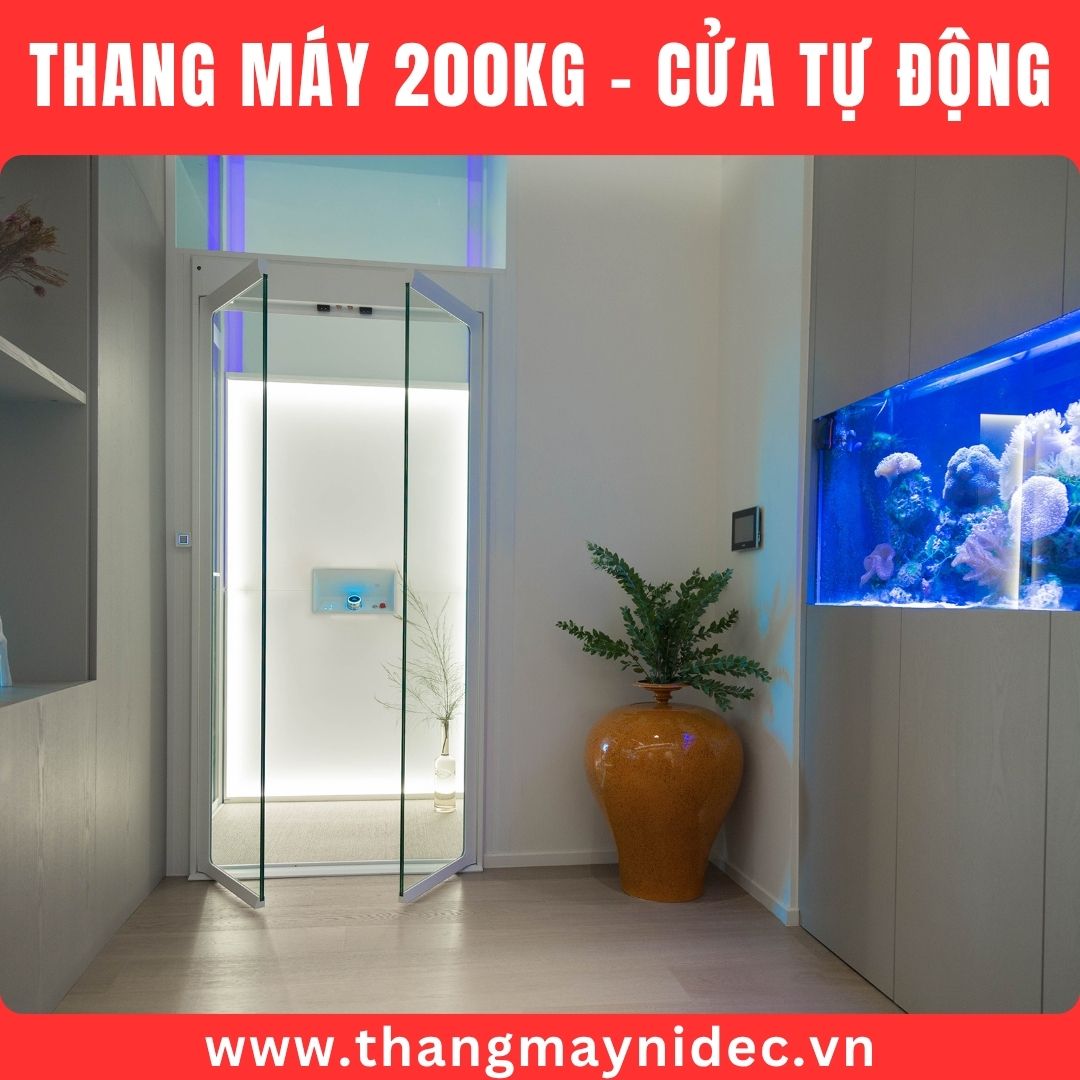

• Door opening type: Manual hinged door or automatic hinged door
• Pit depth: 100mm or no pit
• Overhead height: minimum 2600mm
• Travel speed: 30m/minute and 60m/minute (depending on the stop and the number of floors served by the elevator).
• Engine technology: Kinetec Elevator gearless tractor engine (5-year warranty)
• Power output: 3.0KW – 3.7KW.
• Power supply: 1-phase or 3-phase (depending on customer requirements)

Latest 2026 Price List for 200kg Capacity Home Elevators

Looking for a 100% accurate and affordable elevator quote tailored to your home's dimensions? Watch the detailed video guide below. With just a few data entry steps, you'll receive the most optimal financial solution. THANGMAYNIDEC guarantees 100% confidentiality of your personal information.

Watch the tutorial video below:

QUICK QUOTE

Automated Quotation Program

Vui lòng chọn sản phẩmHome ElevatorThang máy thủy lựcCargo ElevatorThang hỗ trợ người già, xe lănElevator ServicePassenger ElevatorHồ sơ nghiệm thu

Số lượng

Số lượng

THÔNG TIN KHÁCH HÀNG

Place of installation *

 Obligatory

Please choose locationHà NộiHồ Chí MinhPhú QuốcCần ThơĐà NẵngHải PhòngAn GiangBà Rịa - Vũng TàuBắc GiangBắc KạnBạc LiêuBắc NinhBến TreBình ĐịnhBình DươngBình PhướcBình ThuậnCà MauCao BằngĐắk LắkĐắk NôngĐiện BiênĐồng NaiĐồng ThápGia LaiHà GiangHà NamHà TĩnhHải DươngHậu GiangHòa BìnhHưng YênKhánh HòaKiên GiangKon TumLai ChâuLâm ĐồngLạng SơnLào CaiLong AnNam ĐịnhNghệ AnNinh BìnhNinh ThuậnPhú ThọPhú YênQuảng BìnhQuảng NamQuảng NgãiQuảng NinhQuảng TrịSóc TrăngSơn LaTây NinhThái BìnhThái NguyênThanh HóaThừa Thiên HuếTiền GiangTrà VinhTuyên QuangVĩnh LongVĩnh PhúcYên BáiCambodia

THÔNG TIN KHÁCH HÀNG

Customer name *

 Obligatory

Phone number *

 Obligatory

Email *

 Obligatory

Security code *

 Obligatory

(Click the image above to get the new code!)

(*) Required information

nhập lại Phát hành báo giá

Some of the Most Popular 200kg Capacity Home Elevator Models Currently Available

To help you easily visualize and plan your finances, THANGMAYNIDEC presents a price list of the most popular and affordable home elevator models, including their advantages and disadvantages.

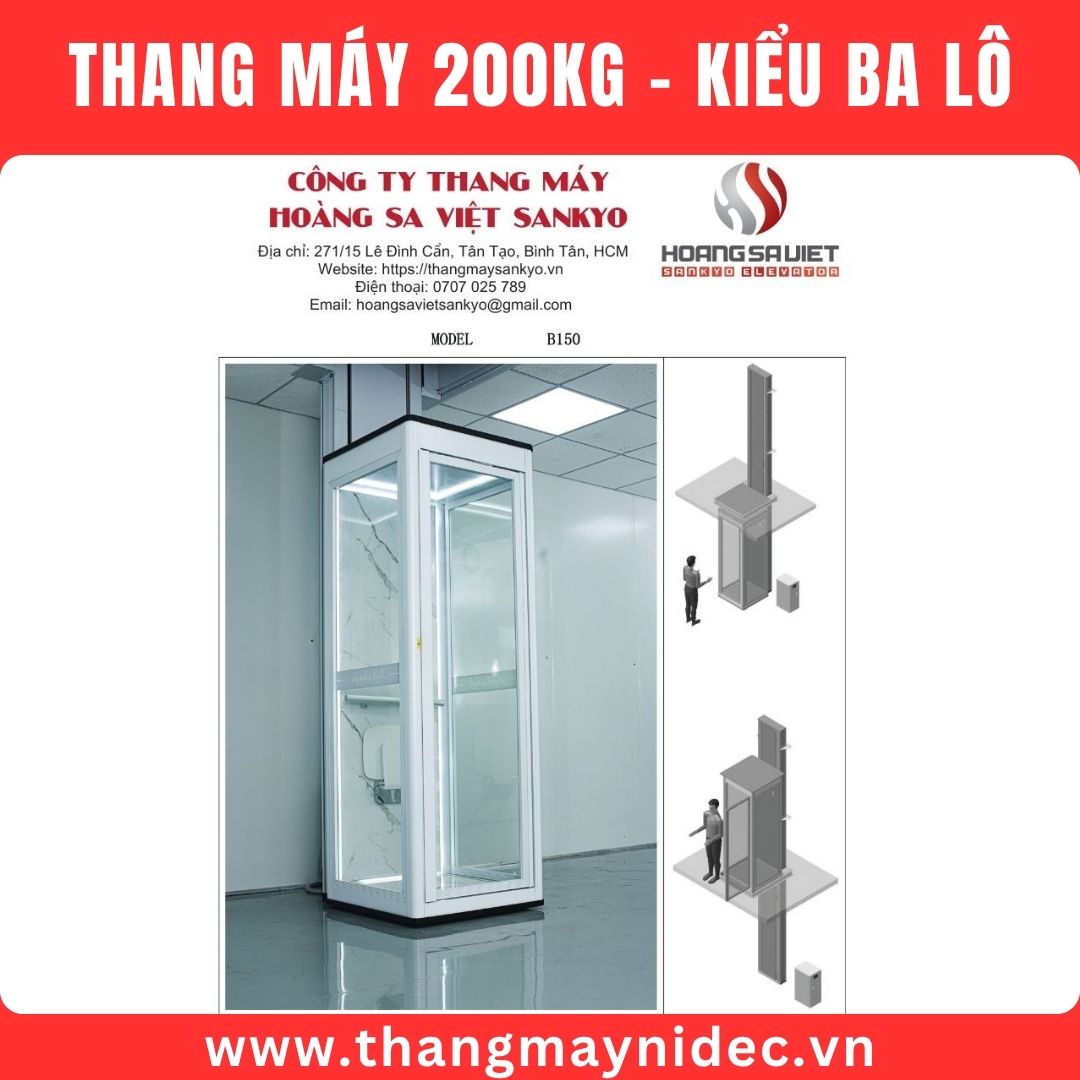

Advice from Nidec Elevator Experts: If the installation area is large enough (1300x1300mm or more), you should choose models that meet inspection standards. Only install ultra-small home elevators or backpack elevators if space is insufficient.

How to Install a 200kg Capacity Home Elevator in a Renovated House

Based on practical experience from THANGMAYNIDEC, here are the 3 most optimal layout options for 200kg capacity home elevators:

Utilize the space between the stairwells.

This is considered a prime location and a top choice for home renovations.

• How it's done: Engineers will utilize the open space between the stairwells to erect the steel frame and install the 200kg capacity home elevator cabin.
• Advantages: Maximizes space efficiency as there's no need to demolish or occupy additional living space, and facilitates easy movement between all rooms.
• Note: You should use a glass elevator to avoid darkening the stairwell area.

Install it in the skylight area or next to the balcony.

If the stairwell is too narrow, placing the home elevator in the atrium area (usually in the middle or at the end of the house) is an excellent option.

• How to do it: Utilize the existing open space between floors to create an elevator shaft.
• Advantage: The width of the emergency stairwell remains unchanged.
• Note: The load-bearing frame system needs to be reinforced because the skylight area usually does not have direct load-bearing beams.

Outdoor elevator installation

For renovated homes with extremely limited interior space, where not a single square meter of empty room can be found inside, outdoor installation is the preferred solution.

• How it's done: The elevator shaft will be mounted flush against the exterior of the building, connecting to the floors through newly created floor doorways.
• Advantages: It does not encroach upon the interior space of the house at all.
• Note: Materials and technology that can withstand harsh weather conditions should be selected. For outdoor elevators, we recommend prioritizing the installation of a 200kg capacity glass elevator using powder-coated steel and UV-resistant glass.

Home Elevator Installation Process at Hoang Sa Viet

Step 1: On-site survey:

Immediately after receiving the request, THANGMAYNIDEC's engineering team will visit the construction site to conduct a geological survey, measure the actual dimensions, and inspect the elevator shaft placement.

Step 2: Consulting on options:

Based on your usage requirements and the architecture of your house, we will advise you on the most suitable technology (cable-driven, hydraulic, or screw-driven) and load capacity, helping you optimize costs right from the start.

Step 3: Design detailed elevator shaft drawings:

After agreeing on the plan, the technical department will provide detailed elevator shaft design drawings. These drawings include parameters for the pit, overhead level (OH), machine placement, and electrical connection points. We will work closely with your construction company to ensure the elevator shaft is constructed correctly, minimizing the need for demolition and repairs later.

If your home has a low overhead height (OH), you can consider THANGMAYNIDEC's popular machine-roomless home elevator models.

Step 4: Sign the contract and proceed with production.

Strict quality control of output. Nidec elevators will begin the process of custom-making the cabin in their factory and importing core components from the Nidec Corporation. Installation will then be carried out by professional engineers trained to American standards.

Step 5: Independent Verification

Once completed, the elevator will undergo trial operation and pass a rigorous safety inspection process from the competent authorities to obtain an official operating license.

Step 6: Handover, user instruction, and scheduled maintenance:

We handed over the elevator and instructed the family on how to use it and how to perform emergency rescue procedures in case of a power outage. However, our responsibility doesn't end there. We are committed to regular maintenance to ensure the elevator is always in perfect working condition, providing complete peace of mind for all family members.
