Pitless Mini Elevator Price

Click the " Read Article " button to listen.

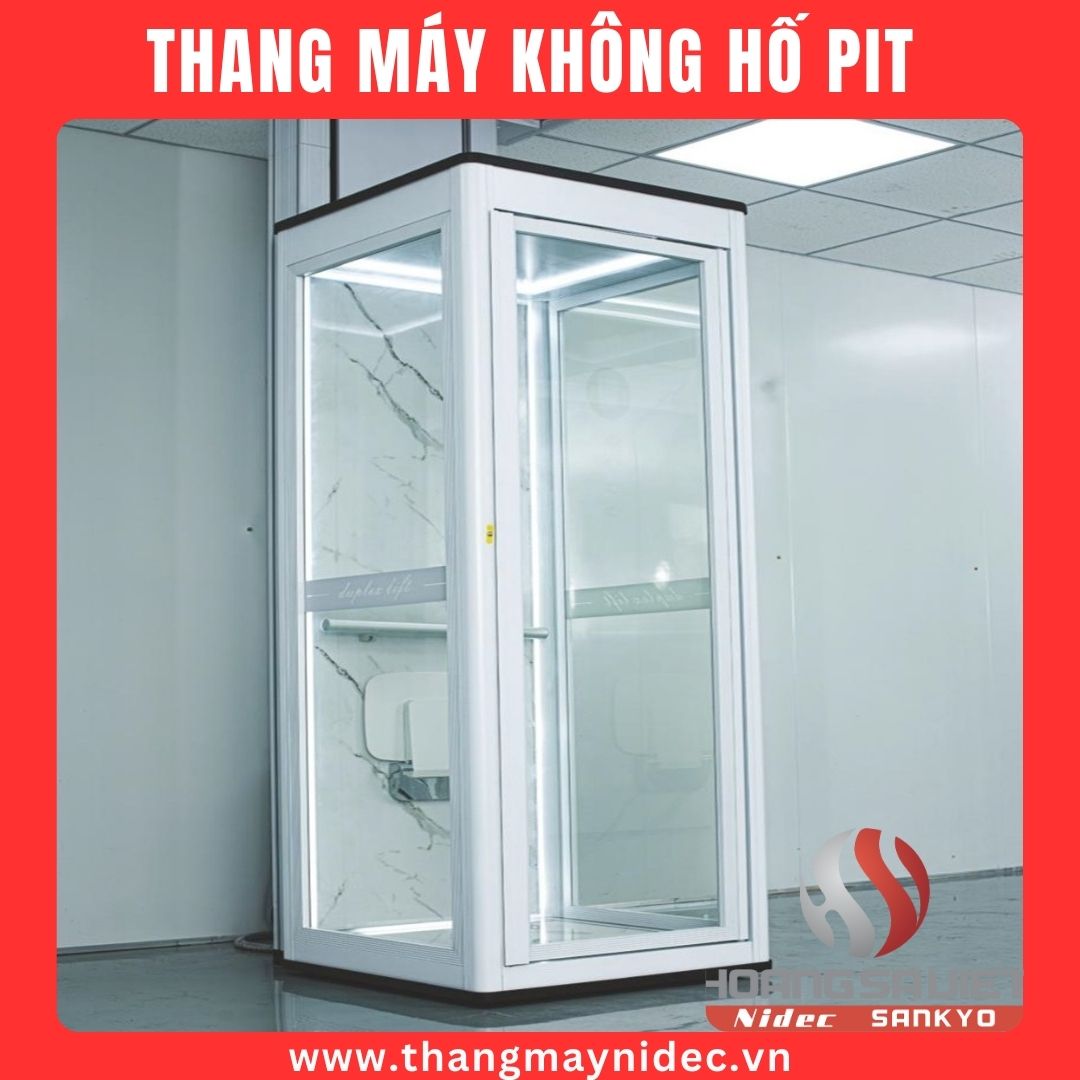

Technical Specifications Of Pitless Mini Elevator

Overview of pitless mini elevators:

• This is a mini elevator with a compact design that does not require digging a pit , and is specialized for installation in residential spaces.
• Minimum installation area required is 0.85m² or more.
• Common mini ladder load: 200kg to 350kg , suitable for the moving needs of families with few to many members.

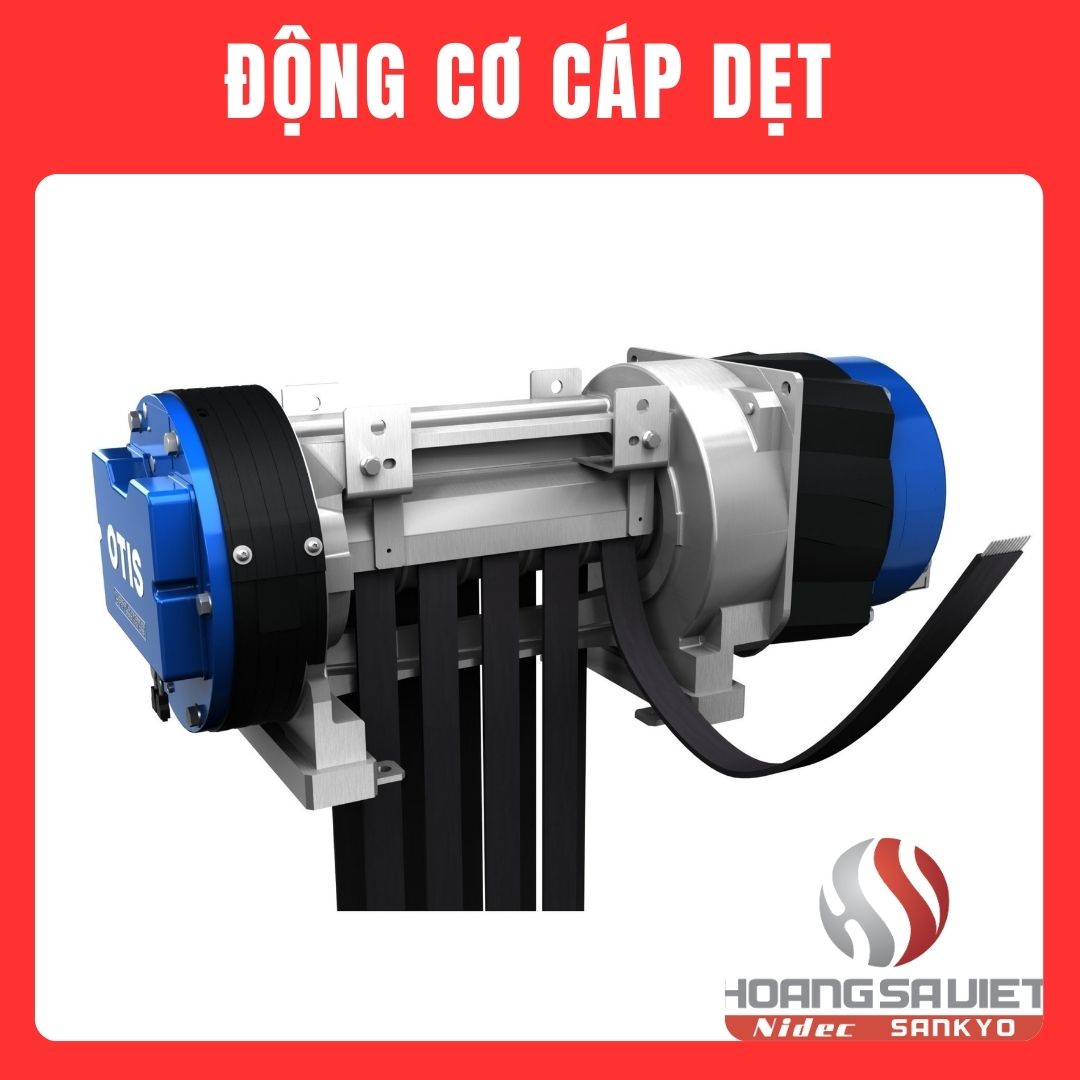

• Mini elevator motors use high-durability permanent magnets such as: Kinetec (China), Mitsubishi (Japan), Fuji China, Torin (China), Hitachi (Japan), Otis (USA), Kone (Finland)...
• Gearless, machine room-less drive technology saves space, and installation is quick and convenient.
• Pitless elevators use the most advanced 32-bit intelligent controller (Kinetec, Nidec, Nice 3000, Mt70, Step 380)...

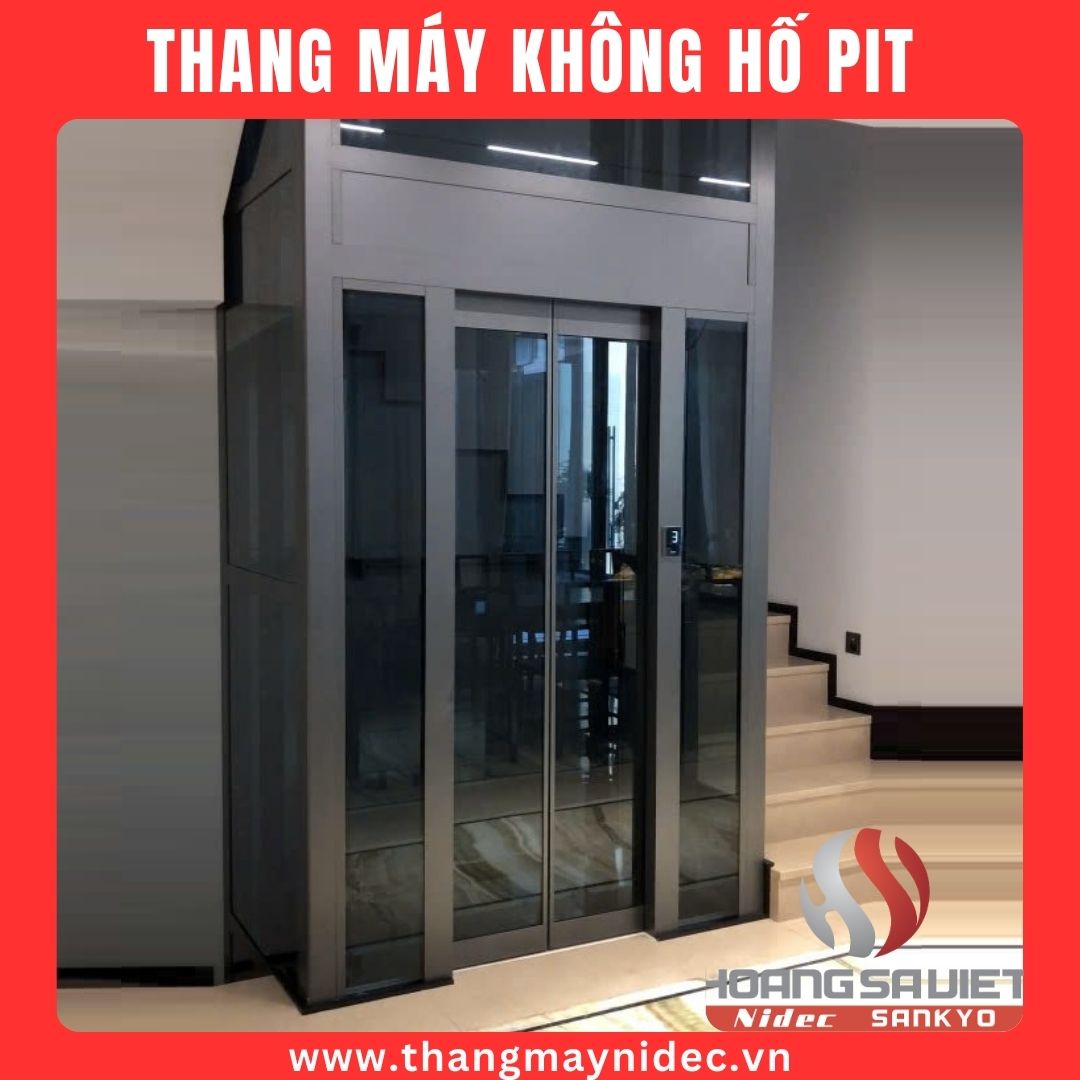

Mini elevator line without pit for renovated house - cheap price

Outstanding features of pitless mini elevator:

• Design without engine room, no pit, low OH (Overhead) height → optimal for townhouses, villas or renovation projects.
• Diverse pitless mini elevator technology: Hydraulic, cable, screw technology

Pitless elevators operate smoothly, safely and save energy.

• Suitable for construction projects with limited height
• Flexible service from 2 to 6 floors.
• May not require pit or only require shallow pit 10cm
• New technology elevators save up to 50% energy compared to previous elevator lines.

Pitless mini elevator product lines include:

• Pitless cable-pulled mini elevator

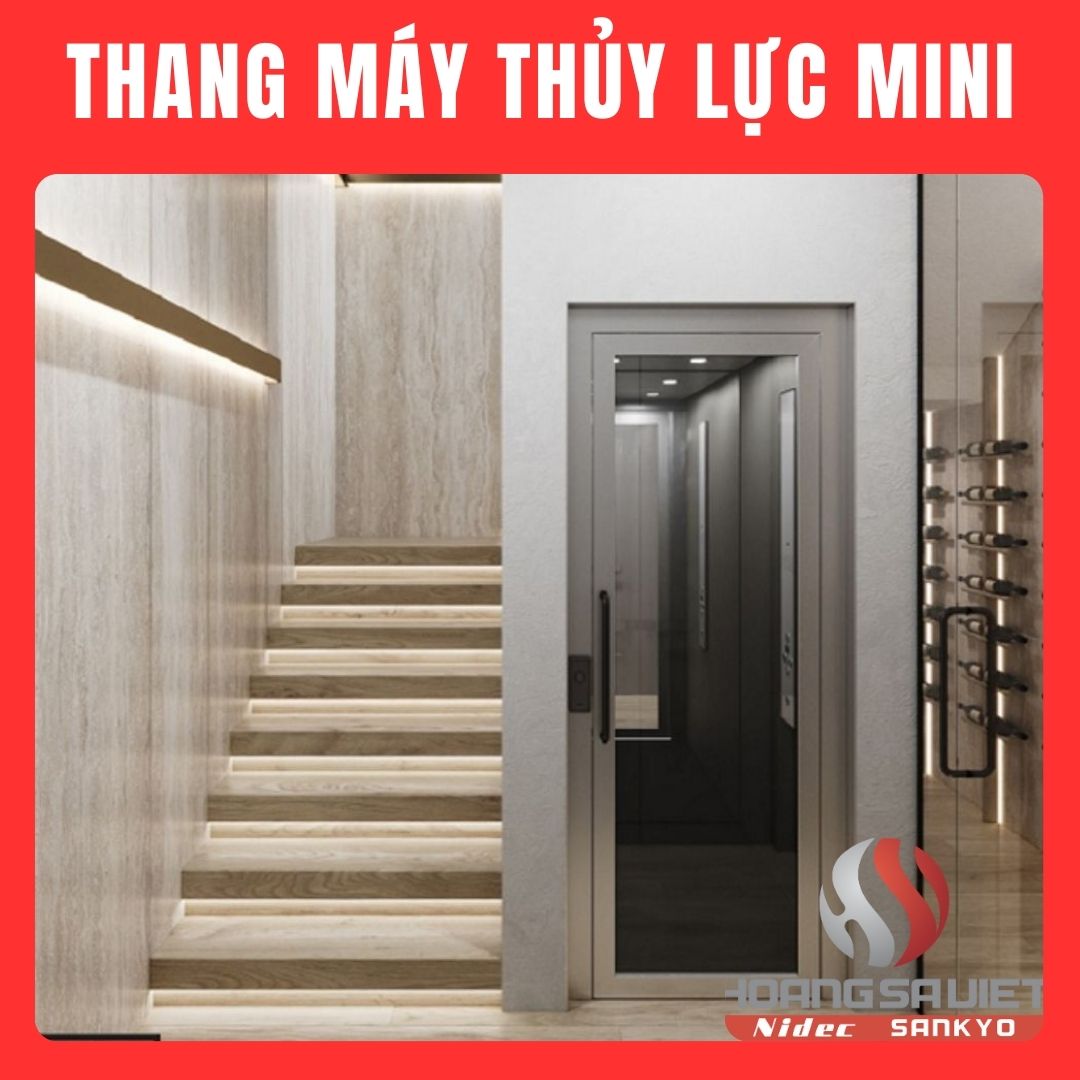

• Mini hydraulic elevator without pit

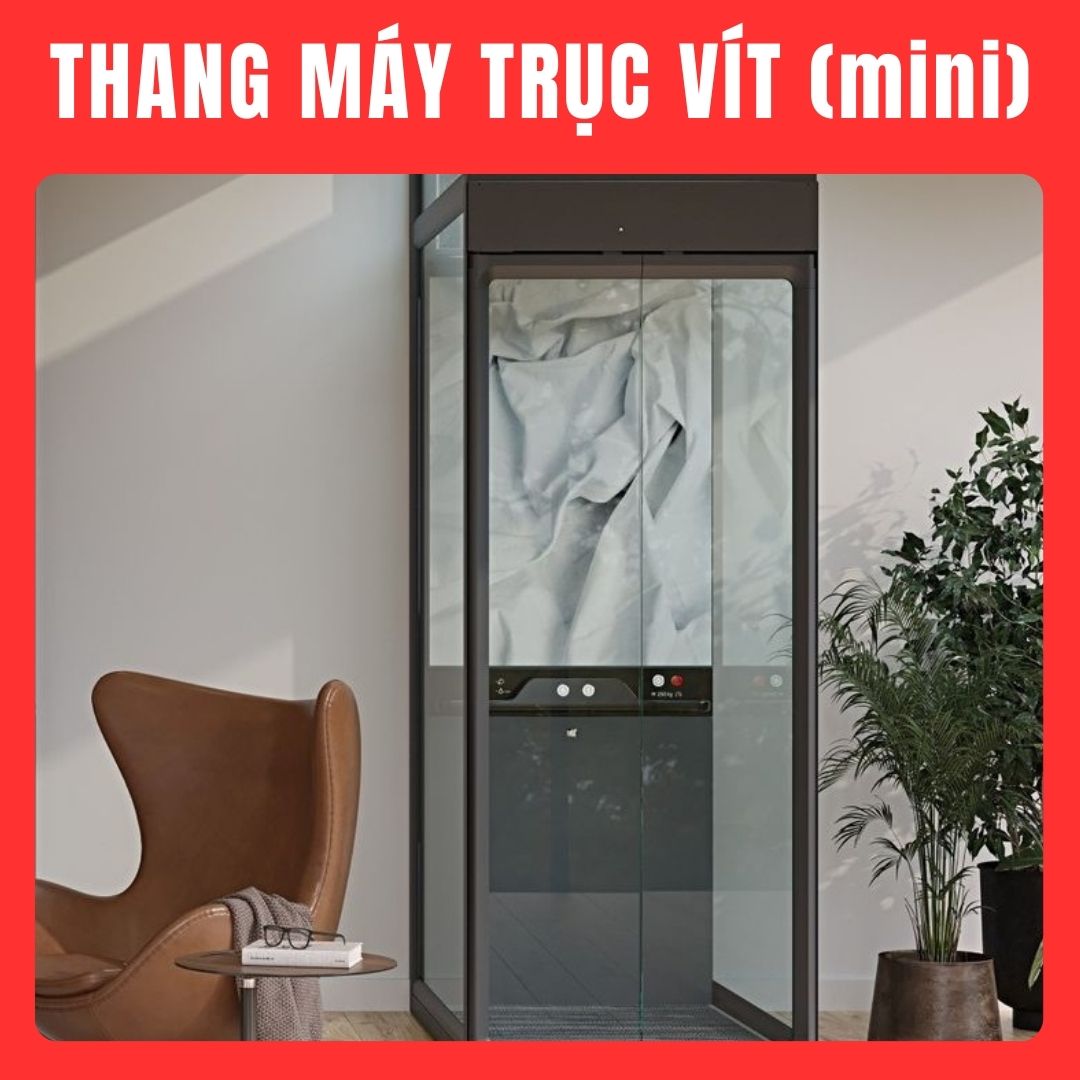

• Pitless mini screw elevator

If you want to optimize the area for a townhouse, a renovated house, or create an architectural highlight for a luxury villa, a pitless mini elevator for the family is the perfect choice . The following are the outstanding advantages of the pitless mini elevator line, for families and company offices.

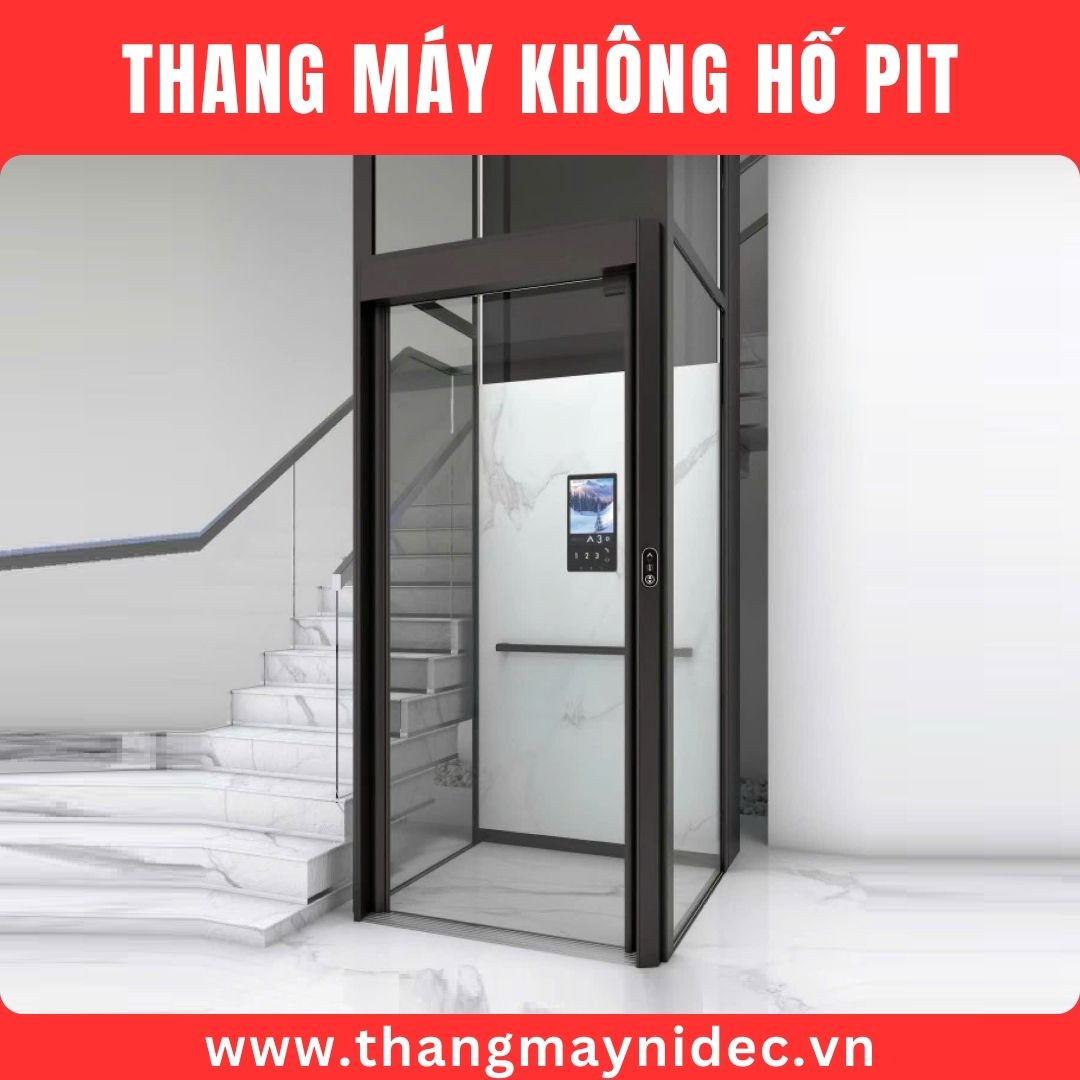

Pitless mini elevator line (raised floor - 2-wing automatic door)

Price of Mini Elevator Without Pit Digging - Family

Price Quote for Pitless Mini Elevator (Automatic)

The mini elevator quotation program is built and operated by us completely automatically, to ensure accuracy and consistency. Based on this quotation, we proceed to create a contract appendix and transfer it directly to the production department, creating a closed process, minimizing unnecessary arising. Thanks to that, working efficiency is significantly improved, while helping to optimize costs, bringing more competitive prices to customers. Please watch the entire video to understand the structure of the compact mini elevator.

Compare Advantages & Disadvantages of Pitless Mini Elevators

We respectfully send you the price list of mini elevators. We analyze in detail the advantages and disadvantages of each type. This information is presented clearly to help you easily compare and choose the elevator solution that best suits your needs and actual conditions.

If you need more information or in-depth advice, please do not hesitate to contact us at Hotline: 0707.025.789 Our team of experts is always ready to support and answer all your questions enthusiastically and quickly.

Price List of Mini Elevators Without Pit - Family (for reference)

...

Size & Specifications of Pitless Mini Elevator

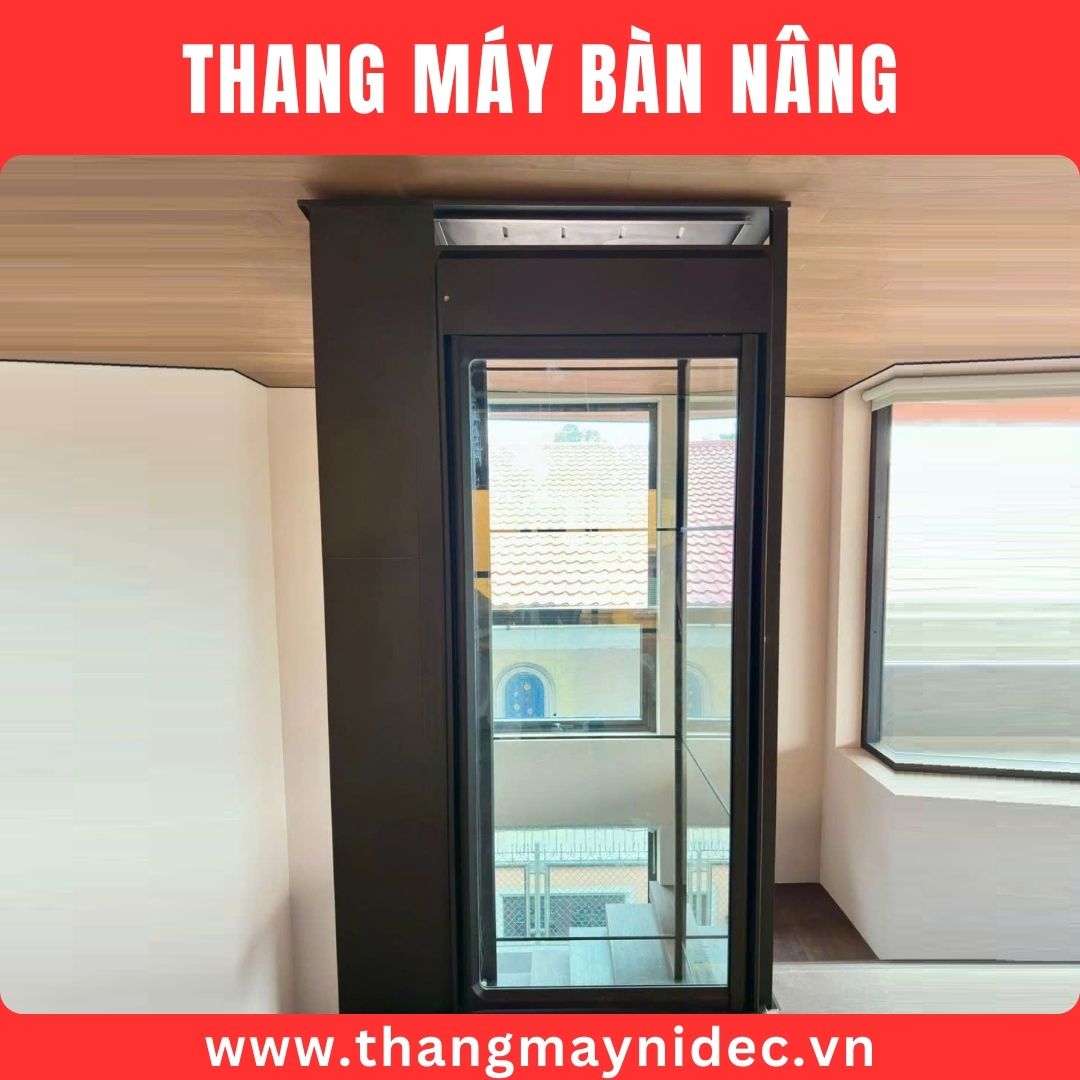

200kg backpack type pitless mini elevator (Mini backpack)

This is the smallest mini elevator line , specially designed for residential buildings with limited area. With a load capacity of 200kg , the elevator is suitable for 1-2 people to use at the same time, providing a convenient, safe and luxurious moving solution right in the living space.

Outstanding technical specifications

• Load: 200 (1 – 2 people)
• Sliding backpack, no ladder shaft
• Width: 0.85m – 1.1m
• Depth: from 1.1m or more
• Cabin size: 0.6m x 0.7m (width x depth)

Elevator door:

• 1-wing manual door
• Door width: 0.6m

Construction requirements:

• No Pit Required: Or just 0.1m
• OH height (top floor): minimum 2.6m
• Operating speed: 0.3m/s

Advantages of Mini Backpack Elevator Line

• Super compact design: suitable for townhouses, mini villas, and house renovations with limited space.
• Easy installation: no deep pit required, no need for excessive OH height.
• Space saving: the cabin is just enough for a family, does not take up living space.
• Flexible door options: suitable for a variety of spaces, from townhouses to renovated homes.

Disadvantages of Mini Elevator Without Backpack Pit

• No elevator shaft not suitable for families with small children
• Not qualified for inspection

---------------------------------------------------

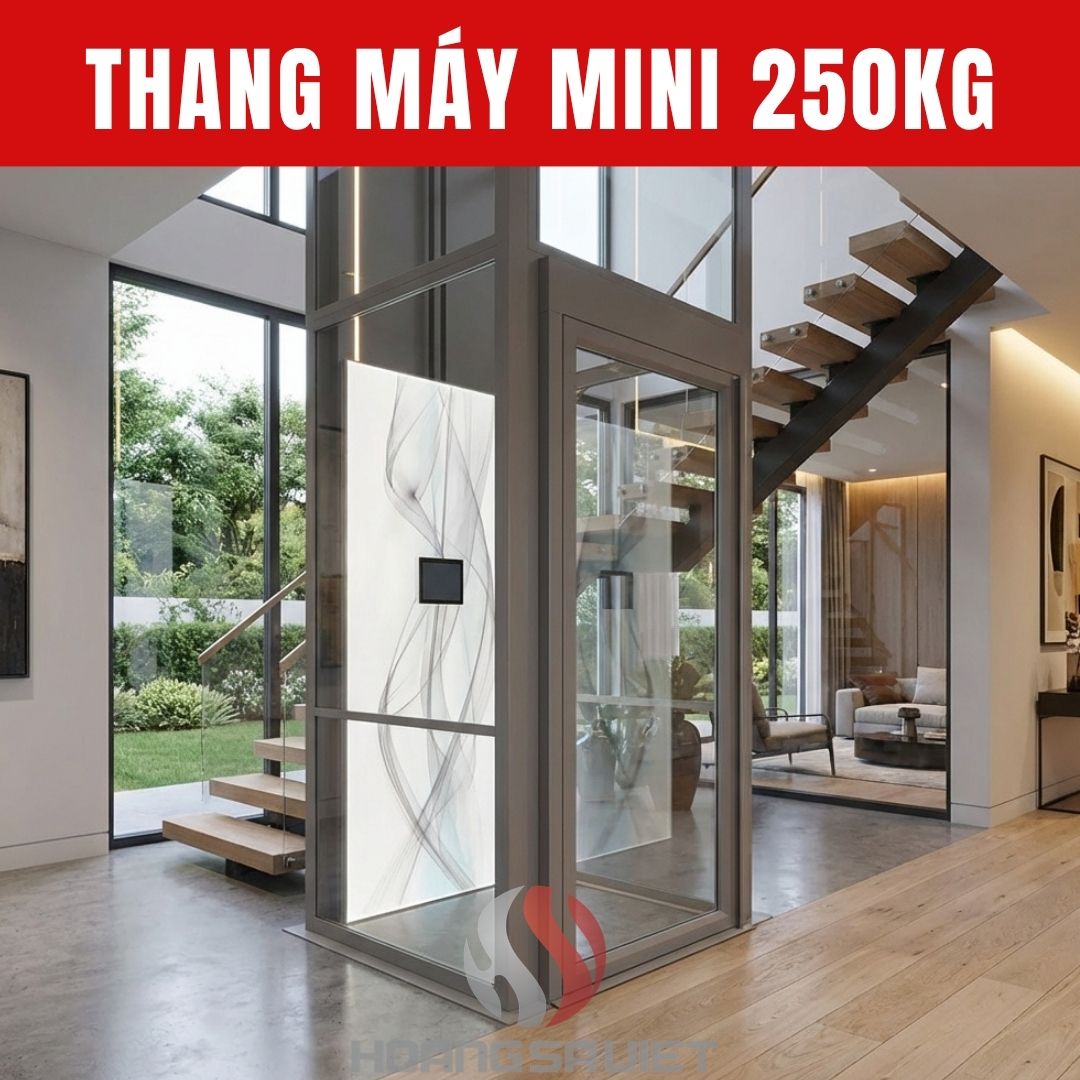

Mini HomeLift 250kg Pitless Elevator

This is a compact family elevator line , specially designed for residential buildings with limited space. With a load capacity of 250kg , the elevator is suitable for 2-3 people to use at the same time, providing a convenient, safe and luxurious moving solution right in the living space.

Outstanding technical specifications

• Load capacity: 250kg (2-3 people)
• Elevator pit size:
• Width: 0.9m – 1.1m
• Depth: from 1.2m or more
• Cabin size: 0.7m x 0.7m (width x depth)

Elevator door:

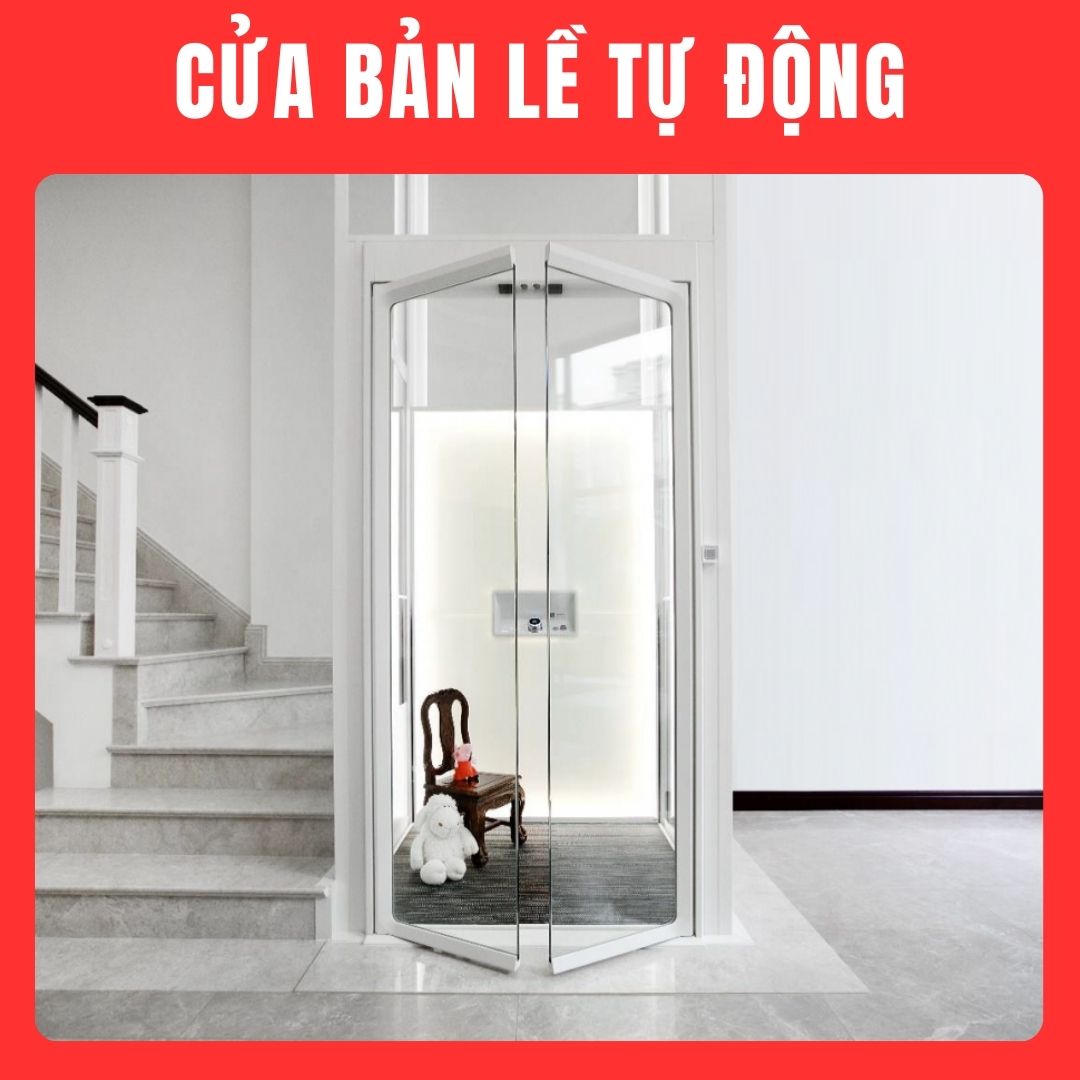

• Single-leaf door option (manual/automatic hinge)

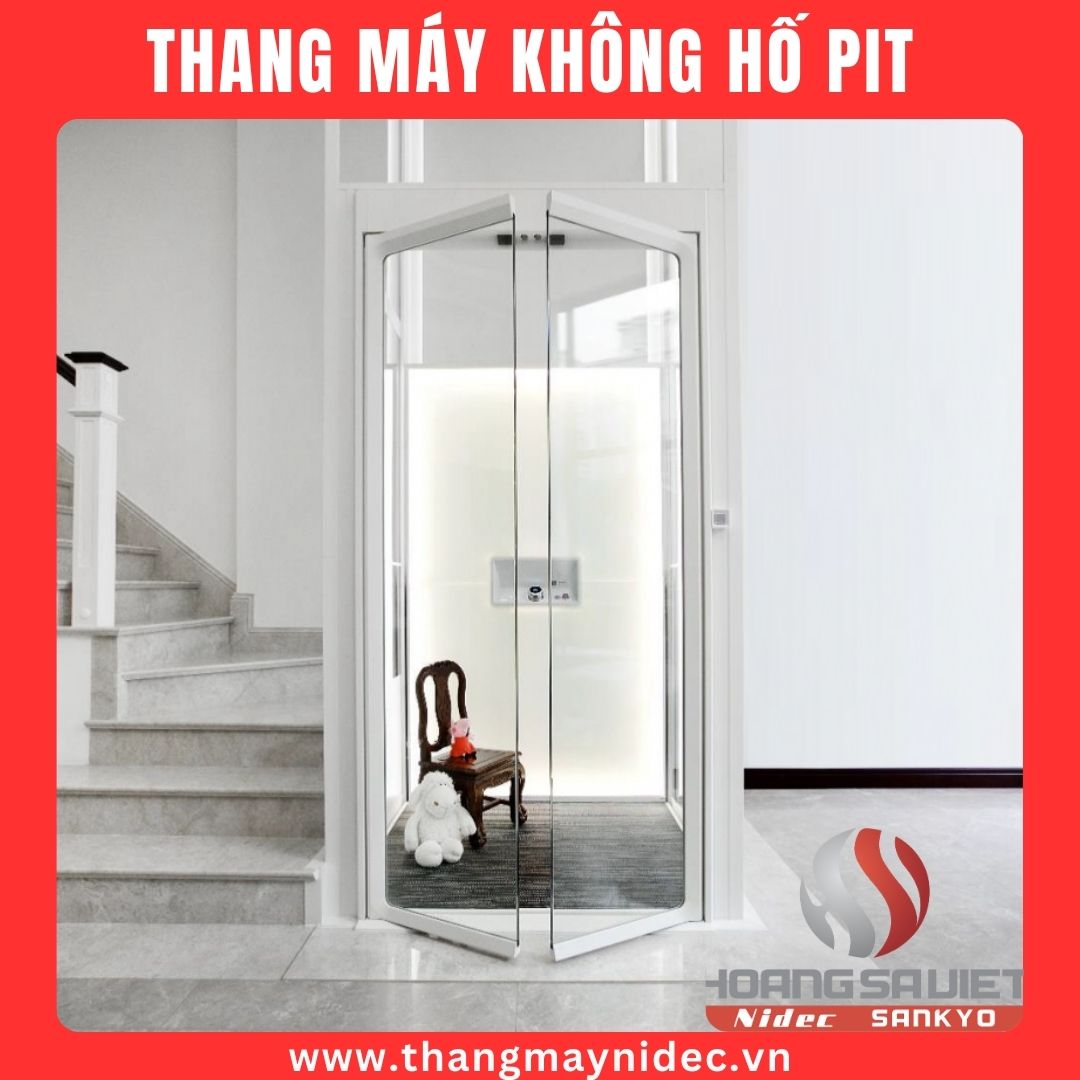

• Or automatic 2-wing door opening outwards
• Door width: 0.6m – 0.8m

Construction requirements:

• Pit: only 0.2m (can be installed without pit)
• OH height (top floor): minimum 2.6m
• Operating speed: 0.3 – 0.5m/s

Advantages of the Mini HomeLift 250kg line

• Super compact design: suitable for townhouses, mini villas, and house renovations with limited space.
• Easy installation: no deep pit required, no need for excessive OH height.
• Space saving: the cabin is just enough for a family, does not take up living space.
• Flexible door options: suitable for a variety of spaces, from townhouses to renovated homes.
• Safety – convenience: reasonable speed, smooth operation, can integrate additional automatic rescue features and smart control.

---------------------------------------------------

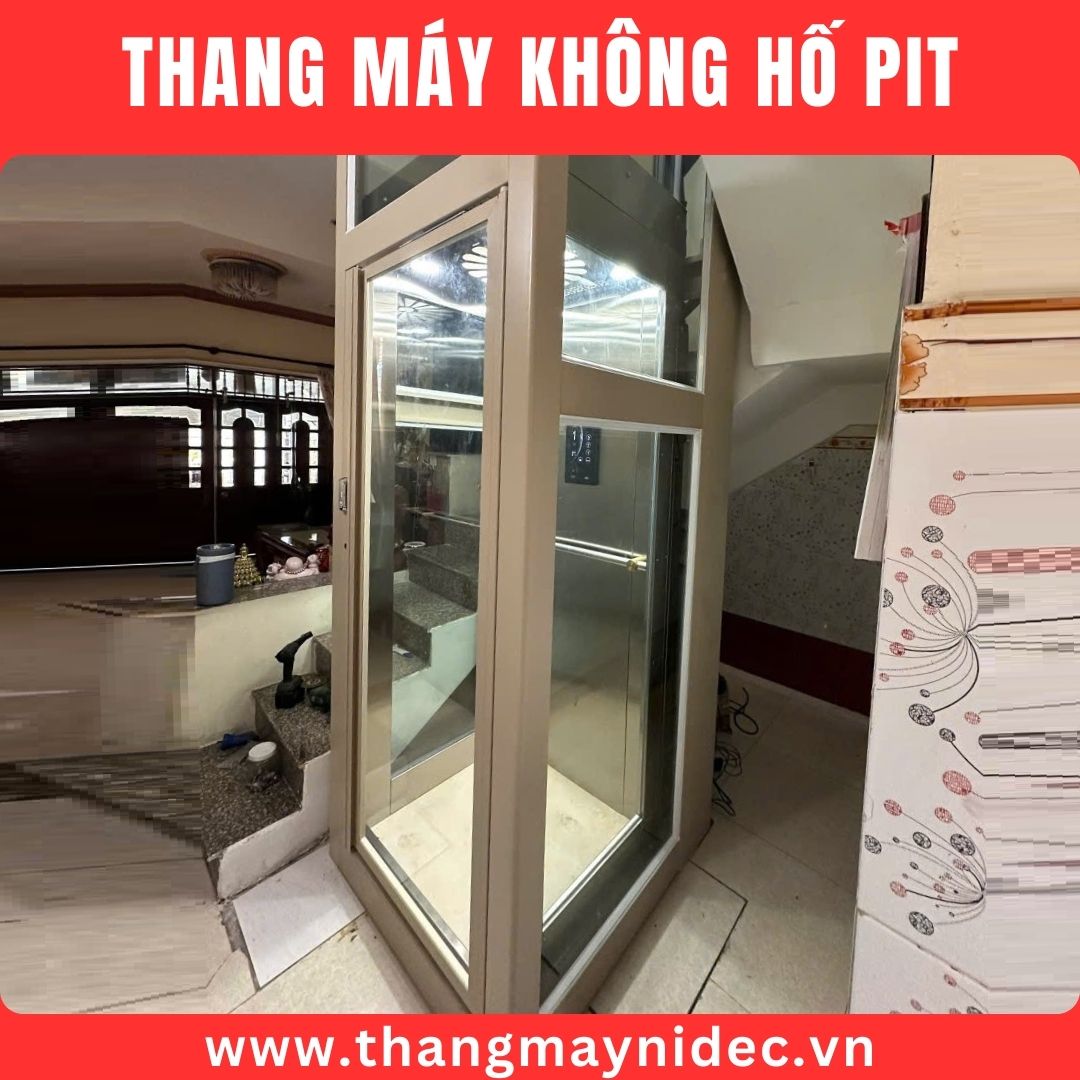

Pitless mini elevator - renovated house

This is a line of elevators for houses that cannot be renovated or repaired without digging a pit , specially designed for residential buildings with limited space. With a load capacity of 250kg , the elevator is suitable for 2-3 people to use at the same time, providing a convenient, safe and luxurious moving solution right in the living space.

Outstanding technical specifications

• Load capacity: 250kg (2-3 people)
• Elevator pit size:
• Width: 0.9m – 1.1m
• Depth: from 1.2m or more
• Cabin size: 0.7m x 0.7m (width x depth)

Elevator door:

• Single-leaf door option (manual/automatic hinge)
• Or automatic 2-wing door opening outwards
• Door width: 0.6m – 0.8m

Construction requirements:

• No Pit Digging: Or dig only 0.1m
• OH height (top floor): minimum 2.6m
• Operating speed: 0.3 – 0.5m/s

Advantages of elevators for home renovations

• Super compact design: suitable for townhouses, mini villas, and house renovations with limited space.
• Easy installation: no deep pit required, no need for excessive OH height.
• Space saving: the cabin is just enough for a family, does not take up living space.
• Flexible door options: suitable for a variety of spaces, from townhouses to renovated homes.
• Safety – convenience: reasonable speed, smooth operation, can integrate additional automatic rescue features and smart control.

---------------------------------------------------

Compact mini family elevator 300 - 350kg (4 - 5 people)

This is a small family mini elevator line , compactly designed but still ensures comfort for 4-5 users . With a load capacity of 300-350kg , the elevator is suitable for residential projects, townhouses or renovations of old houses with moderate area, requiring convenience but not taking up much space.

Specifications

• Load capacity: 300 – 350kg (4 – 5 people)
• Elevator pit size:
• Width: 1.35m – 1.5m
• Depth: from 1.5m or more
• Cabin size: 0.8m x 0.9m (width x depth)

Elevator door:

• Automatic doors
• Door width: 0.6m – 0.8m

Construction requirements:

• Pit (depth): 0.25m – 1.2m
• OH height (top floor): ≥ 2.8m
• Operating speed: 0.3 – 0.5m/s to 1m/s

Outstanding advantages

• Moderate size: suitable for a family of 4-5 members, ensuring comfortable movement.
• Automatic doors: bring luxury, modernity and convenience to users.
• Flexible speed: from 0.3 - 1m/s , meeting both family needs and construction needs that require fast movement.
• Space-optimized design: compact cabin but still meets daily usage needs.
• Flexible response to many projects: from townhouses, villas to renovation of old buildings.

---------------------------------------------------

Video introducing Hoang Sa Viet mini elevator company (Nidec Sankyo)

5 Safety Features of Pitless Mini Elevators

1. Automatic rescue system in mini elevators (ARD)

The Auto Rescue Device (ARD) is one of the most important safety features of a home elevator. This feature plays a key role in protecting users in the event of a sudden power outage.

Main functions of ARD:

• Automatically activates backup power when main power is cut off.
• Bring the cabin to the nearest floor safely.
• Automatically open the cabin door, helping people inside to exit easily without getting trapped.

Outstanding benefits:

• Ensure absolute safety for users, especially children and the elderly - those who are at risk during power outages.
• Protect the system of components and electronic equipment in the elevator, avoiding damage due to sudden electrical failures.
• Extend equipment life while minimizing maintenance and repair costs over long-term use.

2. Overspeed control device in pitless mini elevators

The Governor is a mandatory part of every mini elevator system without a pit. This is one of the important factors to ensure absolute safety for users.

Main functions of overspeed control device:

• Automatically activated when the elevator runs beyond the allowed speed.
• Activates the safety brake mechanism, holding the cabin in time in rare cases such as cable breakage.
• Prevent the cabin from falling freely, helping to protect the lives and safety of passengers inside.

Additional benefits:

• Maintaining elevator operation within safe limits is especially useful for:
• Elderly people or people who need to move frequently by elevator
• Enhance system reliability, minimize risks during long-term use.

3. Anti-jamming door with photocell sensor in pitless mini elevator

Photocell sensor (infrared safety curtain) is one of the indispensable safety features on mini elevators for families, especially highly appreciated in modern elevator lines.

Location and function:

• Installed on both sides of the elevator door, at the edge of the cabin door.
• Emits infrared rays to detect obstacles during door opening/closing.
• When detecting obstacles (hands, feet, objects, pets...):
• Automatically stop the closing process
• Or reopen to ensure safety

Benefits:

Prevents door jams, protects safety for:

• Children
• Elderly people
• Pets
• Increase operational reliability, helping users feel secure using the elevator every day.
• This is an almost mandatory feature on modern home elevators to meet high safety standards.

4. Overload alarm device for cabin in pitless mini elevator

Overload alarm is an important safety feature in mini elevators , especially necessary for pitless elevators.

Main functions:

• Detects when the total weight in the cabin (people + objects) exceeds the allowable load level.
• Activates an audio alarm as soon as an overload condition is detected.
• Prevent elevator operation until the load is reduced to a safe level.

Benefits:

Protect important parts such as:

• Engine
• Cable car
• Control system
• Reduces the risk of damage and accidents, ensuring user safety.
• Raise safety awareness when using elevators, avoid unintentional dangerous behaviors.

Is a simple but effective solution, helps:

• Extend equipment life
• Reduce maintenance and repair costs

5. Door open control feature in pitless mini elevators

The door open control feature is one of the important safety solutions integrated in mini elevators, helping to prevent incidents related to the door system.

Mechanism of action:

• Detects the condition of the cabin door or floor door not being fully closed.
• Prevents the elevator from operating if the door is detected to be not closed properly, ensuring absolute safety for users.
• The system is often combined with magnetic sensors, helping to control the door status accurately and stably.

Benefits:

• Completely eliminates the risk of accidents due to the elevator door not closing properly or opening abnormally.
• Timely warning to users, helping:
• Raise safety awareness
• Limit improper door opening/closing operations
• Increased operational reliability, especially important for: Children, the elderly
• Families with many members using the elevator every day

10 Frequently Asked Questions When Installing Mini Elevators

1. Are pitless elevators safe?

Answer: Pitless elevators have all the same features as wall elevators. In addition, pitless elevators add new features to suit the compact design,

2. Should the renovator install a pitless mini ladder?

Answer: It is not easy to dig a pit for a renovated house, and the size is limited, so installing a pitless elevator is very reasonable.

3. How much space is needed for the stairwell to install a mini ladder?

Answer: The minimum area required is about 0.9m2. If the width is 0.9m, the depth required is 1.0m and vice versa.

4. Can a mini elevator be installed in a skylight ?

Answer: Skylights can completely accommodate elevators, however, a little more renovation is needed, for example: Creating additional entrances, removing walls, opening walkways in the hallway, adding steps...

5. Can a mini elevator be installed on the front balcony?

Answer: The balcony in front of the house can be used as a mini elevator, but it is necessary to consider a cover to prevent rainwater from splashing into the elevator. It is necessary to create walls to cover the elevator so that it is less affected by the weather...

Contact Hoang Sa Viet now: 0707.025.789 for advice on installing glass elevators in skylights - optimizing both cost and quality, most suitable for your home space.

6. Should a circular elevator be installed in the middle of the staircase?

Answer: Yes, because round elevators are very beautiful and luxurious. However, you need to consider the cost factor because round elevators are often more expensive than square elevators.

7. Do I need permission to renovate my house and install a mini elevator?

Answer: No need to ask for permission because mini elevator is like a household electrical appliance (TV, refrigerator). Mini elevator can be installed inside the house without asking for permission.

8. How much is the electricity bill for the mini elevator each month?

Answer: About 200,000-500,000 VND depending on the frequency of use of each family

9. How much does it cost to maintain and service the elevator each month?

Answer: About 500,000 VND per month or 600,000 VND per time. Maintenance should be done about 4 times a year. The cost per year is about 3 million VND.

Introducing Hoang Sa Viet - Specializing in Mini Elevators Without Pits

Choosing a reputable supplier to install a mini elevator is a decisive factor in product quality and after-sales service. Hoang Sa Viet Elevator is proud to be a trusted partner of thousands of customers nationwide, providing high-quality glass elevator solutions, reasonable prices and dedicated, professional service.

1. Many years of experience in making mini elevators, reputable in the market

Hoang Sa Viet is proud to be a company with more than 10 years of experience in the field of supplying and installing mini home elevators. With a team of experienced, highly skilled and well-trained technicians, we are committed to providing customers with elevator projects that meet high standards in:

• Quality
• Safe
• Aesthetics

Hoang Sa Viet brand has built a solid reputation through thousands of large and small projects across the provinces and cities nationwide. In addition, we are always a pioneer in applying new technology, cooperating with prestigious partners such as Hoang Sa Viet Nidec Elevator to:

• Providing optimal elevator solutions
• Save costs for customers
• Ensure high durability suitable for each practical usage need

2. Team of professional and dedicated consultants

One of the outstanding strengths of Hoang Sa Viet is the team of professional, experienced and dedicated consultants. Each customer will be supported in detail throughout the process - from choosing the elevator model suitable for the space architecture, consulting on technical solutions to optimizing investment costs.

In addition, Hoang Sa Viet's customer care service is deployed 24/7, ready to support and answer all questions quickly and promptly. Thanks to that, customers can be completely assured during the process of choosing, installing and using elevator products.

3. Branch and showroom system nationwide

Hoang Sa Viet has built a system of branches and showrooms in many major cities such as Ho Chi Minh City, Hanoi, Da Nang, Dong Nai, Hung Yen, Phu Quoc, Long An ... to help customers conveniently experience, choose models directly and receive on-site consultation. Being present everywhere not only affirms prestige but also ensures the ability to provide quick and timely technical support in all situations, bringing maximum satisfaction to customers.

4. Specializing in mini elevator products for families

At Hoang Sa Viet, customers can choose from a variety of pitless elevators for families, including:

• Glass elevator models
• Compact mini elevator
• High-end versions imported from Nidec Elevator

The products are flexibly designed, suitable for many different architectural spaces. All go through a strict quality control process, ensuring:

• Absolutely safe to use
• Long life, durable over time

With competitive prices and many attractive incentive packages, Hoang Sa Viet helps customers optimize costs while still owning high quality products.

• In addition, the transparent and clear warranty and maintenance policy is also a strength that helps customers feel secure in choosing and sticking with the brand for a long time.

5. Outstanding warranty and maintenance policy, 24/7 support

Hoang Sa Viet is committed to providing professional warranty and maintenance services, with a team of technicians always ready to support 24/7 nationwide. We ensure quick handling of problems, perform periodic inspections to keep the elevator operating stably and absolutely safe.

Hoang Sa Viet's warranty policy is flexible, including genuine spare parts replacement and free consulting support. Thanks to that, customers can rest assured to use the product for a long time without worrying about technical problems arising.

Nidec Sankyo Elevator Products

Comparison of Mini Elevators and Traditional Elevators
