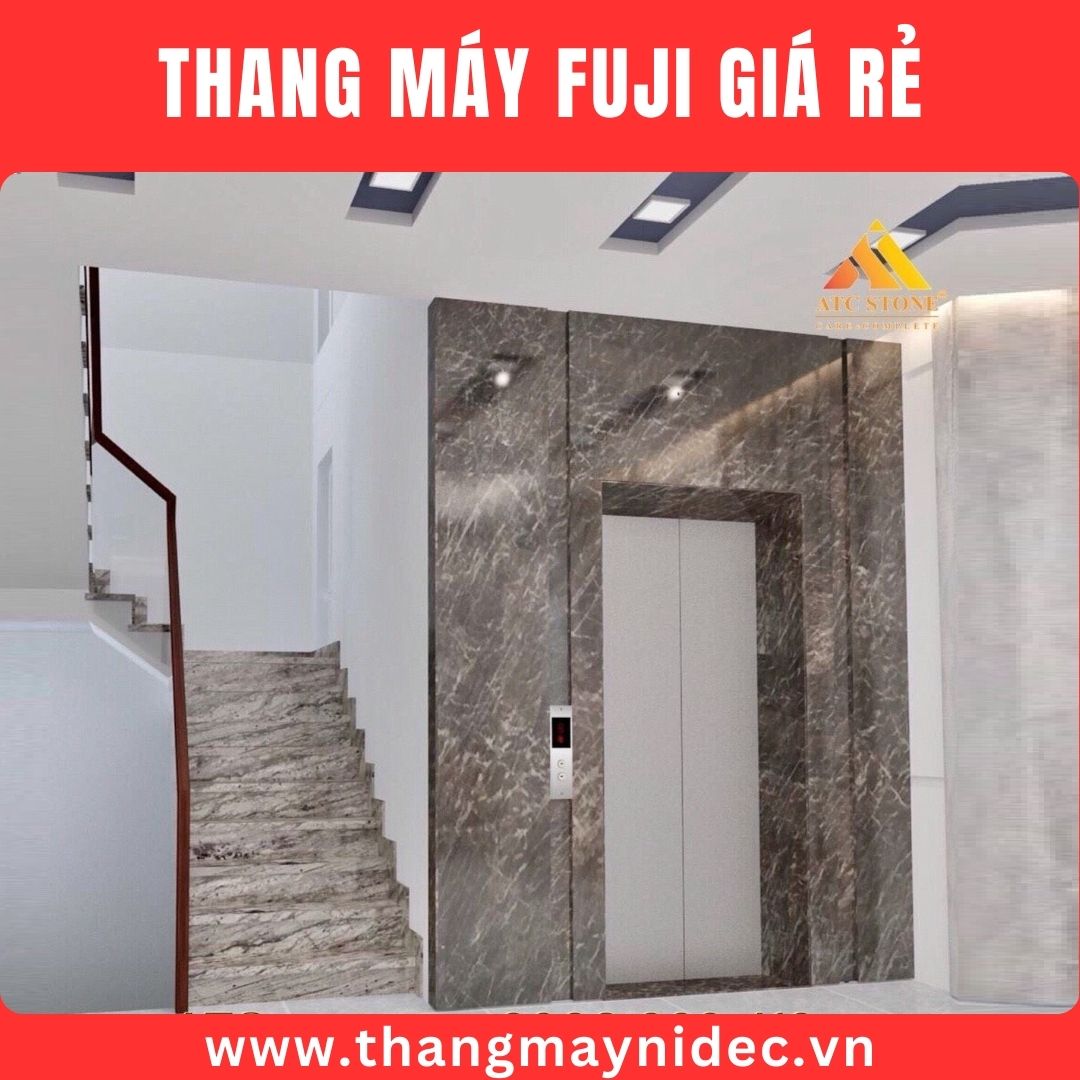

Fuji Home Elevators

Fuji elevators are the perfect choice for home elevators , helping you elevate your living space with safety and sophistication. This article will provide a comprehensive overview of their structure, dimensions, and the latest pricing, helping customers choose the most optimal joint venture or imported solution.

Which country does Fuji Elevator come from?

Fuji elevators are a renowned elevator brand originating from Japan, named after the iconic Mount Fuji. To date, the brand has established a strong position and become a familiar name in the international market.

Despite fierce market competition, Fuji has maintained its strong performance and earned the trust of customers thanks to its superior quality, high safety standards, and reasonable prices.

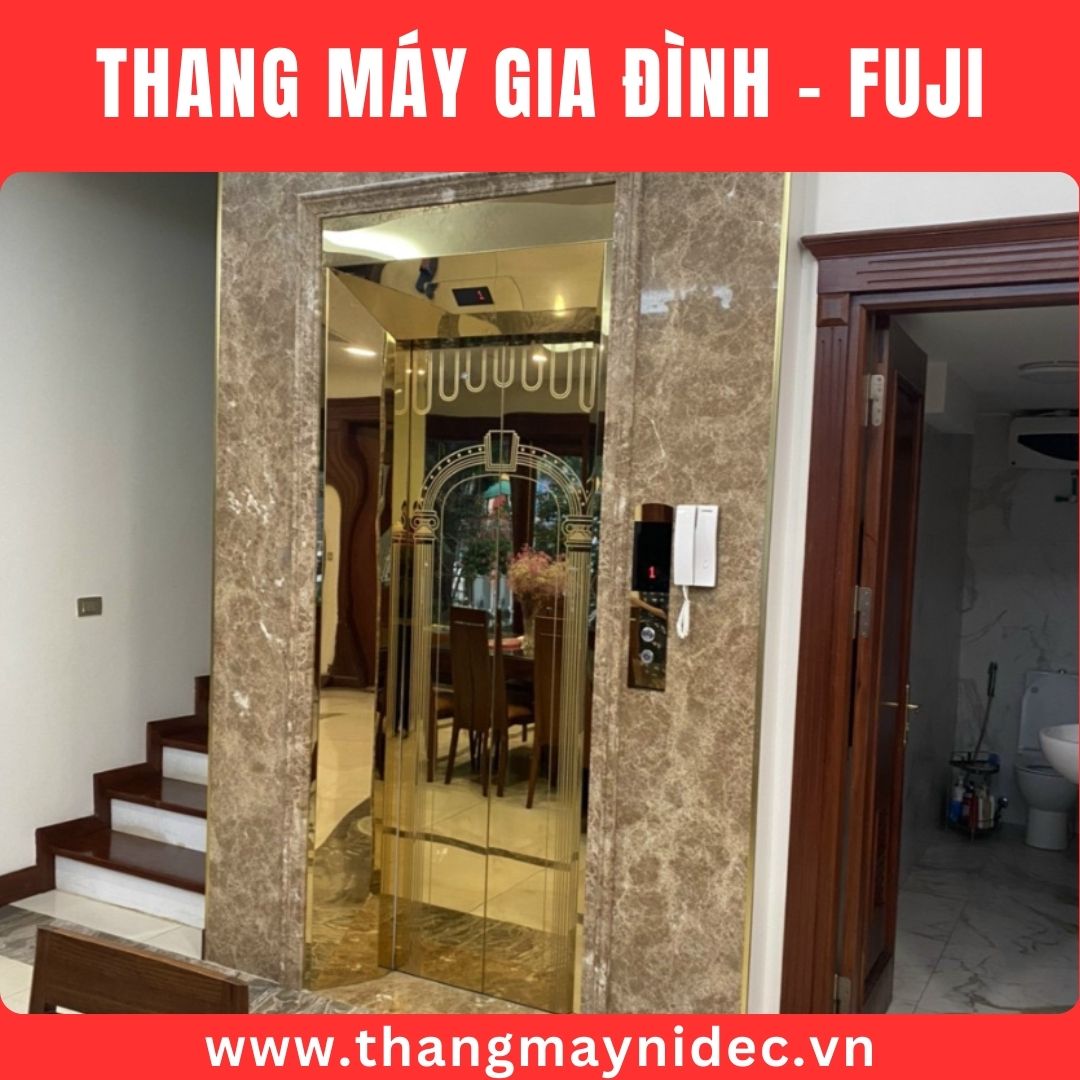

Why Fuji Elevators Are the Choice of Many Families

Fuji's line of home elevators is increasingly asserting its position and is preferred by many investors thanks to its numerous outstanding advantages, perfectly meeting long-term usage needs:

• Smooth and quiet operation: Thanks to the integrated intelligent control system and new generation motor, the elevator cabin moves very smoothly, minimizing vibration and unpleasant noise during operation.

• High durability and long lifespan: The system's components are rigorously selected according to strict technical standards, capable of withstanding the hot and humid climate conditions in Vietnam, ensuring stable and long-lasting operation with very few minor malfunctions.

• Suitable for townhouses and renovations: The product boasts diverse configurations and flexible designs, supporting easy construction even in limited spaces, making it particularly suitable for renovation projects or pre-built houses.

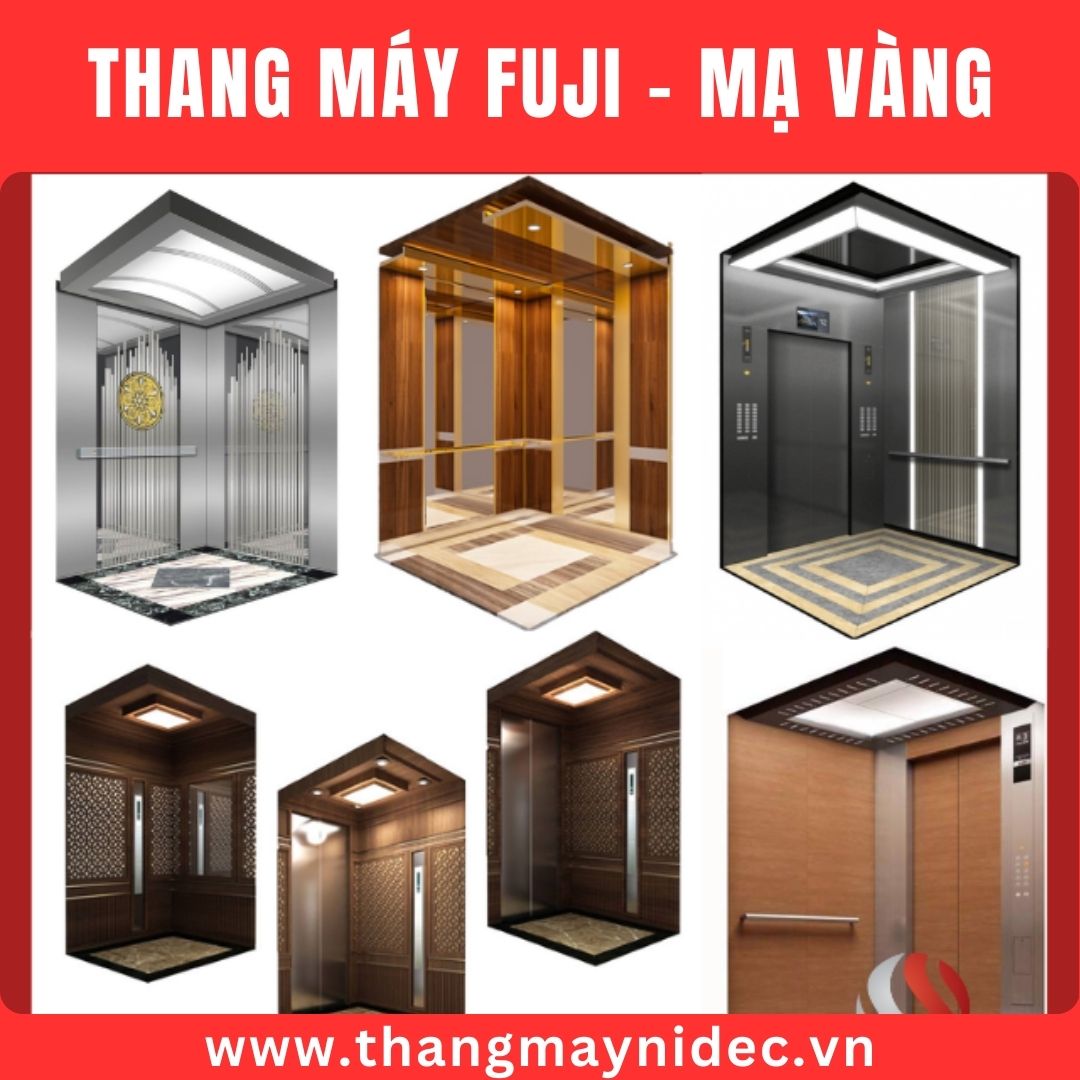

• Aesthetic and modern design: The diverse cabin styles easily blend seamlessly with any architectural style, from traditional to neoclassical and modern, bringing a luxurious and sophisticated look to your living space.

• Optimal investment and maintenance costs: Thanks to the availability of components on the market, the initial installation cost of this machine is extremely affordable, while also helping customers save significantly on future repair and maintenance costs.

Structure of Fuji Elevators

Fuji elevators feature a modern, integrated engineering structure with core components manufactured to stringent standards, resulting in a perfect combination of durability and operational efficiency. The main components include:

• Traction motor: This is the central control unit for the elevator's movement. You can choose between geared motors (requires a machine room, cost-effective) or gearless motors (saves 40% on electricity, operates smoothly, optimizes space).

• Control cabinet: Utilizes a smart microprocessor board for extremely fast response times, ensuring precise elevator operation and featuring automatic floor call cancellation in case of accidental button presses.

• Peripheral electrical equipment system: Includes auxiliary components such as relays, circuit breakers, and contactors, directly imported to ensure safe system monitoring and rapid troubleshooting.

• Guidance and drive system: This includes guide rails, hoisting cables, signal cables, and counterweights. This system, clearly originating from Europe or South Korea, helps to determine the direction of travel and ensures the cabin stops at the floor with absolute precision.

See more hydraulic elevators

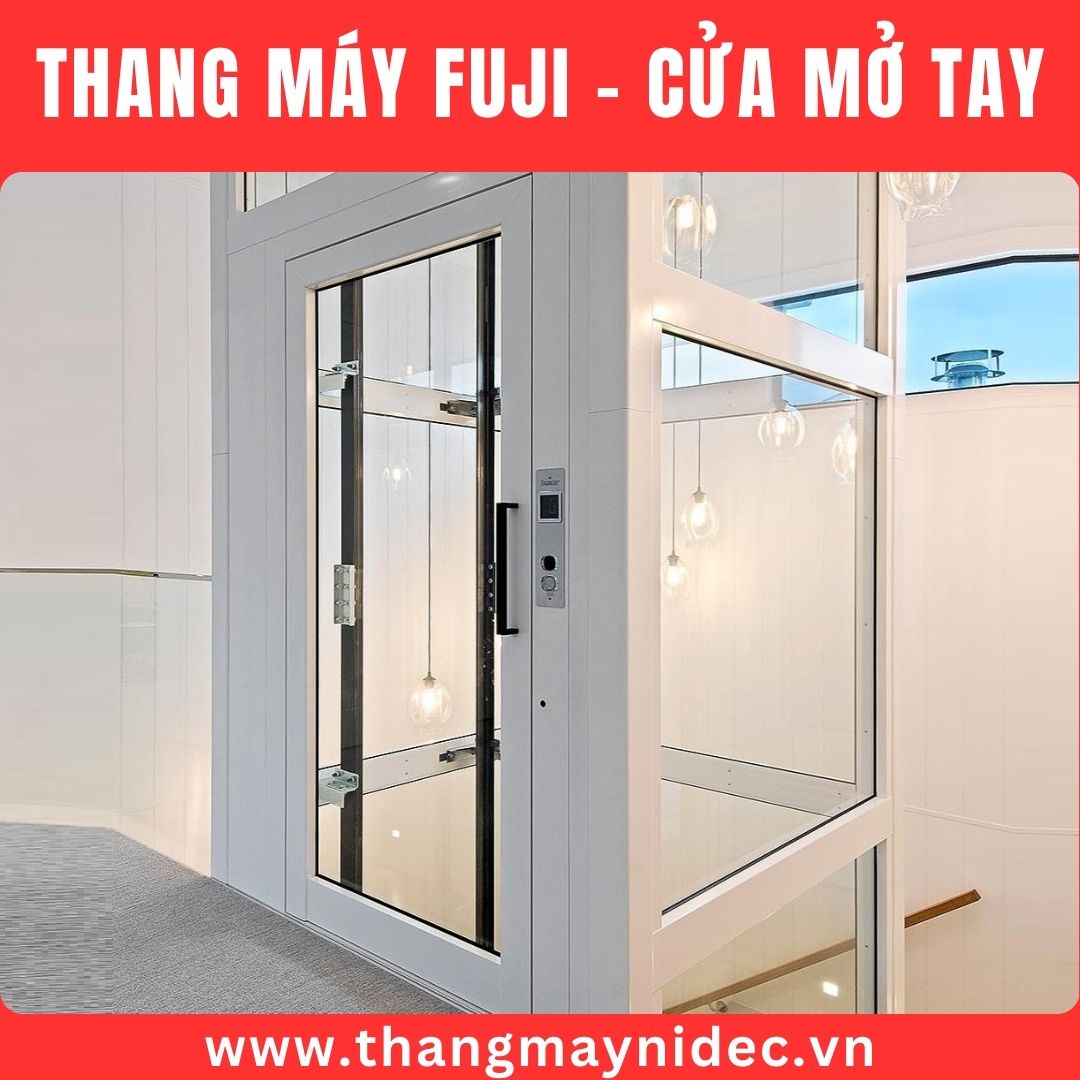

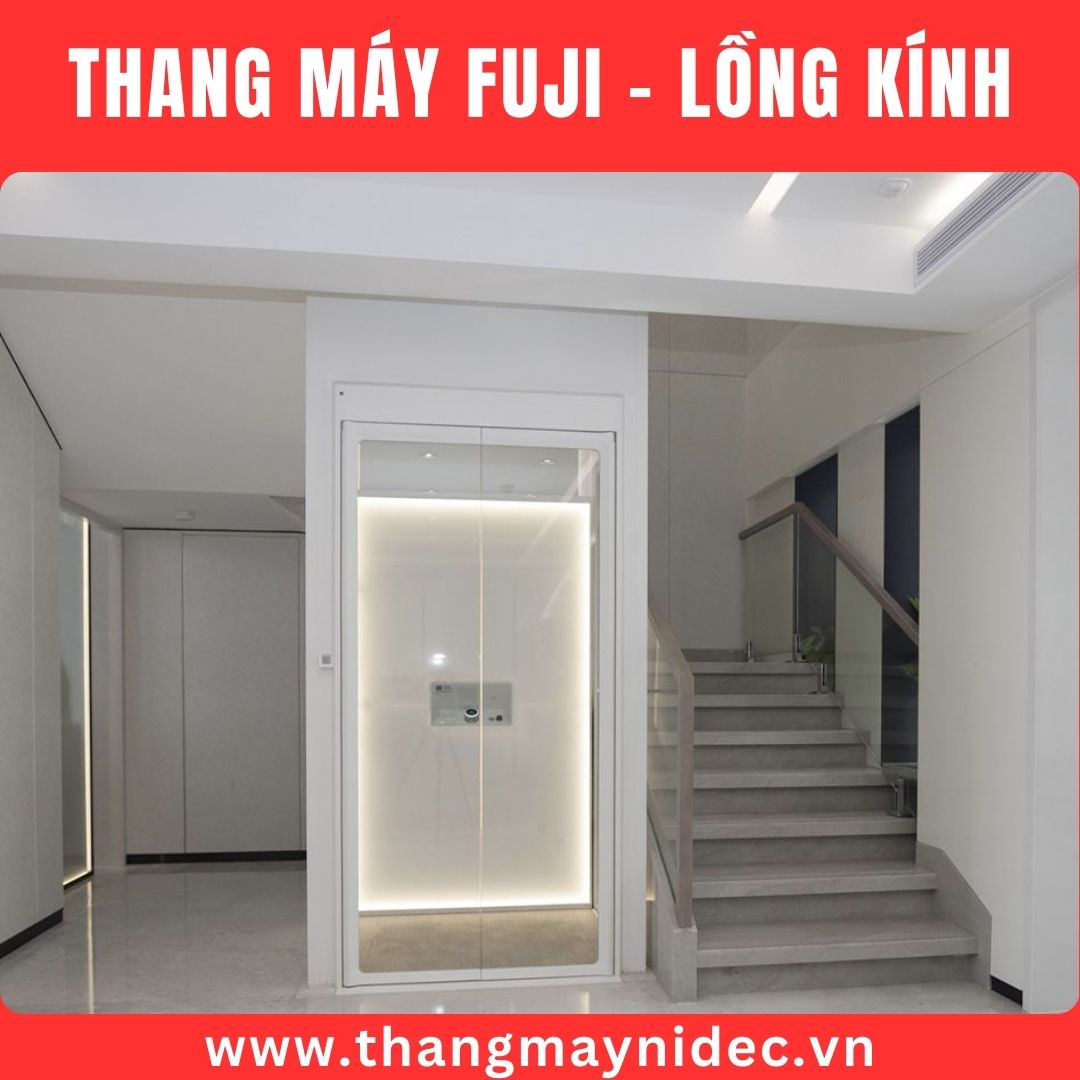

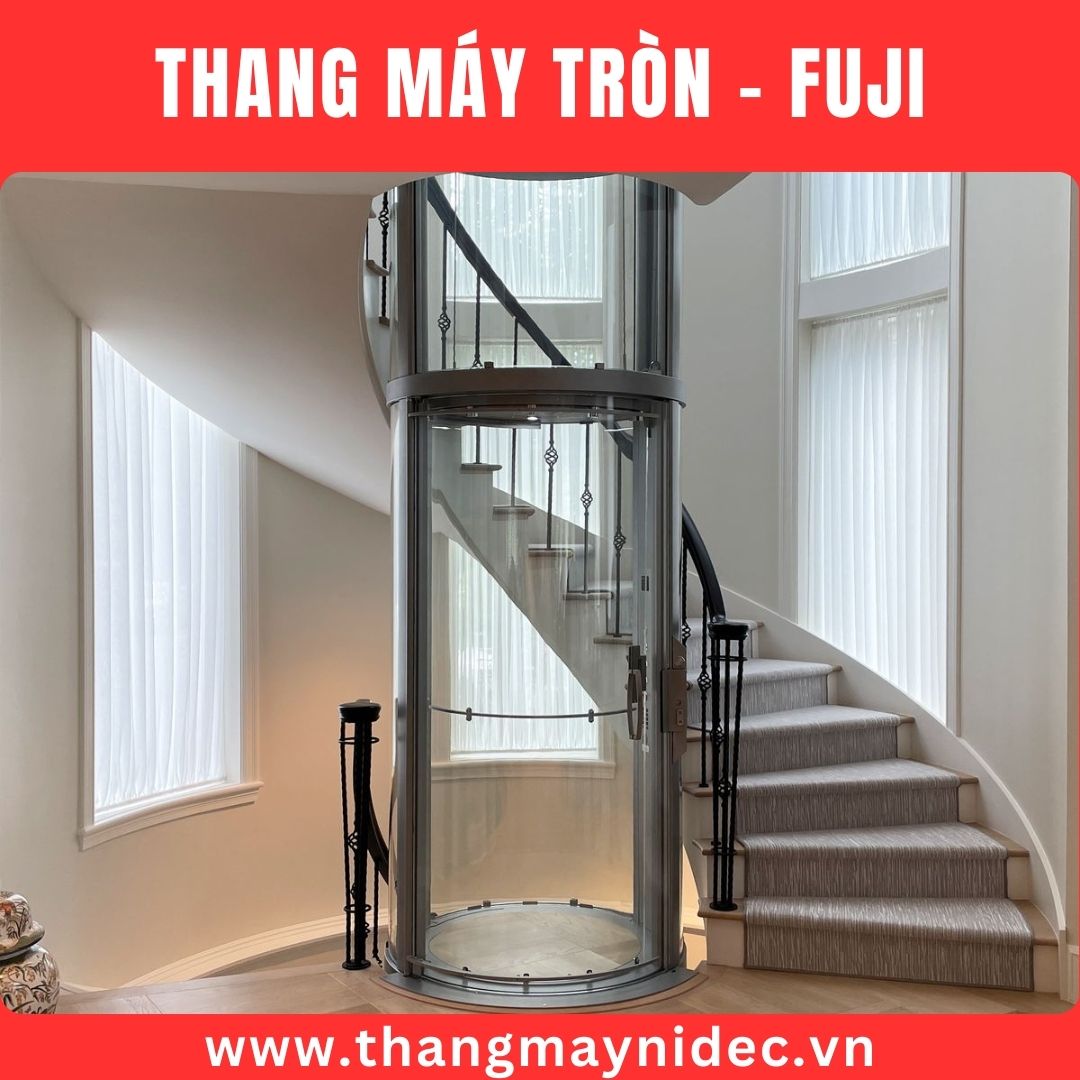

Classification of Popular Fuji Elevator Models

Fuji's range of home elevators is currently divided into two main types: fully imported elevators and domestically assembled joint venture elevators, giving customers more options to choose from.

Imported Fuji Elevators

Imported elevators are renowned for their absolute uniformity and perfect quality. These products are manufactured on state-of-the-art production lines in Japanese factories, fully meeting the strictest international market inspection standards, giving customers complete peace of mind during operation.

Compared to joint venture products, imported equipment boasts superior durability and aesthetic value. Therefore, the distribution price in the Vietnamese market is usually higher due to additional costs such as transportation, import taxes, customs duties, and fluctuations in foreign exchange rates. This high-end segment is the optimal choice, commonly used in large-scale projects or constructions requiring meticulous selection from the investor.

Fuji Elevator Joint Venture

Joint venture elevators are a product line that combines core components imported directly from Fuji Japan (such as motors, rails, and signal systems) with cabins and mechanical frames manufactured domestically according to the manufacturer's technical standards.

Thanks to being manufactured domestically, this elevator line boasts a significantly lower price compared to fully imported units. The equipment scores highly due to its integrated 32-bit microprocessor control system and intelligent synchronous inverter, resulting in smooth cabin operation, reduced noise, precise floor stopping without vibration, and energy savings of up to 40% compared to geared traction systems.

With superior advantages in initial investment costs, a simple warranty process, and readily available replacement parts, the Fuji joint venture elevator line is becoming an extremely popular choice for many customers in Vietnam.

Fuji Elevator Load Capacity and Dimensions

To help you easily track and compare, the standard technical specifications of Fuji elevators for each load capacity are detailed below:

Fuji elevator dimensions with a 200kg load capacity.

• Cruise speed: 60 m/min

• Elevator shaft dimensions: 850mm x 1200mm (W x D)

• Cabin dimensions: 600mm x 750mm x 2300mm (W x D x H)

• Cabin door dimensions: 500mm x 2100mm (W x H)

• Floor door dimensions: 500mm x 2100mm (W x H)

• Overhead height (OH): 4200mm (elevator with machine room), 3800mm (elevator without machine room)

• Pit size: 800mm

• Maximum number of people: 2

Dimensions of Fuji home elevator with a 250kg load capacity.

• Travel speed: 60 m/min.

• Elevator shaft dimensions: 1400mm x 1300mm (W x D).

• Cabin dimensions: 1000mm x 800mm x 2300mm (W x D x H).

• Cabin door dimensions: 650mm x 2100mm (W x H).

• Floor door dimensions: 650mm x 2100mm (W x H).

• Overhead height (OH): 4200mm.

• Pit size: 800mm.

• Maximum number of people: 2 - 3 people

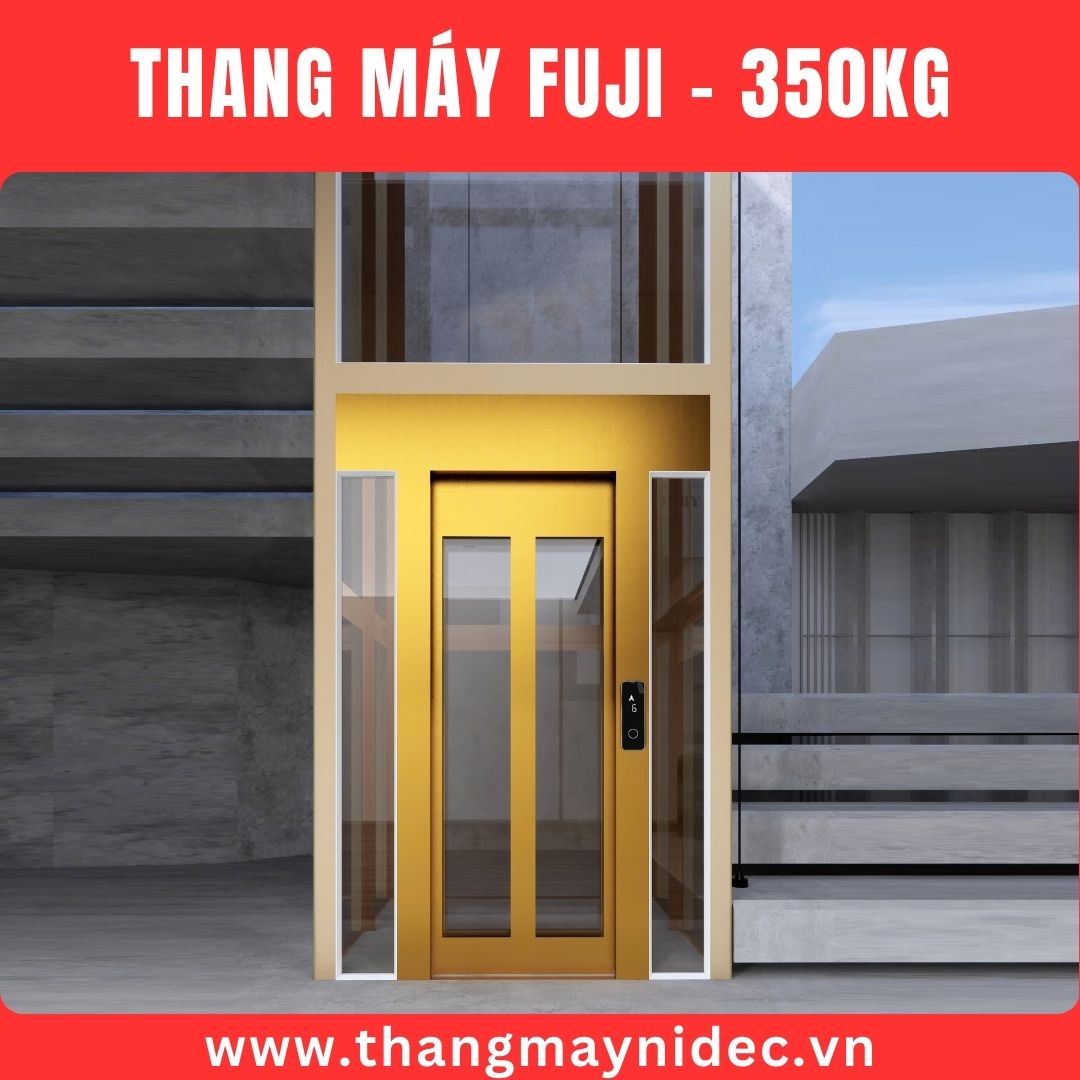

Fuji elevator dimensions, 350kg load capacity.

• Travel speed: 60 m/min – 90 m/min.

• Elevator shaft dimensions: 1800mm x 1500mm (W x D).

• Cabin dimensions: 1400mm x 1000mm x 2300mm (W x D x H).

• Cabin door dimensions: 800mm x 2100mm (W x H).

• Floor door: 800mm x 2100mm (W x H).

• Overhead height (OH): 4100mm.

• Pit size: 1400mm.

• Maximum number of people: 4

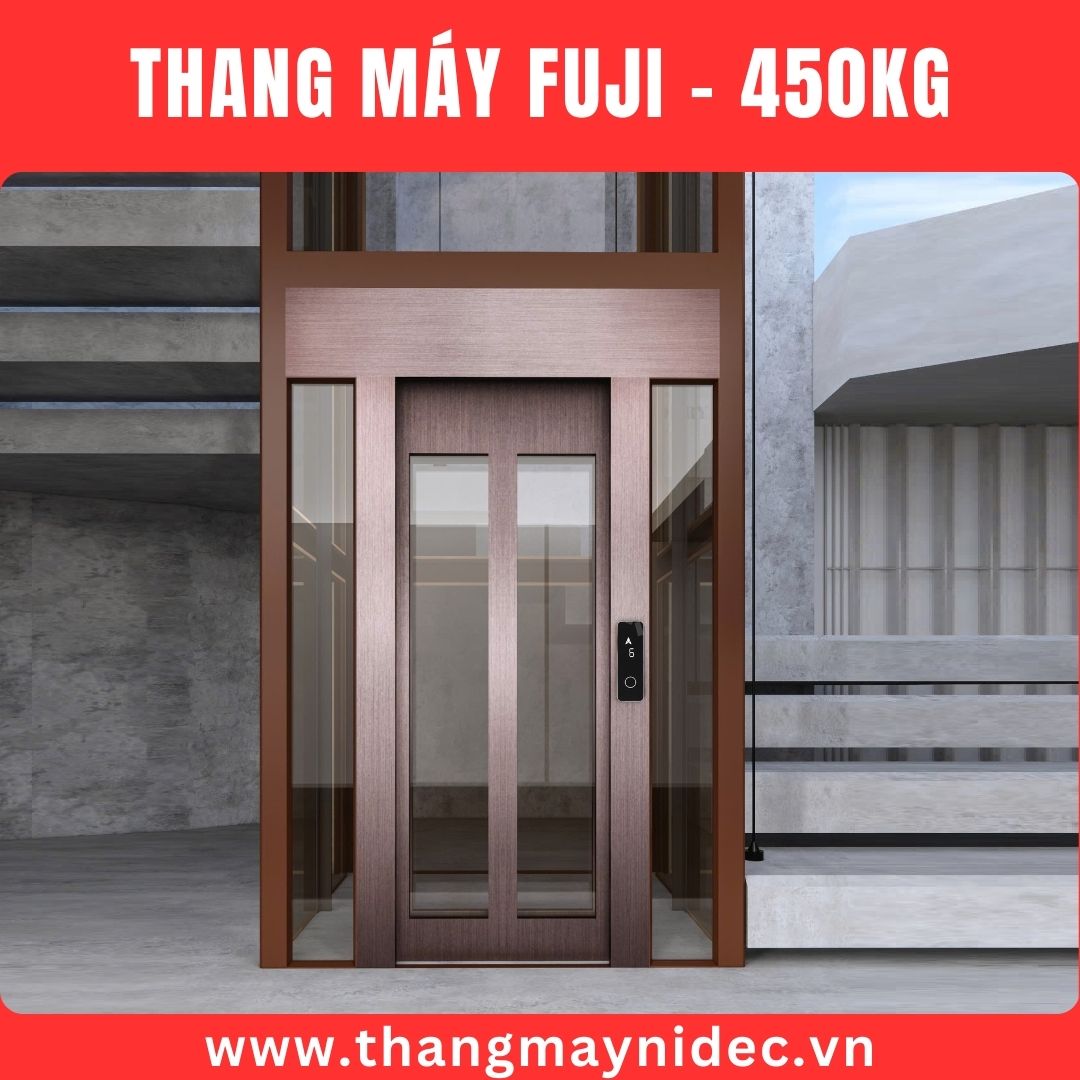

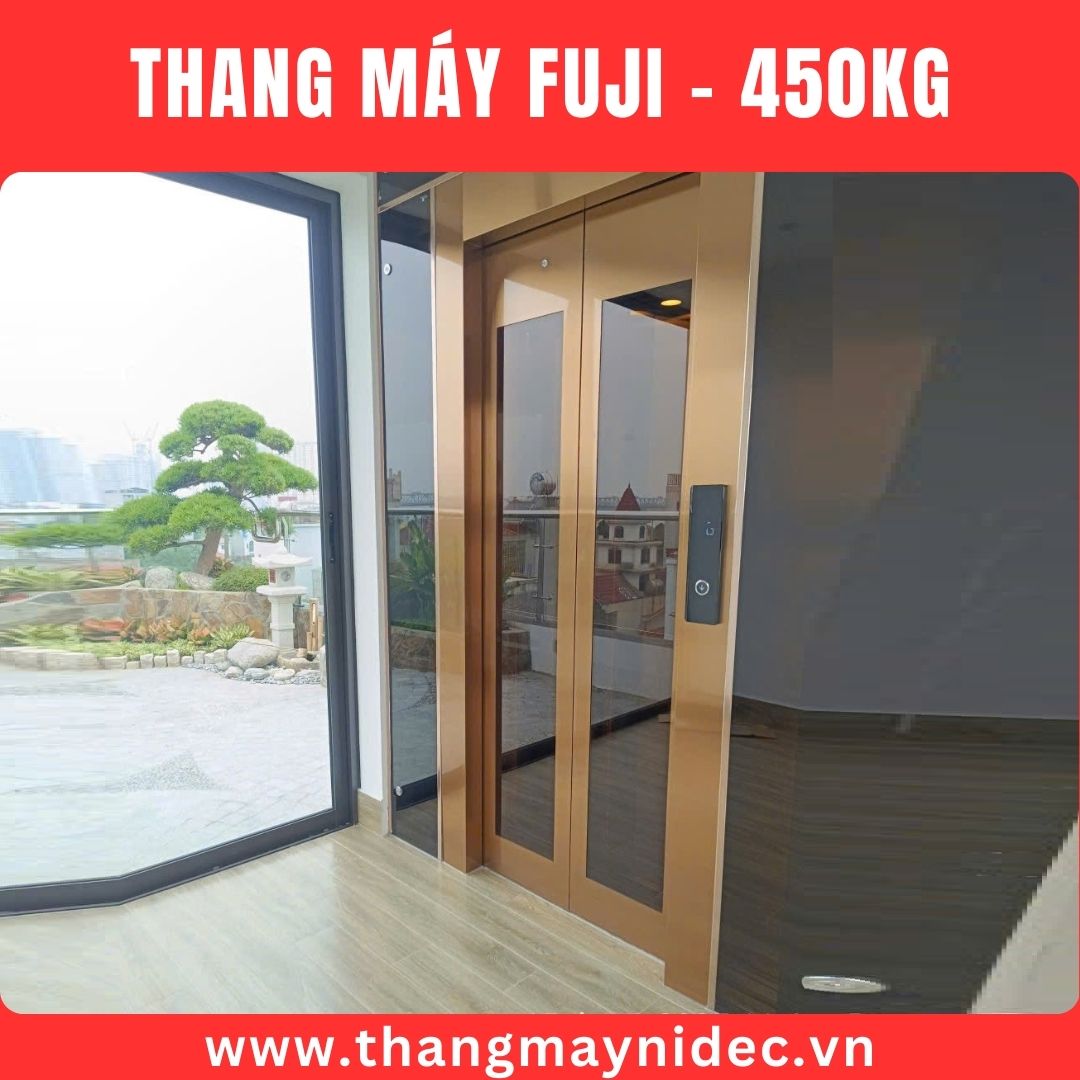

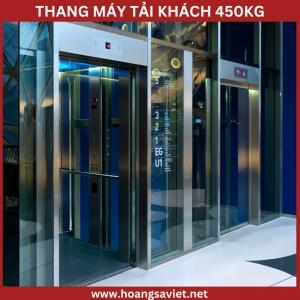

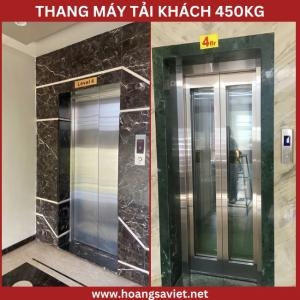

Dimensions of Fuji brand elevator with a load capacity of 450kg.

• Travel speed: 60 m/min – 90 m/min.

• Elevator shaft dimensions: 1800mm x 1500mm (W x D).

• Cabin dimensions: 1400mm x 1000mm x 2300mm (W x D x H).

• Cabin door dimensions: 800mm x 2100mm (W x H).

• Floor door: 800mm x 2100mm (W x H).

• Overhead height (OH): 4100mm.

• Pit size: 1400mm.

• Maximum number of people: 6

Fuji heavy-duty elevator with a 630kg load capacity.

• Cruising speed: 1.0 – 1.75 m/s.

• Elevator shaft dimensions: 2000mm x 1720mm (W x D).

• Cabin dimensions: 1400mm x 1100mm x 2300mm (W x D x H).

• Cabin door dimensions: 800mm x 2100mm (W x H).

• Overhead height (OH): 4200mm.

• Pit size: 1500mm.

• Maximum number of people: 8

Fuji elevator dimensions, large load capacity 800kg.

• Cruising speed: 1.0 – 2.5 m/s.

• Elevator shaft dimensions: 2200mm x 1970mm (W x D).

• Cabin dimensions: 1400mm x 1350mm x 2300mm (W x D x H).

• Cabin door dimensions: 800mm x 2100mm (W x H).

• Overhead height (OH): 4400mm.

• Pit size: 1600mm.

• Maximum number of people: 10

Dimensions of Fuji 1000kg capacity home elevator

• Cruising speed: 1.5 – 4.0 m/s.

• Elevator shaft dimensions: 2200mm x 2120mm (W x D).

• Cabin dimensions: 1600mm x 1450mm x 2300mm (W x D x H).

• Cabin door dimensions: 900mm x 2100mm (W x H).

• Overhead height (OH): 4400mm.

• Pit size: 1600mm

• Maximum number of people: 13

If your house has height restrictions on the top floor, you can consider the machine-roomless home elevator, which is popular among many families due to its convenience.

Updated Fuji Elevator Price List by Type

The price of Fuji elevators is not fixed but varies based on several factors such as: whether they are imported or joint ventures, the number of stops, travel speed, load capacity, and the accompanying accessories.

The specific reference prices for each product line are as follows:

• Fuji joint venture elevators: Costs range from 250,000,000 to 420,000,000 VND .

• Imported Fuji elevators: Costs range from 600,000,000 to 900,000,000 VND .

The actual price will vary depending on the payload capacity, number of decks served, and the interior cabin amenities chosen by the customer. You can find detailed information for each model below:

Fuji elevator price list categorized by load capacity.

Comparing Fuji, Mitsubishi, and Hitachi Elevators

To help you easily identify the features and make a suitable investment choice, here is a brief comparison table between three leading elevator brands from Japan:

The choice of product line will depend on your actual financial situation, the size of your architectural space, and your long-term usage needs.

See more genuine imported Hitachi elevators at THANGMAYNIDEC

Address for Installing Genuine, High-Quality Fuji Elevators

THANGMAYNIDEC proudly stands as a leading and reputable company specializing in the supply and installation of genuine Fuji elevators with a wide range of load capacities. To ensure optimal quality, all products supplied by the company undergo an extremely rigorous quality control and manufacturing process, fully meeting the strictest quality inspection standards.

All stages of elevator system installation at the construction site are directly carried out by a team of highly skilled technicians with creative ideas and extensive practical experience. Therefore, the company is committed to providing customers with safe, durable, and perfectly compatible transportation solutions tailored to their specific needs.

In summary, with its reputable Japanese origin and integrated, intelligent design, Fuji elevators are a worthy ideal transportation solution trusted by many Vietnamese families. Whether you prefer a luxurious, fully imported elevator or a cost-effective joint-venture Fuji model, the product guarantees a smooth, safe, and superior operating experience, along with a variety of sizes to perfectly fit any architectural space.
