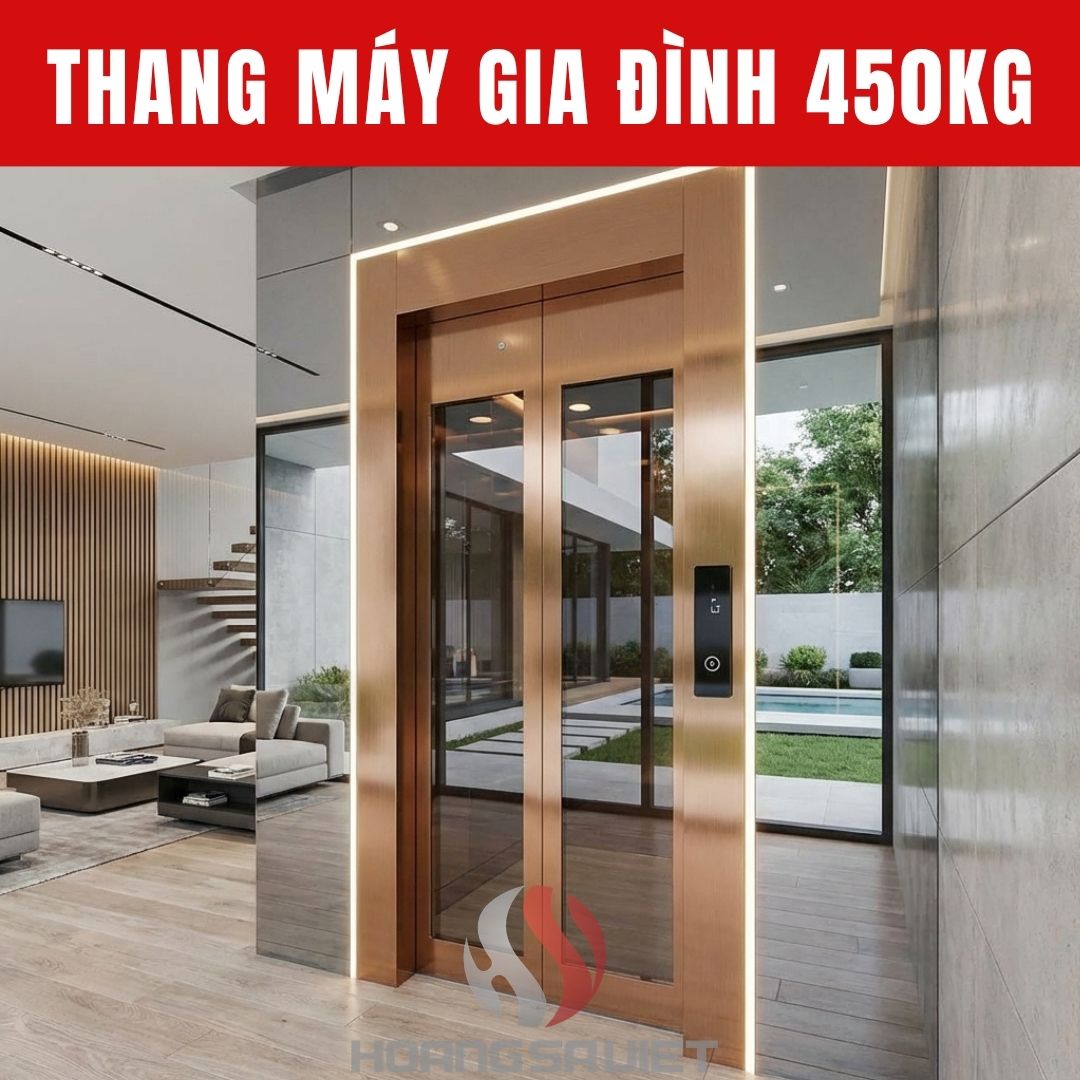

450kg Home Elevator
Code: SK450
Technical Specifications
| Load Capacity: | 450kg |
| Speed: | 0.5 - 1.0 m/s |
| Number of Floors: | 2.3.4.5.6.7 (floors) |
| Small stairwell | 1400*1500mm |
| Largest elevator shaft | 1600*1800mm |
| Frame & Wall | Concrete / Glass frame |
| Power Source: | 1F/220V /3F/380V |
TABLE OF CONTENTS
- Common Mistakes When Choosing the Right Load Capacity but the Wrong Size
- Standard 450kg Elevator Size Chart
- Classification of 450kg Elevator Sizes for Different Types of Buildings
- Updated Price List for 450kg Home Elevators (2026)
- Factors Affecting the Cost of a 450kg Home Elevator
- Differences Between 350kg and 450kg Home Elevators
- Types of Technology Used in 450kg Home Elevators
- Most Popular 450kg Home Elevator Models in 2026
- Contact Information
Install a 450kg capacity home elevator at THANGMAYNIDEC for only 368,000,000 VND - 500,000,000 VND all-inclusive, with no hidden fees. With a carrying capacity of 4-6 people, it's suitable for areas of 60m2 and newly built houses. We guarantee genuine imported components with a warranty of up to 10 years. Learn more about the 450kg elevator with our team of technicians through the following information!
Common Mistakes When Choosing the Right Load Capacity but the Wrong Size
Many homeowners decide to buy a 450kg capacity home elevator but only realize the mistake during installation because the elevator shaft built by the contractor doesn't meet the standards. A deviation of just 5-10cm can lead to serious problems:
- A dilemma: Either demolish and rebuild (costing 20-50 million VND) or reluctantly move down to the cramped 350kg elevator cabin.
- Structural damage: The pit lacked sufficient depth, requiring foundation excavation; the overhead height was insufficient, necessitating the construction of an additional attic, which marred the house's architecture.
Why does this mistake happen so often?
Because each home elevator manufacturer has different shaft specifications. Manufacturer A requires 1500mm x 1600mm, but manufacturer B requires 1600mm x 1700mm. Building a shaft based solely on the contractor's specifications is extremely risky.
Consequences of not seeking advice beforehand:
- Wasteful: Repair costs ranging from 20 to 80 million VND.
- Delayed: An additional 2-3 weeks of demolition and dusty construction work is required.
In short: Don't build your elevator shaft based on intuition! Let a home elevator engineer provide accurate technical drawings right from the design stage to save time and money. Free drawing consultation: 0707 025 789
Standard 450kg Elevator Size Chart
A 450kg capacity elevator falls into the large-capacity home elevator segment, suitable for families with 4-6 members. This type of elevator optimizes space while still meeting basic transportation needs within the home. If you are looking for a suitable solution for multi-story houses, you can refer to the price of a 4-story home elevator with various load capacities to suit all 4-story homes in major cities.
| Load | Number of people |
Elevator Shaft Dimensions (Clearance) (mm) |
Cabin Dimensions (mm) |
| 450kg |
5-6 people |
1500 x 1600 |
1100 x 1050 |
|
1400 x 1700 |
1000 x 1150 | ||
|
1600 x 1500 |
1200 x 950 | ||
|
1350 x 1800 |
950 x 1250 |
Note:
- Joint venture elevators: Standard pit depth is typically between 500mm and 1400mm. This is a safe distance for installing shock absorbers and ensuring maintenance space at the bottom of the cabin.
- Imported elevators : Some high-end models may have a shallower pit, only about 500mm - 1000mm. The dimensions of 450kg capacity imported elevators are also fixed by the manufacturer and cannot be customized.
- Minimum overhead height (OH): 2500 - 2800mm (measured from the highest floor to the elevator shaft ceiling) for a 450kg elevator at THANGMAYNIDEC.
Classification of 450kg Elevator Sizes for Different Types of Buildings
An elevator load capacity of 450kg (carrying 5 to 6 passengers) is considered ideal due to its high versatility, suitable for both residential and commercial needs. However, depending on the specific function of each type of building, the dimensions of a 450kg elevator shaft will be carefully calculated by THANGMAYNIDEC to optimize floor space and operating capacity.
1. Elevator Sizes for Newly Built Townhouses and Family Villas
For private living spaces, the top priority is a spacious, square cabin that allows for comfortable family living and easy transport of furniture or baby strollers.
- Clear opening dimensions of the elevator shaft: 1600mm x 1600mm
- Cabin interior dimensions: 1200mm x 1100mm
- Elevator door width (Automatic Center Opening - CO): 750mm
- Technical requirements: A minimum pit depth of 1000mm and an overhead height (OH) of 3800mm are required to ensure optimal shock absorption.
2. Elevator Sizes for Renovated Houses or Narrow Plots
For townhouses with limited land in terms of depth or width, the optimal solution is to erect a steel frame with tempered glass walls around the perimeter to maximize natural light and space.
- Clear opening dimensions of the elevator shaft: 1700mm x 1400mm (Increasing the facade width is preferred to fully showcase the glass elevator).
- Cabin interior dimensions: 1300mm x 800mm
- Elevator door width (Automatic sliding CO/SO): 750mm
- Technical requirements: Standard pit depth of 200mm - 700mm helps minimize contact with the existing foundation of the house.
3. Elevator Sizes for Office Buildings for Rent
Public environments are characterized by a constant and high volume of people moving around. Customers going to the office often travel in large groups, requiring cabins to be wide enough for passengers to enter and exit quickly, avoiding congestion.
- Clear shaft dimensions: 1800mm x 1500mm (The wide and shallow shaft design allows for the widest possible elevator door opening).
- Cabin interior dimensions: 1400mm x 950mm
- Elevator door width: 800mm (Wide elevator doors allow for simultaneous entry and exit without congestion).
- Technical requirements: The office elevator's speed needs to be configured to be fast, from 1.0m/s to 1.5m/s, which necessitates a pit depth of 1200mm - 1400mm and an overhead height of 4000mm to safely eliminate inertial forces.
4. Elevator Sizes for Mini Hotels and Homestays
Accommodation facilities require cabins with considerable depth to allow passengers to easily push along large suitcases, strollers, or small stretchers.
- Clear opening dimensions of the elevator shaft: 1500mm x 1800mm (Narrow width - deep length design).
- Cabin interior dimensions: 1100mm x 1250mm
- Elevator door width (Automatic Center Opening - CO): 700mm
- Technical requirements: Cabin walls are often upgraded to high-end gold or white mirrored stainless steel to create a visual effect of spaciousness, preventing guests from feeling cramped.
Updated Price List for 450kg Home Elevators (2026)
The price of a 450kg capacity home elevator varies greatly, ranging from 180 million to over 1.7 billion VND, depending on the elevator size, origin, technology, number of floors, and cabin finish.
| Segment | Typical origin |
Installation price (2 - 6 floors) |
Characteristic |
|---|---|---|---|
|
General |
China, joint venture | 280 - 480 million VND | Assembled components, 12-month warranty. |
|
Intermediate level |
Japan (Nidec, Fuji), South Korea | 290 - 520 million VND | Genuine imported product, durable motor, 18-24 month warranty. |
|
High-class |
Europe (Cibes, Kalea, KONE) | 850 million - 1.7 billion VND | Premium design, ultra-shallow/no-pit option, 24-36 month warranty. |
Factors Affecting the Cost of a 450kg Home Elevator
When reviewing price quotes, you should consider the following factors, which will affect the final cost of installing a home elevator.
Group driving up prices sharply:
- Number of additional floors: Each additional floor typically costs an extra 50 million VND .
- Elevator doors: Automatic doors that open on both sides (opposite each other) will be more expensive than conventional doors that open on one side.
- Cabin materials: Replace standard stainless steel with gold mirror stainless steel, tempered glass, or precious wood.
- Technology: Screw-driven elevators (without a pit) are always more expensive than traditional cable-driven elevators.
- Speed: Fast elevators (1.0 m/s) are more expensive than slow elevators (0.4 m/s).
Groups that have LITTLE influence on price:
- Load capacity: The price difference between a 350kg and a 450kg capacity glass home elevator is only about 10-20 million VND .
- Colors: Standard paint colors are usually included free of charge.
- Floor height: As long as the height of each floor is under 4m, the price usually remains unchanged.
Differences Between 350kg and 450kg Home Elevators
The comparison table below between 350kg and 450kg elevators will help you make a decision based on your actual needs:
|
Criteria |
350kg (3-4 people) | 450kg (5 - 6 people) |
|---|---|---|
|
Standard cabin |
900 × 900 mm | 1,200 × 1,000 mm |
|
Minimum elevator shaft |
1,200 × 1,350 mm | 1,500 × 1,550 mm |
|
Can wheelchairs get in? |
Difficulty due to narrow cabin | Yes, because there's enough room to turn. |
|
Moving heavy items |
Restrictions (small boxes) | More comfortable (wardrobes, appliances) |
|
Price difference |
Base price | More expensive by 30-80 million VND |
|
Long-term value |
Enough for young couples | Suitable for multi-generational families. |
Choose a 450kg elevator when:
- The family has more than 4 people, including elderly members.
- Houses with 4-6 stories have long voyages and require spacious cabins.
- Some people use wheelchairs or strollers.
- Want to make a "one-time investment" and not upgrade after 5-10 years?
- Prefabricated building stairwells ≥ 1,500 × 1,500mm
Choose a 350kg elevator when:
- Young couples, 2-3 people, don't need wheelchairs yet.
- 2-3 story houses, narrow stairwells under 1,500mm
- With a limited budget, the lowest price is the priority.
General principle: If the elevator shaft in your home is large enough (≥ 1,500 × 1,550mm), you should choose a 450kg capacity elevator. The price difference is only 30-80 million VND, but the difference in experience compared to installing a 350kg elevator is significant, especially when the family grows up or elderly people move in.
Types of Technology Used in 450kg Home Elevators
Cable Pulling Technology
-
Suitable for: Newly built houses with space to dig a deep pit and create a high attic (OH) level.
-
Advantages: Low cost, easily replaceable parts, high speed resulting in fast travel, and does not overheat during continuous use.
Screw Technology
-
Suitable for: Narrow townhouses, villas where foundation structure cannot be altered.
-
Advantages: Extremely luxurious four-sided glass design, no pit required (just a single layer of floor tiles is needed).
-
Disadvantages: They are quite slow and usually cost 2-3 times more than cable cars.
Hydraulic Technology
-
Suitable for: Low-rise houses (under 4 stories) requiring absolute tranquility and a unique cabin design.
-
Advantages: Extremely quiet operation, excellent load-bearing capacity, and does not require space on the top floor.
-
Disadvantages: There is a risk of oil leakage after prolonged use, and maintenance costs are quite high.
Comparing 3 technologies for 450kg capacity home elevators.
|
Characteristic |
Cable Tray | Screw Ladder | Hydraulic Ladder |
|
Pit (Depth) |
600mm - 1200mm | 15mm - 60mm | 100mm - 300mm |
|
Height of OH |
Required height (3500mm - 4200mm) | No OH needed (from 2400mm) | Low (from 2600mm) |
|
Speed |
Fast (0.6 - 1.0 m/s) | Slow (0.15 - 0.3 m/s) | Average speed (0.3 - 0.6 m/s) |
|
Noise level |
Low (soft) | It's a bit noisy due to the screw motor. | Extremely smooth |
|
Cost |
Cheapest (Economical) | High quality (usually imported) | High (High maintenance costs) |
Most Popular 450kg Home Elevator Models in 2026
Want a 100% accurate quote for your house's area? Use our automatic " Quick Quote " tool (pinned above). With just a few data entries, you'll receive the most optimal financial plan. THANGMAYNIDEC guarantees 100% confidentiality of your personal information.
|
Specifications / Price |
Advantages / Disadvantages |
Concrete Pit Elevator
Reference price: 376,000,000 VND |
Advantages: Inexpensive, durable, low maintenance, competitive. Suitable for new construction, offices, and mini-apartments. Pit depth only needs to be 700mm. No machine room required. Common installation area: 2.4m². Common dimensions: (1500 x 1700mm) Disadvantages: Takes up a lot of space. Doesn't allow much natural light. Not as aesthetically pleasing as glass staircases. Requires extra money for granite countertops.
|
|
Elevator with Decorative Doors
Reference price: 380,000,000 VND |
Advantages: Affordable, durable, low maintenance, competitive. Wide variety of patterns and colors. Suitable for new construction, offices, restaurants, and hotels. Pit depth only needs to be 700mm. Common installation area: 2.4m². Disadvantages: Takes up a lot of space. Doesn't allow much natural light. Not as aesthetically pleasing as glass staircases. Requires extra money for granite countertops. |
|
450kg Glass Elevator
Reference price: 520,000,000 VND |
Advantages: Allows for ample natural light and creates a spacious feel. Glass doors offer a view of the outside, providing a sense of openness. Suitable for new construction, offices, restaurants, and hotels. Only a 700mm pit is required. Common installation area: 2.4m². Common dimensions: (1600 x 1600mm). No additional cost for granite countertops. Disadvantages : High price due to additional costs for the frame and glass panels. Takes up a lot of space.
|
|
Nidec Imported Elevators
Reference price: 780,000,000 VND |
Advantages: Luxurious, high-class, unique. Product imported directly from Nidec Elevator. Pit depth required: 1000mm. Minimum installation area: 2.4m² (1500 x 1600mm) Disadvantages: High price due to importing as a complete unit. Long project implementation time (4 months). |
|
Fuji Elevator 450kg
Reference price: 360,000,000 VND |
Advantages: Affordable, durable, and aesthetically pleasing. More companies offer this product, increasing competition. Suitable for new construction, offices, and hotels. Minimum installation area: 2.4m² (1500 x 1600mm) Disadvantages: Requires a large area. Requires a pit depth of at least 700mm. |
|
Mitsubishi 450kg Elevator
Reference price: Contact us |
Advantages: Famous, reputable. Suitable for new construction, offices, and hotels. Minimum installation area: 2.4m² (1500 x 1600mm) Disadvantages: High price due to being imported as a complete unit, long installation time. |
|
450kg Hydraulic Elevator
Reference price: 533,000,000 VND |
Advantages: No counterweight required, optimizes space. Low initial investment cost. Features a three-sided cabin, with a sensor curtain on the front. Minimum installation area: 1.6 m² (1200 x 1400 mm). No pit required, optimizes space. Disadvantages: Slow travel speed (18 m/min). Limited height (maximum 13 m). Has a cabin but no cabin door. Fuel tank located on the ground floor, causing noise and risk of oil leaks. High replacement parts cost. Few suppliers, leading to inflated prices and a shortage of maintenance technicians. |
.png "Concrete Pit Elevator")
Contact Information
Nidec Vietnam Elevator Joint Stock Company is an authorized distributor within the HSV Group ecosystem, trusted by many users for the installation of 450kg capacity home elevators. To live up to our customers' trust, we always strive to find leading reputable distributors in the market to ensure products have clear origins and genuine warranties. This gives customers greater peace of mind throughout the product's lifespan.
THANGMAYNIDEC VIETNAM JOINT STOCK COMPANY
Address: 184/20A Le Dinh Can Street, Tan Tao Ward, Ho Chi Minh City
Hotline: 0707025789
Email: hungpham@thangmaynidec.vn
Website: thangmaynidec.vn
Working hours: 8:00 AM - 5:00 PM daily
