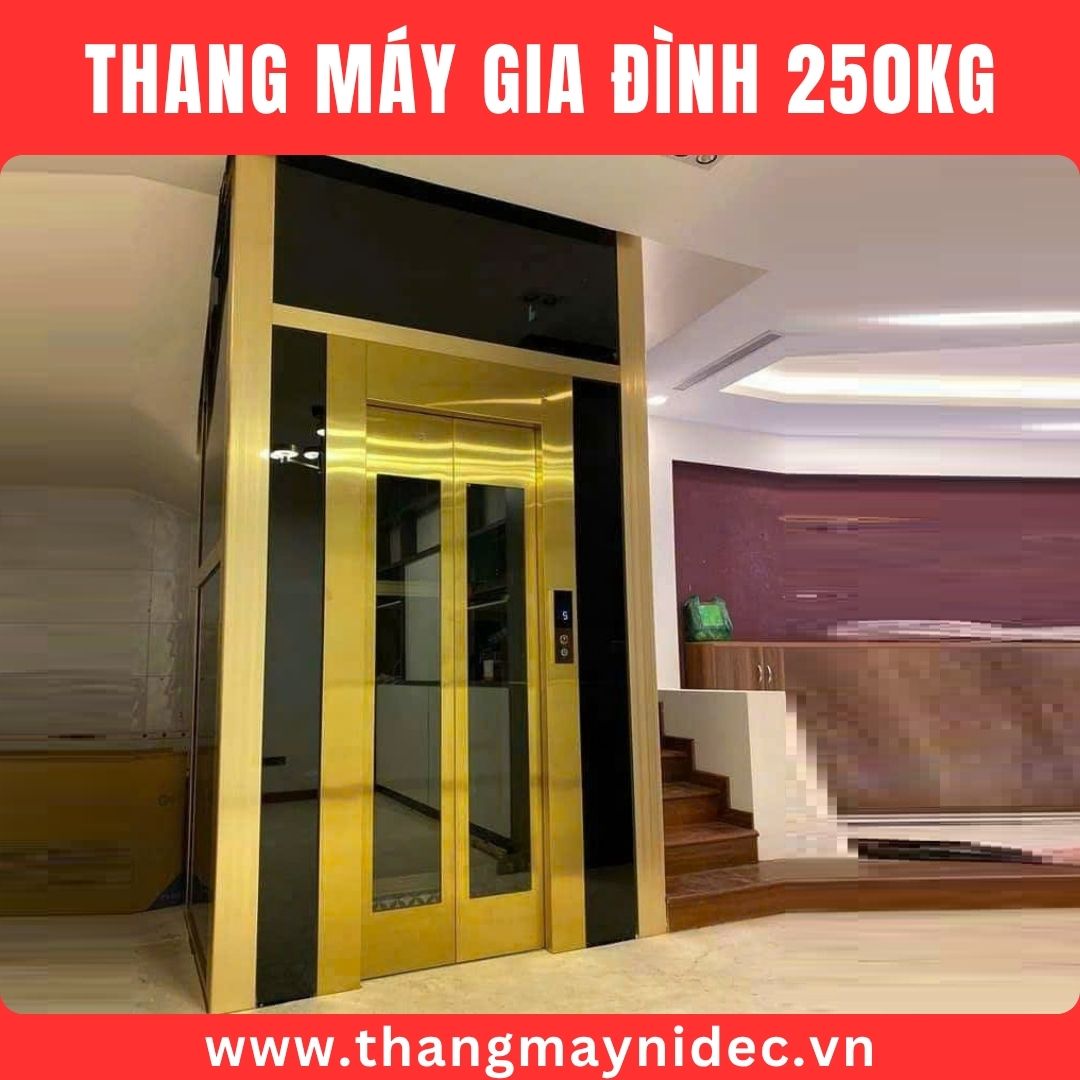

250kg Home Elevator

A 250kg capacity home elevator with dimensions of 1000 x 1100mm is becoming the top choice for townhouse renovations. A 250kg elevator offers a more spacious cabin while maintaining flexibility for installation in renovated homes. Let's explore with THANGMAYNIDEC why this is the ideal home elevator model for your living space.

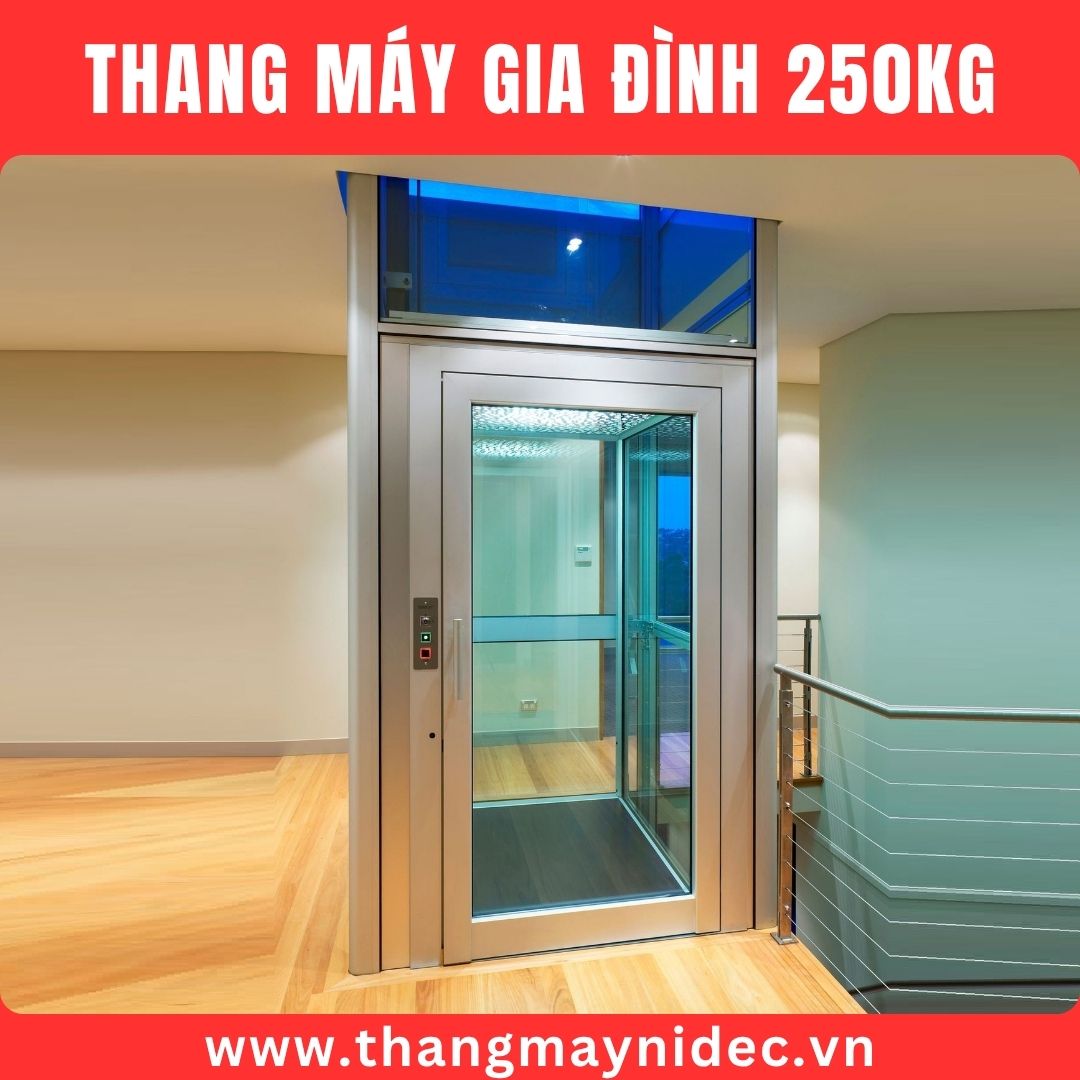

What should I do if I want to install an elevator in a house that has already been built?

If your house was already built but you suddenly want to install an elevator and are worried about whether the installation will affect the house's structure, don't worry, because THANGMAYNIDEC is leading the trend in elevator installation.thang máy gia đình, to help small families with elderly members move around more conveniently. Below are the advantages that prove a 250kg elevator is suitable for your family:

• Ideal load capacity for a family of 2-3 people.

The most outstanding feature of a 250kg capacity home elevator lies in the experience inside the cabin. With this load capacity, the space is expanded enough for 2-3 adults to move comfortably without feeling cramped or bumping into each other. For young families, this size is perfect for a couple and a small child. For the elderly, this area is sufficient for an accompanying person or a small wheelchair.

• Flexible link installation: Easy to install thanks to its small size.

A common misconception is that larger elevators are more difficult to install. In reality, many affordable home elevator models are designed with a philosophy of mechanical simplification in mind:

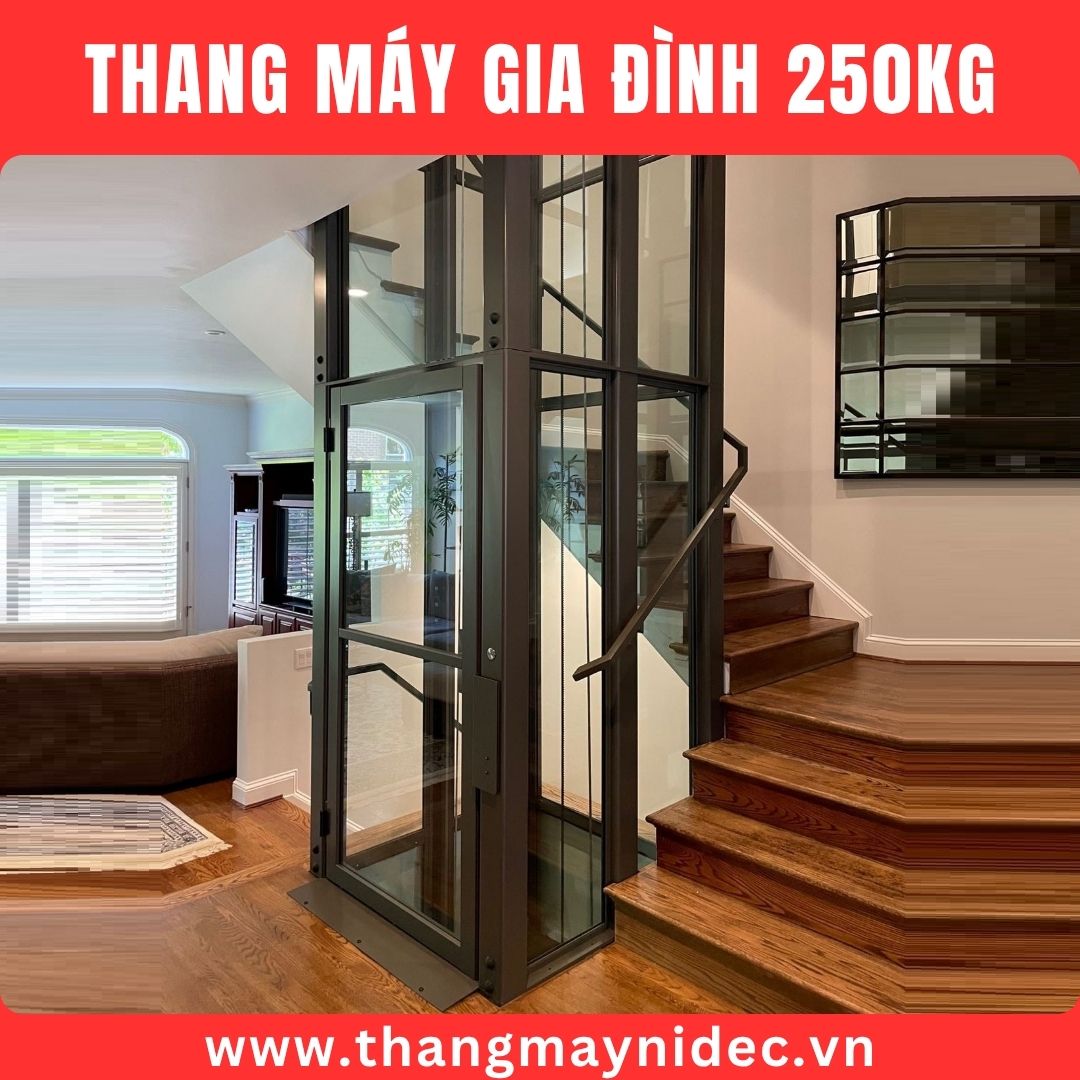

Just an extra 10cm: You only need to expand the elevator shaft by about 10-15cm compared to the smallest model, but the usable cabin area is increased by nearly 20%. Thanks to its optimized design, this elevator model is very easy to install and can be placed in dead corners of townhouses, next to skylights, or even inside stairwells without significantly altering the building's load-bearing structure.

• A versatile application for all types of homes.

The 250kg capacity model isn't just for home renovations. For new construction projects with floor areas of 40m2 - 50m2, a 250kg capacity elevator is also perfectly suitable. It helps homeowners optimize working or living space on each floor while still ensuring a modern and luxurious transportation system.

Which Technology Should You Choose for a 250kg Home Elevator?

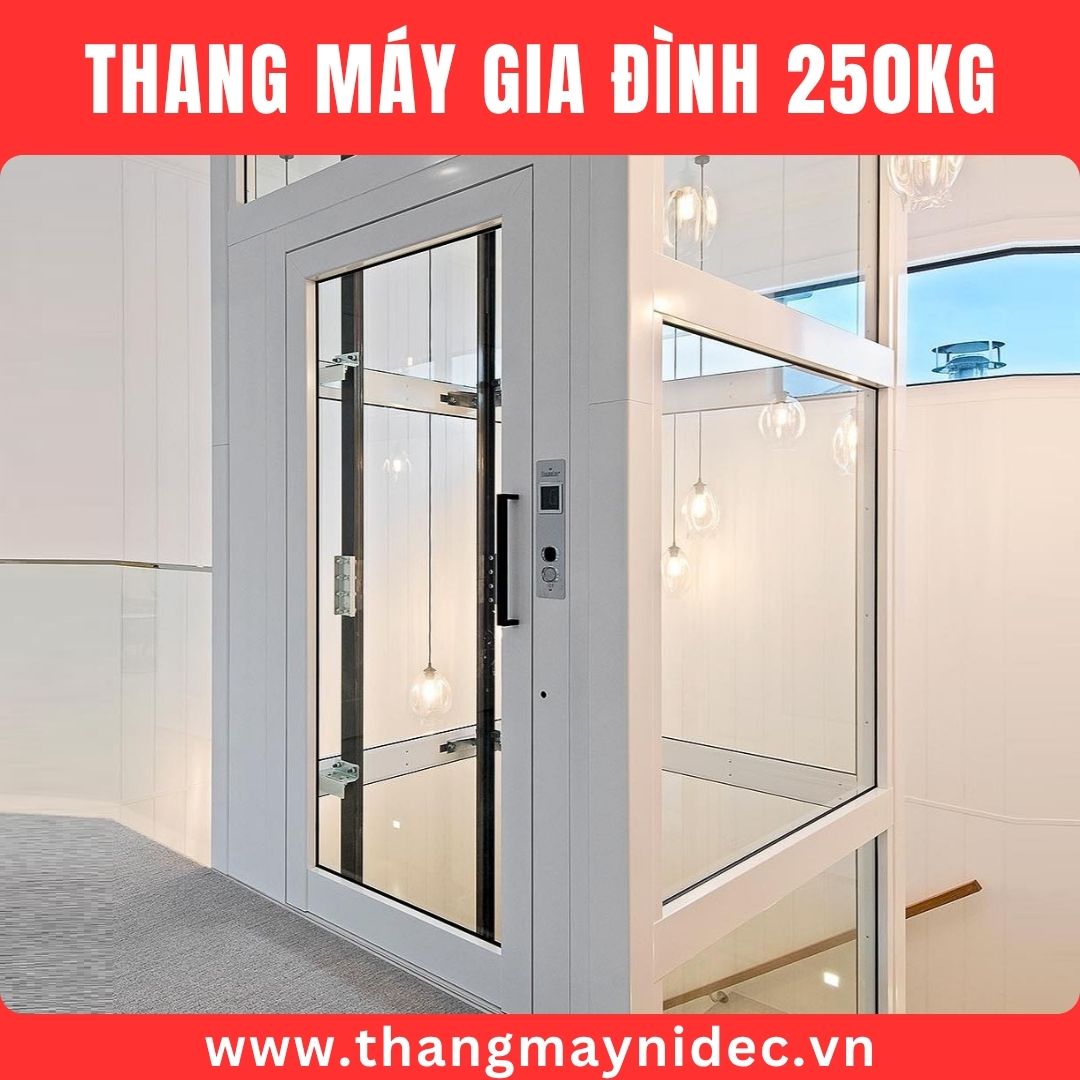

1. Cable Traction Technology - Best Selling at THANGMAYNIDEC

Among 250kg capacity home elevators, cable-driven technology remains the most popular choice due to its perfect balance between performance and cost. This globally proven technology operates using a pulley system combined with a load cable and counterweight.

For the affordable home elevator segment , we use gearless motors from reputable brands such as Nidec/Kinetec (Japan) . In particular, Kinetec's flat cable elevator solution is becoming a new trend thanks to its superior space optimization capabilities, reducing overhead height because the motor doesn't require a machine room for installation – a crucial factor for modern townhouses.

Operating principle: The cabin moves up and down via a system of ultra-durable steel cables wrapped around a drive pulley. Counterweights act to balance the load, thereby significantly reducing power consumption and increasing equipment lifespan.

Key advantages:

• Flexible speed: Ranging from 0.4m/s to 1.0m/s, ideal for buildings of 4–6 stories.
• High durability: Nidec motors have a lifespan of over 20 years and operate reliably in hot and humid climates.
• Cost-effective: Optimizes both installation and long-term maintenance costs.

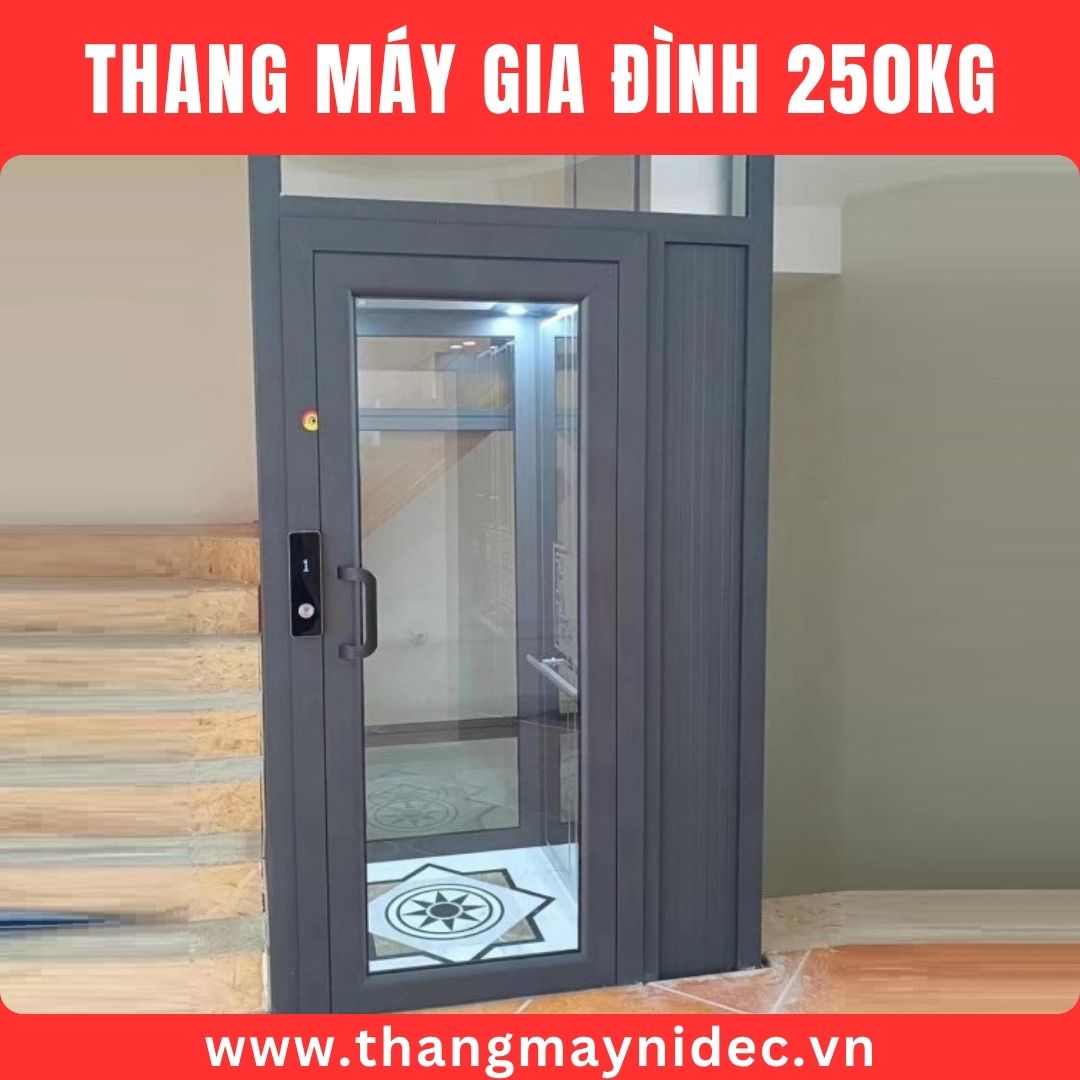

2. Hydraulic technology

In recent years, many companies in Vietnam have been manufacturing and installing hydraulic elevators. However, this technology is not yet widespread and its principles are completely different from traditional home elevators, so customers should research carefully before making a decision.

Operating principle: The cabin is raised by the force of a hydraulic piston when oil is pumped into the cylinder, and lowered by releasing the oil based on natural gravity.

Key advantages: Optimizes upper floor height, no machine room required, suitable for buildings with height restrictions.

Points to note: Slower travel speed compared to cable-driven elevators, higher initial investment cost, and requires periodic oil system inspections after 10-15 years of use to prevent leaks.

3. Screw technology

Although relatively new to the elevator industry, screw-driven technology offers a fresh perspective for renovation projects where homeowners appreciate novelty and uniqueness. However, this is a new technology and not inexpensive, so please consider this before purchasing.

Operating principle: The elevator cabin operates based on a helical gear mechanism that moves along a fixed screw shaft; the entire driving force of the elevator relies on the screw shaft.

Key advantages:

• No pit required: Just a slight recess of about 5cm in the floor or a small ramp will hardly affect the house's structure.
• Impressive design: Often uses tempered glass on all four sides, creating a sense of spaciousness and modernity.

Limitations:
Because screw conveyor technology is not yet widespread in the market, the investment cost is high (1.5–2 times that of cable-driven elevators) and the speed is quite slow, approximately 0.15 m/s.

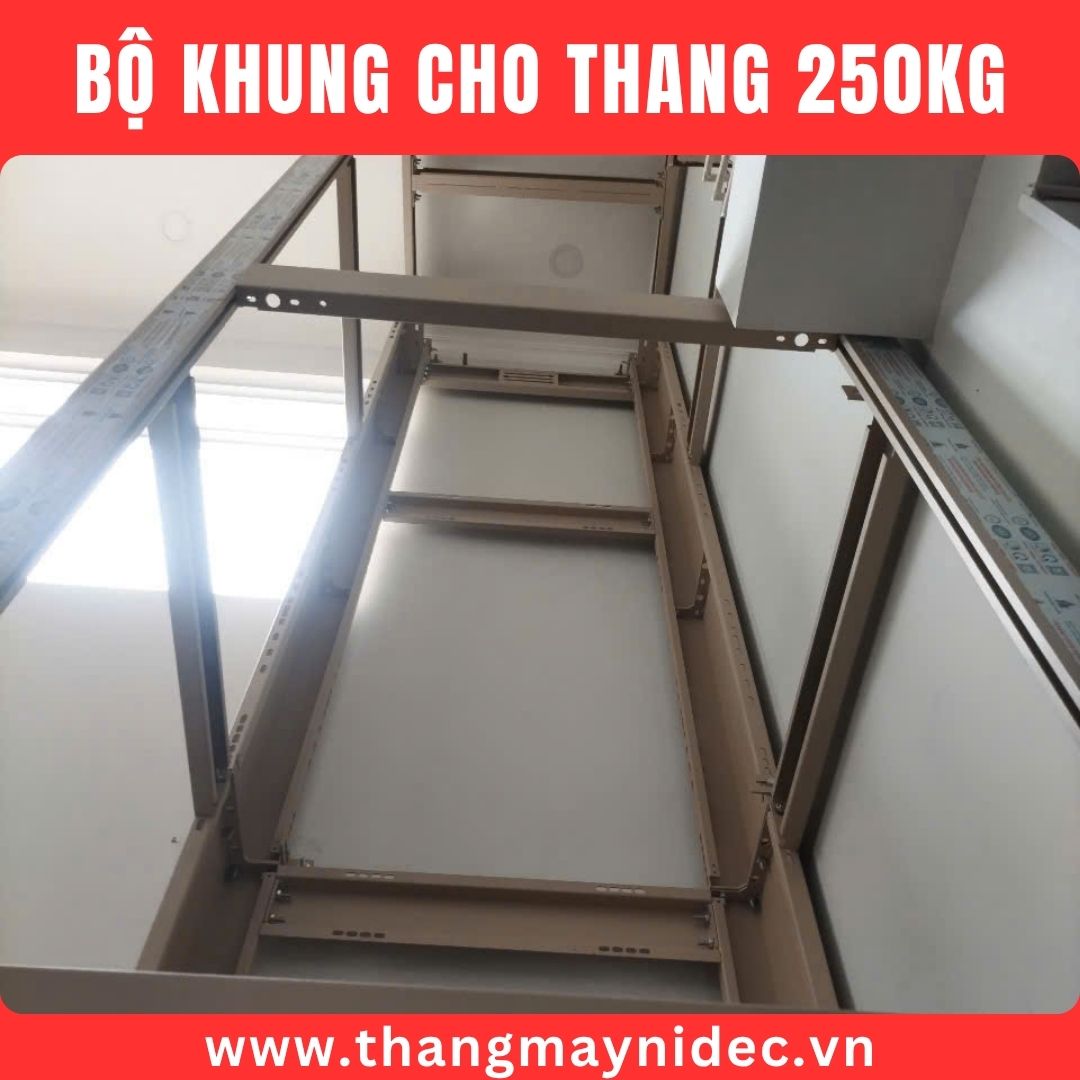

Structure of a 250kg Home Elevator

The components that make up a 250kg elevator include:

• Drive system: Kinetec motors with round cables or flat cables with small pulleys, easy to design, and space-efficient. Flat cable motors are specialized motors for installations without machine rooms.

• Control System: The home elevator is equipped with a Homelift MT70+ Controller with a modern microprocessor. Options include Nidec or MT70 control systems.

• Cabin designs: We offer a wide range of patterns, textures, and materials, with staff ready to advise customers on choosing the cabin design that best suits their aesthetics and home space.

• Speed: The operating speed of the mini elevator reaches approximately 20 to 30 meters per minute, ensuring comfort and safety for users.

• Power supply: The 250kg elevator can use either single-phase or three-phase power, depending on actual requirements and customer preference.

Common Door Types in 250kg Home Elevators

For 250kg capacity home elevators, the minimum dimensions are 1000mm x 1100mm. Traditional sliding doors have a minimum width of 1150mm, so we recommend automatic/manual hinged doors to better suit the conditions of your renovated home.

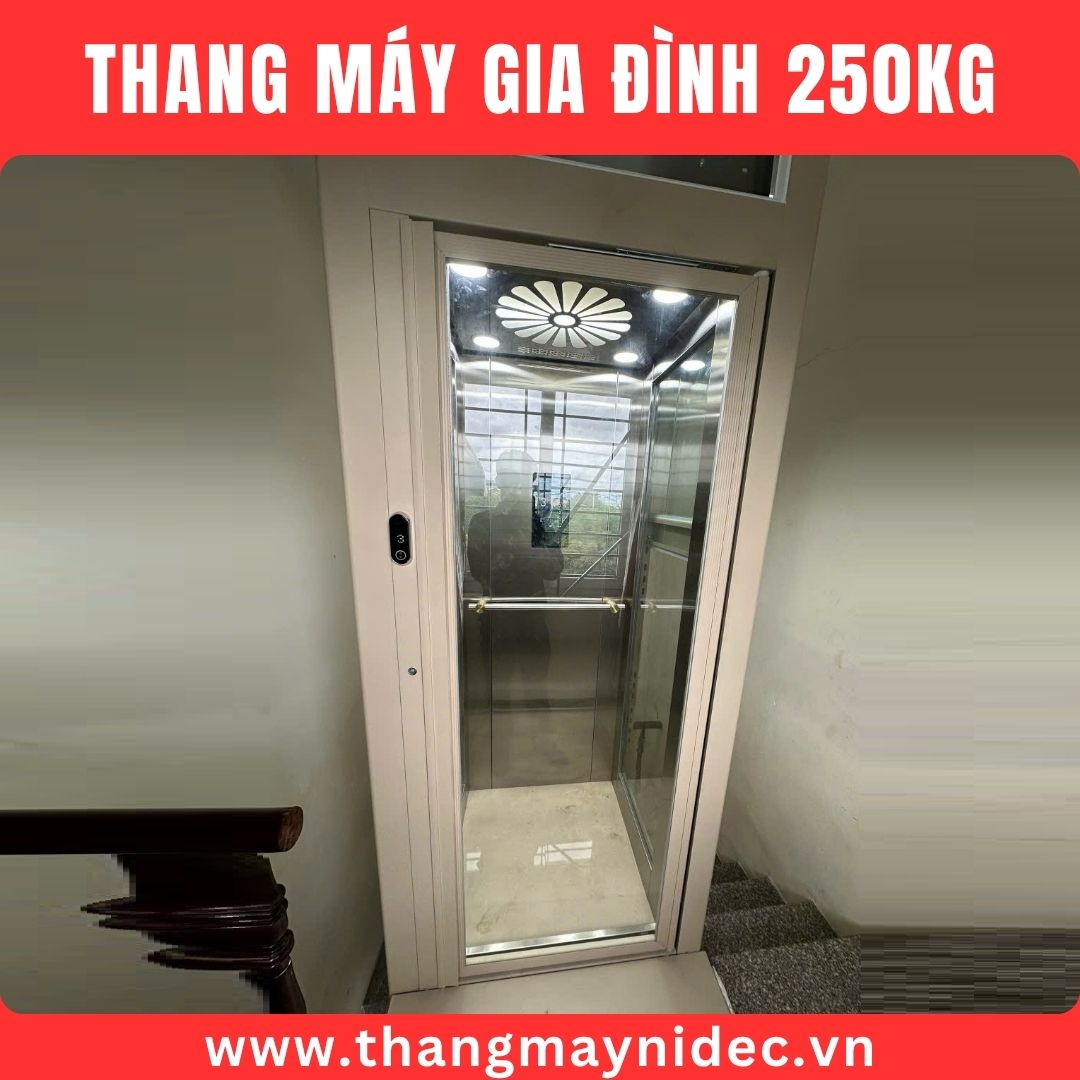

• Manual hinged doors: These are swing doors, similar to house doors, but are installed at elevator landings. Passengers need to open the door themselves before entering the elevator. Please note that this type of door does not have a cabin door to optimize interior space.

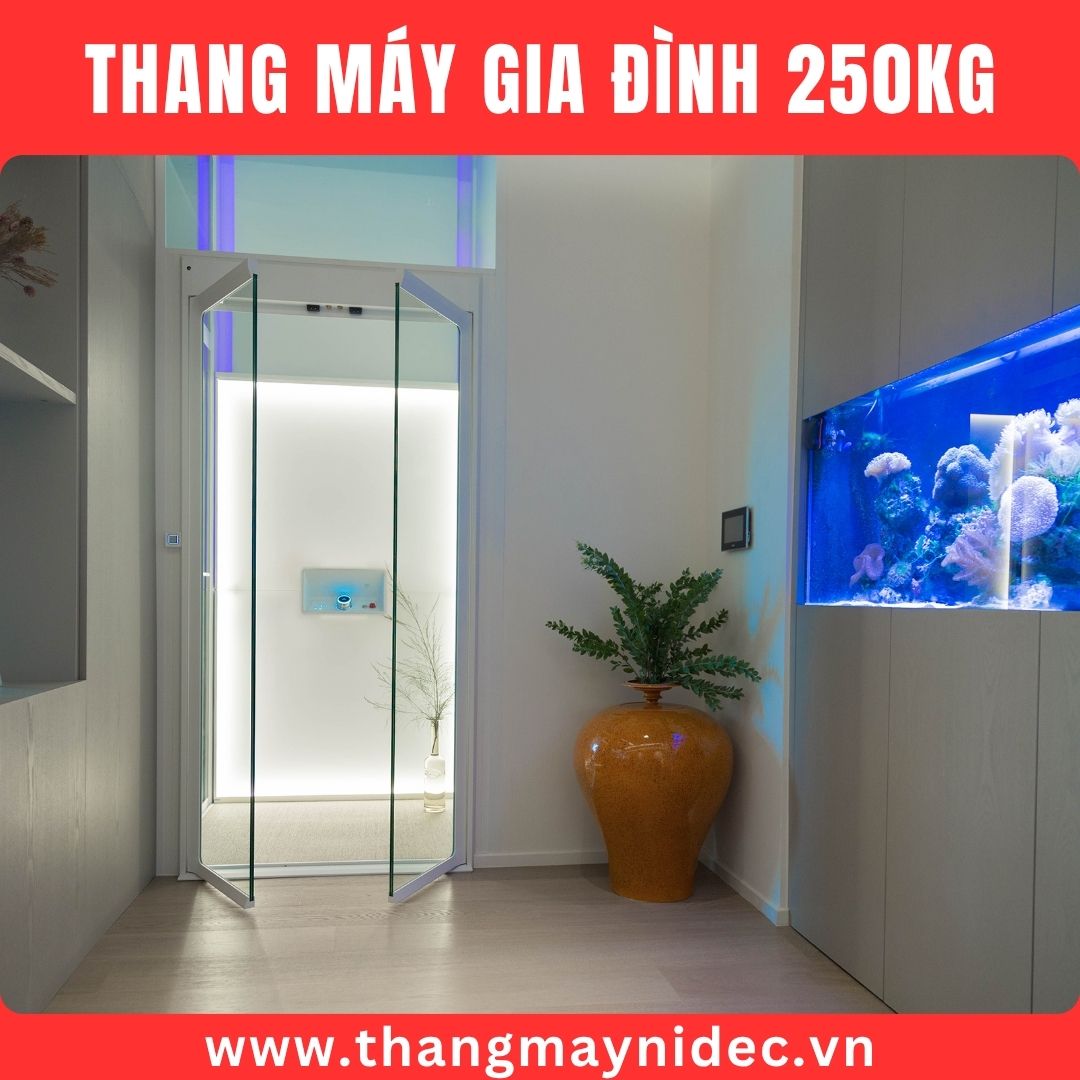

• Automatic hinged doors: These are center-opening swing doors that use an automatic sensor system. This type of door is more luxurious than manually operated doors, but it's similar in that it doesn't have a cabin door. However, you don't need to worry about safety because we have equipped the cabin with sensor curtains to prevent entrapment.

Note: The 200kg and 250kg home elevators have the same door opening mechanism. THANGMAYNIDEC recommends using manually hinged doors for cost optimization.

Technical Specifications and Dimensions of a 250kg Home Elevator

The table below shows the specifications for a 250kg elevator using all three cable-driven, hydraulic, and screw-driven technologies:

When reviewing THANGMAYNIDEC's technical specifications, please note the following key concepts to make the most suitable choice for your living space:

• Elevator shaft dimensions: This is the minimum floor area required for installing a cost-effective home elevator. For 250kg capacity glass elevators, only about 0.9m² to 1.2m² is needed, which is extremely economical for houses with limited space.

• Pit: This refers to the depth of the floor, the area dug below the ground floor slab. An advantage of affordable home elevators, such as those with a 250kg capacity, is that they require a very shallow pit (only 100mm - 300mm), helping to avoid contact with the septic tank or the old foundation beams of the renovated house.

• Overhead (OH) height: This is the distance from the top floor to the machine room floor (or the top of the elevator shaft). This parameter helps you calculate whether the elevator will obstruct the roof or require the construction of an additional rooftop structure.

• Cabin size: This is the actual space you will be standing inside. We always optimize the design to make the cabin as wide as possible relative to the elevator shaft size, providing a spacious and airy feel.

Latest Price List for 250kg Capacity Home Elevators

To help you easily visualize and plan your finances, Nidec Elevators presents the price list for the most popular 250kg home elevator models:

Comparison of 200kg and 250kg Capacity Home Elevators

Although both belong to the same segmentThang Máy Mini However, there are subtle differences in specifications and user experience between the 200kg and 250kg models. Understanding these differences will help you optimize your space and investment budget.

Floor Plan of a 250kg Capacity Home Elevator and Cabin Dimensions

The technical floor plan of the pit and the dimensions and specifications of the standard cabin for glass-framed elevators are illustrated in the following slides.

Click left < or right > to view the image

❮ ❯

❮

❯

Home Elevator Installation Process at Nidec Elevators

At THANGMAYNIDEC, we implement a rigorous process to ensure that each home elevator is not just a means of transportation, but also a work of engineering that is absolutely safe.

Step 1: Survey & Soil Assessment: Engineers use laser surveying and foundation structure inspection to determine the optimal location for the elevator shaft, especially for renovated houses.

Step 2: Personalized Solution Consultation: Suggesting suitable technology (Nidec/Kinetec cable pulling, hydraulic, screw drive) based on the homeowner's budget and aesthetic preferences.

Step 3: Detailed technical drawing design: Provide precisely accurate elevator shaft drawings down to the millimeter and closely supervise the construction process to avoid errors and demolition.

Step 4: Standard Production & Installation: Custom cabin fabrication and installation using Nidec (Japan) components. Our team of experts adheres to Japanese standards, ensuring intelligent and durable operation.

Step 5: Independent safety inspection: Conduct rigorous load tests and submit the equipment to the relevant authorities for inspection and official operating license issuance.

Step 6: Handover & Lifetime Maintenance: Operational guidance, rescue services, and a commitment to 24/7 scheduled maintenance, ensuring peace of mind for your family throughout the entire usage period.
