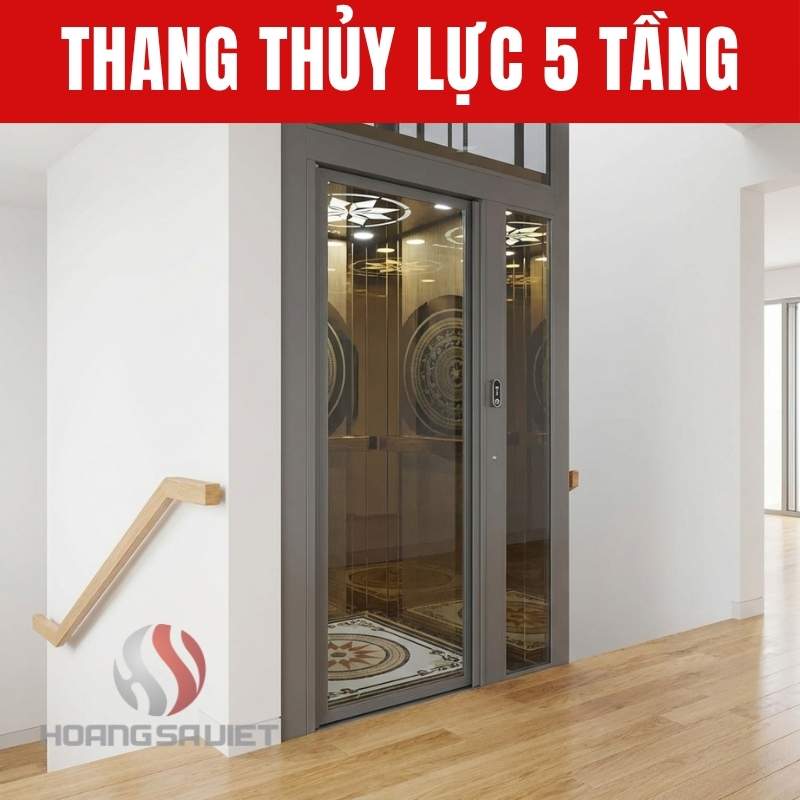

5-Story Hydraulic Elevator

The demand for installing 5-story hydraulic elevators is increasing in townhouses, villas, and modern residential buildings. With advantages such as smooth operation, space saving, and suitability for renovated homes, this type of elevator is becoming a popular choice for many families. However, many customers still have concerns about cost, size, safety, and practical installation feasibility. In this article, THANGMAYNIDEC will help you understand all the necessary information about hydraulic home elevators before installation.

How Does a 5-Story Hydraulic Elevator Work?

A 5-story hydraulic elevator is a modern type of elevator that uses a piston and hydraulic oil system to raise and lower the cabin instead of a cable and counterweight system like traditional elevators.

The structure of a hydraulic elevator includes main components such as: control cabinet, hydraulic cylinder, cabin, guide rails, landing doors, etc.

The main operating principle of a 5-story hydraulic elevator:

• As it ascends: The pump will pump hydraulic oil to create high pressure, pushing the oil into the cylinder system. The cylinders create pressure that pushes the piston upwards, thereby lifting the elevator cabin to move up to the next floor.

• When descending: Upon receiving the command to descend, the control system will slowly open the discharge valve. The cabin's gravity will force the oil back into the reservoir, allowing the cabin to descend very smoothly.

A 5-story hydraulic elevator is also commonly used for:

• Townhouses typically have 2 to 5 stories in height.

• Luxury villas and high-end residences require a high level of aesthetic appeal.

• The renovator wanted to add an elevator but space was limited.

• The building is suitable for the elderly, people with disabilities, or young children due to its absolute softness.

• The family includes elderly people, young children, or those sensitive to noise.

• The family prioritizes comfort, safety, and aesthetic appeal in interior design.

Should a 5-story house have a hydraulic elevator?

The answer depends on your needs; however, for a building with 5 floors, THANGMAYNIDEC recommends installing an elevator to optimize travel time between floors and save energy.

Before that, you may want to consider some of the advantages and disadvantages of hydraulic elevators below:

Advantages of a 5-Story Hydraulic Elevator

• Smooth and quiet operation with minimal vibration: Thanks to the hydraulic piston system, the elevator starts and stops at each floor extremely smoothly, with almost no motor noise like cable-driven elevators.

• No need for a large machine room: Maximizes overhead space (low overhead), ideal for buildings with height restrictions.

• Absolute safety in case of power outage: The elevator uses a mechanical release valve. If there is a sudden power outage, the cabin will automatically and safely descend slowly to the nearest floor.

• High aesthetic appeal: Often designed with glass walls (glass-enclosed elevators), creating a luxurious and sophisticated feel for the interior space.

Disadvantages of 5-Story Hydraulic Elevators

• High investment cost: Compared to joint-venture cable-driven elevators, hydraulic elevators are usually more expensive, especially the fully imported models.

• Slower speed: Hydraulic elevators typically operate at speeds of 0.3 - 0.6 m/s, slower than cable-driven elevators, but perfectly suitable for a 5-story house.

• Regular maintenance of the hydraulic system is necessary: ​​Leak checks and regular hydraulic fluid replacements are required to ensure smooth elevator operation and prevent grease odors.

• Risk of oil leaks: Some elevators may experience oil leaks after a period of use, which can cause environmental pollution and affect the daily lives of families.

• Noise from the pump: When the elevator is in operation, the pump will make noise to pump oil, and the pump is often located next to the elevator on the ground floor. Therefore, it will affect the family to some extent.

Detailed Price List for 5-Story Hydraulic Elevators

The cost of installing a hydraulic elevator for a 5-story building is one of the top concerns for customers. Below is a detailed price list for 5-story hydraulic elevators from THANGMAYNIDEC:

Price list for 5-story hydraulic elevators by load capacity from THANGMAYNIDEC

However, the price of a 5-story hydraulic elevator depends on factors such as: load capacity, number of stops, cabin material, origin, pit size, etc. If you would like to know the exact price suitable for your family's current situation, please contact our hotline: 0707.025.789 for the fastest assistance!

Standard Technical Specifications of a 5-Story Hydraulic Elevator

Hydraulic elevators are the ideal solution for buildings with 2 to 5 floors. Below are some basic technical specifications of hydraulic elevators:

Standard technical specifications for a 5-story hydraulic elevator.

If your home is a renovated house with limited space, you can consider a mini hydraulic elevator to optimize installation space.

Can a 5-story hydraulic elevator be installed in a renovated house?

The answer is absolutely yes. Below are some examples of hydraulic elevator installations for renovated houses that THANGMAYNIDEC has completed:

• Between the staircases: Trim the handrails, keep the steps, and place a glass elevator in the middle (atrium).

• Corner of the house / Next to the bathroom: Utilize the hidden corner space or remove unnecessary skylights.

• Outdoor glass roof: Suitable for houses with gardens or open exterior walls.

Advantages of hydraulic lifts for home renovations:

• Shallow pit: No fear of drilling into water pipes, septic tanks, or underground building foundations.

• Flexible construction: Using a prefabricated steel frame instead of brickwork allows for quick, clean, and efficient construction.

• Minimal structural impact: No need for an engine room on the roof, no heavy loads placed on the ceiling (because the load is concentrated at the bottom of the pit).

The process of surveying the old house before installation:

• Step 1: Measurement: Engineers measure the actual space and calculate the interior area.

• Step 2: Structural inspection: Assess the load-bearing capacity of the foundation and ceiling, and existing electrical wiring.

• Step 3: Consultation on options: Sketching 3D drawings, agreeing on the location and type of materials for constructing the pit (steel frame/aluminum/glass).

Installation Procedure for a 5-Story Hydraulic Elevator

Each elevator company may employ different installation techniques, but generally, a professional and safe elevator installation process will include the following basic steps:

• Step 1: Survey and consultation

THANGMAYNIDEC technicians will visit your location to take measurements and then provide the most suitable elevator solution for your family's needs.

• Step 2: Agree on a plan

Based on the actual data, we will discuss with you to finalize the products and construction materials, ensuring the highest efficiency based on the projected budget.

• Step 3: Design and prepare materials

The standard technical drawings will be completed within 5 days. The fabrication and material preparation will take an additional 20 days.

• Step 4: Construction and acceptance

The entire process, from elevator installation at the construction site to final acceptance, will be completed within 30 days.

• Step 5: Handover and instruction

After the handover, representatives from THANGMAYNIDEC will provide detailed instructions on safe elevator operation and thoroughly explain the procedures for handling emergencies.

Notes on Installing a 5-Story Hydraulic Elevator

When deciding to purchase a hydraulic elevator, you need to keep the following points in mind to ensure safe operation and avoid unwanted risks.

• Choose the appropriate load capacity : Based on the number of people using the elevator simultaneously in the household, select an elevator with a suitable load capacity.

• Prioritize reputable brands: Choose well-known brands in the hydraulic elevator sector. In Vietnam, it's advisable to select contractors with a clear track record of competence.

• Carefully review the warranty: Hydraulic lifts require piston maintenance and regular oil changes; choose a company with a 24/7 maintenance team.

• Don't choose just because it's cheap: Extremely cheap elevators often come with substandard components, operate noisily, and are prone to breakdowns.

• It is advisable to request an on-site survey: This will help avoid unnecessary demolition costs by providing accurate advice from a field engineer.

Comparison of Hydraulic Elevators and Cable-Driven Elevators

To help you get an overview and easily make the most suitable decision for your home, below is a detailed comparison table between the two most popular elevator types currently available, based on key criteria:

Comparison table of hydraulic elevators and cable-driven elevators.

A 5-story hydraulic elevator is a worthwhile solution for townhouses and villas that require smooth, safe, and space-optimized operation. If the right load capacity, the right contractor, and the appropriate configuration are chosen, this will be an investment that enhances long-term comfort for the family.
