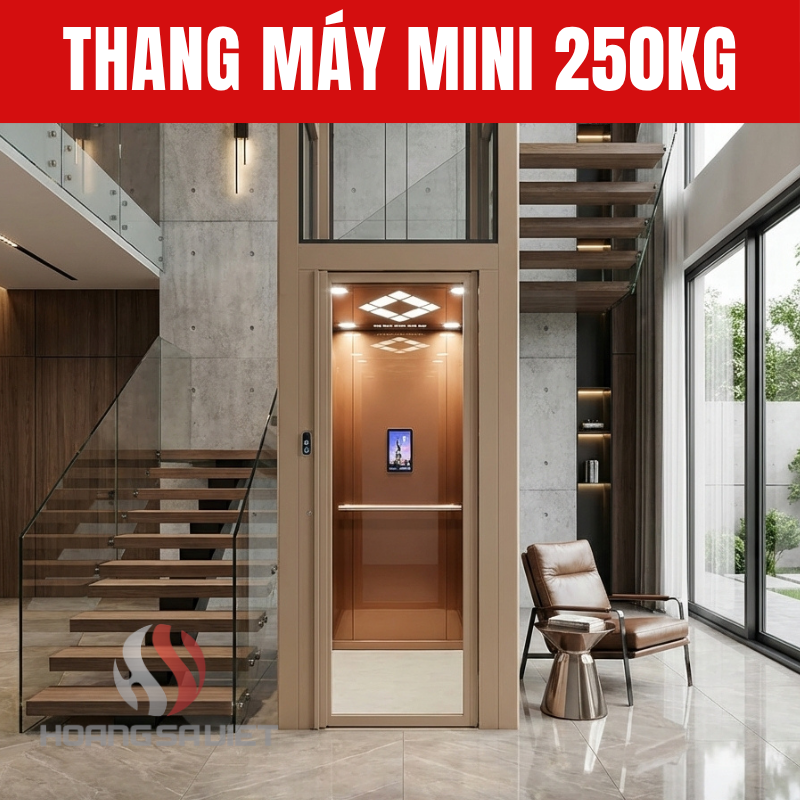

Mini Elevator (250kg)

Mini Elevator (250kg Capacity) - The Perfect Choice for Modern Families of 5-6 People

Are you debating between a 200kg and a 300kg elevator for your townhouse? The best option for a family of 5-6 people is usually a 250kg mini elevator . With a load capacity sufficient for 3-4 people at a time, a shaft size of only 1100 x 1300mm, and a cabin space of 800 x 850mm, it provides comfort and safety for both elderly people and young children.

However, what causes the most headaches for many families is the confusing price discrepancy: some places offer 280 million VND, while others quote 450 million VND, a surprisingly large difference. This article will break down each component of a standard 250kg mini elevator in detail, explain the price differences, and provide the most transparent price list from Hoang Sa Viet Elevator. You can also refer to our catalog of home elevators for comparison before making your final decision.

Why are 250kg capacity mini elevators the "gold standard" for Vietnamese townhouses?

In fact, after more than 10 years of surveying residential homes, we have found that most Vietnamese families fall into three scenarios for elevator usage:

• Scenario 1: A family of four, mostly traveling alone, at most two people at a time. A 200kg capacity is sufficient.

• Scenario 2: A family of 5-6 people (grandparents, parents, 2 children), with times when the whole family moves downstairs for meals, religious ceremonies, or entertaining guests. The 200kg model is too cramped, but the 350-450kg model is excessive, narrowing the staircase and adding 50-80 million VND to the cost. The 250kg model is the perfect fit.

• Scenario 3: Multigenerational household, with elderly people using standard wheelchairs, or frequently carrying bulky items (large suitcases, mattresses). A model with a capacity of 350-450kg or more should be considered.

The problem is that when you search for "how much does a 250kg elevator cost", you'll find dozens of different quotes. This isn't necessarily because the companies are overcharging, but rather due to the actual component configuration .

An elevator using a Fuji traction machine (2-year warranty) will be 10-20 million VND cheaper than one using a Kinetec machine (5-year warranty). Without carefully reading the materials list, homeowners can easily fall into the trap of comparing "total price" while overlooking "core quality".

Breaking Down the Standard Configuration of a 250kg Mini Ladder

To help you make an accurate assessment, I will analyze each component group of the Model N800 - the best-selling 250kg mini elevator at Hoang Sa Viet, based on the 2026 technical standard file.

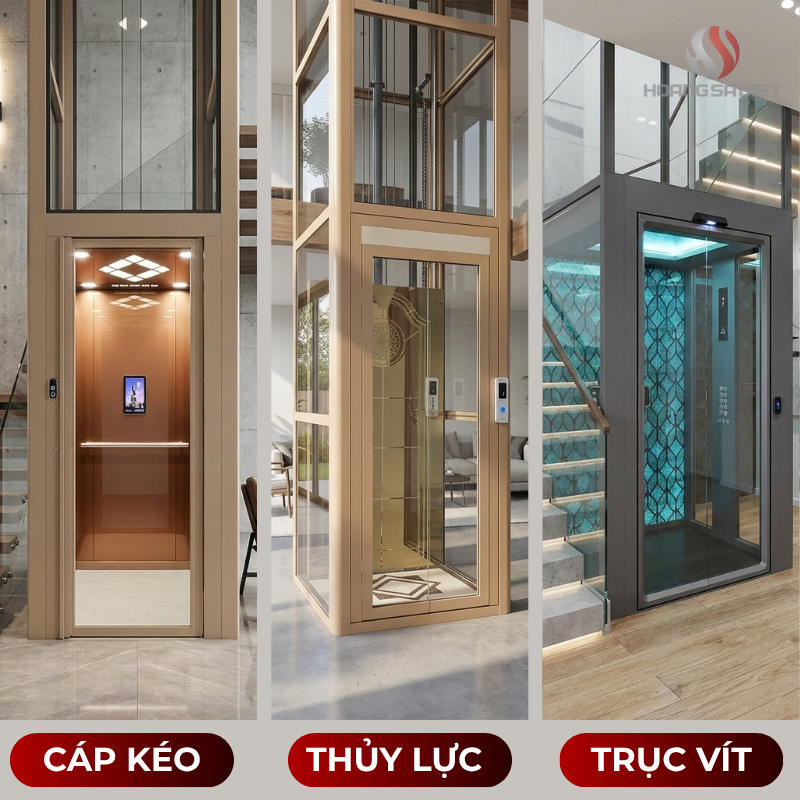

At Hoang Sa Viet, you can rest assured that you will receive comprehensive advice on all three types of technology, giving you an overview to choose the one that best suits your budget and personal needs. If you have free time, you can visit our showroom to see the different technologies firsthand, including their shapes and structures. However, this article will focus on the best-selling segment for analysis.

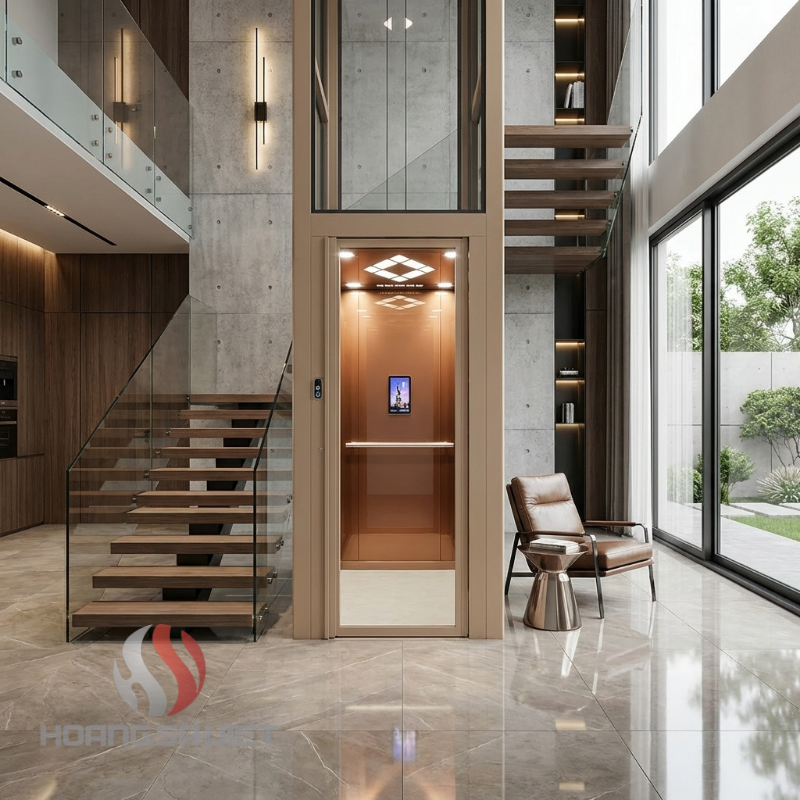

Cabin & Shaft Specifications - Compact but Not Cramped

• Clear opening dimensions of the elevator shaft: 1100 x 1300mm (In narrower renovated houses, it can be reduced to 1000 x 1200mm).

• Interior cabin dimensions: 800 (Width) x 850 (Depth) x 2000 (Height) mm.

• Door opening: 650mm (Manual hinged door) or 800mm (Double automatic sliding door).

• Maximum speed: 30m/min (Elevator with pit) - 24m/min (Elevator without pit).

The 800x850mm cabin (0.68m² floor area) meets practical safety standards and can withstand a load of up to 351kg. The 250kg rating is the manufacturer's way of ensuring the highest safety factor. Simply being about 5cm wider than the 200kg model provides enough interior space for one additional adult to stand comfortably.

Tractors - The Heart That Determines Smoothness and Longevity

This is a high-value component that determines whether the elevator will be smooth and durable after 15 years:

Recommendation: For long-term residential use, you should invest in Kinetec or Nidec. The difference of 10 million VND for an additional 5 years of warranty is incredibly cheap compared to the risk of having to replace the entire tractor (60-120 million VND) later.

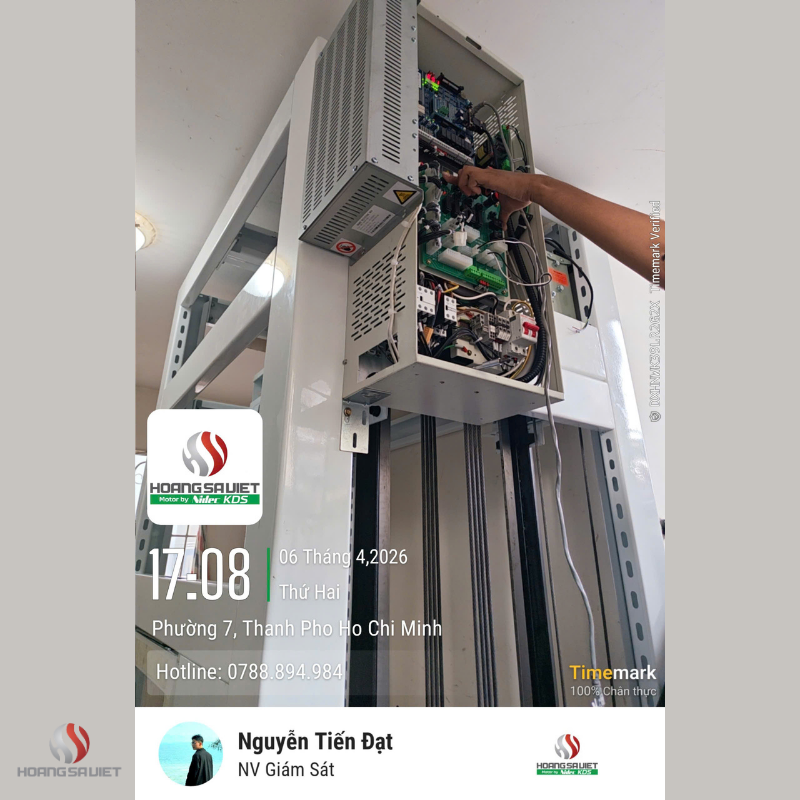

Power Saving Controller & Technology

The Kinetec 3.7KW central controller uses a 32-bit CAN bus data transmission protocol (Japanese technology, manufactured in China, imported with full CO/CQ certificates). Notably, the VVVF inverter system is extremely energy-efficient. The 2.7KW motor consumes only as much electricity as a single air conditioner. Monthly electricity costs for a 4-story elevator range from 150,000 VND to 250,000 VND . It supports single-phase 220V power (convenient for townhouses where three-phase power is not available).

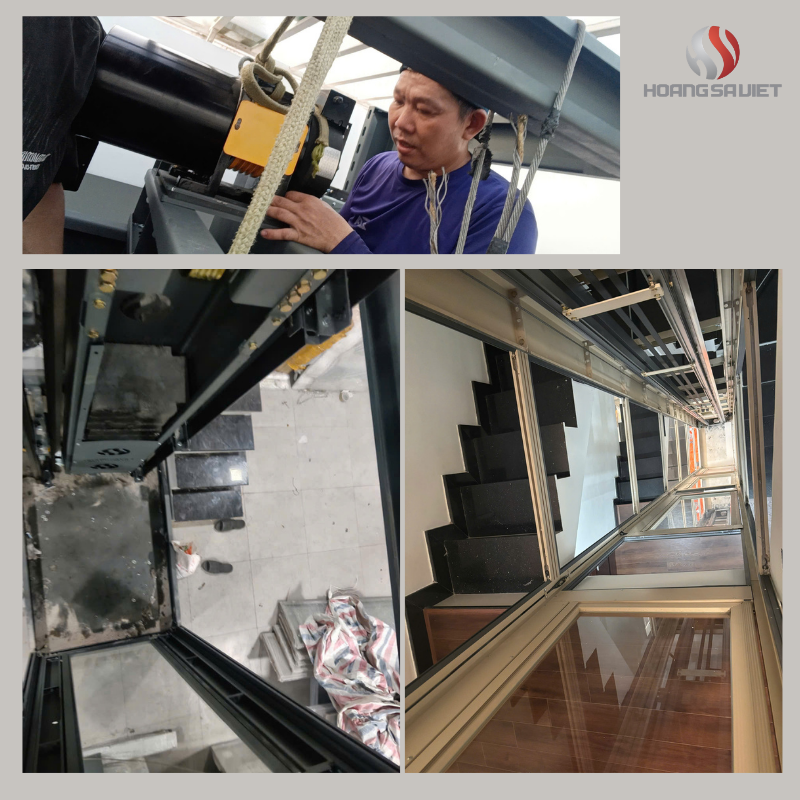

Cable Pulling System - Round Cable or Flat Cable?

• Standard round steel-core cable: 4 strands x 8x19(S)+FC (8mm), total breaking load 10.4 tons. This is still considered a traditional cable suitable for heavy loads. Hoang Sa Viet's engineering team will provide expert advice to help you choose the right cable to suit your needs and personalization. Traditional cables aren't necessarily inferior, and conversely, modern flat cables aren't always the best for users.

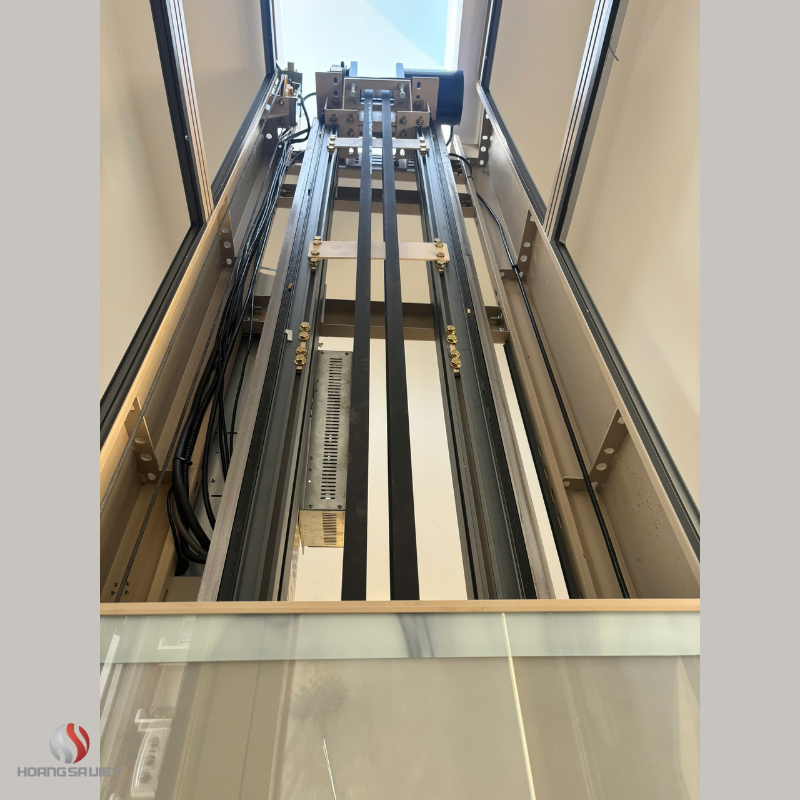

• Flat polyurethane-coated cable (Ultra-small shaft solution): 2 x 40mm, total load capacity 10 tons. Eliminates counterweight pulleys, allowing for a further reduction of 80-100mm in shaft width.

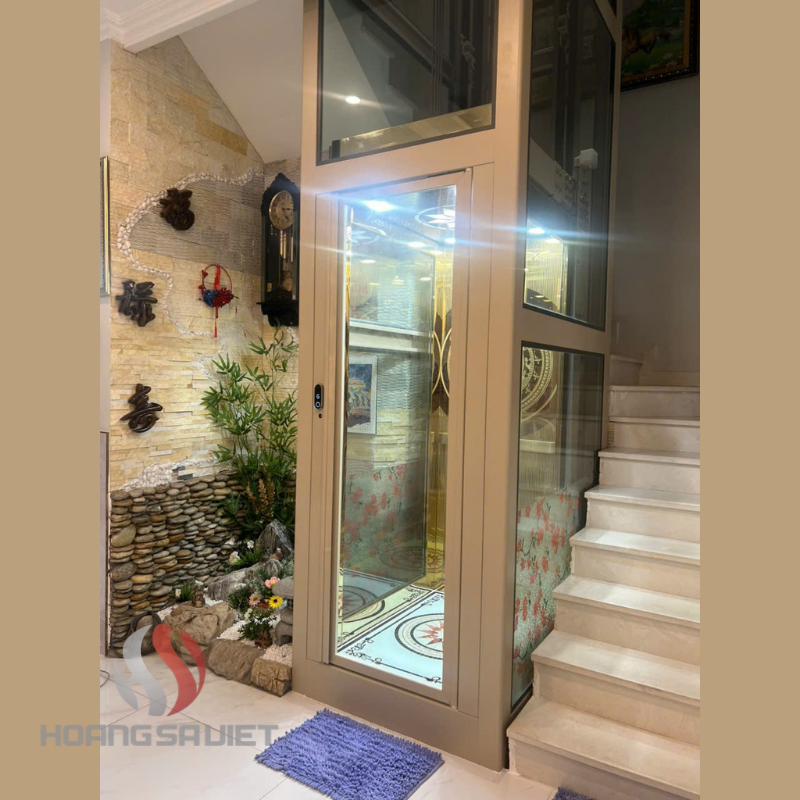

Staircase Frame & Wall Panels (Aesthetics)

• Load-bearing columns: T6061 aluminum alloy front (sturdy, with elegant JOTUN powder coating) combined with SS400 steel on the back to optimize costs while maintaining stability.

• Exterior cladding: 10mm tempered glass or 8.38mm double-layered laminated safety glass.

• Cabin walls (inside): A variety of options are available, from brushed 304 stainless steel and gold mirror stainless steel to tempered glass walls for maximum light transmission.

6 Mandatory Safety Features According to Certification Standards

1. Automatic Rescue System (ARD): Automatically discharges the battery, brings the elevator to the nearest floor, and opens the doors in the event of a sudden power outage.

2. Overspeed control device (Governor).

3. Safety brake: Immediately clamp the cabin to the guide rails if the cable malfunctions.

4. 94-beam photocell sensor: Provides absolute protection against door entrapment for children and pets.

5. The sensor indicates an overload.

6. Cross-locking system: The elevator will only operate when all doors are completely closed.

If the house renovation doesn't allow for a deep pit, you can consider pitless elevators with equivalent safety standards but using spring/rubber dampers.

Hoang Sa Viet Mini Elevator 250kg Price Quote - Transparent Pricing for Every Item

Below is an estimated cost for a Model N800 configuration, 3 stops, Kinetec WR-450 traction machine, hinged doors, and glass-walled cabin in Ho Chi Minh City:

(Note: The above price is for the elevator structure only and does not include the cost of constructing the steel frame and cladding the elevator shaft with glass. The shaft frame is usually calculated separately based on the actual height in meters of the building.)

Special Offer: This month, Hoang Sa Viet is offering a free upgrade package for its Bronze Drum Patterned Cabin (worth 10,000,000 VND) to the first 10 customers who finalize their contract , or receive 5,000,000 VND in cash for each successful referral of a relative or friend to have an elevator installed at Hoang Sa Viet.

To understand why joint venture elevators on the market are often priced at 450-550 million VND while Hoang Sa Viet offers significantly more competitive prices, please read our article on Elevator Platform Technology to learn how we master manufacturing technology and eliminate intermediaries.

Who Should Buy a Mini Elevator with a 250kg Load Capacity?

The 250kg capacity elevator series is designed for:

1. A family of 5-6 people, needing to travel 2-3 people per trip, occasionally 4 people.

2. Townhouses with elderly residents require elevators that operate smoothly and are absolutely safe.

3. Townhouses and terraced houses with 4-6 floors often have small land areas (40-80m²), and the goal is to optimize living space.

4. The investor preferred practicality: 20-year durability, standard components, and no extra cost for excessive load capacity.

(If your household only has 3-4 people, consider a 200kg elevator to save an additional 20-30 million VND).

Elevator Price List for House Renovations

Want a 100% accurate quote for your home's area? Use our automated " Quick Quote " tool. With just a few data entries, you'll receive the most optimal financial plan. Hoang Sa Viet guarantees 100% confidentiality of your personal information.

Watch the tutorial video below:

QUICK QUOTE

Automated Quotation Program

Vui lòng chọn sản phẩmHome ElevatorThang máy thủy lựcCargo ElevatorThang hỗ trợ người già, xe lănElevator ServicePassenger ElevatorHồ sơ nghiệm thu

Số lượng

Số lượng

THÔNG TIN KHÁCH HÀNG

Place of installation *

 Obligatory

Please choose locationHà NộiHồ Chí MinhPhú QuốcCần ThơĐà NẵngHải PhòngAn GiangBà Rịa - Vũng TàuBắc GiangBắc KạnBạc LiêuBắc NinhBến TreBình ĐịnhBình DươngBình PhướcBình ThuậnCà MauCao BằngĐắk LắkĐắk NôngĐiện BiênĐồng NaiĐồng ThápGia LaiHà GiangHà NamHà TĩnhHải DươngHậu GiangHòa BìnhHưng YênKhánh HòaKiên GiangKon TumLai ChâuLâm ĐồngLạng SơnLào CaiLong AnNam ĐịnhNghệ AnNinh BìnhNinh ThuậnPhú ThọPhú YênQuảng BìnhQuảng NamQuảng NgãiQuảng NinhQuảng TrịSóc TrăngSơn LaTây NinhThái BìnhThái NguyênThanh HóaThừa Thiên HuếTiền GiangTrà VinhTuyên QuangVĩnh LongVĩnh PhúcYên BáiCambodia

THÔNG TIN KHÁCH HÀNG

Customer name *

 Obligatory

Phone number *

 Obligatory

Email *

 Obligatory

Security code *

 Obligatory

(Click the image above to get the new code!)

(*) Required information

nhập lại Phát hành báo giá

Frequently Asked Questions (FAQs)

1. Does installing a 250kg elevator require demolishing the house to pour concrete columns? No. For renovated houses, we erect a super lightweight, super strong self-supporting steel/aluminum alloy frame structure. Only a 1100x1300mm section of the floor (the size of a small skylight) needs to be cut to install the elevator as a single unit, without affecting the house's foundation structure at all.

2. Are Kinetec motors "Chinese goods disguised as Japanese"? Kinetec is a Japanese brand and technology – a subsidiary of Nidec Japan, with assembly plants located in China to optimize costs (a global OEM model identical to Apple iPhone). The products are 100% officially imported, with complete customs documents (CO, CQ), meet ISO 9001:2015 standards, and have operated stably in thousands of projects in Vietnam.

3. How long does ordering and installation take? From the final design drawings to the delivery of materials to the construction site, it takes approximately 25-30 days. The installation, testing, and handover at your home only take 7-10 days.

4. What is the maintenance schedule after installation? Hoang Sa Viet offers 2 years of free maintenance (every 2 months). From the 3rd year onwards, the official maintenance package costs approximately 1.5 - 2 million VND/time (meaning only about 9-12 million VND/year to keep the elevator operating in the best condition). This figure may be lower because Japanese motor elevators don't require as much maintenance; the specifications provided by Nidec are standard, and Hoang Sa Viet will customize them to your needs.

Get a Price Quote and Custom Design Drawings for Your Home

Hoang Sa Viet's Model N800 250kg mini elevator is proof that you don't need to spend billions of dong to have a luxurious, safe elevator that meets state inspection standards and operates extremely smoothly.

Each house has a different number of floors, height, and unique characteristics. If you're overwhelmed by multiple price quotes, please leave your information. Our team of engineers will conduct a free on-site survey and create detailed drawings and cost estimates, down to the smallest detail, specifically for your house.

Special Offer: This month, Hoang Sa Viet is offering a free upgrade package for its Bronze Drum Patterned Cabin (worth 10,000,000 VND) to the first 10 customers who finalize their contract , or receive 5,000,000 VND in cash for each successful referral of a relative or friend to have an elevator installed at Hoang Sa Viet.

Contact us for free consultation & survey (nationwide):

• Hotline: 0707.025.789
• Email: hungpham@hoangsaviet.com
• See the complete catalog of 250kg mini elevators with the latest 2026 design options.

HEADQUARTERS - FACTORY

• HCMC: 184/20A Le Dinh Can Street, Tan Tao Ward, Binh Tan District, Ho Chi Minh City
• Hanoi: TN3-28 Thien Nga Street, Vinhome Co Loa, Hanoi
• Da Nang: No. 4 Huynh Thuc Khang Street, Block 4, Dien Ban Ward
• Aluminum Factory: Nguyen Huu Tri - Ben Luc, Long An
• Factory: E5/13 The Lu Street, Le Minh Xuan Ward, Binh Chanh District, Ho Chi Minh City
• Hanoi Warehouse: No. 229, Van Tri Street, Van Noi Ward, Dong Anh District

LIST OF BRANCHES

• Da Nang: No. 4 Huynh Thuc Khang Street, Block 4, Dien Ban Ward
• Hung Yen: Vinhomes Ocean Park 2, Nghia Tru, Van Giang
• Hai Phong: 1A/580 Ngo Gia Tu Street, Hai An Ward, Hai Phong City
• Phu Quoc: DT45, Duong Dong, Phu Quoc
• Gia Lai: 41D Mac Thi Buoi Street - Pleiku
• Kontum: 95 Huynh Dang Tho Street - Kon Tum City
• Daklak-Phu Yen: No. 10 E Nguyen Thi Dinh Street, Buon Ma Thuot Ward

Price List for Mini Elevators at Hoang Sa Viet

REFERENCE PRICE	ADVANTAGES & DISADVANTAGES
Backpack Elevator (200kg) Reference price: 250,000,000 VND Representative suppliers (Asia, Ymelift, GHT, Hoang Sa Viet)	Advantages: Inexpensive, quick installation, and portable. Suitable for micro-houses or renovated homes where conventional elevators cannot be installed. No pit required (or a shallow pit of 10cm). Minimum installation area: 0.8m² (800 x 1000mm) Disadvantages: No elevator shaft. Does not fully meet the criteria of an elevator according to Vietnamese standard TCVN. Advice from Hoang Sa Viet: Customers should only build a maximum of 2 floors for this product line. Children must be accompanied by an adult.
Home Elevator with Platform Lift Reference price: 341,000,000 VND Representative suppliers: (Cibes, Kalea, Hoang Sa Viet, Huy Hoang)	Advantages: Space-saving, aesthetically pleasing, and bright. Suitable for small houses or renovated houses where traditional elevators cannot be installed. No pit required (or a shallow pit of 10cm). Minimum installation area: 0.85m² (850 x 1000mm) Disadvantages: High price, slow speed: 15m/minute. Serves a maximum of 5 floors. No cabin or cabin door. Has not met inspection standards (has an inspection sticker).
Elevator with Manual Door Opening Reference price: 338,000,000 VND Representative suppliers (Cibes, Huy Hoang, Hoang Sa Viet, TPec, Gamalift, GHT)	Advantages: Low cost, more competition from multiple providers. Suitable for small houses or house renovations. No pit required (or a shallow pit of 10cm). Minimum installation area: 0.9m² (900 x 1000mm) Disadvantage: Manually operated landing doors don't look modern.
Automatic Door Elevator Reference price: 380,000,000 VND Representative suppliers (Cibes, Huy Hoang, Hoang Sa Viet, TPec, Gamalift, GHT)	Advantages: Optimized space. Suitable for small houses or renovated houses. Optimized cabin space for hinged doors. No pit required (or a shallow pit of 10cm). Minimum installation area: 1.2m² (1000 x 1200mm). Automatic, luxurious and high-class door. Disadvantage: Takes up a lot of space in the elevator hallway.
200kg Hydraulic Elevator Reference price: 375,000,000 VND Representative suppliers (Cibes, Kalea, Hoang Sa Viet, Funas)	Advantages: Hydraulic technology saves installation space. The lifting platform occupies up to 85% of the elevator shaft area. This product is suitable for families with small living spaces that lack the room for traditional elevators. Disadvantages: Hydraulic elevators are 50% slower than cable-driven elevators. They have limited capacity to transport large numbers of passengers. The maximum height of a hydraulic elevator is 13m (4 floors).
200kg Screw Machine Reference price: 650,000,000 VND Representative suppliers (Cibes, Kalea, Hoang Sa, Funas)	Advantages: Luxurious, classy, ​​unique. No pit required (or a shallow pit of 10cm). Minimum installation area: 1.44m² (1200 x 1200mm) Disadvantages: High price, not widely available, high cost of replacement parts.

Note: This price list applies to smaller elevator models. Larger models will have higher prices. Depending on the size of the elevator, choosing the appropriate elevator type and door opening style will help save costs...
