Price of Hydraulic Home Elevator (3 Stop Automatic Door)

In the modern context, hydraulic elevators for families are gradually becoming a popular choice for families who want to improve comfort and optimize living space. With sophisticated design and advanced technology, hydraulic elevators equipped with automatic 2-wing doors (hinged - swing type) are not only a means of transportation but also a luxurious interior highlight. The convenience of family elevators lies not only in the ability to save space but also in easy installation, no need for pits or machine rooms, especially suitable for renovation projects. Let's explore more deeply the benefits and outstanding features of hydraulic elevators through the article below.

Should I install a hydraulic elevator for a renovated or repaired house?

Usually, previously built houses will not have elevator shafts built according to standards such as:

• No Pit Digging
• Do not build a machine room
• OH height (top floor + Tum) is not large enough

Therefore, it is not possible to install traditional elevators or cable elevators. While screw elevators can be installed, screw elevators are not yet popular because they must be imported. Therefore, installing hydraulic elevators in renovated houses is becoming a reasonable choice for the following reasons:

• Cheaper hydraulic ladder price
• Hydraulic ladder maintenance costs are low

Therefore, the trend is due to its flexibility and space saving. With the ability to adapt well to existing housing structures, this type of hydraulic elevator does not require a deep pit or machine room, helping to minimize the cost and effort of renovation.

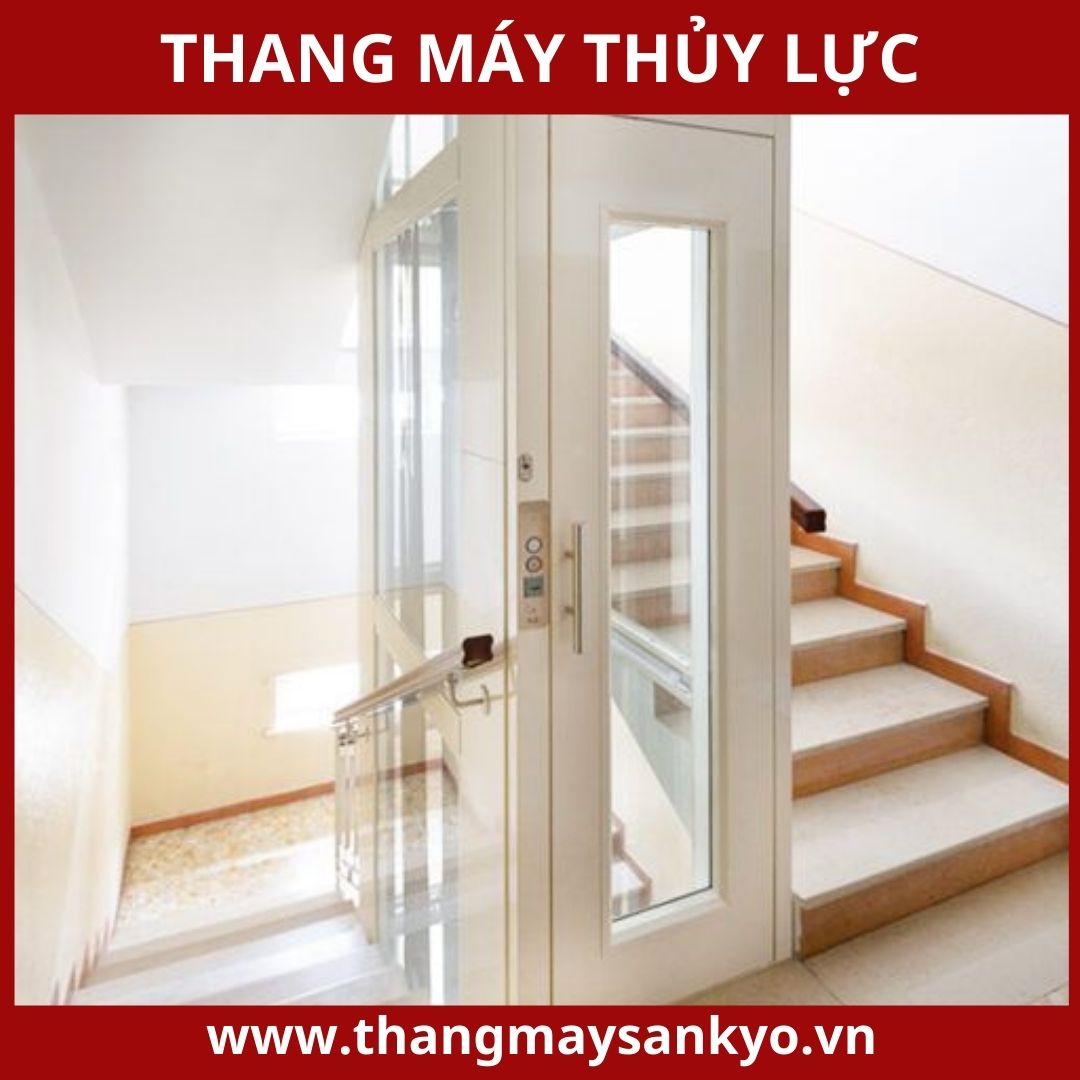

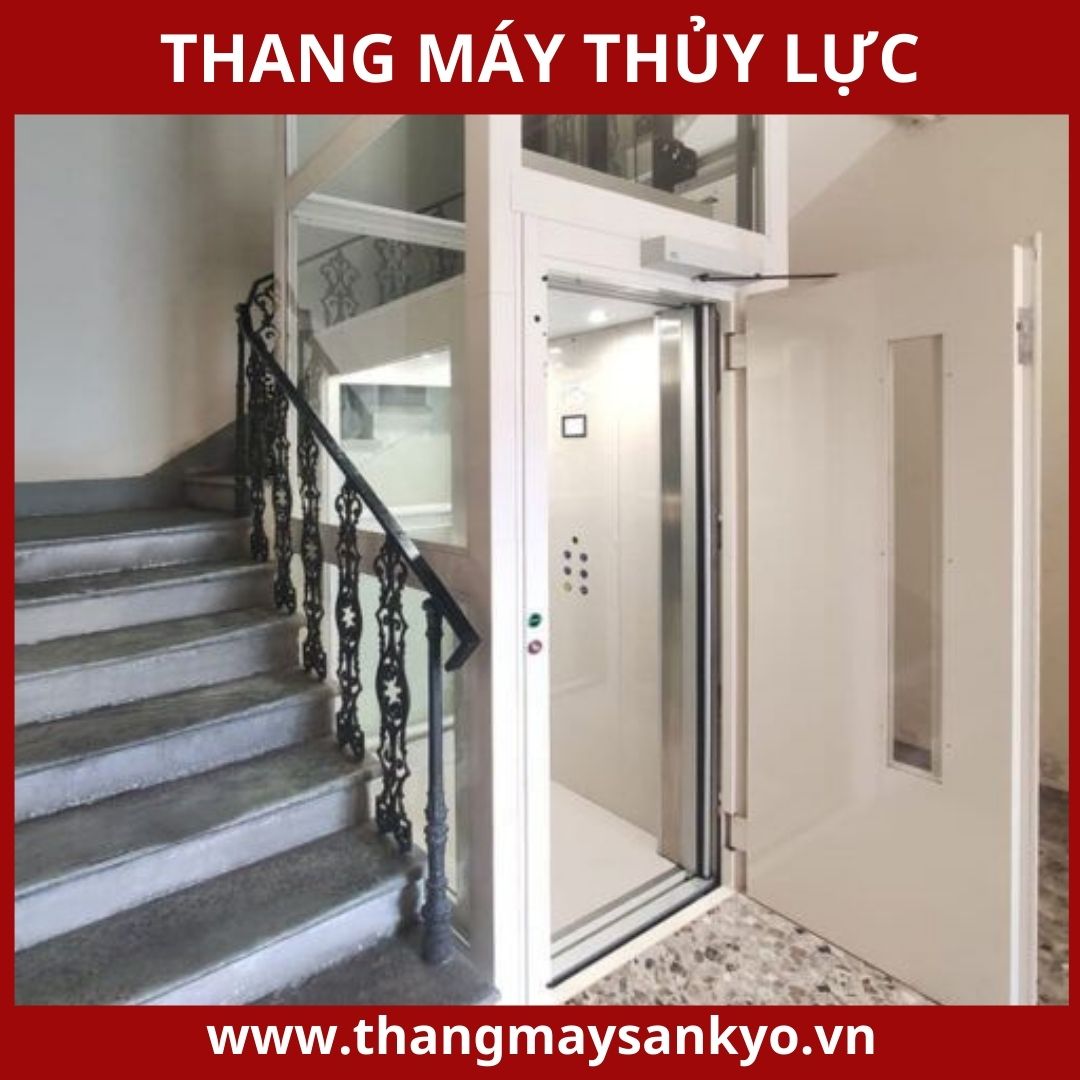

Advantages of installing hydraulic elevators for renovated houses

One of the outstanding advantages of pitless elevators is that there is no need to dig deep foundations, helping to protect the structure of the house. This is especially useful when renovating old houses or buildings with weak structures. In addition, with a compact design, mini elevators can be easily installed in limited spaces without losing the overall aesthetic.

Hydraulic elevators also provide smoother operation, less noise and are more energy efficient than traditional elevators. This helps create a more comfortable and convenient living environment for the family.

See More Featured Products At Sankyo:

Structure and operating principle of hydraulic ladder

Understanding the construction and operating principles of hydraulic elevators is key to assessing the suitability and efficiency of installation. These elevators operate on liquid pressure, providing high performance and good safety.

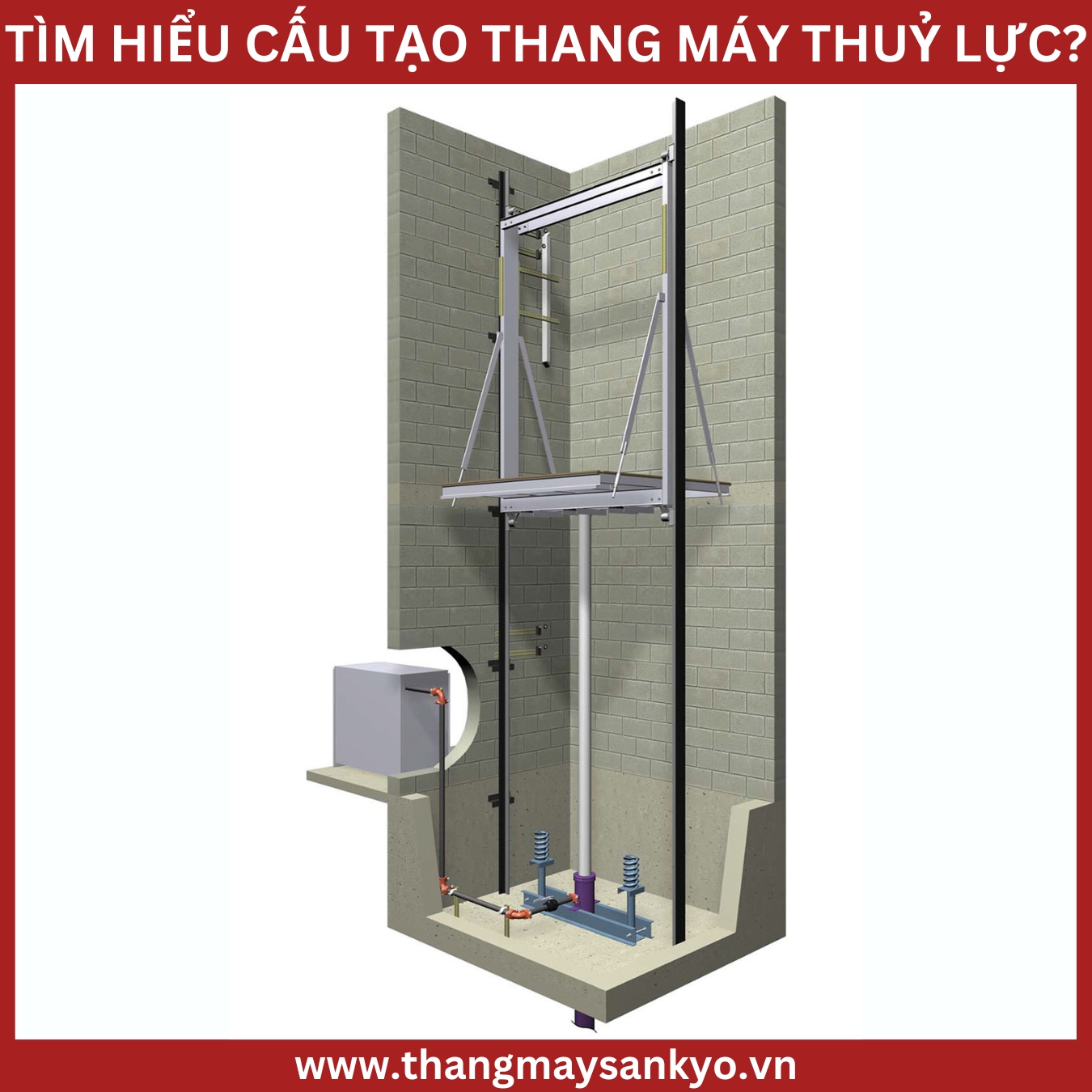

Structure of hydraulic elevator

Hydraulic elevators are made up of three main parts: hydraulic pump, cylinder and cabin. The hydraulic pump is responsible for pushing fluid into the cylinder, creating pressure to lift the cabin up and down. This system allows the elevator to move smoothly and stably, while minimizing wear on mechanical parts. The machine room-less elevator design also saves space and reduces installation costs. The intelligent control system ensures maximum safety for users, preventing dangerous situations during operation.

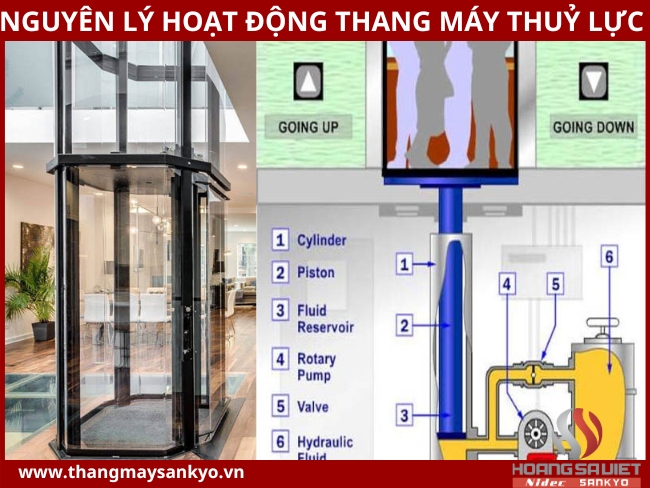

Working principle of hydraulic elevator

The working principle of a hydraulic elevator is based on the use of a pump to create liquid pressure, pushing the cylinder and lifting the cabin. When the elevator moves up, the pump pushes the liquid into the cylinder. Conversely, when moving down, the discharge valve opens to allow the liquid to return to the tank, allowing the cabin to lower by gravity.

Hydraulic elevators operate on Pascal's principle, a fundamental principle in fluid mechanics that greatly influences the design and operation of this elevator system. Pascal's principle states that when pressure is applied to a liquid in a closed container, that pressure will be transmitted evenly in all directions, regardless of direction and intensity. It is this principle that allows hydraulic elevators to use the pressure of oil or other liquids to control the movement of the piston in the cylinder, thereby raising and lowering the elevator cabin easily and effectively. When oil is pumped into the cylinder, the pressure increases and creates a strong thrust, causing the piston to move and the elevator cabin is raised. When the pressure decreases, the oil is released and the piston is lowered, returning the elevator cabin to its original position. Pascal's principle not only helps hydraulic elevators operate smoothly, but also ensures safety and stability during operation, making elevators an ideal choice for construction projects, especially those with limited space. Below are the steps of hydraulic elevator operation:

Elevator cabin lift

Hydraulic elevators operate thanks to a series of mechanisms and devices that work closely together to ensure smooth and efficient operation. First, the electric motor will activate the pump, which is responsible for pumping oil from the oil tank into the hydraulic system. This pump draws oil from the tank and transfers it to the hydraulic cylinder. As the oil is pumped into the cylinder, the pressure in the cylinder will gradually increase, creating a strong thrust. This force causes the piston to move upwards. This piston is connected to the elevator cabin via steel cables, so when the piston moves up, the elevator cabin will also move. This process helps the elevator cabin to lift to the desired floors, bringing convenience and efficiency to the user. Thanks to the combination of electric motor, pump, and hydraulic system, hydraulic elevators not only operate powerfully but also ensure stability and safety throughout the movement of the cabin.

This system is not only efficient but also ensures high safety thanks to the automatic stop mechanism in case of problems. Flexibility in design also allows hydraulic elevators to be widely used in many types of constructions, from residential to commercial buildings.

Advantages and disadvantages of hydraulic elevators

Choosing a hydraulic elevator comes with certain advantages and disadvantages. Understanding these features helps users make the most appropriate decision for their home.

Advantages of hydraulic elevators

Hydraulic elevators stand out for their smooth operation. In particular, they do not require a deep pit, which saves on construction and maintenance costs. In addition, the flexibility in design and size makes them easy to integrate into small spaces without losing aesthetics. Hydraulic technology also ensures high safety thanks to the automatic anti-fall system and the ability to stop in an emergency when necessary. This makes hydraulic elevators the top choice for families concerned with safety and convenience.

Disadvantages of hydraulic elevators

Despite its many advantages, hydraulic elevators also have certain limitations. That is, the moving speed of hydraulic elevators is often slower, not suitable for high-rise buildings that require high speed. In addition, the requirement for periodic maintenance is also a factor to note, because the hydraulic system needs to be regularly inspected and maintained to ensure stable and safe operation. However, with the support of reputable installation units, these disadvantages can be effectively overcome.

How much does a home hydraulic elevator cost?

The cost of installing a home hydraulic elevator depends on many factors such as size, design and accompanying features. Understanding these factors will help you budget more accurately for your project. The price of a hydraulic elevator depends on the following factors:

• Number of stops
• Elevator pit size
• Door opening type (automatic or manual)
• Pit frame types (concrete, steel & aluminum glass walls)

Factors affecting the price of hydraulic elevators

The price of mini elevators can vary significantly based on factors such as brand, quality of materials and technology used. Elevators with special designs or equipped with advanced safety features often cost more. In addition, installation and maintenance costs are also factors to consider. Choosing a reputable supplier, such as SANKYO ELEVATOR, will help you optimize costs while still ensuring quality and safety for users. Below is a price list for your reference of some hydraulic elevator models:

• Number of floors and stops: The number of floors and stops of the elevator is an important factor affecting the design, structure and cost of installing a home elevator. Specifically, the number of floors in the house will determine the number of stops of the elevator , because each floor requires separate details and components, such as elevator doors, floor control systems, and corresponding safety sensors. These factors not only increase the complexity of the installation process but also increase the cost of investing in the elevator. Therefore, the choice of the number of floors and stops needs to be carefully considered, ensuring that it is suitable for actual usage needs as well as financial capacity, while optimizing the efficiency of space use and increasing the comfort of the house.

• Elevator load: Elevator load is an important factor to consider when choosing an elevator for the family, because it determines the carrying capacity and directly affects the installation cost. Depending on the size and design, hydraulic elevators have many different load levels to meet the needs of use. For example, an elevator with a load of 275kg can carry 2-3 people per trip, suitable for small families or limited space. Meanwhile, elevators with a larger load, such as 450kg, can carry up to 6 people per trip, meeting the needs of large families or large houses. However, the higher the load, the more materials and supporting equipment are needed, leading to an increase in initial investment costs. Therefore, the choice of elevator load should be based on actual needs and financial capacity, to ensure long-term efficiency.

• Travel speed: The travel speed of the elevator is an important factor that not only affects the user experience but also directly affects the installation and operating costs. Elevators with fast travel speeds often require high precision in design and engineering, from motor calibration, control systems to braking and safety mechanisms. This is to ensure stable performance, avoid vibration and maintain durability for the entire system. However, achieving high speeds requires the use of high-quality equipment and more advanced technology, leading to a significant increase in initial investment costs. Therefore, when choosing the travel speed for the elevator, it is necessary to carefully consider the actual usage needs, installation space and budget to ensure comprehensive efficiency.

• Cabin model and interior: Cabin model and interior are important factors that not only determine aesthetics but also significantly affect the cost of elevator installation . Choosing a cabin from a reputable brand such as Mitsubishi or Hitachi ensures quality and durability, but also means that the price will be higher. In addition, the diverse cabin designs from modern to classic help match the overall design style of the house. The interior of the cabin also plays a role in creating highlights, from decorative LED lighting systems that create harmonious lighting, to high-end materials such as stone or stainless steel, all of which contribute to enhancing aesthetic value and user experience. The combination of these factors will directly affect the final price, so it is necessary to consider carefully to both meet the needs of use and fit the expected budget.

Tips when choosing a home hydraulic elevator

When choosing to buy a home hydraulic elevator , carefully consider your needs and budget. Contact experts to get advice on the design that suits your living space, as well as the necessary feature options. Make sure you choose a reputable supplier with good after-sales service to ensure the elevator always operates stably and safely. Investing properly in a hydraulic elevator not only increases the value of the house but also brings comfort and safety to every member of the family.

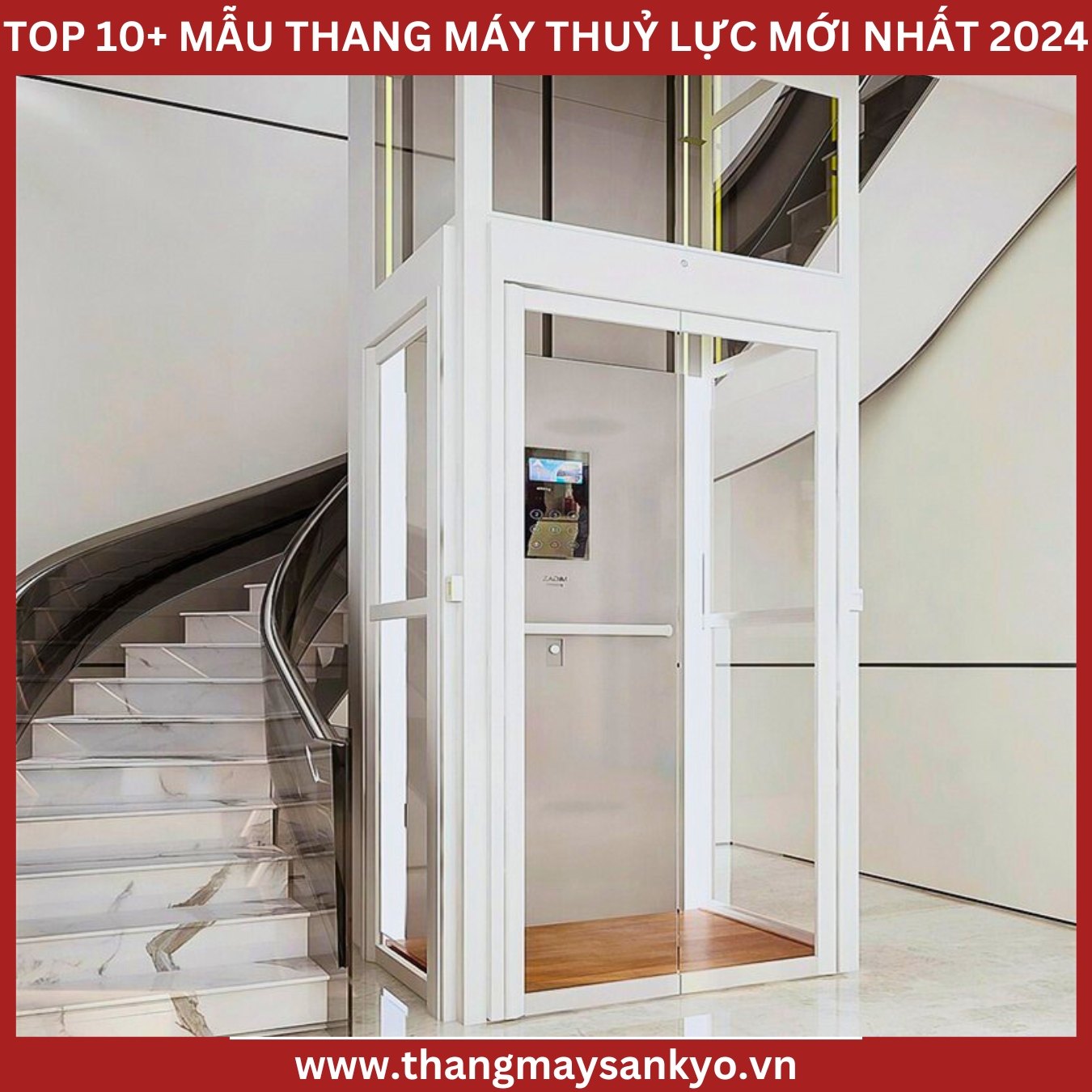

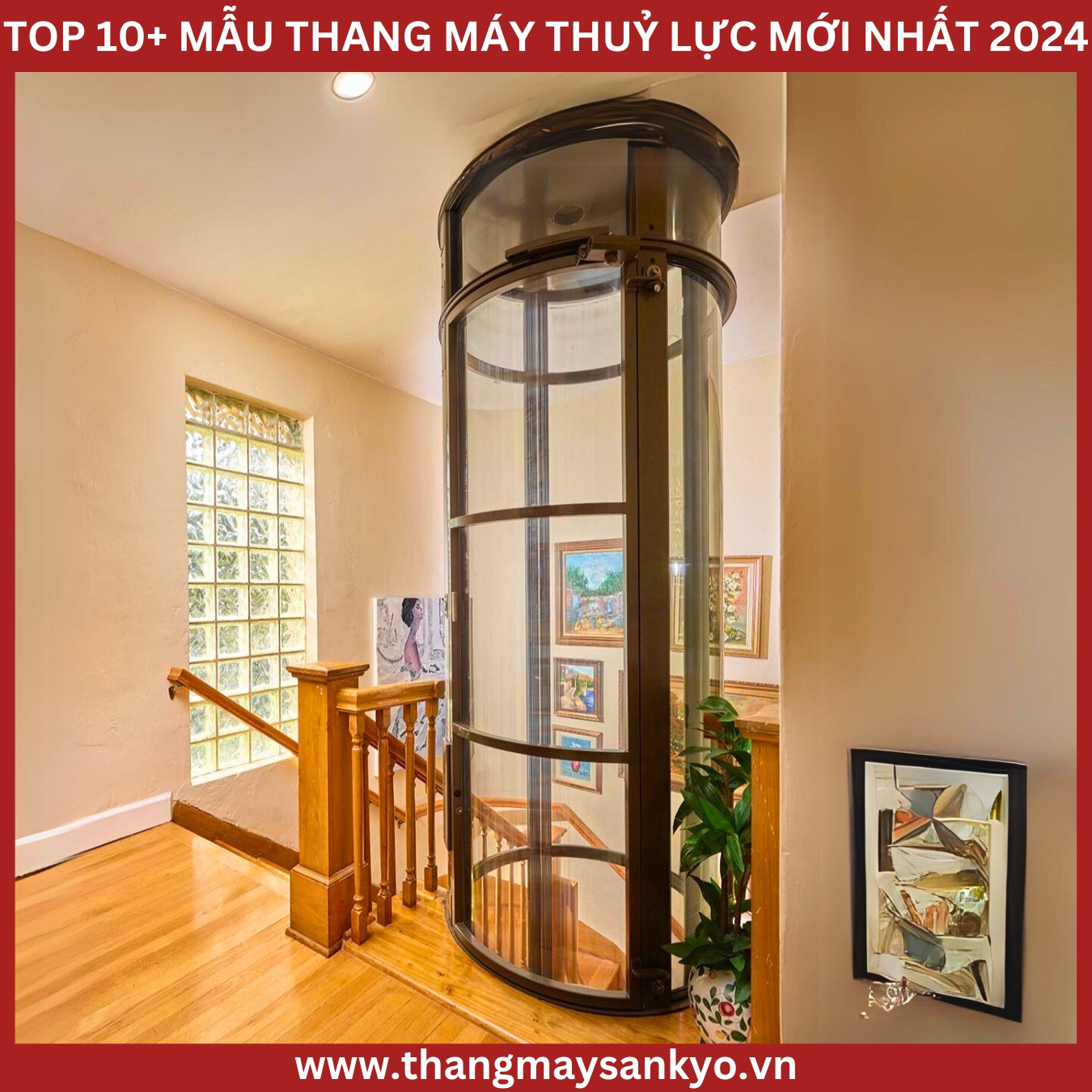

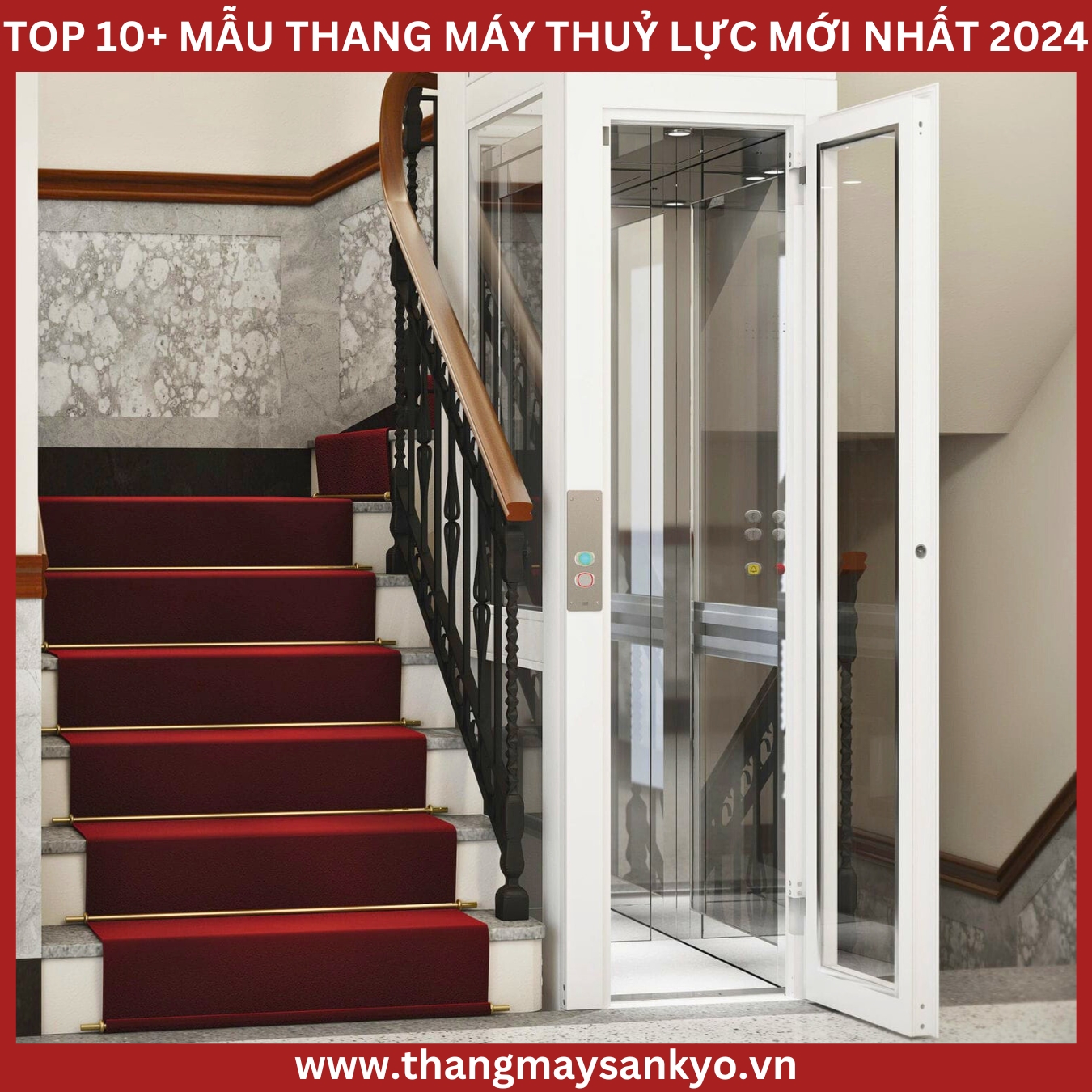

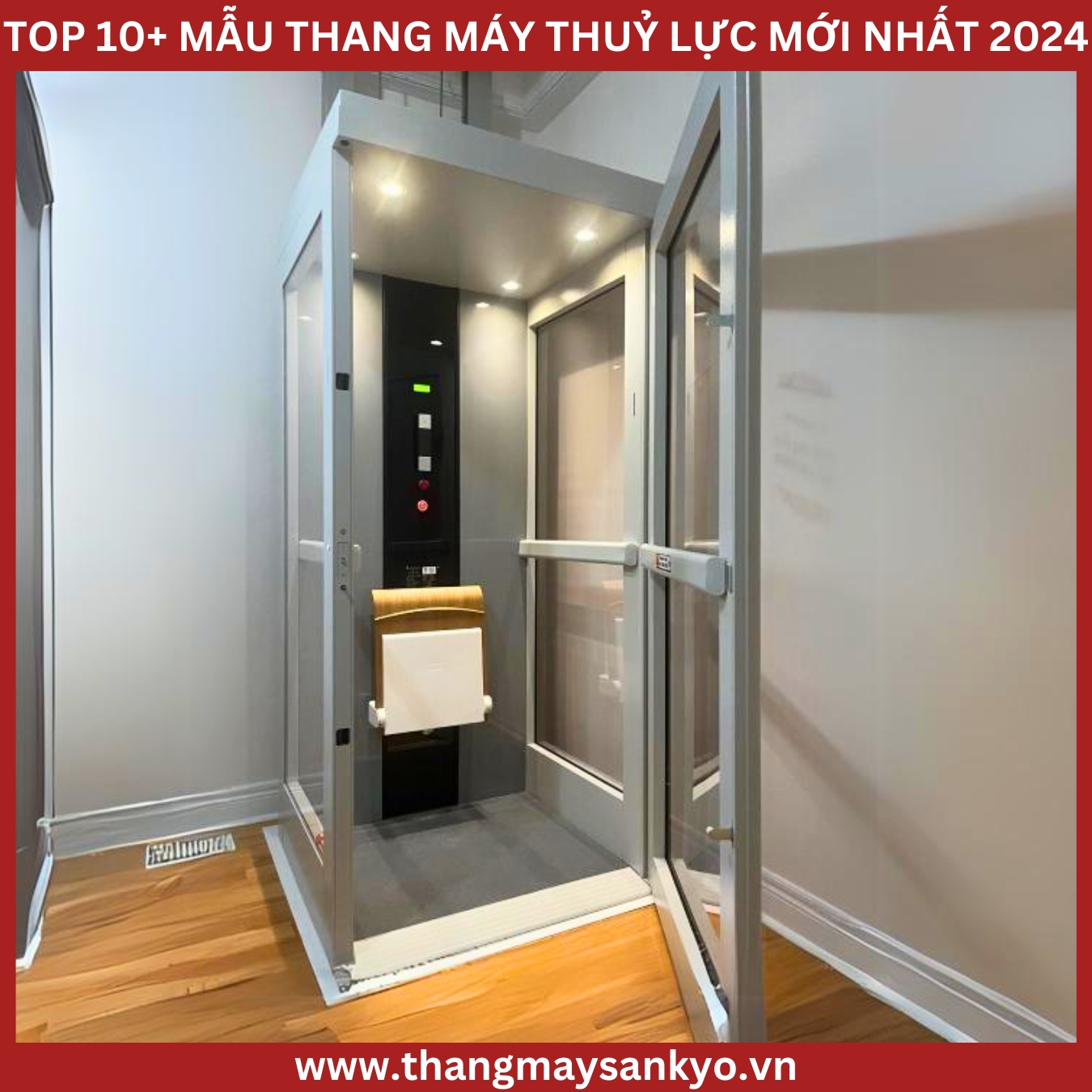

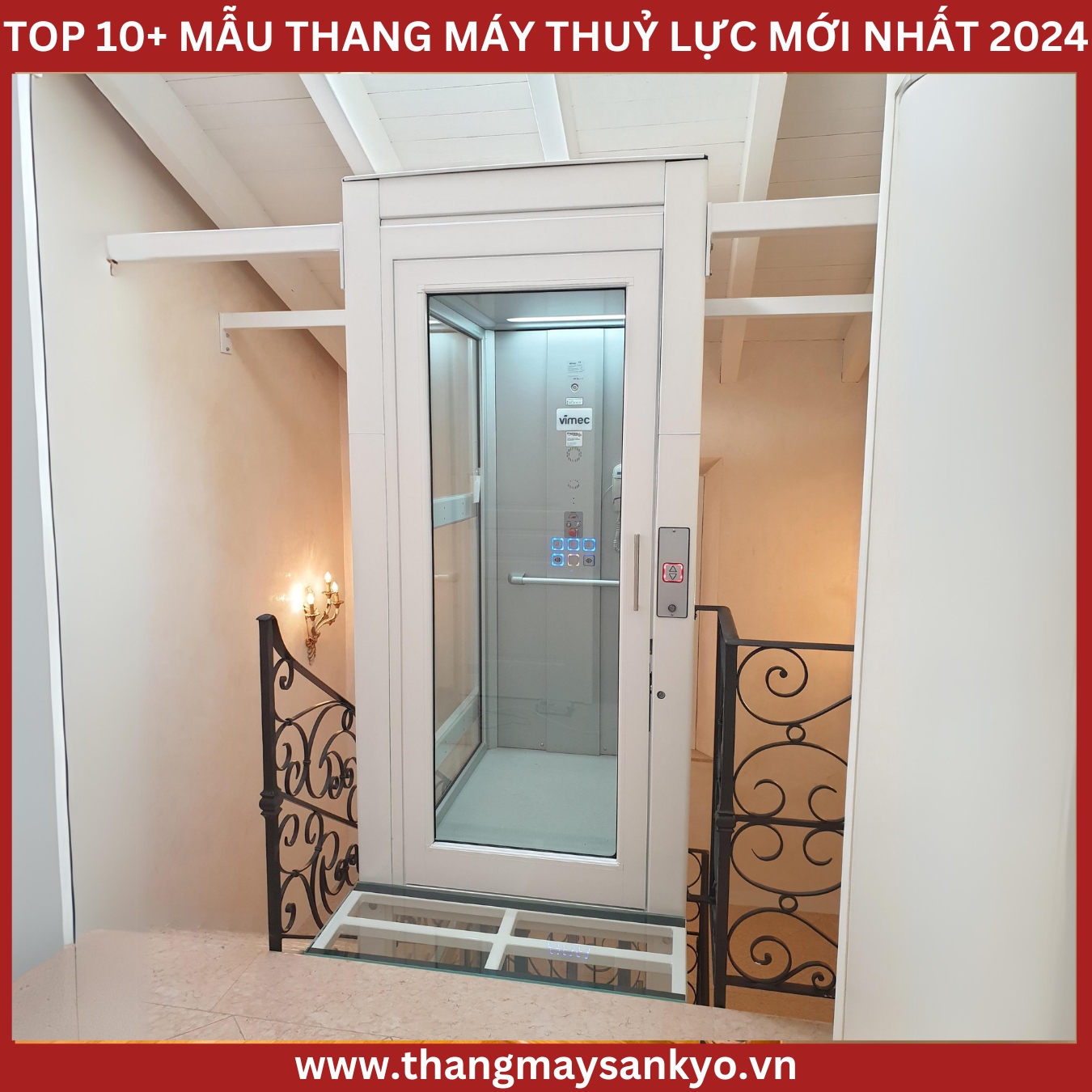

Top 10+ latest beautiful hydraulic elevator models 2025

In 2024, the design trend of hydraulic elevators is towards modernity and sophistication, creating highlights for living spaces. Below are beautiful and impressive hydraulic elevator models that you should not miss.

Outstanding hydraulic elevator models

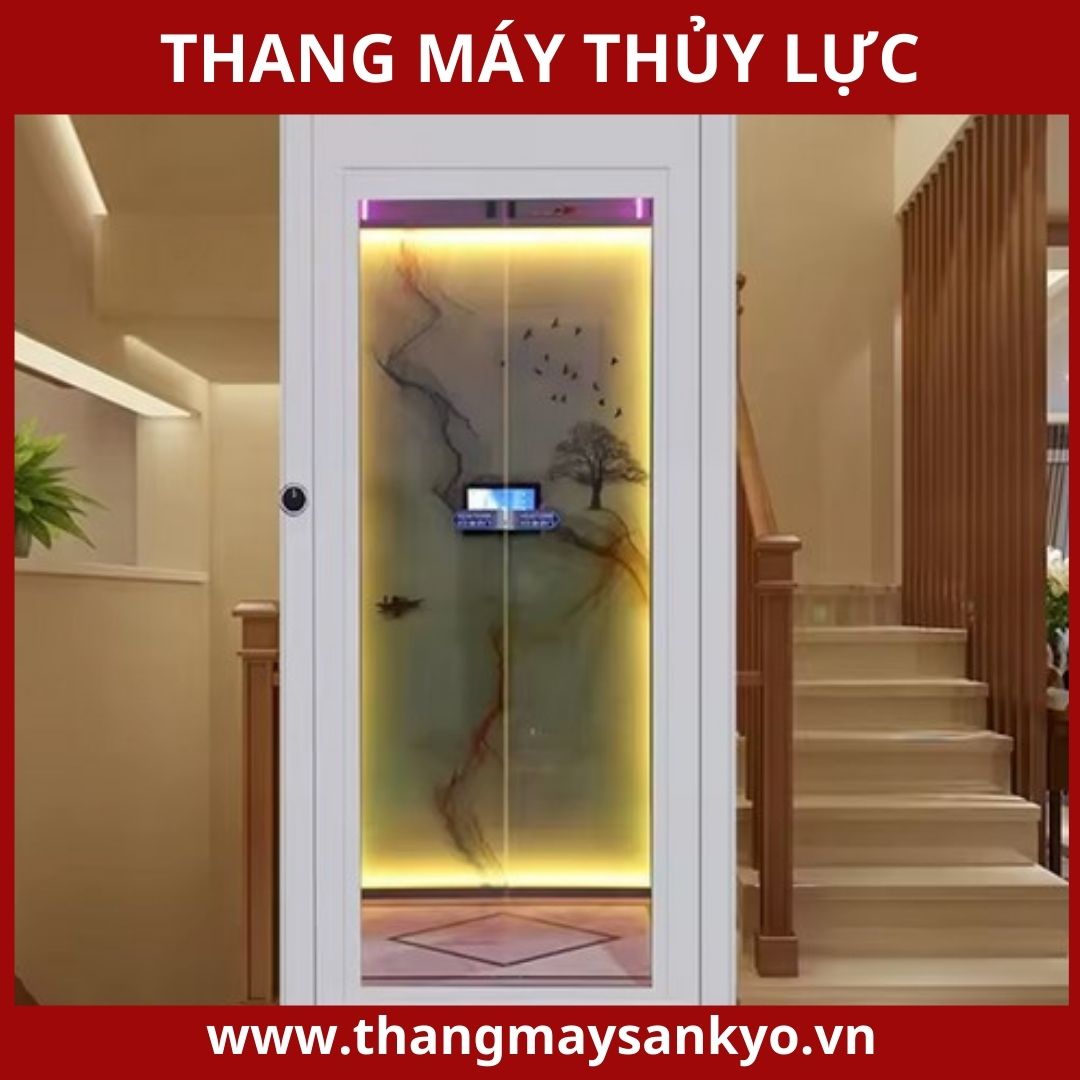

Pitless elevator models with transparent glass designs are becoming a trend thanks to their ability to expand space and create a sense of openness. In addition, elevator models with integrated LED lights and luxurious interiors are also favored by many families.

Designs with high-quality materials such as stainless steel or natural wood combined with smart control technology bring harmony between aesthetics and functionality. This is the perfect choice for those who want to affirm their style and aesthetic taste.

Choosing the right elevator model

Choosing the right hydraulic elevator model is not only based on aesthetics but also needs to consider the suitability for space and usage needs. Consider factors such as area, load and safety when choosing an elevator model for your family.

Contact SANKYO ELEVATOR experts for advice and support in choosing the most suitable elevator model for your home. With experience and professionalism, they will help you find the best solution for your living space.

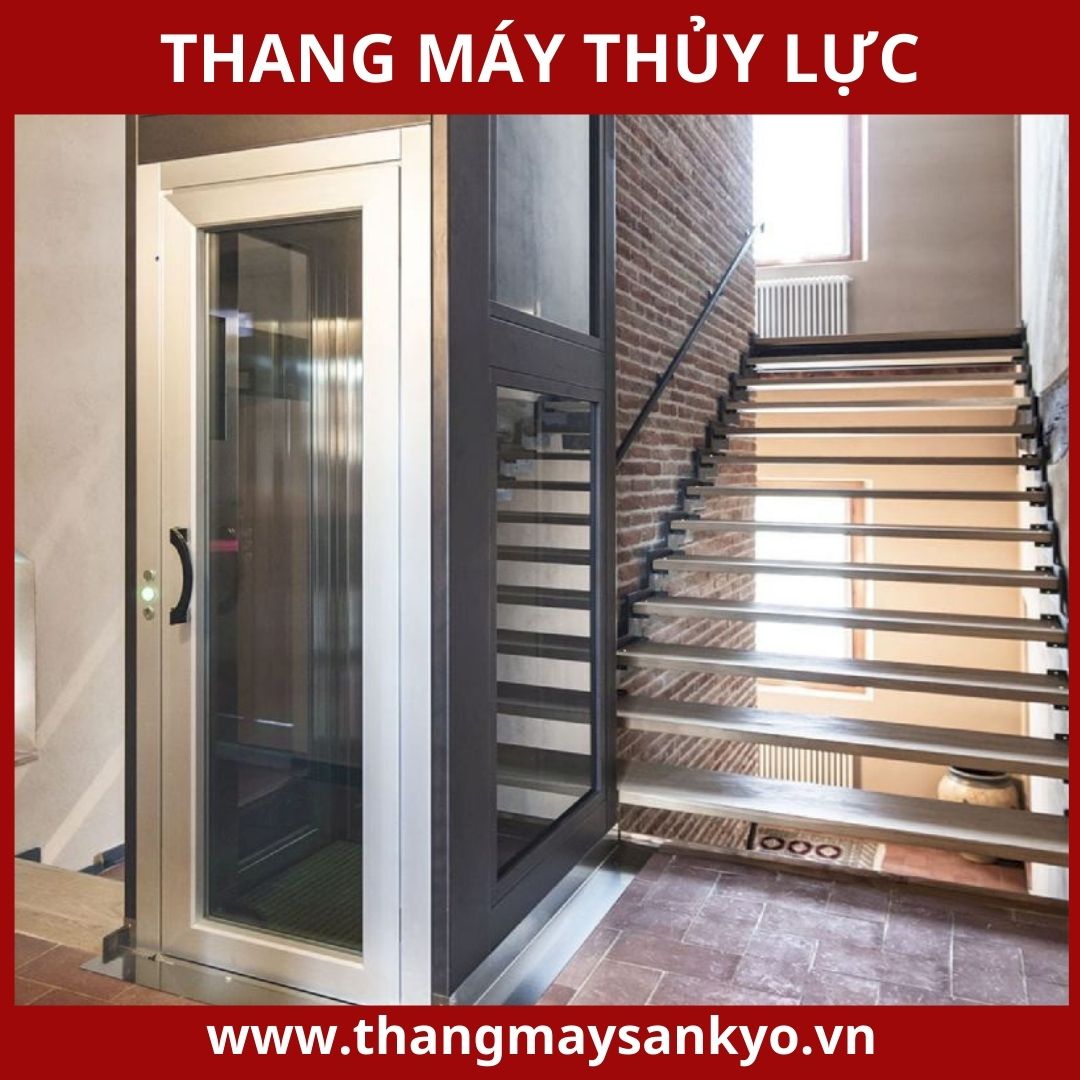

Prestigious and quality hydraulic elevator installation unit

Choosing the right hydraulic elevator installation unit is the key factor to ensure quality and safety. SANKYO ELEVATOR Elevator is proud to be the leading elevator service provider in Vietnam, committed to bringing the best products and services to customers.

Benefits of choosing SANKYO ELEVATOR

SANKYO ELEVATOR not only provides high quality home elevator products but also has a team of experienced technicians, always ready to support customers from consulting, installation to maintenance. With a wide distribution network, you can easily access quality services everywhere.

SANKYO ELEVATOR's commitment is to bring maximum satisfaction to customers through products and services that meet international standards. For more information, please visit our website thangmaysankyo.vn or contact us via hotline 0707.025.789.

See More Featured Products At Sankyo:

Professional installation and maintenance process

SANKYO ELEVATOR applies professional hydraulic elevator installation and maintenance procedures , ensuring that every step is carried out carefully and accurately. The team of technicians will carefully check every detail, from design, installation to test operation.

With regular maintenance policy and 24/7 technical support, SANKYO ELEVATOR ensures your elevator always operates stably and safely. Customer satisfaction is the driving force for us to constantly improve and enhance service quality.

Detailed price list of 3-4 floor hydraulic elevators

STT	Product Name	Category	Detail	Unit	Quantity	Parameter	Image	Code/TL/KL
1	Hydraulic elevator	BASIC INFORMATION		Sankyo Elevator	1	Code: Sankyo-400HL-HNP Maximum load: 400kg Brand: HSV- Sankyo Elevator Place of manufacture: Vietnam Speed: 24m/min Control system: Sankyo HDC250 Pit: Not required		Code:1 TL:0 KL:0
		PRODUCT DESCRIPTION		Set	1	Name: Mini hydraulic elevator without pit Other names: Hydraulic elevator Transmission type: Hydraulic Pit Frame: Concrete or aluminum frame with glass wall *** ADVANTAGES *** - Hydraulic technology saves installation space. The lifting table area is up to 85% of the elevator pit area. - Just 1 square 800*800mm is enough to install the elevator. - This product is suitable for families with small areas. - Not enough space to install traditional elevators. - Suitable as a highlight for the house thanks to the LED lighting system in the cabin. *** DISADVANTAGES - The speed of the hydraulic elevator is slow. The maximum speed is only 70% of the speed of a traditional elevator. - Limits the ability to transport a large number of passengers. The maximum height of the hydraulic elevator is 18m (6 floors)		Code: 200 TL: 300 KL: 10
		TRANSMISSION		Set	1	- Engine code: Tuhe- HD35KW - Engine capacity: 3.5KW - Brand: Tuhe - Cylinder parameters: φ70x3500MM - GR28 2V 4CC valve system		Code:1 TL:1 KL:0
		CABIN SPECIFICATIONS		Set	1	Door width: 650-700mm Door width can be adjusted to the most optimal level according to actual conditions. Decoration: LED border Control panel: LED screen Floor call board: LED screen Cabin ceiling: Decorative LED lights Cabin floor: PVC plastic & carpet		Code:1 TL:0 KL:0
		FLOOR DOOR SET
			Automatic 2-wing floor door	Set	3	Model: AT200SW Type: 2-Wing Auto Swing Door Description: Glass door product combined with automatic hydraulic transmission system. Assembly unit: Hoang Sa Viet Nidec Sankyo Origin: Vietnam Application: Family elevator with elevator shaft width W<1200mm		Code:120 TL:90 KL:0.6
		LADDER FRAME & WALL	Cross beam (aluminum profile)	Meter	34.2	Structure: High hardness aluminum profile Type: 6061-T6 Dimensions: C80*80*30mm Length: According to design Weight: 2.617kg/m Surface protection: Powder coating Color: Optional Processing : Hoang Sa Viet Sankyo		Code:134 TL:89.5014 KL:3.42
			Vertical column (aluminum profile)	Meter	46.4	Structure: High hardness aluminum profile Type: 6061-T6 Dimensions: C100*100*30mm Length: According to design Weight: 4.0kg/m Surface protection: Powder coating Color: Optional Processing : Hoang Sa Viet Sankyo		Code:296 TL:185.6 KL:9.28
			Tempered glass wall	M2	34.2	Create a highlight for the project. Enhance the light for the house. 10mm thick tempered glass		Code:273 TL:684 KL:6.84
		INSPECTION & DELIVERY		Time	1	Inspection according to regulations of competent authority. Work performed 1. Load inspection 2. Safety function inspection 3. Cleaning and handover		Code:350 TL:0 KL:0
		MAINTENANCE & WARRANTY		Year	1	24-month warranty, 12-month maintenance. If you need to sign an additional maintenance contract after the warranty expires, the annual cost is 6,000,000 VND/Year		Code:900 TL:1 KL:1
MATERIAL PRICES		Component value				402,981,213 VND
TOTAL						402,981,213 VND
		SHIPPING COSTS				9,342,000 VND		Ho Chi Minh
		INSTALLATION COSTS				48,357,746 VND		Ho Chi Minh
TOTAL EXCLUDING VAT						460,680,959 VND		1351.1014 KG 31.14 CBM
