Elevator Aluminum Frame for Sale

Choosing the right type of frame for elevator installation is a major concern for many people today. Selecting an unsuitable frame can negatively impact the aesthetics and stability of the finished elevator. This article, brought to you by Hoang Sa Viet Elevator, explores what an aluminum elevator frame is, its structure, and the advantages of using this type of frame in elevator installation.

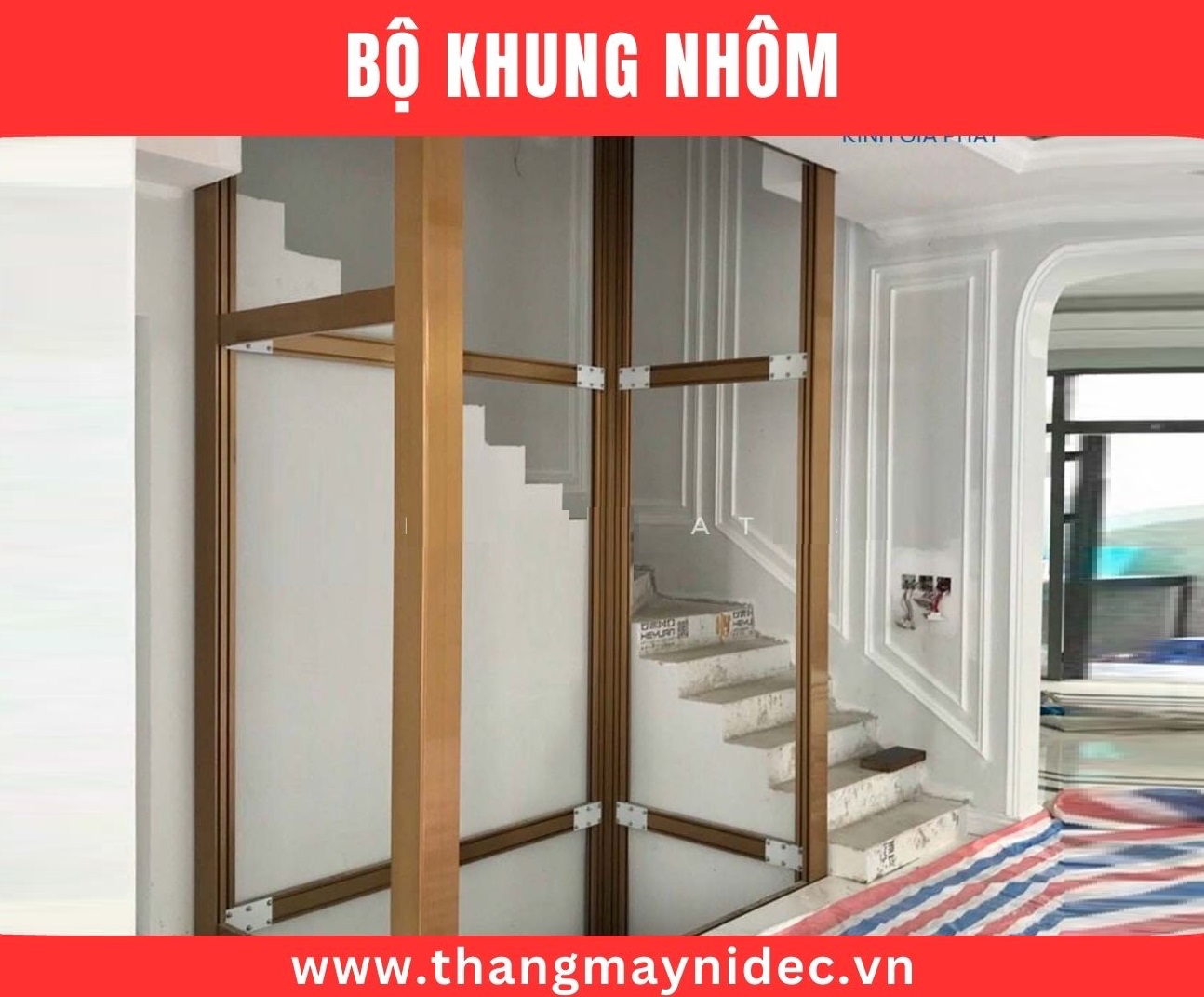

What is an aluminum elevator frame?

Aluminum elevator frames are widely used in home elevators installed in villas, townhouses, and other residential buildings due to their superior load-bearing capacity, high aesthetic appeal, and smooth, luxurious colors.

Structure of an aluminum elevator frame

The aluminum elevator frame consists of three core components:

• Cabin frame: This is the main load-bearing component, supporting the entire weight of the equipment and directly affecting safety and smooth operation. Therefore, the materials used to construct the cabin frame always require superior strength, along with resistance to oxidation and rust over time.
• The door frame: This is the outer door frame system, fixed at each stop (floor). When operating in conjunction with the cabin door, the door frame forms a protective barrier, ensuring absolute safety for passengers. Currently, door frames are divided into two types: wide-frame frames (covering the entire dimensions of the elevator shaft facade) and narrow-frame frames (more compact dimensions).
• The suspension frame: The suspension frame is usually designed in a U-shape, playing a supporting role in construction and maintenance, making it easier and safer to lift and lower heavy materials (such as machine bases, guide rails, and floor door sets) into the machine room.

Thanks to its superior technical characteristics, aluminum elevator frame solutions are now widely used, from residential buildings such as townhouses and villas to large-scale projects such as office buildings, shopping malls, hotels, and hospitals.

Advantages of installing aluminum elevator frames

• Aesthetics: The aluminum surface, using advanced technology, is scratch-resistant and maintains its color well, offering a wide range of luxurious color options, far superior to steel or concrete.
• Optimized elevator space: The aluminum frame is ultra-thin at only 30mm, saving maximum space compared to steel frames (50-100mm) or reinforced concrete shafts (150-220mm). This feature makes the aluminum frame the perfect solution for buildings with limited space or houses undergoing renovations to add elevators.
• Fast and clean construction: The entire aluminum frame is precisely fabricated at the factory, and upon arrival at the construction site, it only needs to be assembled and connected with bolts, resulting in absolutely no dust, smoke, or loud noise. The construction process is extremely quick and efficient, averaging only 2-3 days for a 5-stop frame system.
• Price of aluminum-framed glass elevators: The cost of complete installation will vary depending on factors such as: elevator shaft dimensions, load capacity, number of floors, and type of elevator (residential, commercial, etc.).
